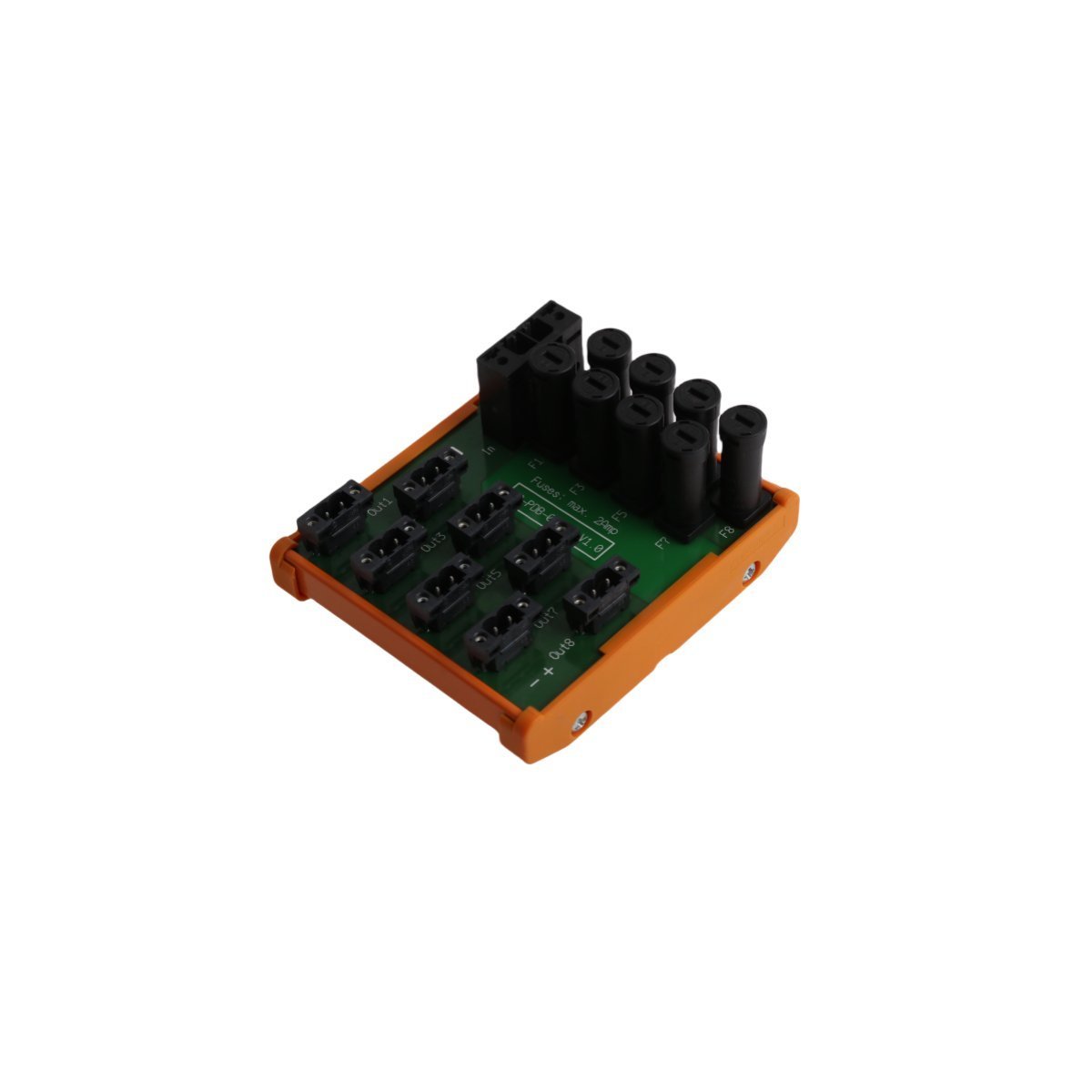

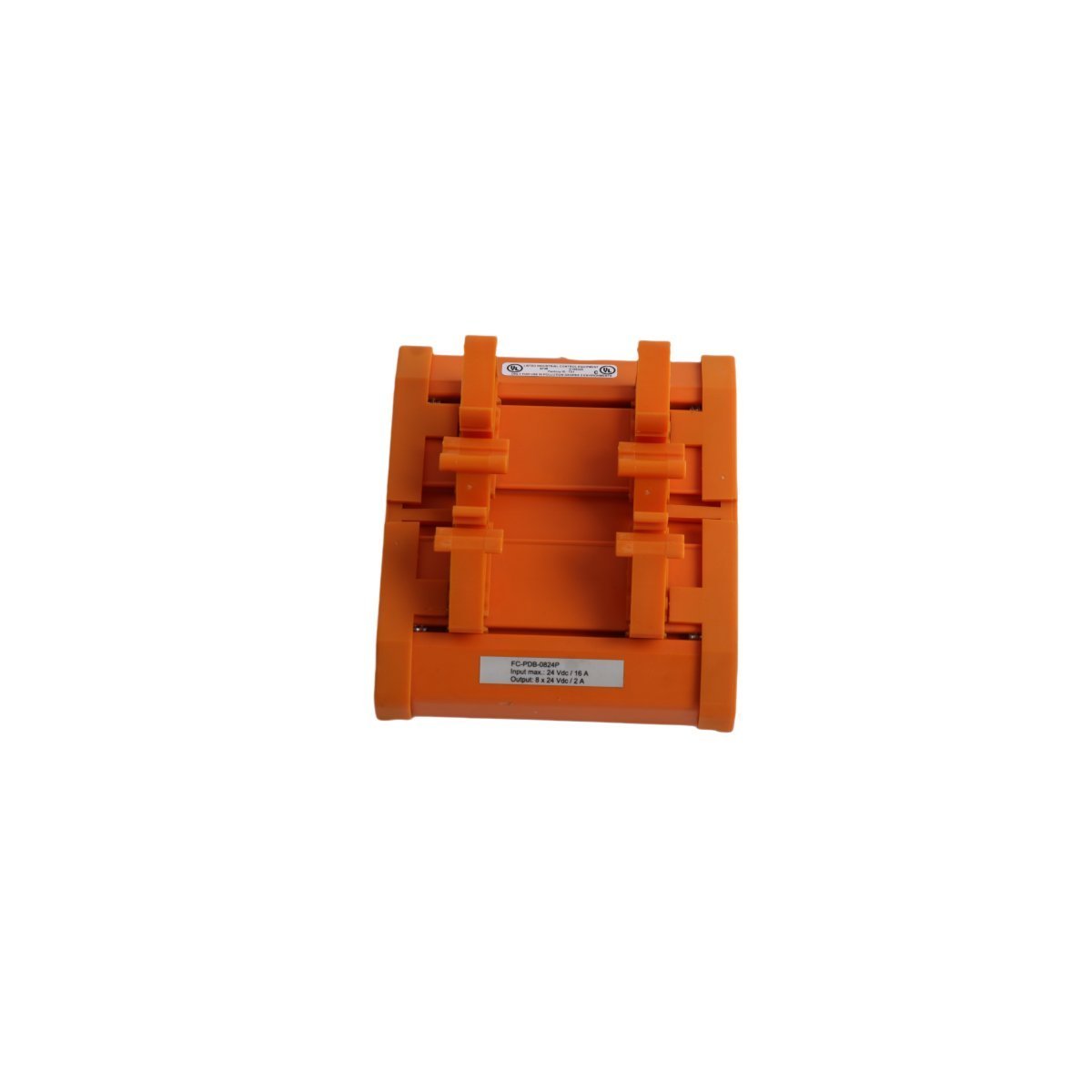

Product Overview

The Honeywell FC-PDB-0824 is a high-reliability Power Distribution Board (PDB) engineered for precision machine control and safety manager infrastructures. This 8-channel module acts as a centralized power management hub, directing stable electrical feeds to various sub-components within a Distributed Control System (DCS). Designed to maintain voltage consistency and prevent localized electrical faults from cascading through the safety network, the FC-PDB-0824 is essential for high-availability environments. Its architecture is optimized to minimize electromagnetic interference while ensuring that critical logic solvers and field interfaces receive a regulated power supply, thereby safeguarding the integrity of the entire automated process.

Hardware Architecture and Electrical Benchmarks

The FC-PDB-0824 is built with a focus on industrial durability, featuring a compact form factor that allows for high-density installation within standard control cabinets.

• Distribution Capacity: 8-Channel independent power routing

• System Ecosystem: Honeywell Safety Manager and Machine Control Systems

• Circuit Protection: Integrated fused protection per channel to isolate downstream faults

• Input/Output Monitoring: Real-time voltage stabilization and status feedback for connected hardware

• Construction: Ruggedized multi-layer PCB designed for high-vibration industrial settings

• Installation: Low-profile footprint for simplified rail or carrier mounting

• Efficiency: High-performance E-3 power flow management to reduce thermal dissipation

• Physical Weight: 0.18 kg

• Module Proportions: 10.7 x 9.2 x 7.2 cm

• Manufacturing Origin: USA

• Customs Header: HS Code 8537101190

Industrial Deployment and System Utility

This machine control distribution board is a fundamental component for facilities requiring deterministic power delivery for safety-instrumented functions.

• Automated Safety Interlocks: Providing distributed power to solenoid valves and safety relays in emergency shutdown (ESD) systems.

• Refining Process Stability: Managing electrical feeds for remote I/O modules in petrochemical facilities to prevent nuisance trips caused by voltage fluctuations.

• Manufacturing Line Integration: Serving as the primary power distribution point for localized machine control sensors and actuator clusters.

• Energy Infrastructure Management: Ensuring a steady supply of power to communication gateways and logic controllers in utility-scale power generation.

• DCS Maintenance and Spares: Acting as a direct, brand-new replacement for aging distribution panels to restore factory-standard power reliability and safety certification.
