Product Overview

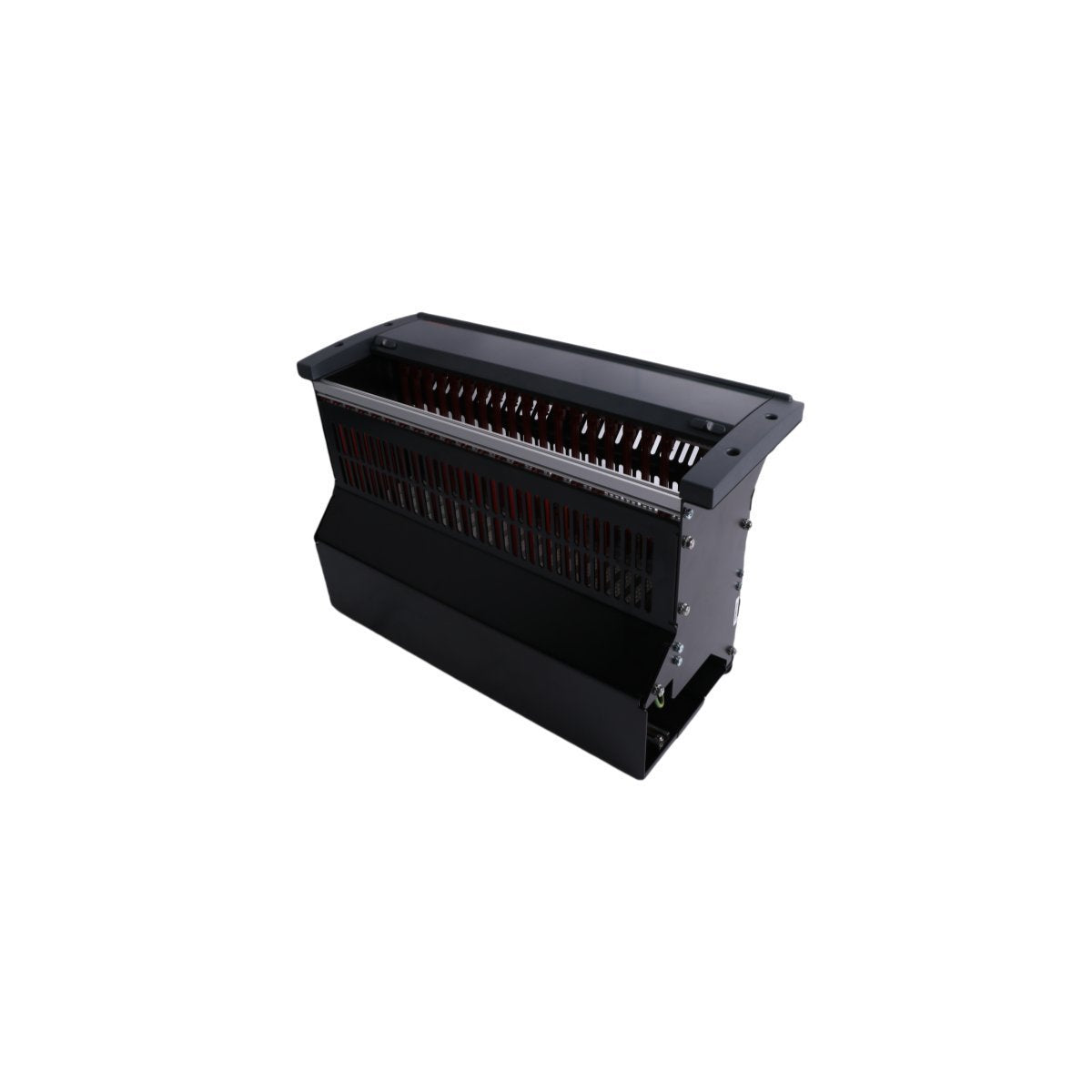

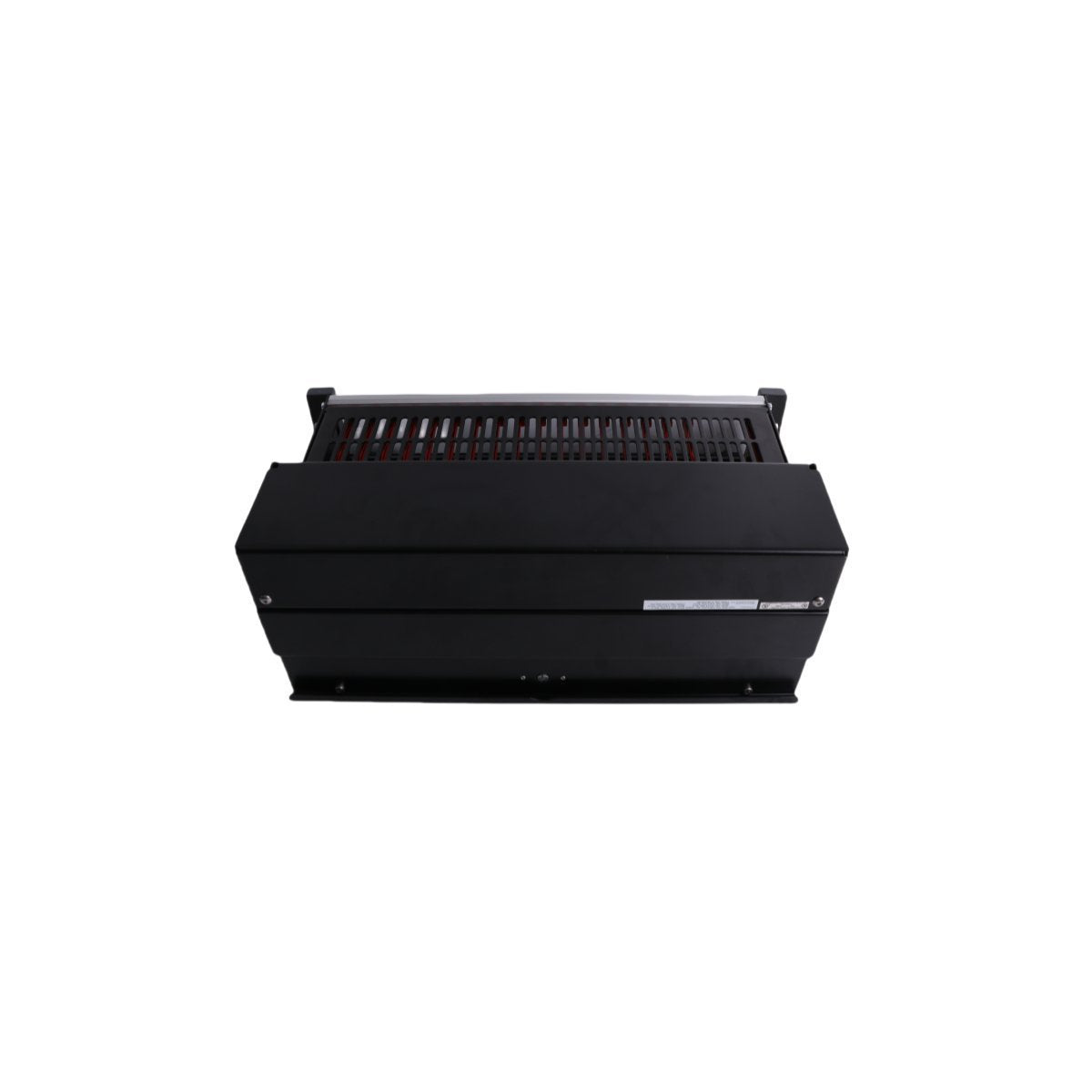

The Honeywell FC-IOCHAS-0001S is a specialized Redundant I/O Chassis designed for the Safety Manager and FSC (Fail Safe Control) systems. This high-performance communication and mounting platform serves as the structural and electrical backbone for redundant input/output modules. Unlike standard modules, the FC-IOCHAS-0001S is a "Remote Terminal Unit" (A.R.T.) style chassis that facilitates high-integrity data exchange between field sensors and the central safety logic solver. It is engineered to support mission-critical safety instrumented functions (SIF), providing the necessary backplane architecture for dual-path communication. This ensures that even in the event of a single hardware failure, the safety system remains operational and capable of maintaining the process in a safe state.

Technical Characteristics and Hardware Parameters

The FC-IOCHAS-0001S is defined by its robust mechanical build and its capacity to manage high-density redundant I/O configurations.

• Module Hierarchy: Redundant I/O Chassis / Communication Base

• System Compatibility: Native integration with Honeywell Safety Manager and FSC platforms

• Architecture Support: Specifically designed for Active Redundant Technology (A.R.T.) configurations

• Communication Interface: Provides the backplane bus for redundant I/O communication modules

• Power Distribution: Integrated power bus for distributing redundant 24VDC supplies to installed modules

• Physical Weight: 8.36 kg (Heavy-duty industrial grade)

• Dimensions: 48.3 x 29.5 x 23.5 cm (Standard 19-inch rack compatible width)

• Build Integrity: High-strength chassis designed to minimize electromagnetic interference (EMI) and resist mechanical vibration

• Safety Integrity: Suitable for use in SIL 2 and SIL 3 rated safety loops when populated with compatible safety modules

Industrial Applications and Operational Use Cases

This communication chassis is a foundational element in large-scale industrial plants where process safety and system availability are non-negotiable.

• Emergency Shutdown Systems (ESD): Providing the redundant hardware path for critical trip signals in offshore oil platforms and inland refineries.

• Fire and Gas (F&G) Monitoring: Serving as the central hub for redundant gas detection and flame sensor I/O modules in hazardous areas.

• High-Availability Process Control: Managing redundant communication for critical control loops in power generation and chemical synthesis plants.

• Remote I/O Stations: Functioning as a hardened remote chassis for safety signals located far from the main control room, communicating via fiber optic or copper links.

• Critical Infrastructure Protection: Utilized in pipeline monitoring and gas distribution stations where hardware redundancy is required to prevent accidental process interruptions.
