Product Overview

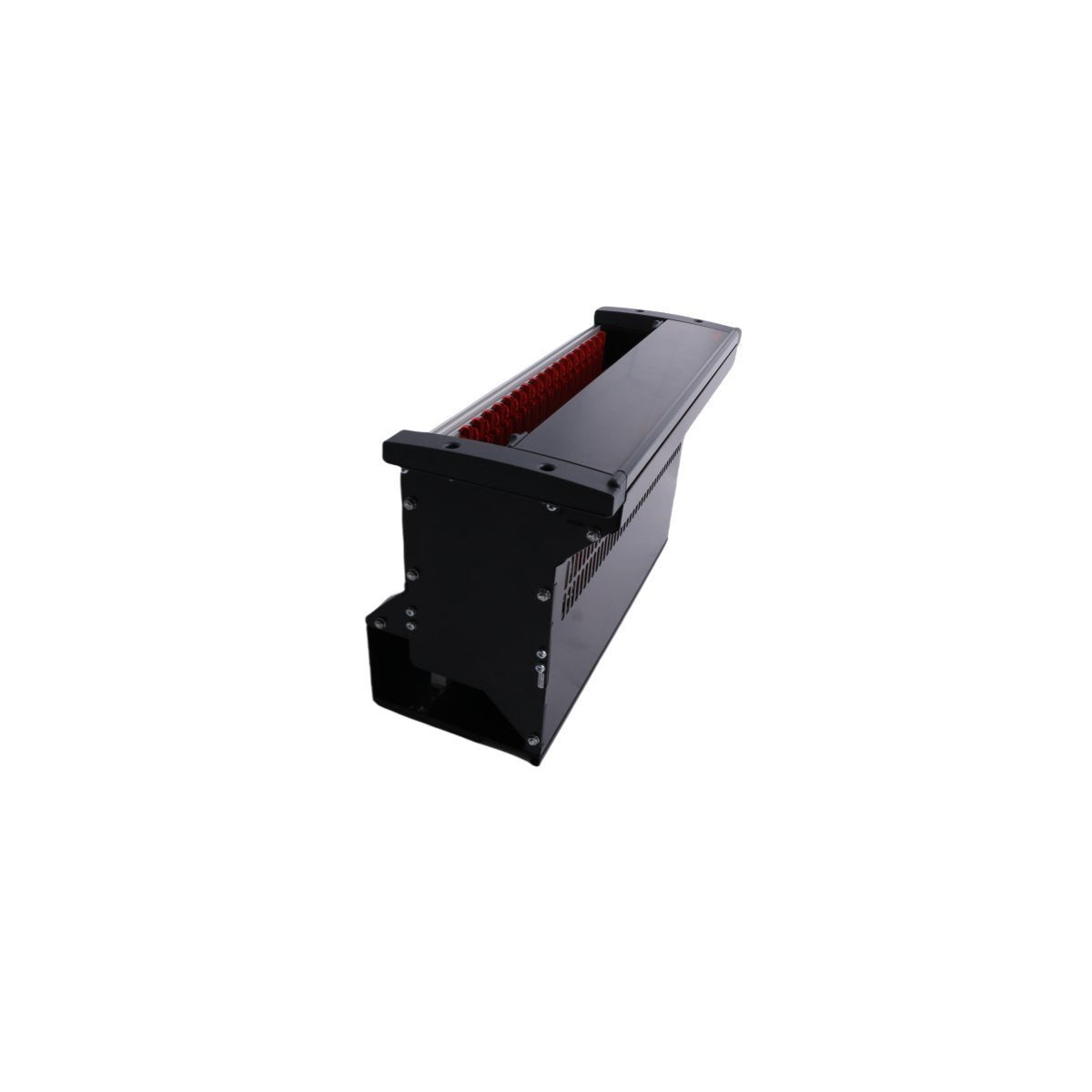

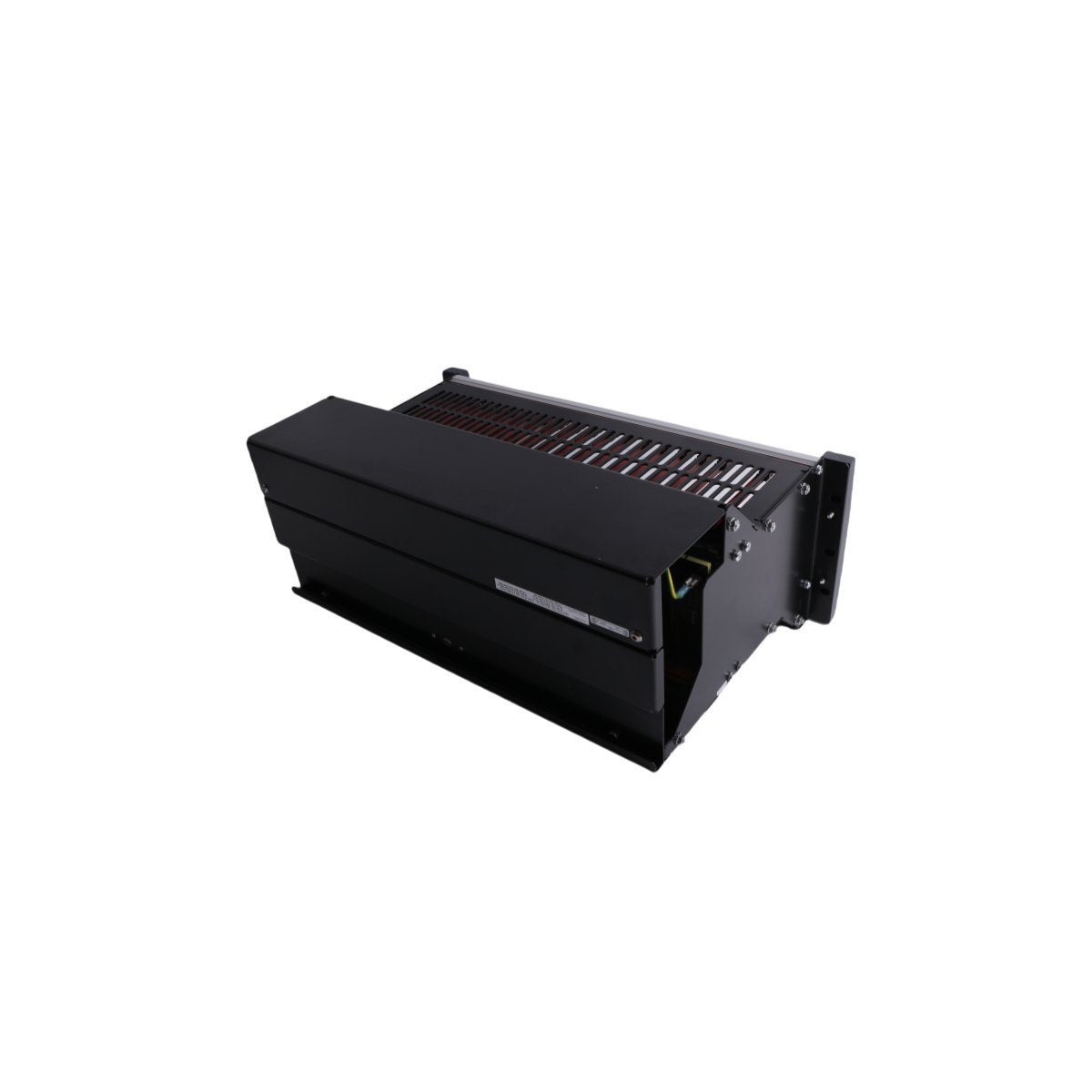

The Honeywell FC-IOCHAS-0001R is a high-availability redundant I/O chassis assembly engineered for the Safety Manager and Fail-Safe Control (FSC) architectures. This robust hardware foundation is designed to house and interconnect critical input/output modules, providing the physical and electrical backplane necessary for dual-redundant configurations. By facilitating instantaneous data synchronization between primary and secondary I/O paths, the FC-IOCHAS-0001R ensures that industrial automation processes remain online even during a single-point hardware failure. Its heavy-duty construction is specifically tailored for the demanding environments of safety-instrumented systems (SIS), where zero-latency communication and structural integrity are non-negotiable requirements for plant protection.

Technical Infrastructure and Hardware Metrics

The FC-IOCHAS-0001R is defined by its substantial build quality and high-density interface capabilities, serving as the backbone for critical safety loops.

• Module Function: Redundant I/O Backplane Chassis

• System Redundancy: Supports full primary and secondary module pairing

• Communication Interface: Optimized for high-speed I/O bus data exchange

• Structural Material: Industrial-grade alloy for heat dissipation and EMI shielding

• Operating Weight: 8.36 kg (reflecting robust internal bus-bar architecture)

• Physical Dimensions: 48.3 cm x 29.5 cm x 23.5 cm

• Mounting Configuration: Standard 19-inch rack-mount compatibility

• Safety Certification: Designed for use in SIL-rated safety loops

• Country of Origin: United States

• Tariff Code: HS 8537101190

Industrial Deployment and High-Availability Use Cases

The redundant architecture of the FC-IOCHAS-0001R makes it a critical asset in sectors where process downtime equates to significant safety or financial risk.

• Mission-Critical Safety Manager Racks: Serving as the central housing for redundant digital and analog I/O modules in Emergency Shutdown (ESD) systems.

• Continuous Process Protection: Ensuring that fire and gas (F&G) detection systems remain operational through redundant backplane communication paths.

• Refinery Control Rooms: Providing a stable, vibration-resistant platform for high-density I/O arrays in petrochemical processing environments.

• Utility-Scale Power Generation: Managing the redundant signal flow for burner management systems (BMS) where chassis reliability is paramount for combustion safety.

• Offshore Platform Automation: Deploying in remote environments where the hot-swappable redundancy supported by the chassis allows for maintenance without system deactivation.
