Product Overview

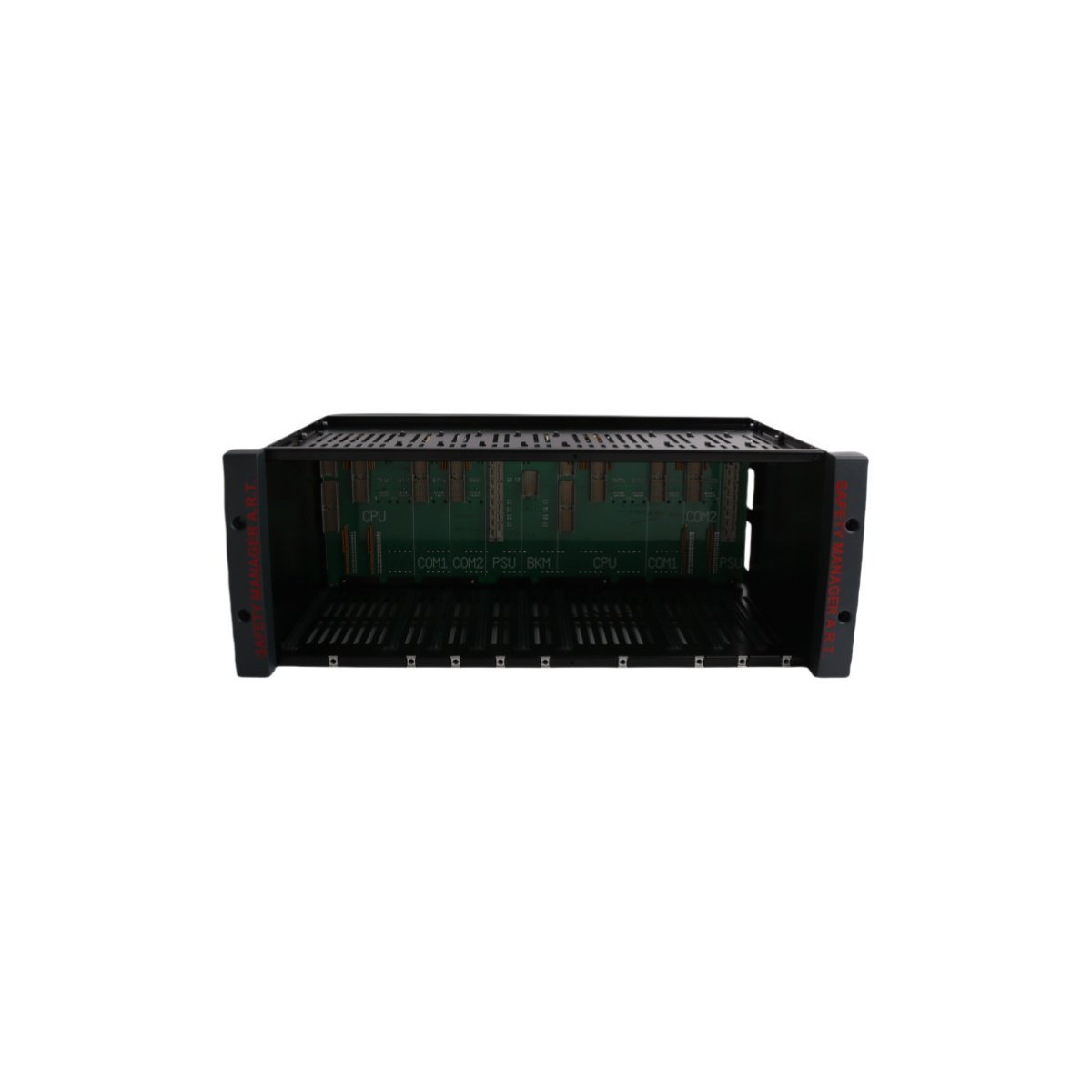

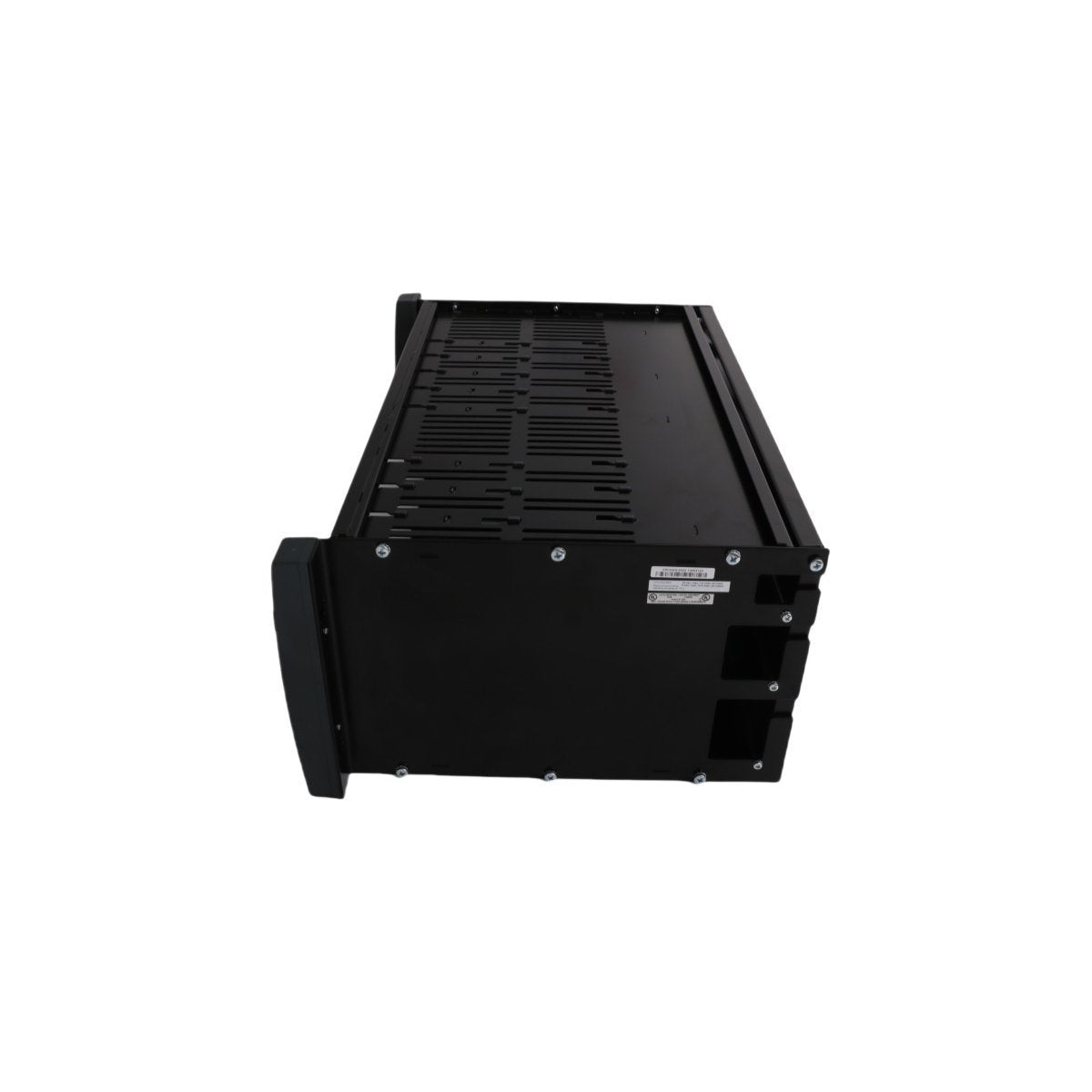

The Honeywell FC-CPCHAS-0002 is a 5-slot modular mounting assembly engineered to provide the structural and communicative foundation for the Experion PKS C300 control environment. This PLC rack chassis serves as the central housing for control processors, memory modules, and specialized communication interfaces, facilitating high-speed data exchange across the system backplane. Designed for mission-critical reliability, the FC-CPCHAS-0002 ensures that control logic solvers are securely seated and consistently powered. Its 5-slot architecture allows for streamlined system scaling, providing enough capacity for redundant processor pairs and network bridge modules in a compact, industrial-grade footprint.

System Infrastructure and Hardware Geometry

The FC-CPCHAS-0002 is built to precise mechanical and electrical tolerances to support modern DCS requirements:

• Model Number: FC-CPCHAS-0002

• Chassis Capacity: 5 Modular Slots

• Power Input: 24 VDC Nominal

• Operational Temperature: 0°C to 60°C (32°F to 140°F)

• Atmospheric Resilience: 5% to 95% Relative Humidity (non-condensing)

• Storage Endurance: Rated for -40°C to 85°C (-40°F to 185°F)

• Chassis Mass: 5.8 kg

• Physical Footprint: 48.3 x 30.5 x 17 cm

• Backplane Support: Integrated high-speed parallel bus for C300 series modules

• Primary Application: Controller processor and communication module housing

• Country of Origin: USA

Industrial Deployment and Operational Utility

In Large-Scale Petrochemical Processing, the FC-CPCHAS-0002 acts as the nerve center for distributed control. By housing redundant C300 processors within this ruggedized frame, the system achieves the hardware fault tolerance necessary for high-risk refining operations. The chassis’s robust 24VDC power distribution across the backplane eliminates individual module power cabling, reducing potential points of failure and simplifying the cabinet internal architecture during complex system integrations.

Within Advanced Manufacturing and Pharmaceutical Production, this 5-slot rack facilitates the precise coordination of batch cycles and environmental controls. The FC-CPCHAS-0002 is often deployed in climate-controlled remote instrument rooms where its high-density slot configuration allows for a smaller overall control cabinet footprint. Its superior resistance to humidity and wide storage temperature range make it an ideal choice for global shipping and deployment in varying climates, ensuring that the sensitive electronic logic housed within remains protected from mechanical stress and electrical transients.

For Power Utilities and Energy Management, the FC-CPCHAS-0002 provides a stable platform for high-speed Ethernet router modules and sequence-of-events processors. The modular nature of the 5-slot chassis allows utility operators to easily expand their control capabilities by adding communication modules as the grid or plant requirements grow. Its rigid construction provides excellent vibration damping, which is essential for maintaining electrical contact integrity in environments located near heavy rotating machinery or steam turbines, where consistent uptime is non-negotiable.
