Product Overview

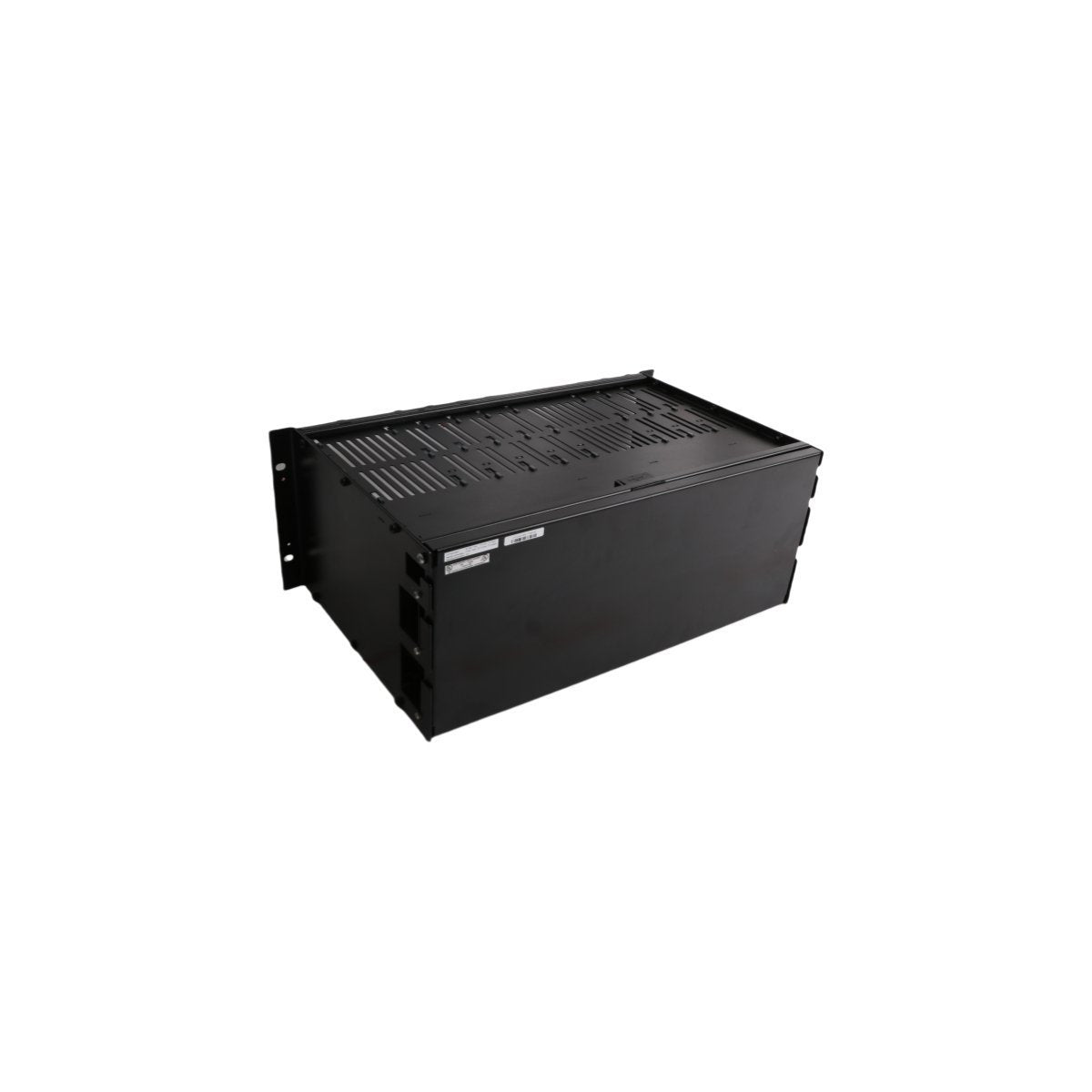

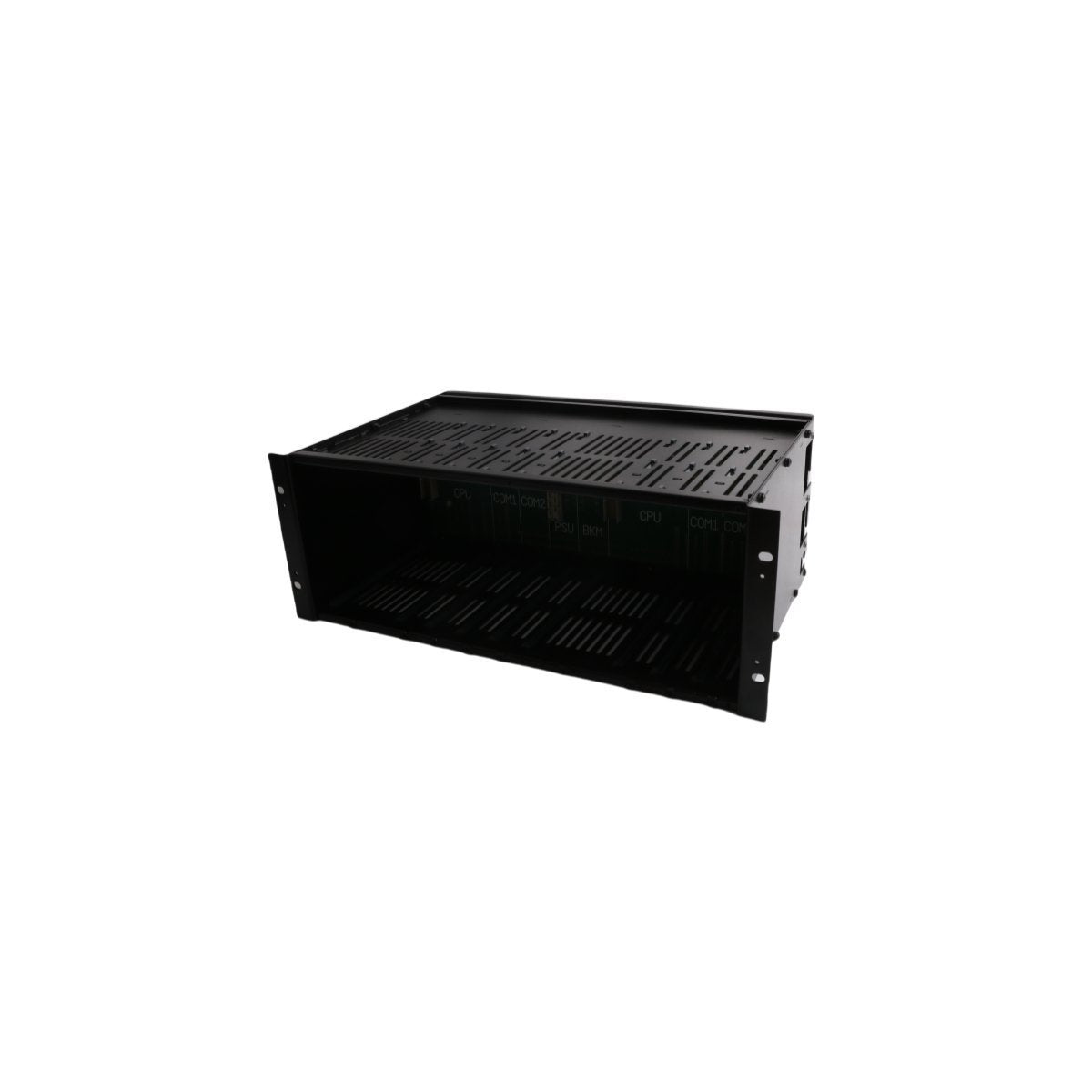

The Honeywell FC-CPCHAS-0001 is a high-availability processor chassis module specifically engineered for the Safety Manager (SM) system architecture. This central control component serves as the primary structural and electronic housing for the Safety Manager's core logic processing units. Designed to meet stringent Safety Integrity Level (SIL) standards, the FC-CPCHAS-0001 facilitates high-speed data synchronization and fault-tolerant communication between redundant controller pairs. Its heavy-duty backplane architecture is optimized for mission-critical Distributed Control System (DCS) environments where the processing of safety-instrumented functions (SIF) requires absolute hardware reliability and rapid instruction execution.

Logic Framework and Physical Specifications

Built to withstand the rigors of industrial control rooms, the FC-CPCHAS-0001 provides a stable, low-latency environment for the Safety Manager’s computational hardware.

• Module Function: Safety Manager Central Controller Chassis / Processor Housing

• System Architecture: Native support for Honeywell Safety Manager and redundant FSC systems

• Backplane Throughput: Optimized for real-time, high-speed logic solver data exchange

• Redundancy Support: Dual-channel pathing for high-availability controller configurations

• Cooling & Shielding: Integrated heat dissipation and electromagnetic interference (EMI) protection

• Physical Mass: 5.68 kg

• Unit Dimensions: 48.2 cm x 28 cm x 17.6 cm

• Mounting Standard: 19-inch industrial rack-mount compatibility

• Manufacturing Origin: USA

• Tariff Classification: HS Code 8537101190

Critical Safety Infrastructure Roles

The FC-CPCHAS-0001 is the foundational core for safety systems in industries where process failure could lead to catastrophic consequences.

• Safety Logic Coordination: Housing the primary and secondary processors responsible for Emergency Shutdown (ESD) sequences in high-pressure oil and gas refineries.

• Integrated Fire and Gas (F&G) Control: Managing the complex logic required to coordinate flame detection, gas sensing, and automated suppression systems across a facility.

• Burner Management Logic: Providing the robust processing environment needed for fail-safe boiler start-up and shutdown sequences in large power plants.

• Redundant Process Protection: Facilitating the seamless hot-swap and synchronization of safety controllers without interrupting plant protection.

• Critical Process Interlocking: Executing high-speed safety interlock logic in chemical manufacturing zones where sub-second response times are required for pressure relief.
