Product Overview

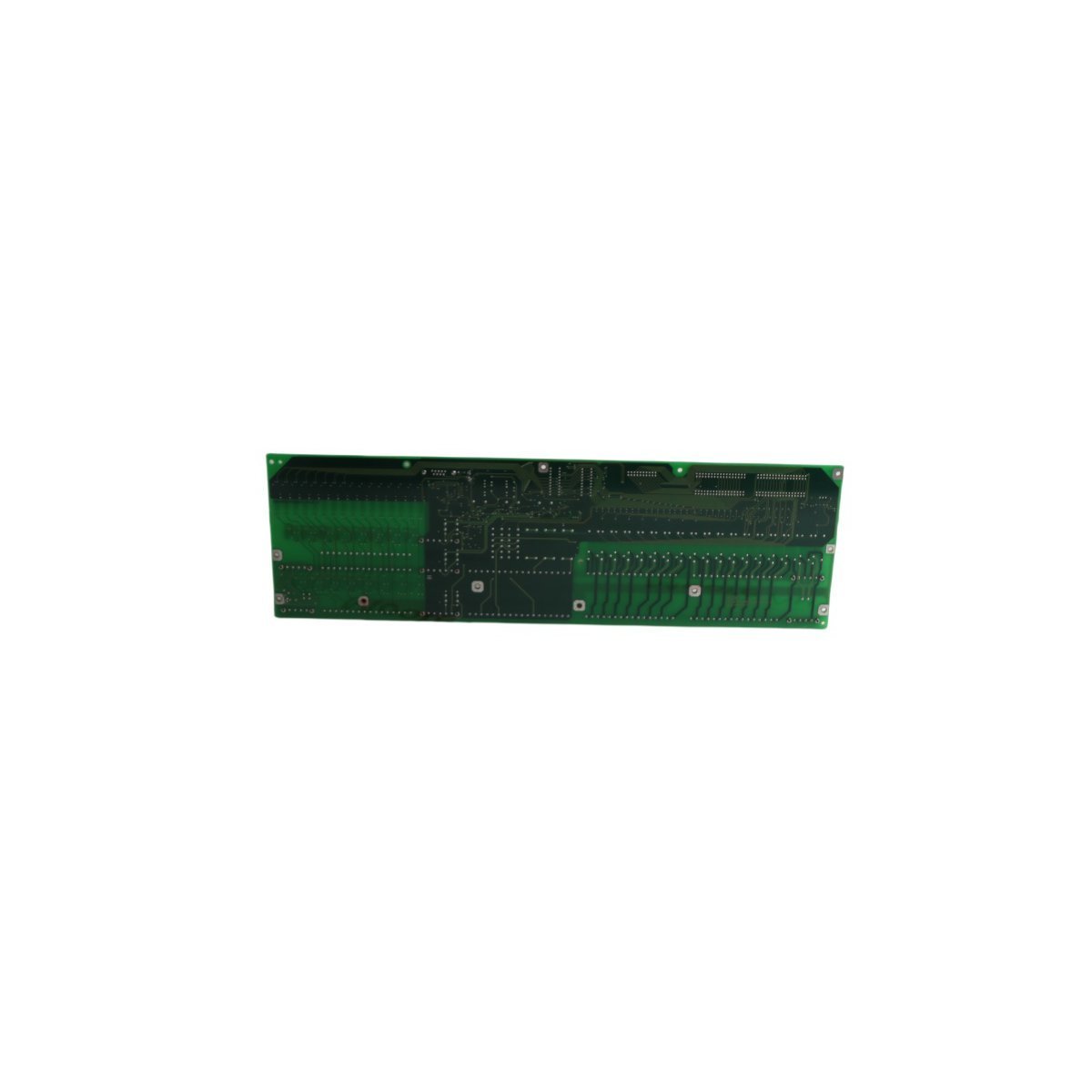

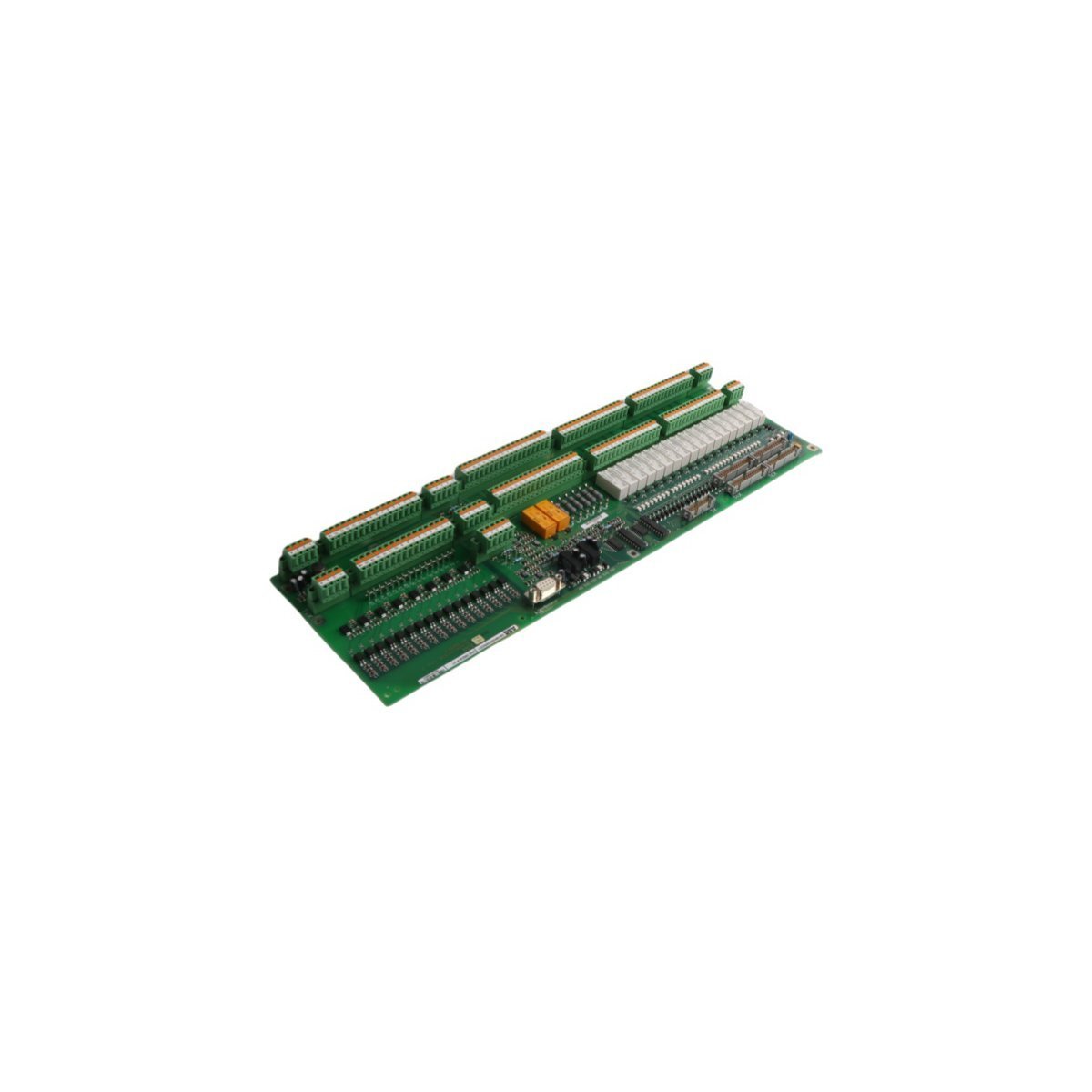

The ABB 3BHB006208R0001, identified by the model UNS0883A-P,V1, is a high-speed input/output processing assembly engineered for the UNITROL excitation system family. This Fast I/O PCB serves as a critical bridge between real-time field data and the central control processor within Distributed Control Systems (DCS). It is specifically optimized to handle transient signals and rapid state changes that occur during generator excitation and synchronization. By utilizing a high-performance circuit architecture, the UNS0883A-P ensures that the system can react to grid fluctuations with sub-millisecond precision, maintaining the stability of high-value power generation equipment in demanding B2B industrial environments.

Core Hardware Architecture and System Specifications

• Module Function High-Speed Digital/Fast I/O Interface

• Model Identifier UNS0883A-P, V1

• Part Reference 3BHB006208R0001

• Product Series UNITROL Excitation Systems

• Data Processing Low-latency signal conditioning and bus-level integration

• Communication Interface Ethernet Router and System Bus Compatible

• Module Weight 0.92kg

• Physical Dimensions 49cm x 15cm x 3.2cm

• Tariff Code (HS) 8537101190

• Manufacturing Origin Sweden

• Environmental Rating Ruggedized for power plant control cubicles

Industrial Deployment and Operational Scenarios

The 3BHB006208R0001 is predominantly utilized in large-scale utility facilities, including thermal, hydroelectric, and nuclear power stations. In these settings, the UNS0883A-P,V1 manages the fast-tracking of I/O signals that govern the regulation of generator voltage and reactive power. Its elongated 49cm form factor is designed to maximize the density of high-speed input channels within a standard UNITROL sub-rack, allowing for comprehensive monitoring of auxiliary field states. Because it is built to Swedish industrial standards, this PCB assembly operates reliably in the presence of high electromagnetic interference and elevated temperatures typical of excitation cubicles, ensuring continuous operation and preventing unplanned grid disconnects.

FAQ

Q: Is the UNS0883A-P,V1 compatible with legacy UNITROL series racks?

A: This V1 revision is specifically tailored for modern UNITROL architectures. While it shares many functional traits with previous I/O cards, you must verify that your system backplane and firmware support the 3BHB006208R0001 part number for full signal synchronization.

Q: What is the primary benefit of a "Fast I/O" designation for this card?

A: Unlike standard I/O modules, the UNS0883A-P is optimized for significantly lower latency. This is crucial for excitation control where the system must respond to power surges or voltage drops within milliseconds to protect the generator.

Q: How does the 49cm length affect cabinet installation?

A: The board is designed for vertical insertion into specific high-density slots. Its slim 3.2cm profile ensures that multiple Fast I/O boards can be populated side-by-side without compromising the passive airflow required for cooling the high-speed logic chips.

Q: Can this module interface with third-party DCS hardware?

A: Yes, through standard industrial communication protocols and Ethernet router gateways, the data processed by the UNS0883A-P can be shared across a multi-vendor DCS network for site-wide monitoring and data logging.

Q: What maintenance is required for the assembled PCB?

A: The board is a solid-state component with no moving parts. Maintenance is generally limited to periodic cleaning of the contact fingers and checking for system-level diagnostic errors through the control interface.
