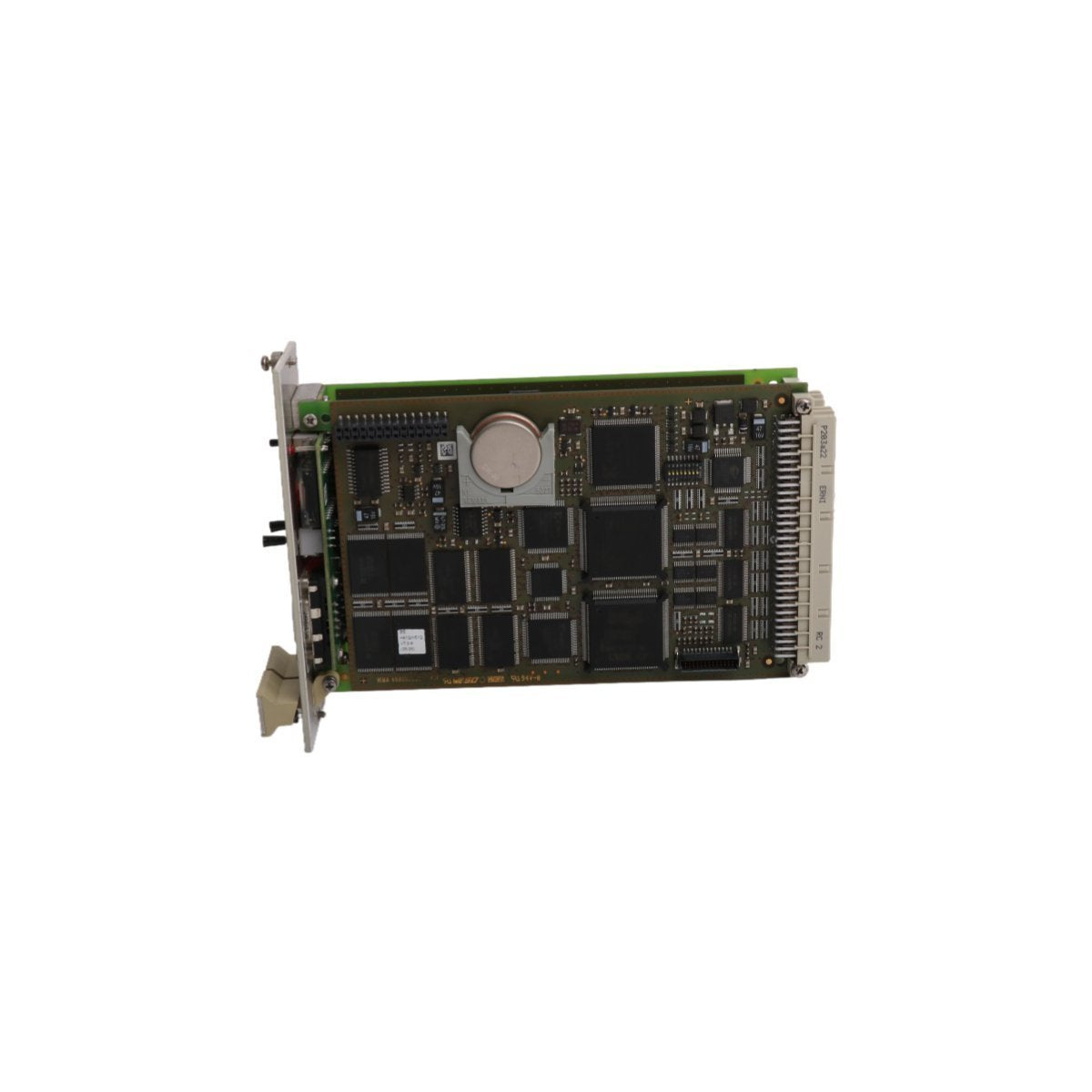

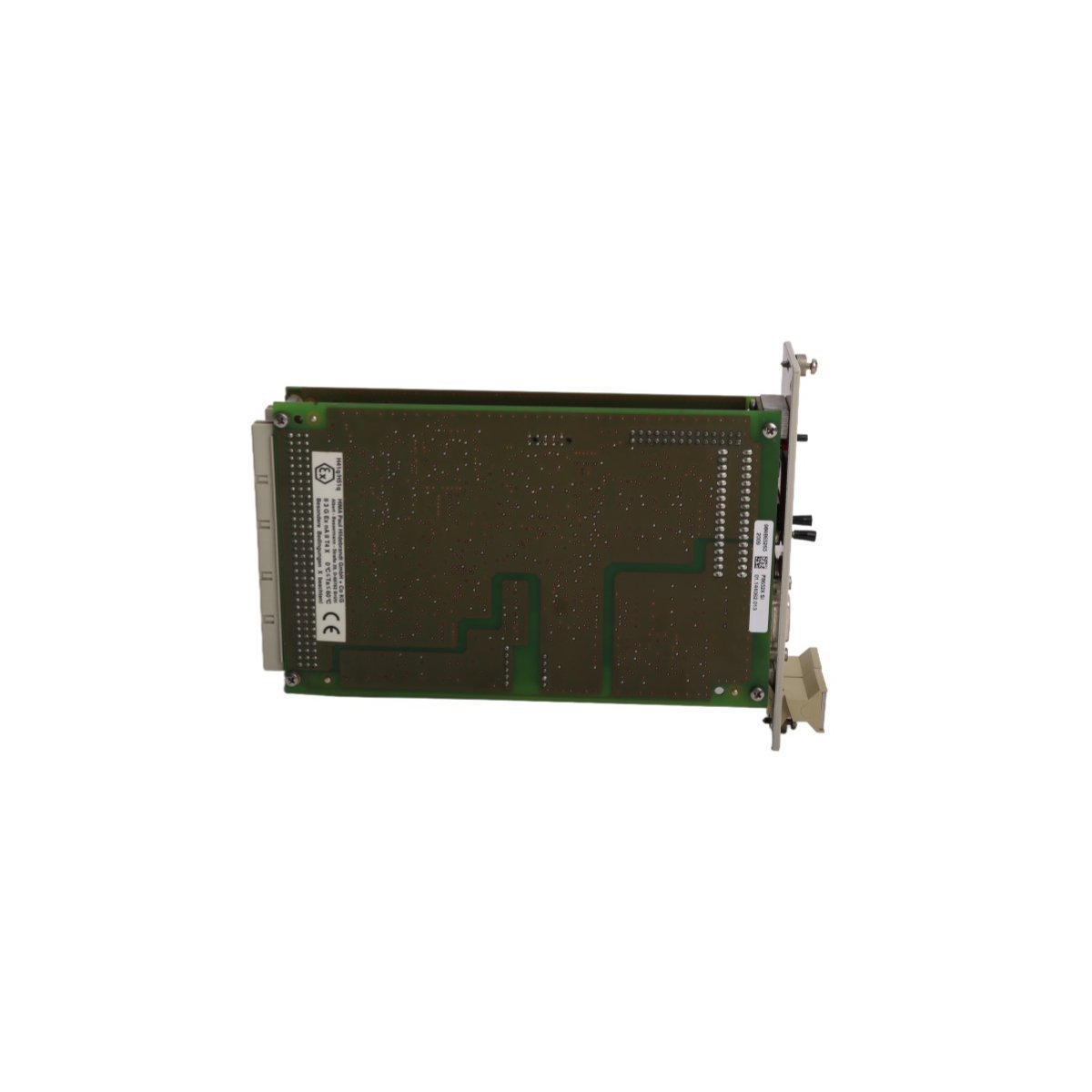

Product Overview

The HIMA F8652X is a high-performance, safety-certified central module engineered to serve as the primary processing core for sophisticated industrial safety systems. Certified for Safety Integrity Level 3 (SIL 3) applications, this controller provides the deterministic logic and high-speed data acquisition necessary for critical process protection. Featuring a dual-channel architecture, the F8652X is designed to manage complex safety-instrumented functions (SIF) while ensuring maximum system availability.

Built on a powerful hardware platform, the F8652X executes safety-critical code with millisecond precision. It is an essential component for distributed control system (DCS) architectures in high-risk sectors such as chemical refining, power generation, and offshore oil and gas. Its design prioritizes continuous operation, allowing for hot-swapping and redundant power integration to eliminate single points of failure within the safety loop.

Technical Characteristics

• Processor Architecture: 1.2 GHz Dual-Core high-speed safety processor

• Memory Capacity: 4 GB DDR4 RAM with 64 GB SSD for event logging and logic storage

• Safety Certification: TÜV certified for SIL 3 applications (IEC 61508)

• Channel Architecture: Dual-channel (redundant) internal safety bus

• I/O Management: Supports the integration and processing of up to 128 I/O points

• Communication Interfaces: Quad-connectivity via Ethernet, RS-232, RS-485, and USB

• Software Environment: Linux-based secure operating system for robust safety execution

• Reliability Features: Supports hot-swappable modules and redundant power supply monitoring

• Mechanical Format: Compact industrial module designed for high-density safety racks

• Dimensions: 2.5 x 12.7 x 20.3 cm

• Weight: 0.1 kg

• Manufacturing Origin: Germany

Logic Processing and System Integration

The F8652X Central Module is distinguished by its ability to handle complex safety logic through configurable function blocks. This allows system engineers to customize safety responses for process safety, burner management, machine protection, and fire and gas (F&G) systems. The module's integrated diagnostic suite provides real-time monitoring of all hardware health parameters, ensuring that internal faults are identified and mitigated before they can compromise the safety of the plant.

Designed for the modern industrial internet of things (IIoT) landscape, the F8652X features comprehensive networking capabilities. Its multiple serial and Ethernet ports allow it to act as a secure gateway, providing safe data exchange between the safety-related system and the plant’s supervisory DCS. Whether managing high-integrity pressure protection systems (HIPPS) or plant-wide emergency shutdown (ESD) networks, the HIMA F8652X delivers the computing power and safety assurance required for world-class industrial protection.
