Product Overview

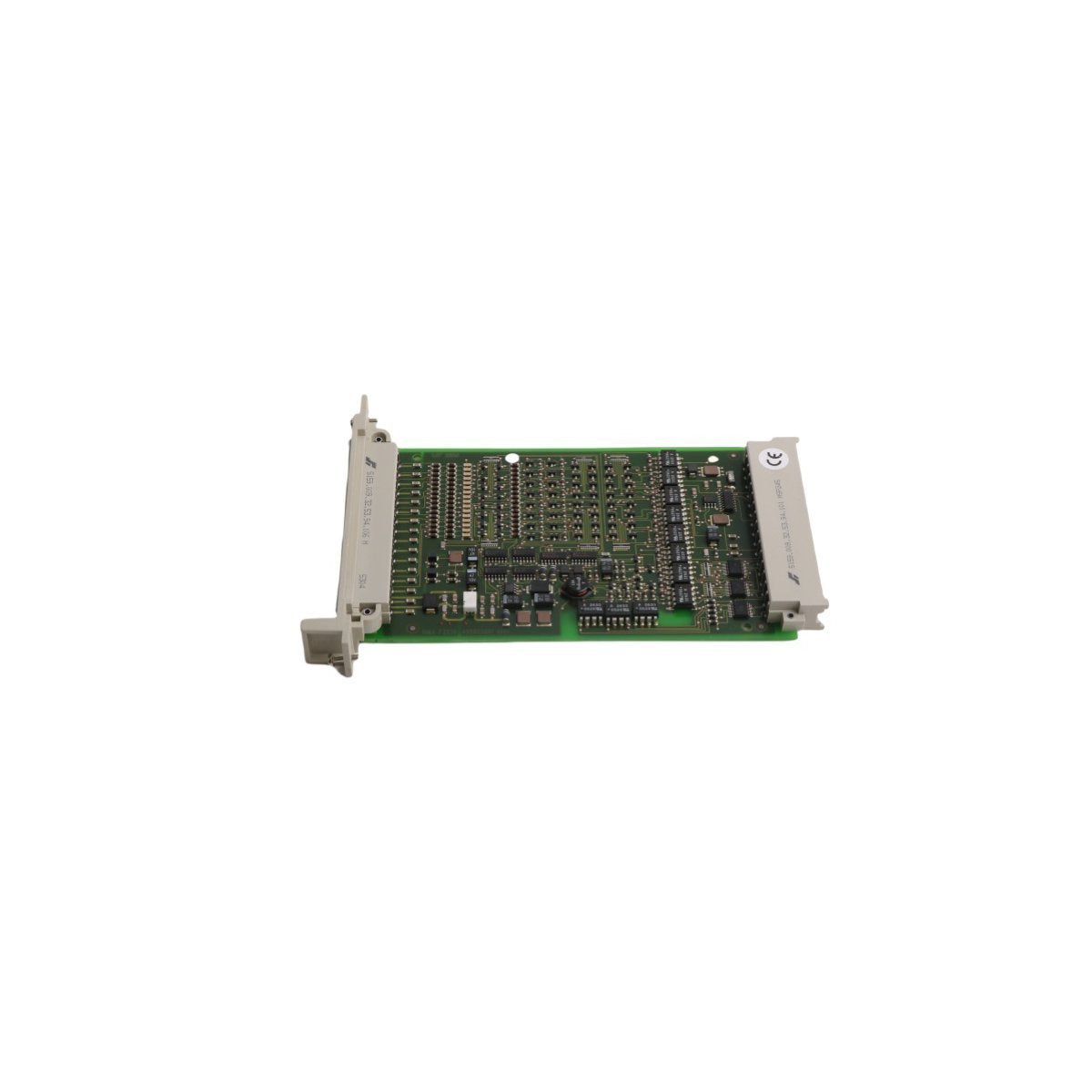

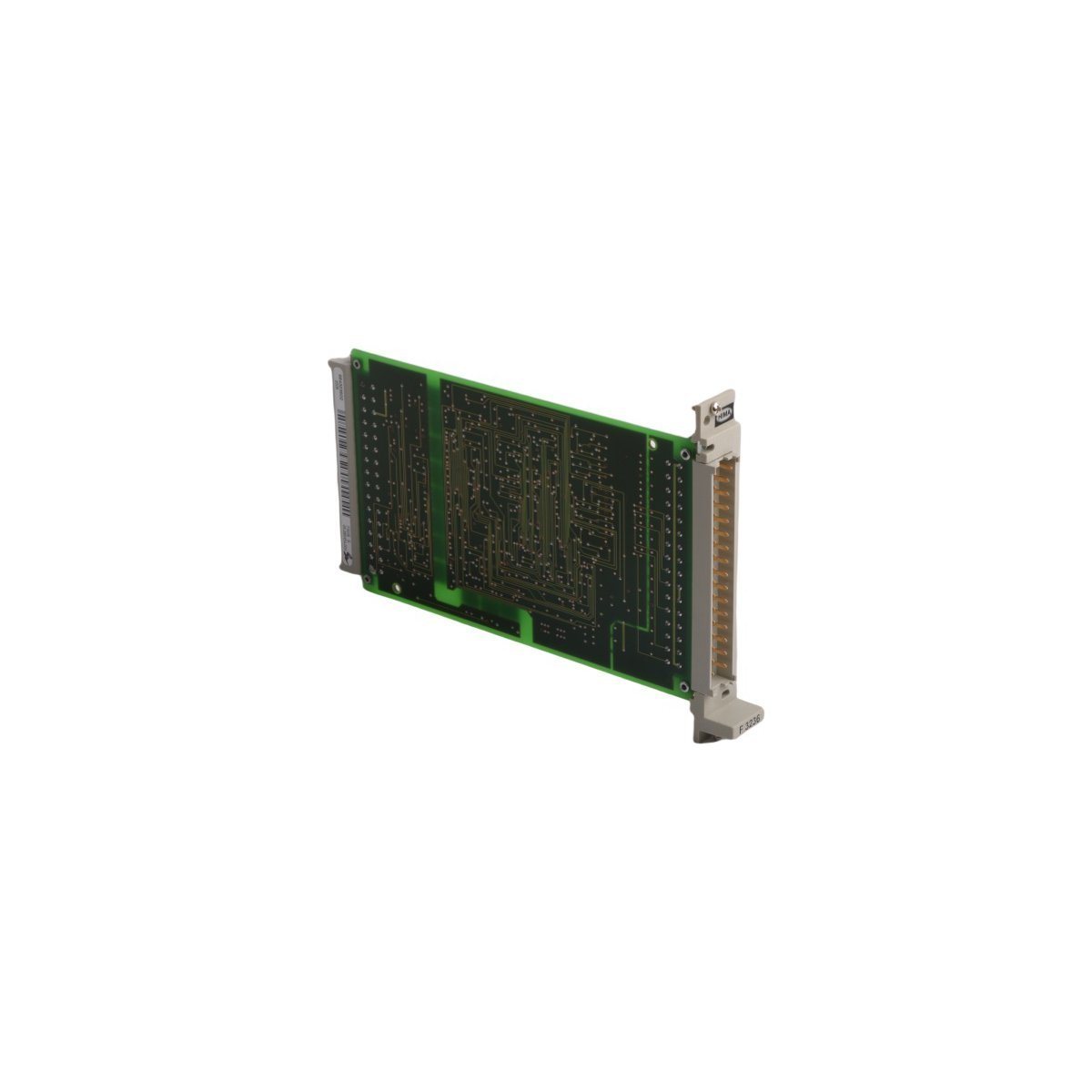

The HIMA F3236 is a high-density, safety-related digital input module designed for the H41q and H51q automation systems. This 16-fold input card acts as the primary interface for binary signals from the field, such as emergency stop buttons, limit switches, and pressure monitors. Engineered for mission-critical Safety Instrumented Systems (SIS), the F3236 translates field-level electrical states into logic signals for the central controller with deterministic precision and high availability.

Designed to withstand the rigors of heavy industrial environments, the module features a ruggedized internal architecture that prioritizes signal integrity. Its compact, plug-in design allows for maximum channel density in standard 19-inch subracks, making it an ideal choice for large-scale Distributed Control Systems (DCS) where cabinet space optimization is essential.

Technical Characteristics

• Channel Density: 16-fold (16 independent digital input channels)

• System Family: Exclusively for HIMA H41q and H51q Safety Systems

• Safety Integrity: Suitable for high-availability protection loops up to SIL 3

• Monitoring Features: Integrated self-test routines and comprehensive fault diagnosis

• Signal Protection: Galvanic isolation between field circuits and internal system bus

• Input Specifications: Optimized for standard 24V DC industrial binary signals

• Environmental Tolerance: Built with industrial-grade components for thermal stability and vibration resistance

• Mechanical Format: Space-saving card design for HIMA standard subracks

• Dimensions: 2.0 x 19.0 x 12.7 cm

• Weight: 0.12 kg

• Country of Origin: Germany

Fault Tolerance and System Integration

The F3236 16-Channel Digital Input Module is distinguished by its proactive safety features. It continuously executes internal self-diagnosis to identify hardware anomalies or signal irregularities before they can compromise process safety. This proactive approach significantly reduces the Mean Time to Repair (MTTR) and enhances the overall Safety Integrity Level (SIL) of the automation loop.

Integration is streamlined through compatibility with HIMA’s ELOP II or SILworX engineering environments, allowing for rapid configuration and custom mapping of input channels. The module’s low power consumption and high electromagnetic immunity (EMI) ensure reliable performance even when installed alongside high-power switching equipment. Whether used in an upgrade of a legacy H41q rack or a new H51q safety installation, the F3236 provides the robust data acquisition required for personnel and asset protection.
