Product Overview

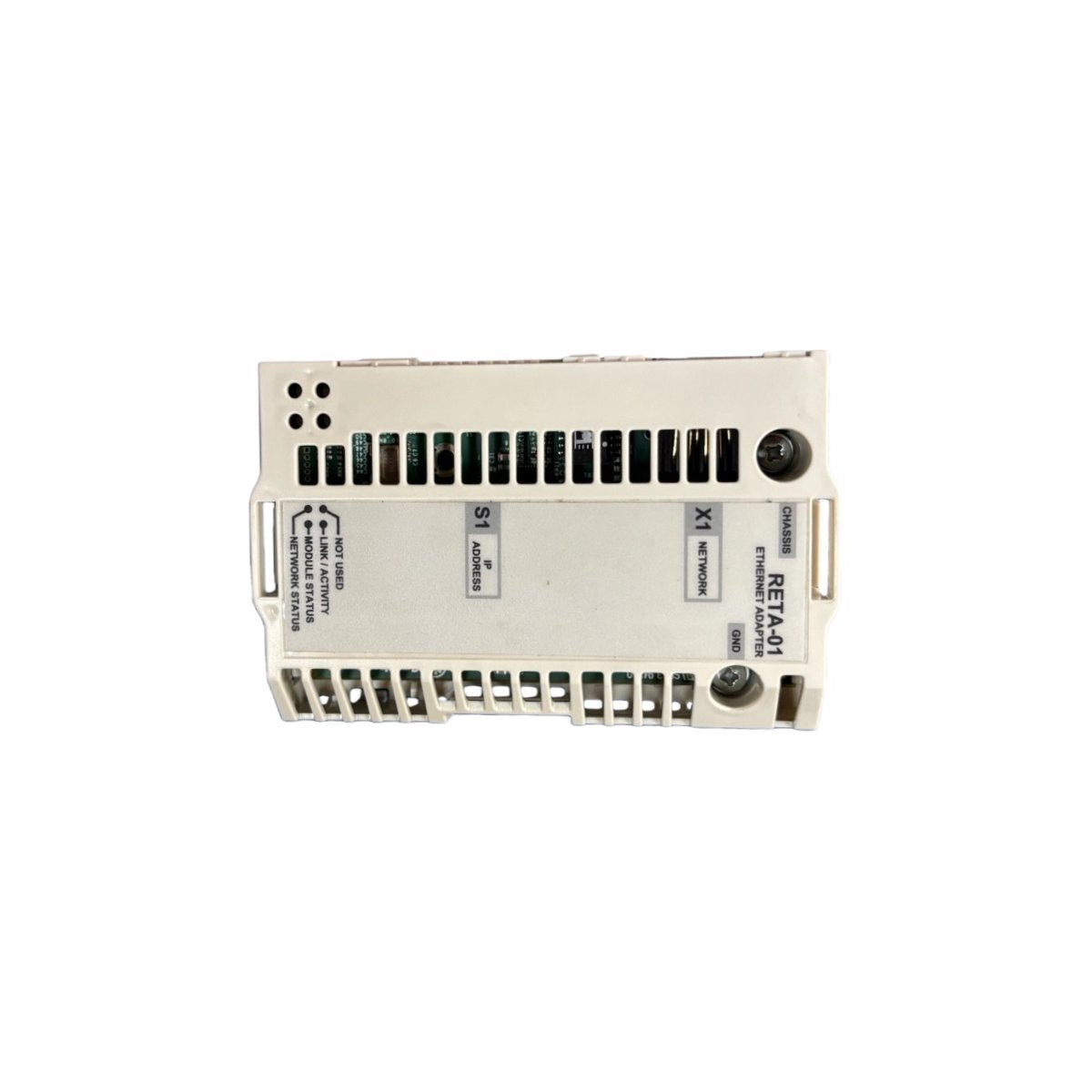

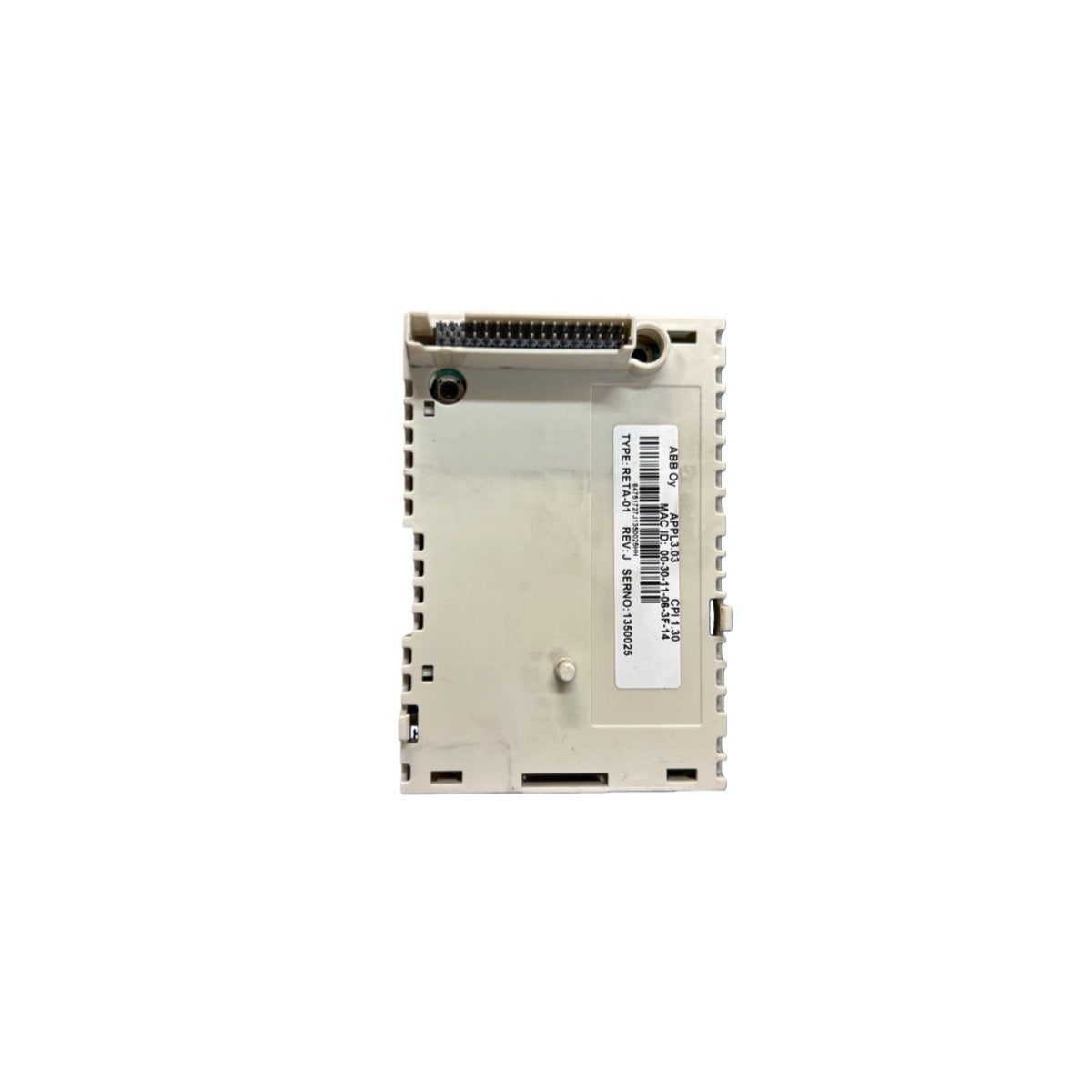

The RETA-01 functions as a specialized communication gateway, enabling ABB industrial frequency converters to interface with high-velocity Ethernet-based control architectures. This module acts as a bridge between the physical drive hardware and the supervising PLC or Distributed Control System (DCS). Once integrated, the drive operates as a network node capable of processing remote start/stop commands, setpoint adjustments, and comprehensive diagnostic feedback. By digitizing the motor control interface, the RETA-01 facilitates granular process visibility and supports modern automation strategies where real-time data exchange is essential for operational efficiency and system uptime.

Core Architecture and Hardware Parameters

Strategic Field Implementations

This communication adapter is critical for deploying networked drive solutions across various demanding environments:

• Automated Production Lines: Implementing EtherNet/IP for low-latency synchronization of multiple motor drives in high-speed assembly and packaging facilities.

• Centralized Facility Management: Using Modbus/TCP to aggregate motor performance data from HVAC systems or pumping stations into a centralized SCADA interface.

• Predictive Maintenance Frameworks: Extracting real-time telemetry such as current draw, torque, and fault history to populate IIoT platforms for trend analysis.

• Water and Wastewater Logistics: Managing dispersed pump drives across extensive plant networks via standard Ethernet infrastructure to maintain precise pressure control.

• Mining and Heavy Industry: Providing a robust, EMI-resistant communication link for drives located in harsh electrical environments requiring remote fault reset capabilities.

FAQ

Q: Which ABB drive series are compatible with the RETA-01 module?

A: The RETA-01 is primarily designed for the ACS550, ACS800, and DCS800 series drives, fitting into the standard option slots provided on the control board.

Q: Does this module require an external 24VDC power supply?

A: No, the RETA-01 is powered internally through the drive's own power supply unit once it is seated in the designated option slot.

Q: Can the RETA-01 run EtherNet/IP and Modbus/TCP simultaneously?

A: While the hardware supports both stacks, the specific protocol used is typically determined by the drive parameter settings and the requirements of the master controller.

Q: What is the purpose of the NS and MS LED indicators?

A: The Network Status (NS) LED indicates the health of the connection to the Ethernet master, while the Module Status (MS) LED confirms the internal operational readiness of the RETA-01 hardware itself.

Q: Is it necessary to use shielded Ethernet cables with this module?

A: To ensure compliance with industrial EMC standards and to prevent communication drops in high-noise environments, the use of shielded Category 5e (or higher) cabling is strongly recommended.
