Product Overview

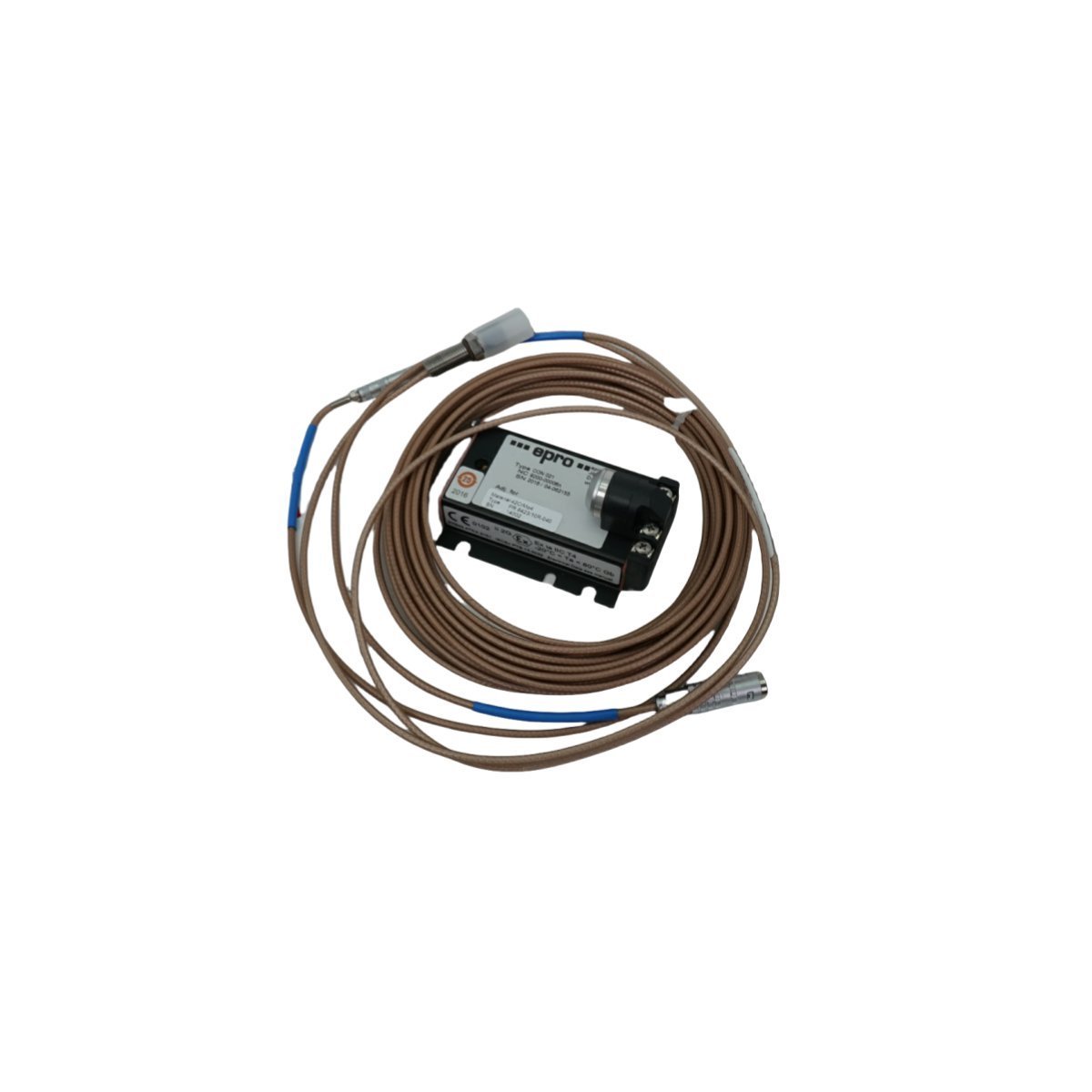

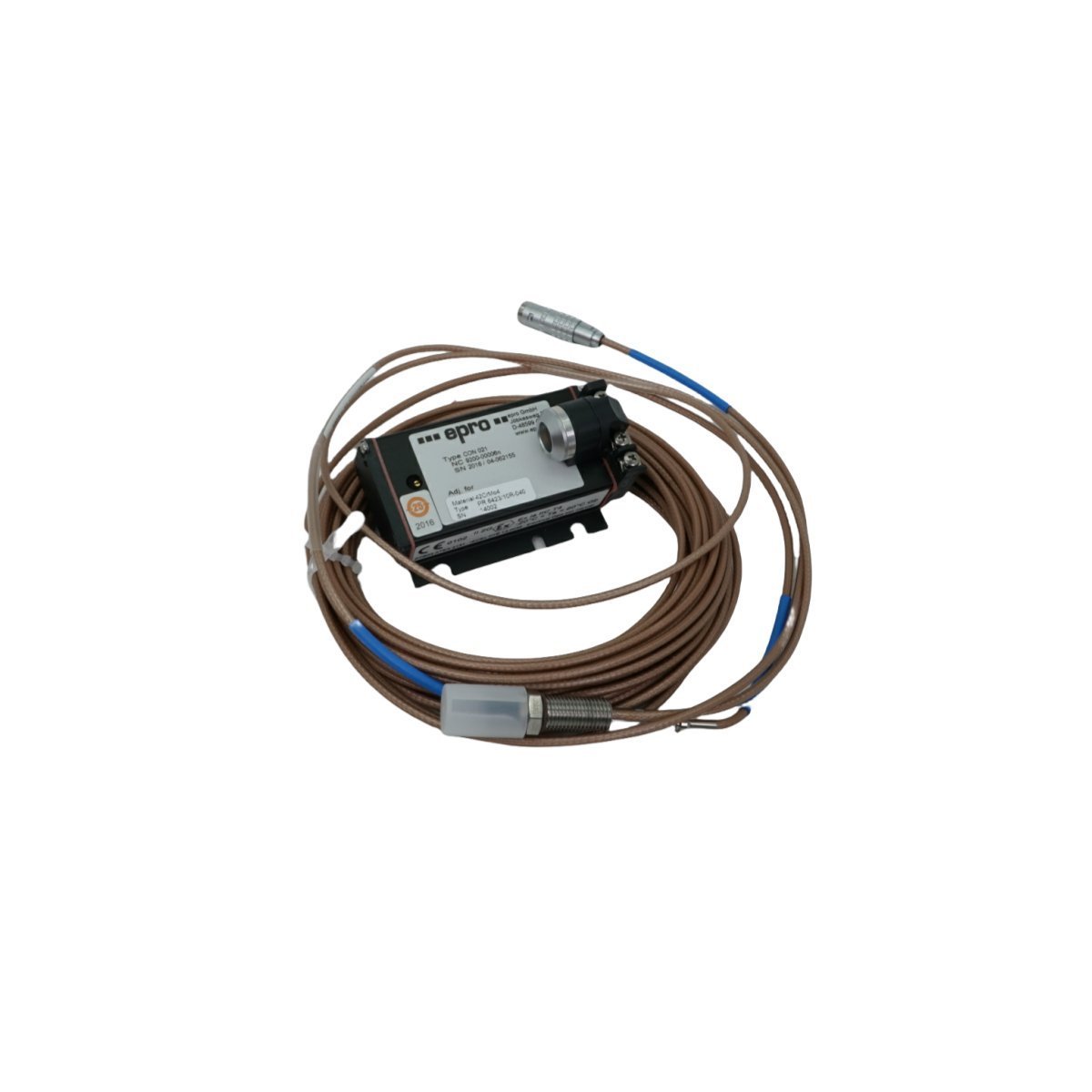

The Emerson PR6423/10R-040 CON021 is a high-performance inductive displacement system engineered for the precise monitoring of rotating shafts in industrial machinery. Utilizing the eddy current principle, this sensor provides a non-contacting interface to measure radial vibration, axial thrust, and mechanical eccentricity. As a cornerstone of the Epro machine protection series, it delivers high-frequency response data essential for detecting mechanical instability before it leads to system failure. This specific configuration is designed for seamless integration with signal converters, ensuring that raw displacement data is accurately translated for Distributed Control Systems (DCS) and asset management software.

Physical Architecture and Engineering Data

• Mass / Weight: 0.32 kg

• Casing Dimensions: 17 x 17 x 4 cm

• Detection Method: Non-contacting Eddy Current

• Sensitivity: Optimized for high-resolution oscillation tracking

• Signal Output: Multi-signal compatibility via CON021 converter

• Environmental Tolerance: High-grade resistance to pressurized oil, moisture, and thermal cycling

• Global Tariff Code: 8537101190

• Country of Manufacture: USA

• Compliance: Industrial grade for safety-critical monitoring

Machinery Supervision and Performance Scenarios

This proximity sensing module is specifically calibrated for heavy-duty industrial applications where equipment reliability is non-negotiable. Its primary utility includes:

• Bearing Health Monitoring: Tracking the orbit and position of shafts within hydrodynamic bearings to identify lubricant film breakdown or misalignment.

• Axial Displacement Tracking: Measuring the longitudinal float of turbine and compressor shafts to protect thrust bearings from catastrophic wear.

• Harsh Process Environments: Reliable operation in the presence of aggressive synthetic oils and extreme temperatures common in chemical and energy sectors.

• Integrative Diagnostics: Providing real-time inputs for predictive maintenance schedules, allowing operators to plan repairs based on actual wear rather than estimated timeframes.
