Product Overview

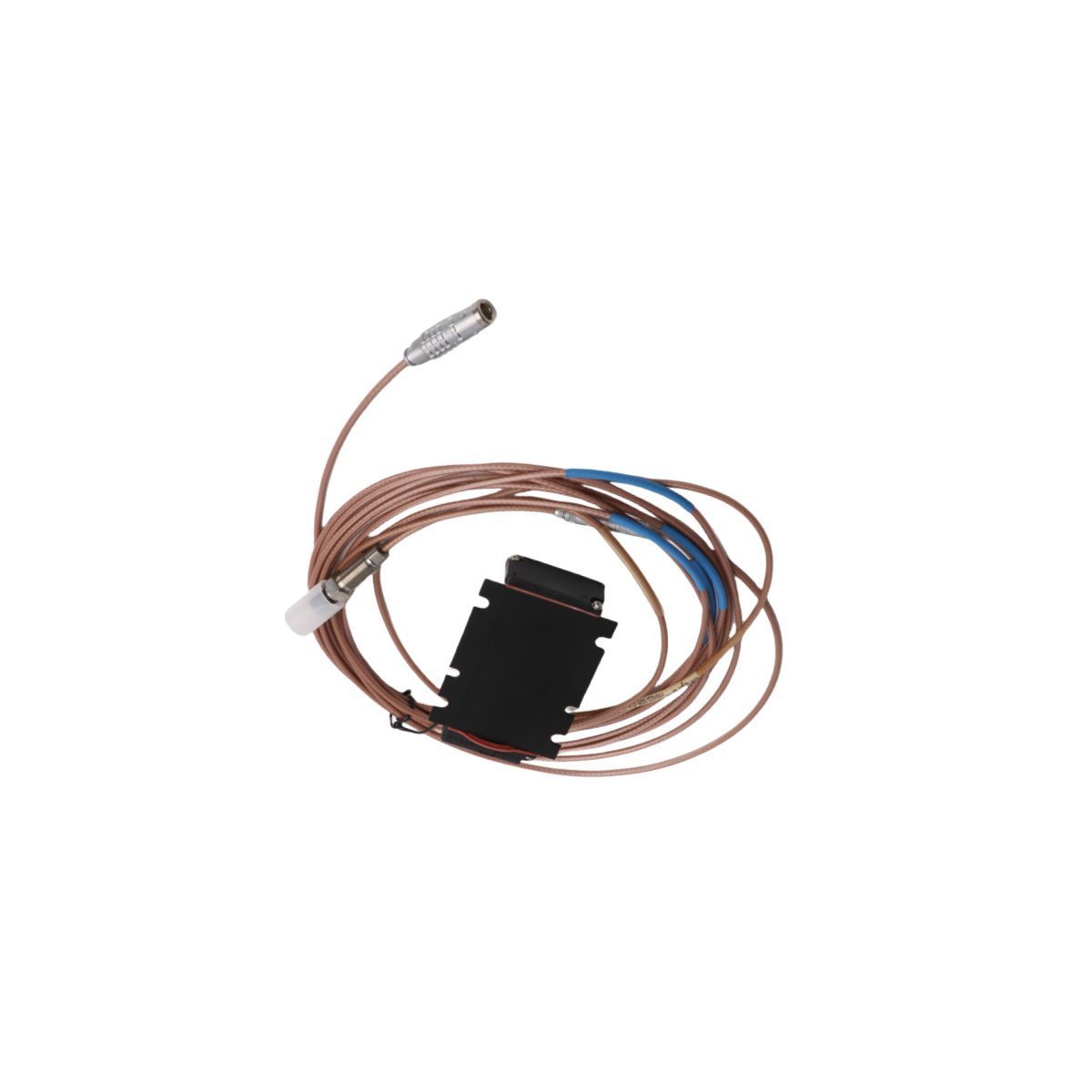

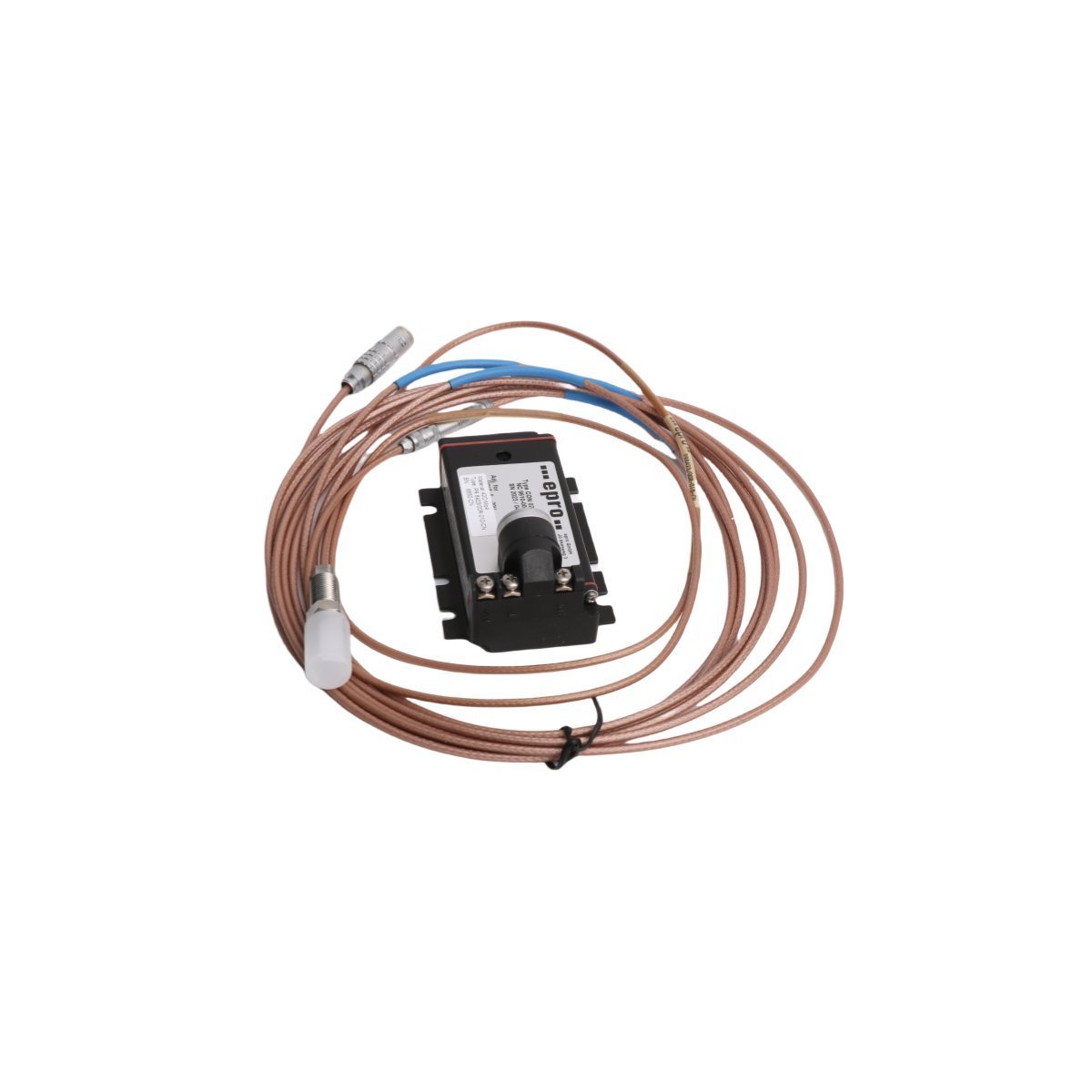

The Emerson PR6423/00R-010-CN is a specialized non-contacting inductive sensor designed for high-precision monitoring of shaft vibration and displacement. As a critical component of the EPRO series, this 8mm eddy current probe is specifically configured with a "Reverse Mount" design, allowing it to be installed in space-constrained machinery housings or specialized brackets where standard mounting is impractical. By generating a high-frequency electromagnetic field, the sensor accurately measures the gap between the probe face and the rotating shaft, converting mechanical motion into precise electrical signals. This real-time data is essential for modern machinery protection systems, enabling the early detection of structural imbalances and preventing catastrophic equipment failure.

Design Architecture and Functional Specifications

Engineered for extreme reliability, the PR6423/00R-010-CN maintains linear accuracy even when subjected to the high-pressure oil and thermal stress typical of industrial bearing housings.

• Sensing Technology: Inductive non-contacting eddy current.

• Mounting Configuration: 8mm Reverse Mount (facilitates internal machinery installation).

• Interface Hardware: Integrated cable terminated with a CON021 secure industrial connector.

• Environmental Sealing: Hermetically sealed stainless steel body, rated for IP67/IP68 ingress protection.

• Signal Integrity: Advanced internal compensation minimizes thermal drift and electromagnetic interference.

• Target Calibration: Standardized for ferromagnetic targets (40NiCrMo7 or equivalent shaft steel).

• Dynamic Response: Wide frequency bandwidth capable of capturing both low-speed eccentricity and high-frequency vibration.

Critical System Integration and Industrial Usage

The PR6423/00R-010-CN CON021 is a cornerstone for condition-based maintenance in the energy, petrochemical, and manufacturing sectors. Its reverse-mount architecture makes it the preferred choice for internal bearing monitoring where the sensor must be secured from the inside of the machine casing.

In utility-scale power plants, these sensors are deployed on steam and gas turbines to track radial shaft deflection and axial thrust. Within heavy processing facilities, the probe is utilized on high-capacity centrifugal compressors and large-scale pumps to monitor bearing clearances and detect shaft misalignments. When integrated into an Emerson Ovation, DeltaV, or CSI 6500 monitoring rack, the PR6423/00R-010-CN provides the essential data stream required for automated safety interlocks and emergency trip logic. By facilitating continuous oversight without physical contact or mechanical wear, it ensures the longevity and operational stability of critical turbomachinery.
