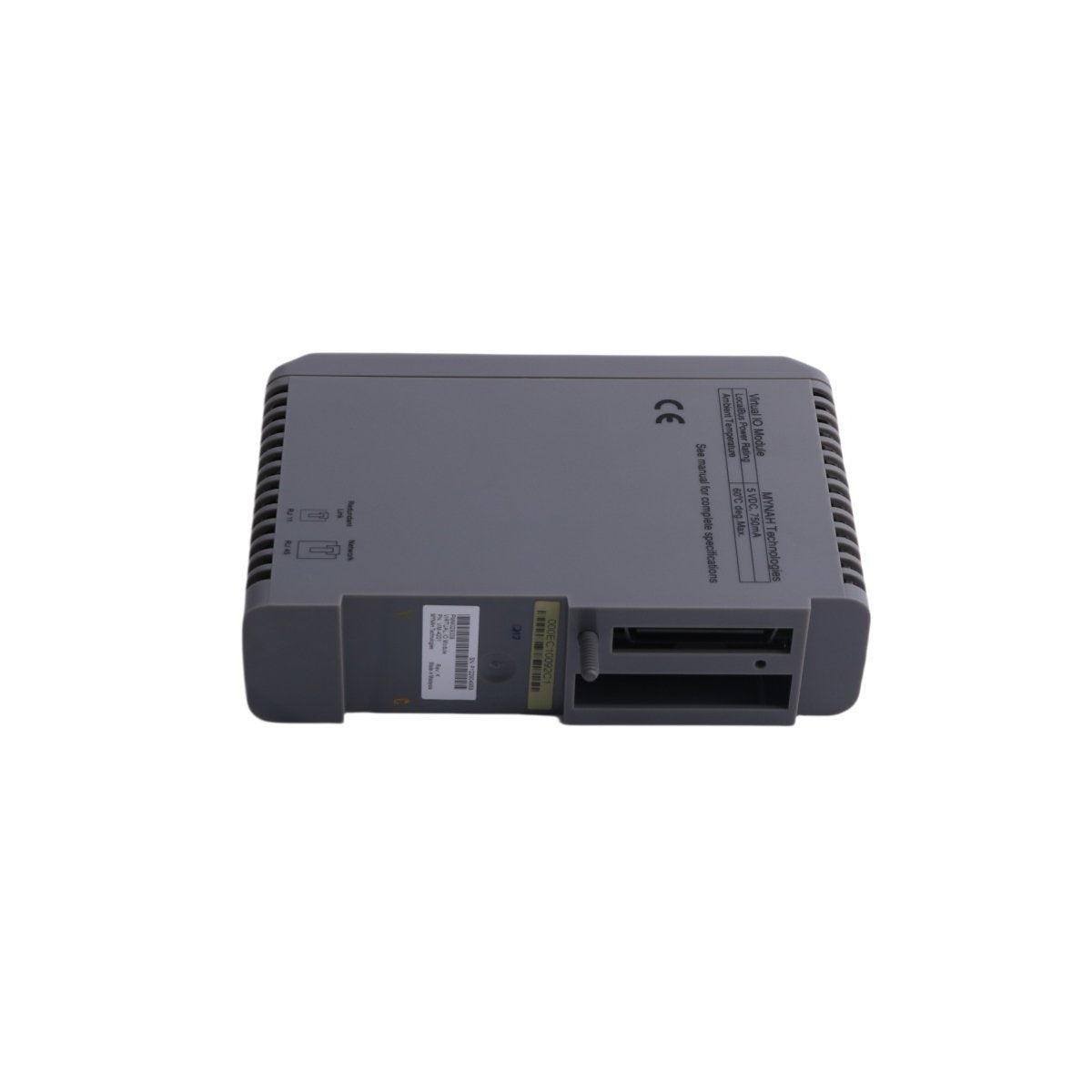

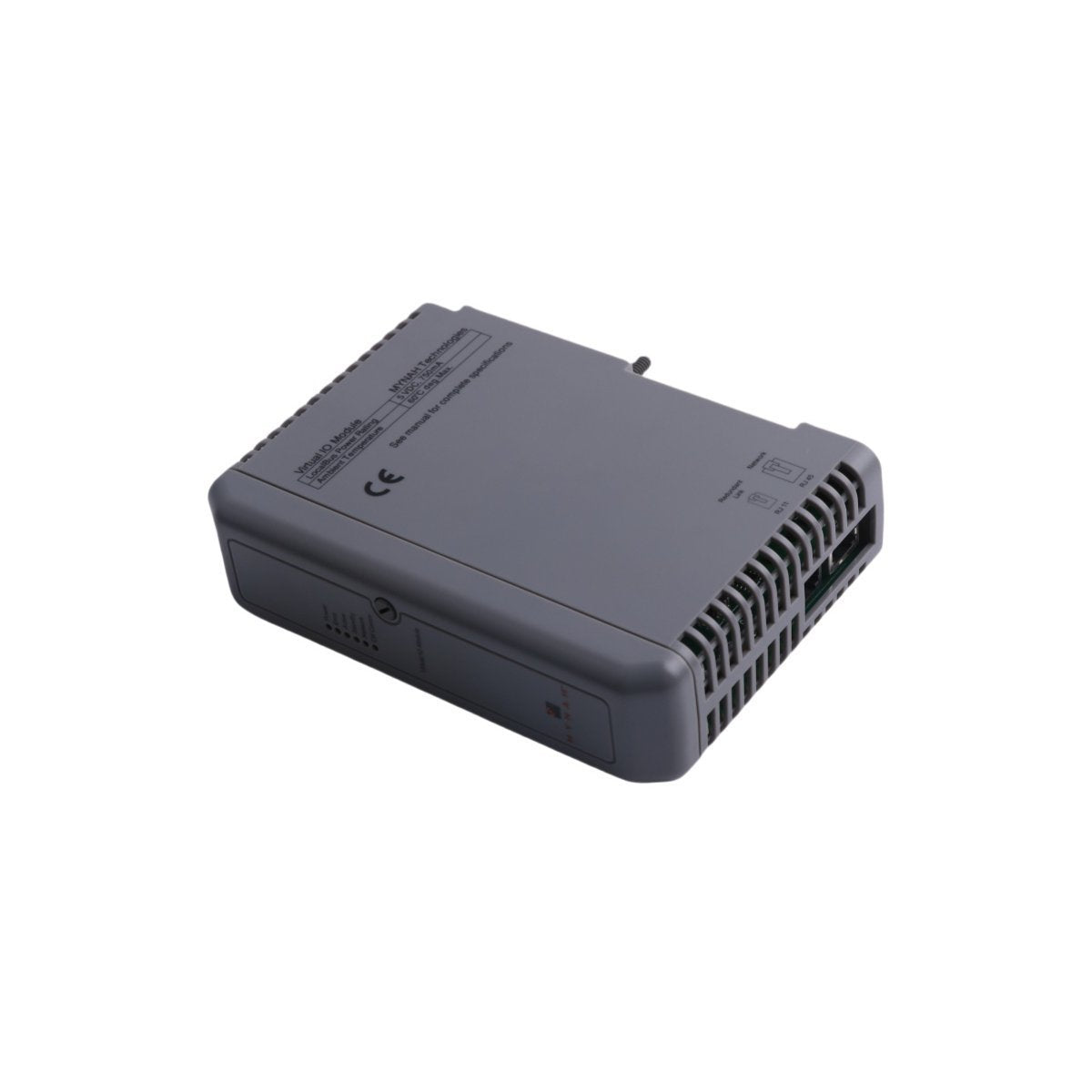

Emerson VIM-4201 DeltaV M-series Virtual I/O Module

Product Overview

The Emerson VIM-4201 is a high-performance Virtual I/O Module (VIM) engineered to provide a high-speed interface between DeltaV™ M-series controllers and external Ethernet networks. This module serves as a powerful bridge for non-intrusive simulation and advanced integration, allowing DeltaV systems to communicate with third-party devices and simulation software. Primarily used in conjunction with DeltaV Mimic software, the VIM-4201 enables engineers to validate control strategies and perform comprehensive System Acceptance Testing (SAT) without requiring physical I/O hardware. By virtualizing the field environment, the VIM-4201 significantly reduces commissioning risks and accelerates project timelines for complex automation deployments.

Technical Characteristics

The VIM-4201 is distinguished by its protocol versatility and seamless integration within the DeltaV ecosystem:

Multi-Protocol Communication Support The module functions as a native DeltaV rail component while providing specialized drivers for Modbus TCP/IP and EtherNet/IP. This allows for direct, bi-directional data exchange with Programmable Logic Controllers (PLCs), Motor Control Centers (MCCs), and other smart field devices, effectively treating them as native DeltaV I/O.

High-Fidelity Simulation When utilized for virtualization, the VIM-4201 mimics the behavior of physical DeltaV I/O cards. This allows the controller to execute logic against a simulated plant model in real-time. Because the simulation is "non-intrusive," the control database remains identical to the production version, ensuring that validated logic can be deployed to the field with 100% confidence.

Efficient Power and Form FactorOperating on a low-voltage 5VDC internal bus with a 750mA current draw, the VIM-4201 follows the standard M-series form factor. It mounts easily on the DeltaV carrier, maintaining a compact footprint of 4.1 x 12.5 x 15.8 cm, which is ideal for high-density control cabinets.

Simplified Maintenance and Diagnostics The module provides localized LED status indicators for power, health, and network activity. Integrated diagnostics allow for rapid troubleshooting of communication links via the DeltaV Explorer and Mimic environment, ensuring maximum uptime for both simulation and production networks.

Technical Specifications

• Brand: Emerson

• Model Number: VIM-4201

• Product Type: Virtual I/O Module (VIM)

• Compatibility: DeltaV M-series Controllers

• Supported Protocols: Modbus TCP, EtherNet/IP

• Power Requirements: 5VDC, 750mA

• System Architecture: DCS / DeltaV SIS

• Weight: 0.28 kg

• Dimensions: 4.1 x 12.5 x 15.8 cm

• Origin: USA

Application Areas

The VIM-4201 is a versatile tool across various industrial phases:

• Control System Validation: Testing complex logic and safety instrumented functions (SIS) in a virtual environment.

• Operator Training Systems (OTS): Creating realistic plant floor simulations for training personnel without affecting actual production.

• Third-Party Integration: Connecting DeltaV controllers to specialized laboratory equipment or packaged PLC systems.

• Legacy Upgrades: Simulating old I/O behavior during a phased migration to new DeltaV hardware.
