Product Overview

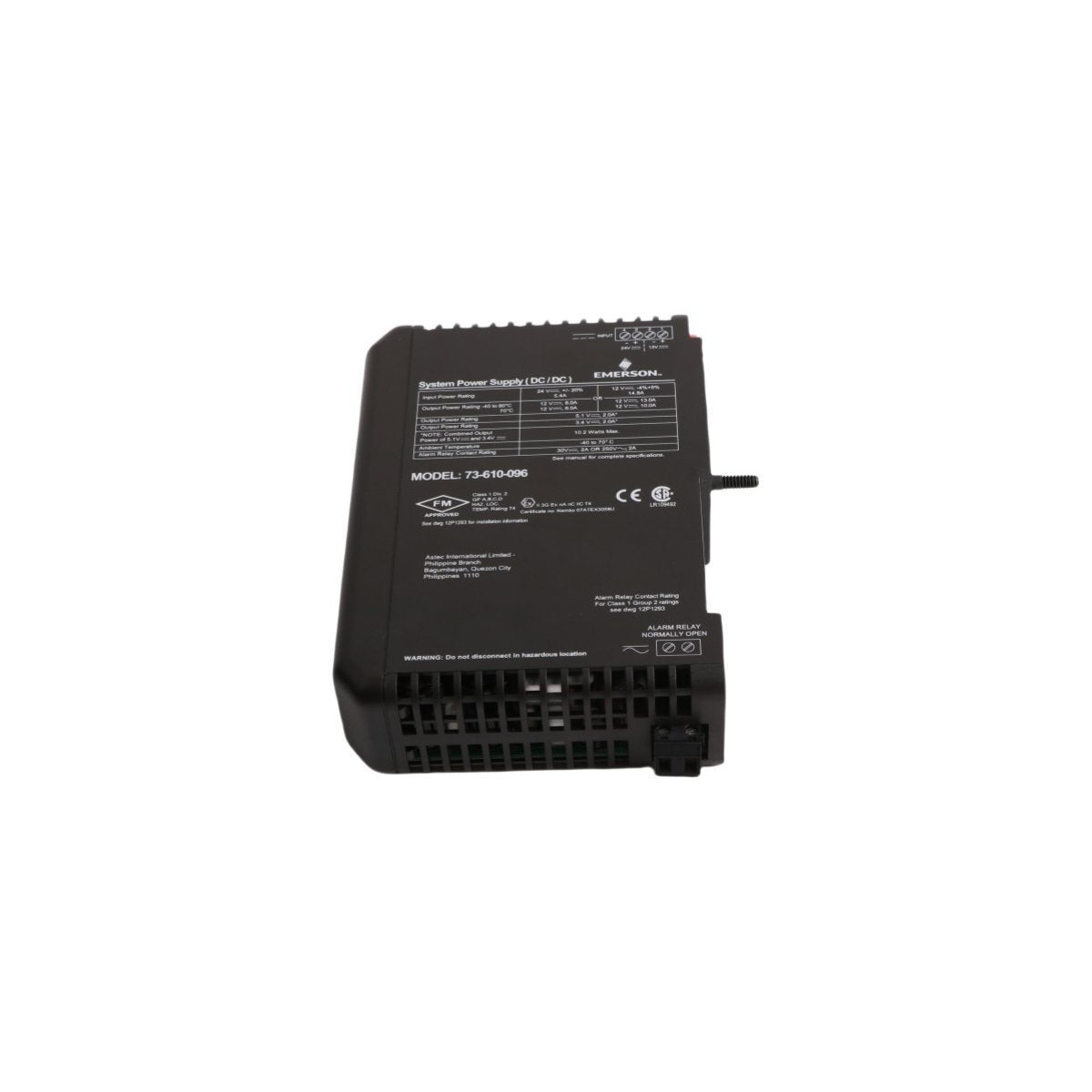

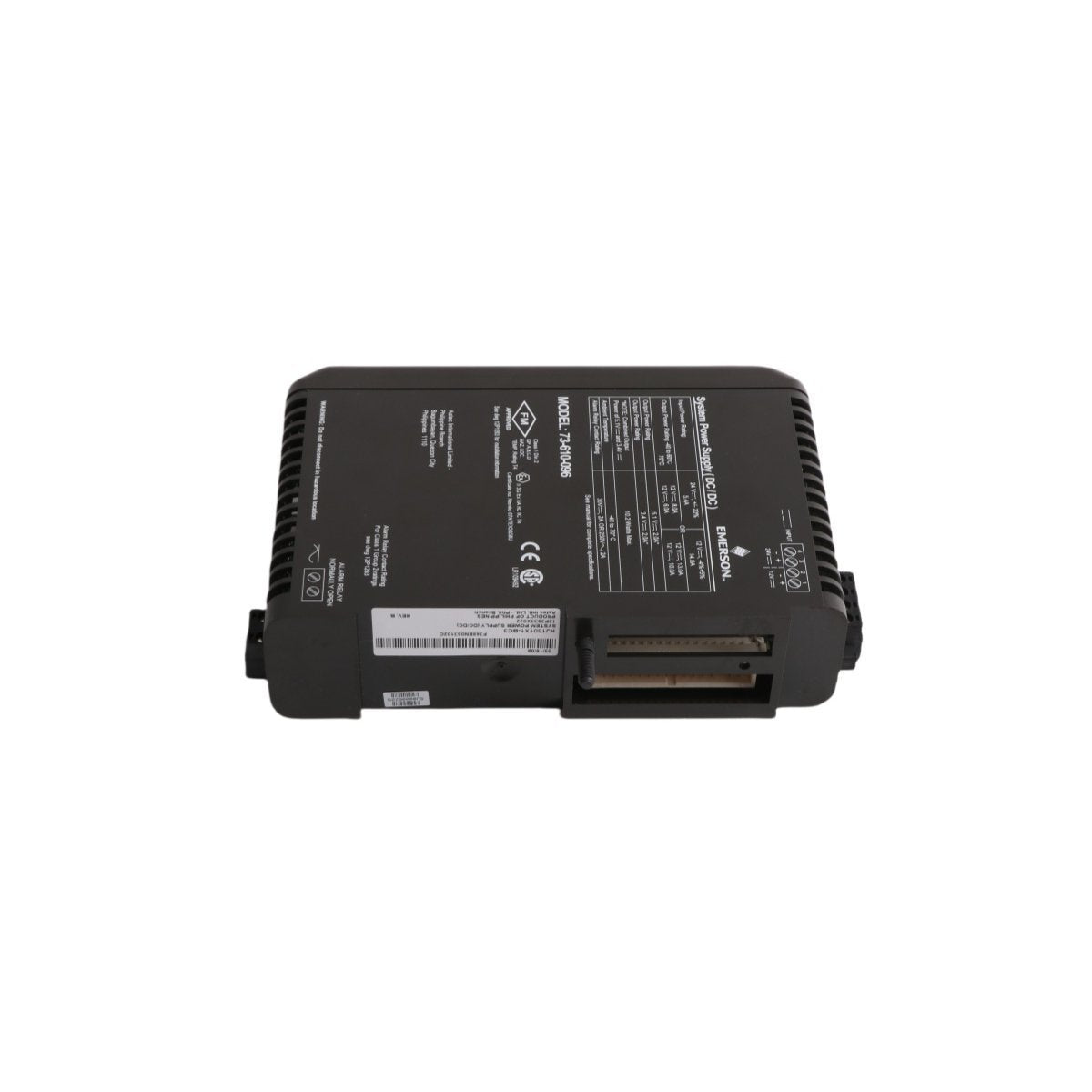

The Emerson VE5009 (Order Number 12P3935X022, Hardware Revision KJ1501X1-BC3) is a core DC power distribution module engineered for the DeltaV™ Distributed Control System (DCS). This power supply is designed to provide regulated, low-noise electricity to the I/O subsystem and controller backbone, ensuring that critical logic solvers and field interfaces operate with maximum stability.

Built for industrial-grade resilience, the VE5009 serves as the foundation for system uptime. It is specifically designed to handle the rigorous transients and electrical noise common in heavy industrial environments. By providing a clean and consistent power rail, this module prevents data corruption and hardware malfunctions caused by voltage fluctuations, making it a critical asset for high-availability process automation architectures.

Hardware Parameters and Technical Characteristics

The VE5009 KJ1501X1-BC3 is defined by its thermal efficiency and its ability to integrate into redundant power schemes for mission-critical reliability.

• Module Function: DC Power Supply Unit

• Hardware Identifier: KJ1501X1-BC3 / 12P3935X022

• Input Voltage: Standard industrial 24V DC input support

• Environmental Tolerance: Operating temperature range from -40°C to +80°C

• Protection Rating: IP66-rated enclosure for superior resistance against moisture and dust ingress

• Reliability Architecture: Supports dual DC power supply configurations for full system redundancy

• Signal Conditioning: Advanced filtering to minimize EMI (Electromagnetic Interference)

• Status Monitoring: Integrated diagnostics for real-time health tracking and predictive failure alerts

• Physical Weight: 0.7 kg

• Dimensions: 4.1 x 12.5 x 17.5 cm

• Manufacturing Origin: USA

Industrial Applications and Operational Use Cases

This power supply is utilized across diverse sectors where continuous power to control hardware is non-negotiable:

• Oil and Gas Production: Powering remote I/O terminals and wellhead controllers in extreme temperature environments where IP66 protection is vital.

• Chemical Processing: Providing the backbone for safety-instrumented systems (SIS) that require high-availability power to maintain reactor stability.

• Power Generation Facilities: Ensuring consistent electrical supply to turbine control modules and boiler automation racks within high-vibration zones.

• Refining Operations: Supporting dense DCS cabinets where efficient heat dissipation and low-noise power are required for precision 4-20mA signal processing.

• Pharmaceutical Batching: Delivering the reliable energy needed for high-accuracy weighing and dosing systems where any power interruption could lead to significant product loss.
