Product Overview

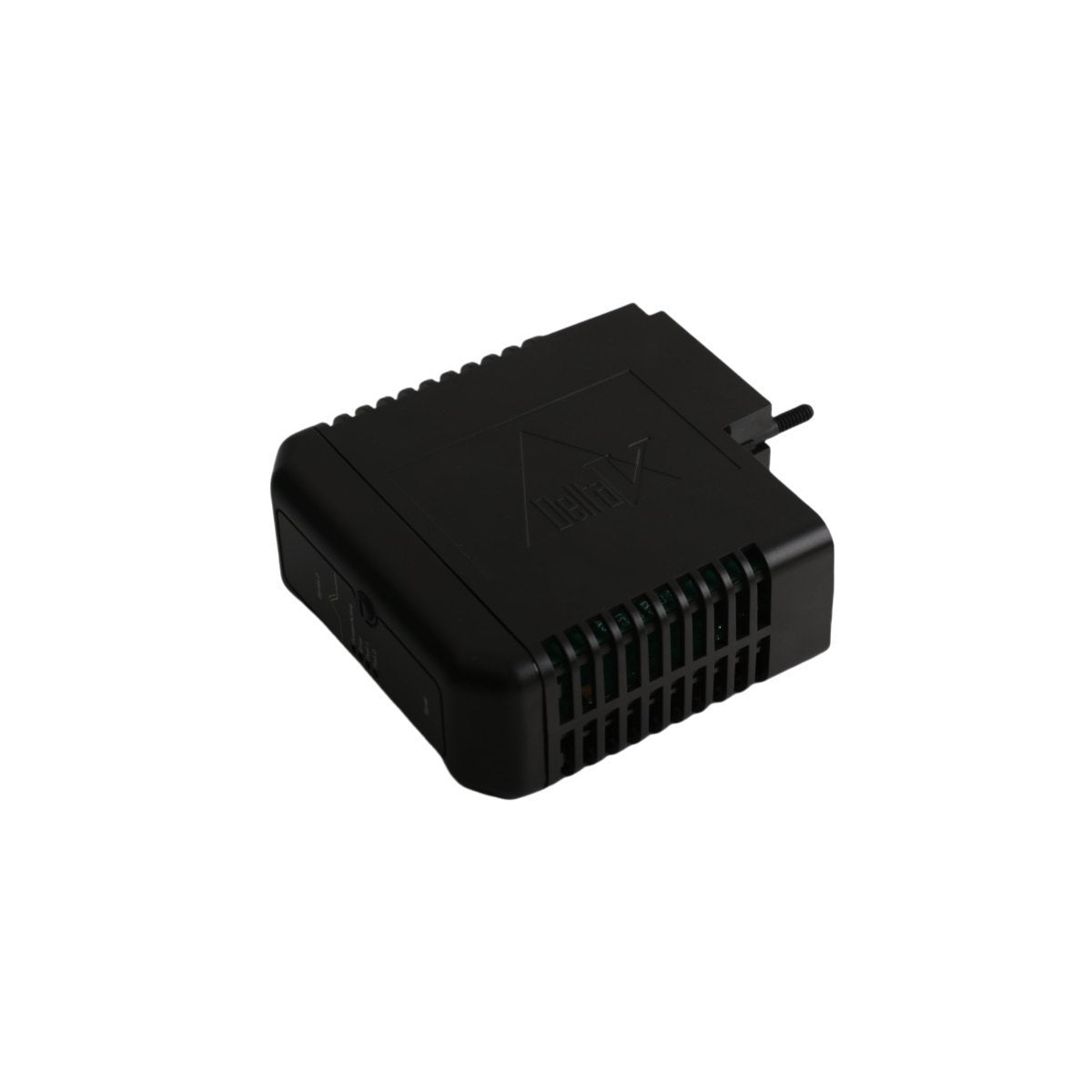

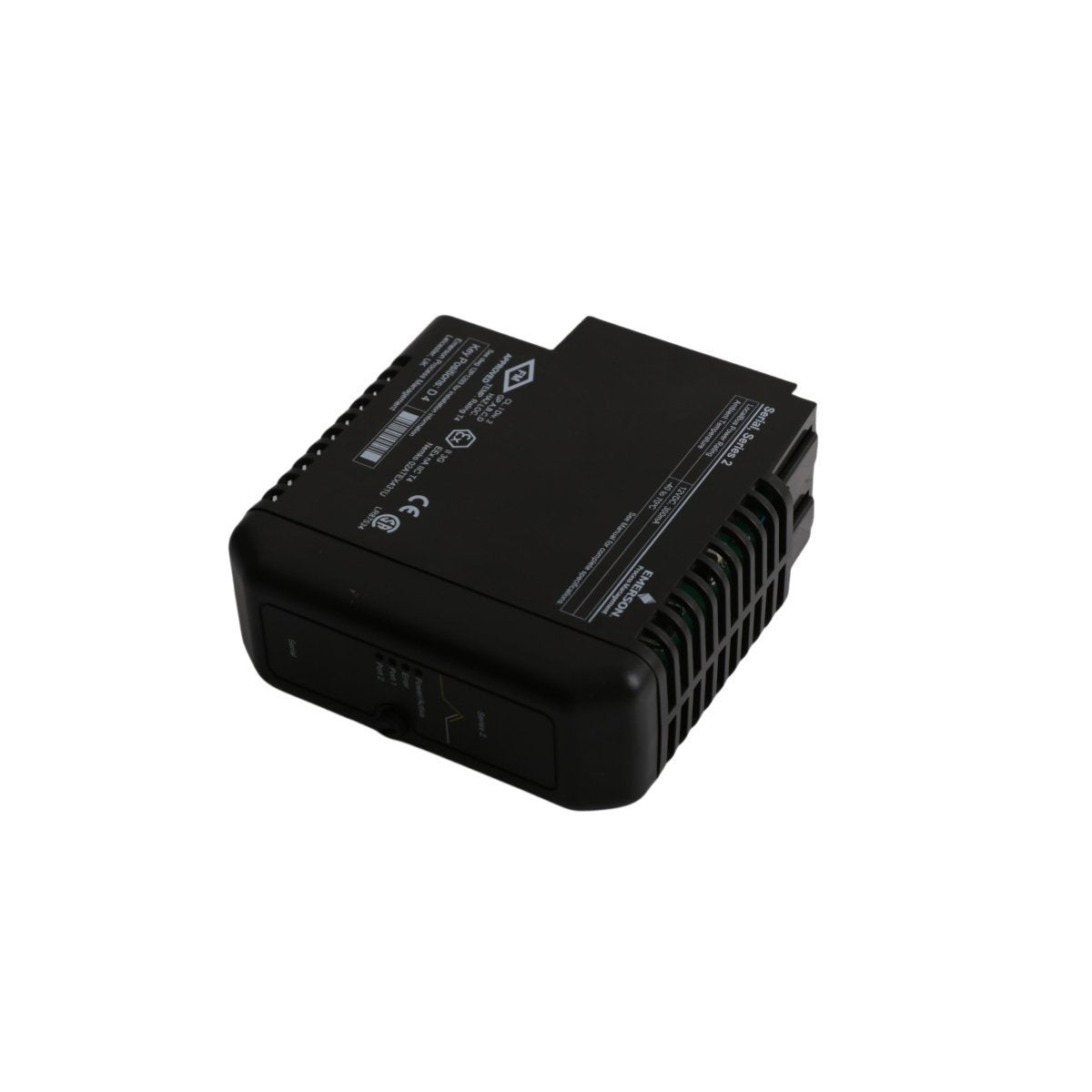

The Emerson VE4006P2 (KJ3241X1-BA1 / 12P2506X072) is a specialized Serial Interface Card engineered for the DeltaV™ Distributed Control System (DCS). This module facilitates high-speed, reliable communication between the DeltaV controller and third-party serial devices. It serves as a programmable gateway, allowing for the integration of Modbus, Allen-Bradley DF1, and other asynchronous serial protocols into the unified DeltaV control architecture.

This interface card is designed to handle complex data exchange requirements, acting as a coordination layer for equipment modules. By bridging external device data with DeltaV function blocks, the VE4006P2 enables operators to implement sophisticated control strategies, such as PID loops and logic sequences, across diverse hardware platforms. Its primary role is to ensure that external data is processed with the same deterministic integrity as native DeltaV I/O.

Technical Specifications

• Manufacturer: Emerson

• Model Number: VE4006P2

• Reference Number: KJ3241X1-BA1

• Part Number: 12P2506X072

• Module Type: Programmable Serial Interface

• System Series: DeltaV DCS / SIS

• Protocol Support: Modbus RTU, Modbus ASCII, DF1, and custom programmable serial protocols

• Baud Rates: Configurable up to 115.2 kbps

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Relative Humidity: 5% to 95%, non-condensing

• Dimensions: 5.1 x 12.7 x 12.7 cm

• Weight: 0.18 kg

• HS Code: 8537101190

Key Technical Characteristics

• Advanced Algorithm Management: The card utilizes embedded algorithms to synchronize the interaction between control modules and field equipment, streamlining data flow for both batch and continuous process applications.

• Modular Function Blocks: Supports a wide array of standard DeltaV function blocks, including bias/gain, lead/lag, and advanced PID controllers, allowing for highly customized control logic development.

• Enhanced Alarm Management: By grouping serial data within unit-level modules, the card simplifies alarm hierarchy. This allows for consolidated reporting for specific units like boilers or reactors, improving operator response times.

• Galvanic Isolation: Features built-in electrical isolation to protect the DeltaV backplane from field-side voltage spikes and electromagnetic interference (EMI).

• Hot-Swappable Capability: Designed for high-availability environments, the card can be inserted or removed under power without disrupting system-wide communication or control operations.

Applications and Integration

The VE4006P2 is commonly deployed in industries where legacy serial devices or third-party controllers (such as PLCs or weigh scales) must be integrated into a central DeltaV system. It is a critical component for:

• Interfacing with motor control centers (MCCs) via Modbus.

• Integrating gas chromatographs or specialized analyzers.

• Coordinating remote node data in safety instrumented systems (SIS).
