Product Overview

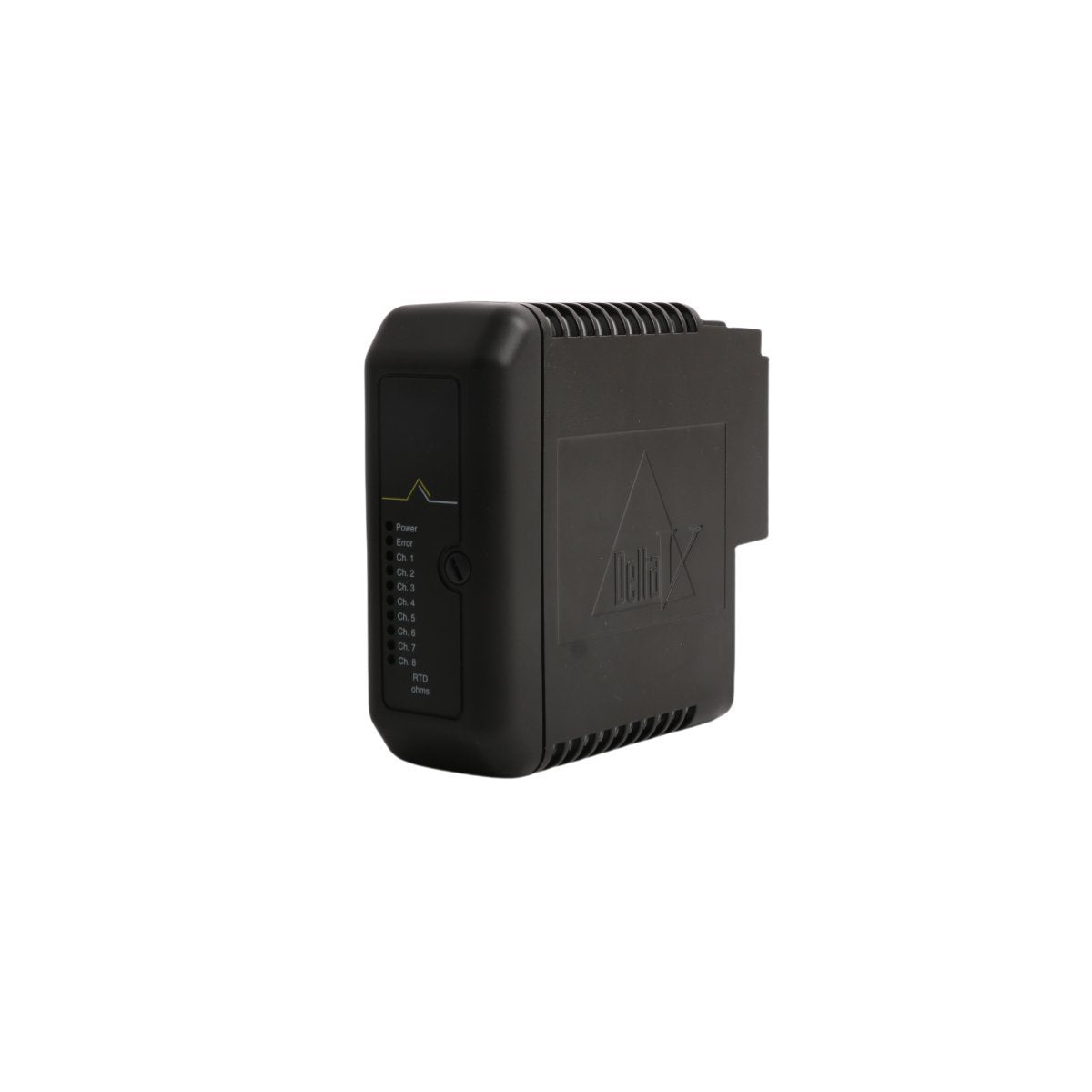

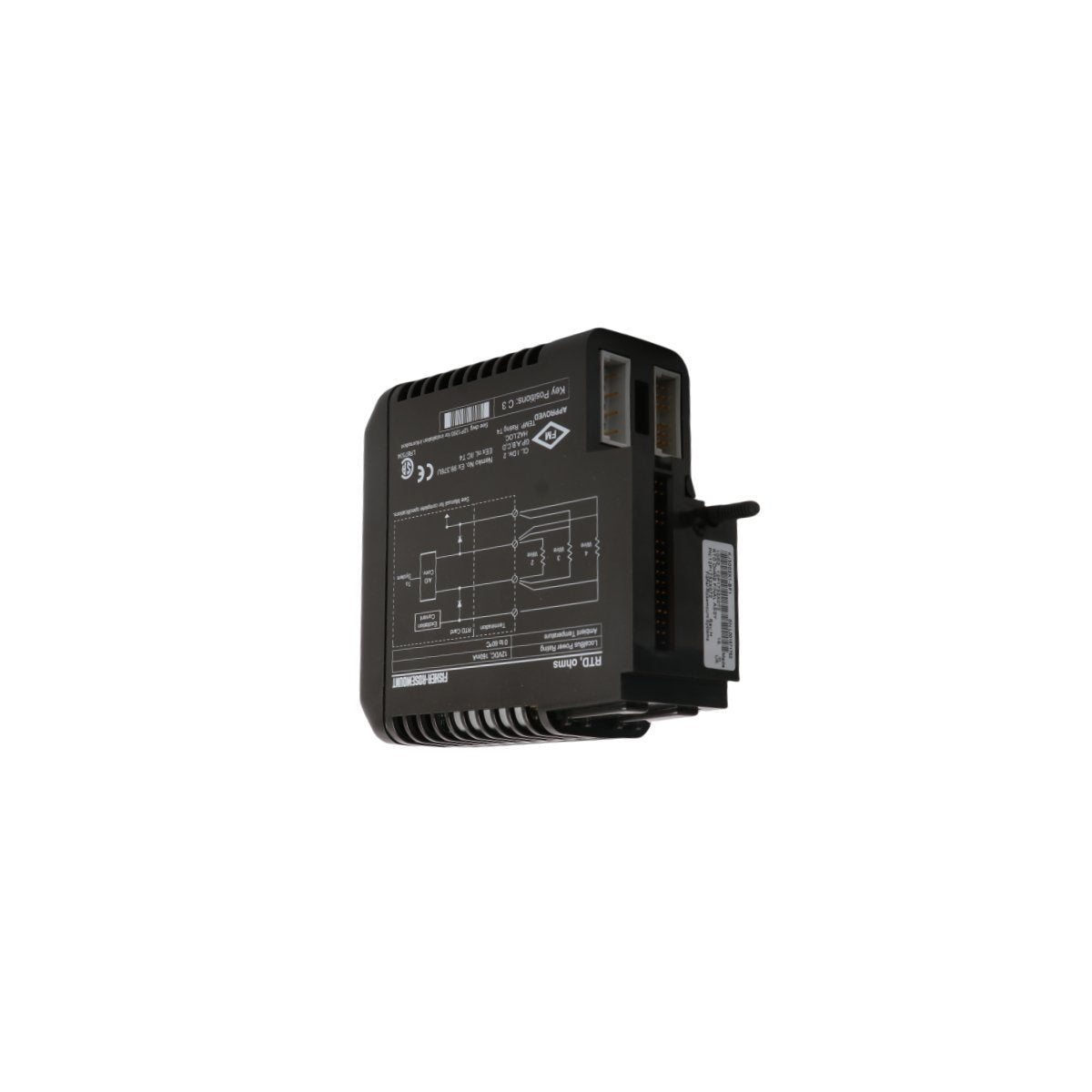

The KJ3002X1-BF1 (part numbers 12P1732X082 / VE4003S6B1) is a precision Resistance Temperature Detector (RTD) Input Module specifically developed for the Emerson DeltaV™ M-series I/O Subsystem. This module serves as the primary interface for temperature sensing within a Distributed Control System (DCS), converting low-level resistance signals from field-mounted RTD sensors into digital temperature data.

By providing high-resolution signal conditioning and noise rejection, the KJ3002X1-BF1 ensures that critical thermal processes remain within strict operational tolerances. The module is designed for "hot-swappable" installation, allowing for maintenance and replacement without interrupting the power or communication of other modules on the same I/O carrier.

Technical Characteristics and Performance

Engineered for the rigorous demands of industrial automation, this RTD module combines accuracy with field-hardened reliability.

• Multi-Sensor Support: Compatible with a variety of standard RTD types, including Pt100 (Platinum 100 ohm) sensors, providing flexibility for diverse process requirements.

• Lead Wire Compensation: Features advanced circuitry to compensate for resistance in sensor lead wires, ensuring measurement accuracy even over long cable distances.

• Galvanic Isolation: Provides robust electrical isolation between field circuitry and the system backplane, protecting the controller from field-side transients and ground loops.

• Real-Time Diagnostics: Continuously monitors the health of field wiring and sensor integrity, providing instant alerts for open-circuit or short-circuit conditions.

• Environmental Ruggedness: Built to operate in challenging cabinet environments, withstanding the vibrations and thermal fluctuations typical of industrial processing plants.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3002X1-BF1

• Order Reference: 12P1732X082 / VE4003S6B1

• Module Type: RTD Input (8-Channel)

• System Compatibility: DeltaV M-series I/O Subsystem

• Resolution: High-resolution A/D conversion for precise thermal tracking

• Dimensions: 4.4 x 10.2 x 10.8 cm

• Unit Weight: 0.2 kg

• Country of Origin: USA

Industrial Applications

The Emerson KJ3002X1-BF1 is utilized globally in sectors where temperature stability is critical to product quality and plant safety:

• Chemical Processing: Monitoring reactor jacket temperatures and exothermic reaction states.

• Power Generation: Tracking bearing temperatures in turbines and heat exchanger efficiency.

• Oil and Gas: Measuring fluid temperatures in distillation columns and pipelines.

• Pharmaceuticals: Ensuring precise thermal control in fermentation and sterilization cycles.
