Product Overview

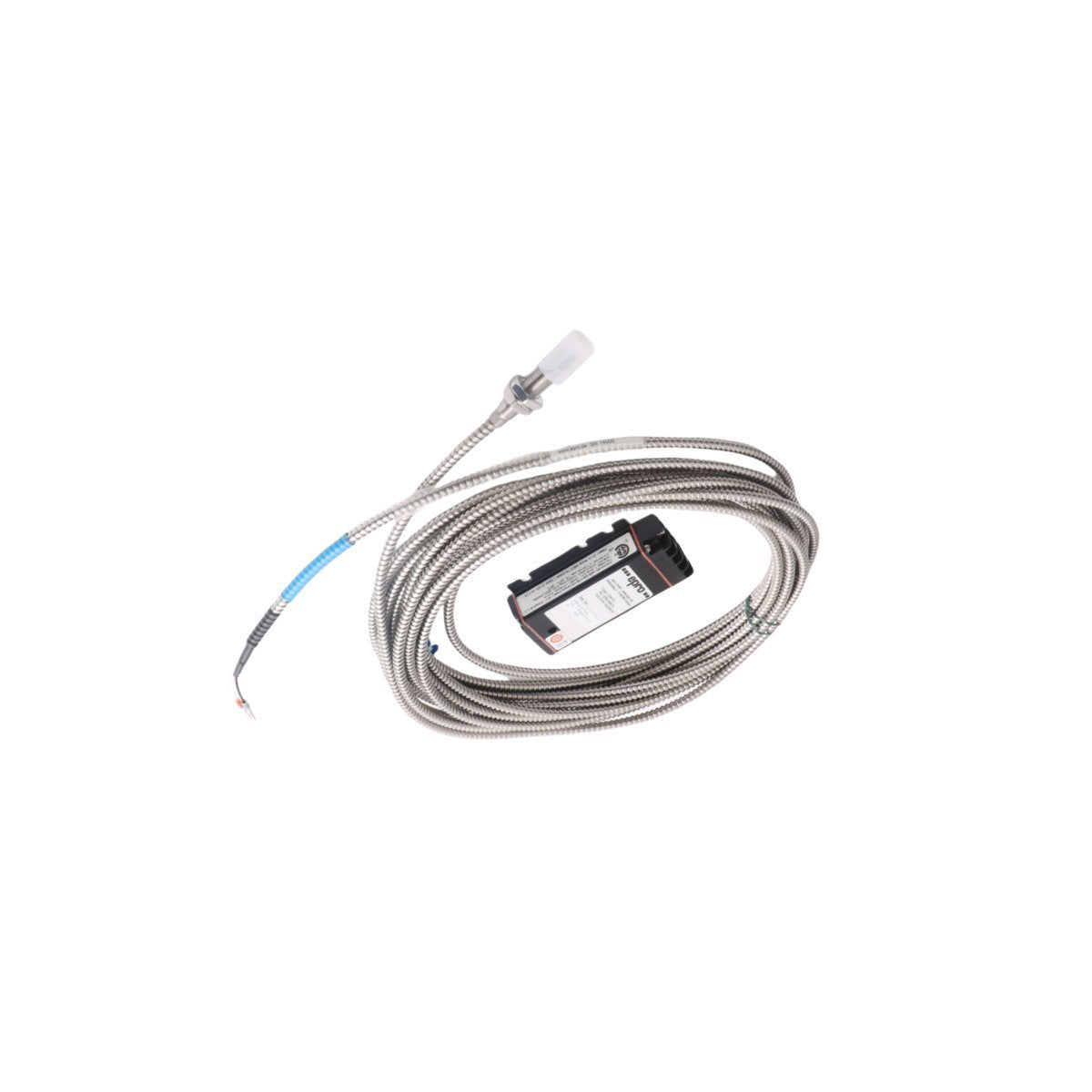

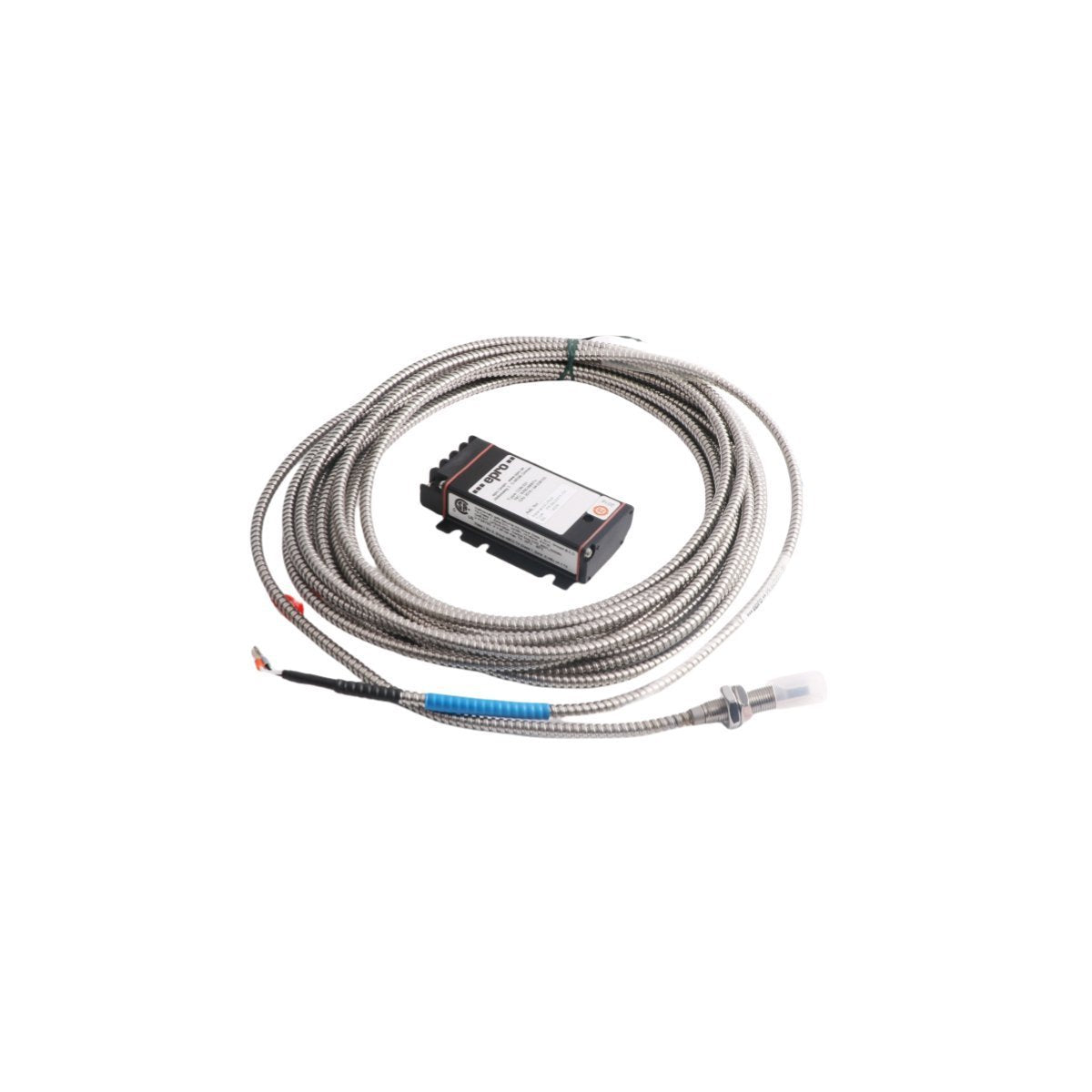

The Emerson PR6423/011-131 CON031 is a specialized 8mm non-contact eddy current sensor belonging to the EPRO product family. Engineered for critical machinery protection and condition monitoring, this displacement sensor is designed to measure shaft vibration, axial thrust, and radial position in high-speed rotating equipment. By utilizing electromagnetic induction, the PR6423/011-131 provides high-linearity measurements of the gap between the sensor tip and the metallic target surface.

This sensor is a vital component for turbomachinery protection systems, often integrated with DCS or dedicated monitoring platforms to prevent catastrophic mechanical failure. Its rugged construction allows it to operate reliably under extreme pressure and temperature conditions, common in steam turbines, gas turbines, and large-scale centrifugal compressors.

Technical Specifications and Capabilities

The PR6423 series is recognized for its stability and precision in demanding industrial environments.

• Sensor Tip Diameter: 8 mm

• Measurement Principle: Eddy Current (Non-contact)

• Model/Part Number: PR6423/011-131 with CON031 connector

• Application: Relative shaft vibration, displacement, and eccentricity monitoring

• Housing Material: Stainless steel with high-resistance tip coating

• Cable Interface: Integrated cable with CON031 circular connector

• Target Material: Ferromagnetic steel (Standard 42CrMo4 or equivalent)

• Environmental Rating: IP67 / NEMA 4X (sensor head)

• Weight: 0.42 kg

• Dimensions: 27 cm x 24 cm x 4 cm (packaged)

Key Features and Industrial Application

The PR6423/011-131 is optimized for long-term stability and high-frequency response in heavy-duty rotating assets.

• Precision Signal Conversion: The sensor delivers high-resolution data with minimal signal distortion, ensuring that the control system receives an accurate representation of mechanical movement.

• Machinery Protection: Capable of detecting minute changes in shaft position or vibration levels, triggering alarms or emergency shutdowns to protect high-value assets.

• Harsh Environment Suitability: The sensor is resistant to oil, steam, and chemical exposure, ensuring it remains functional within the internal housings of turbines and gearboxes.

• Simplified Integration: The CON031 connector facilitates secure electrical attachment to signal converters and transmitters, reducing installation time and potential wiring errors during field setup.

• Broad Compatibility: While part of the EPRO range, the sensor is compatible with a variety of standard monitoring systems, including the DeltaV™ DCS and other vibration analysis hardware.
