Product Overview

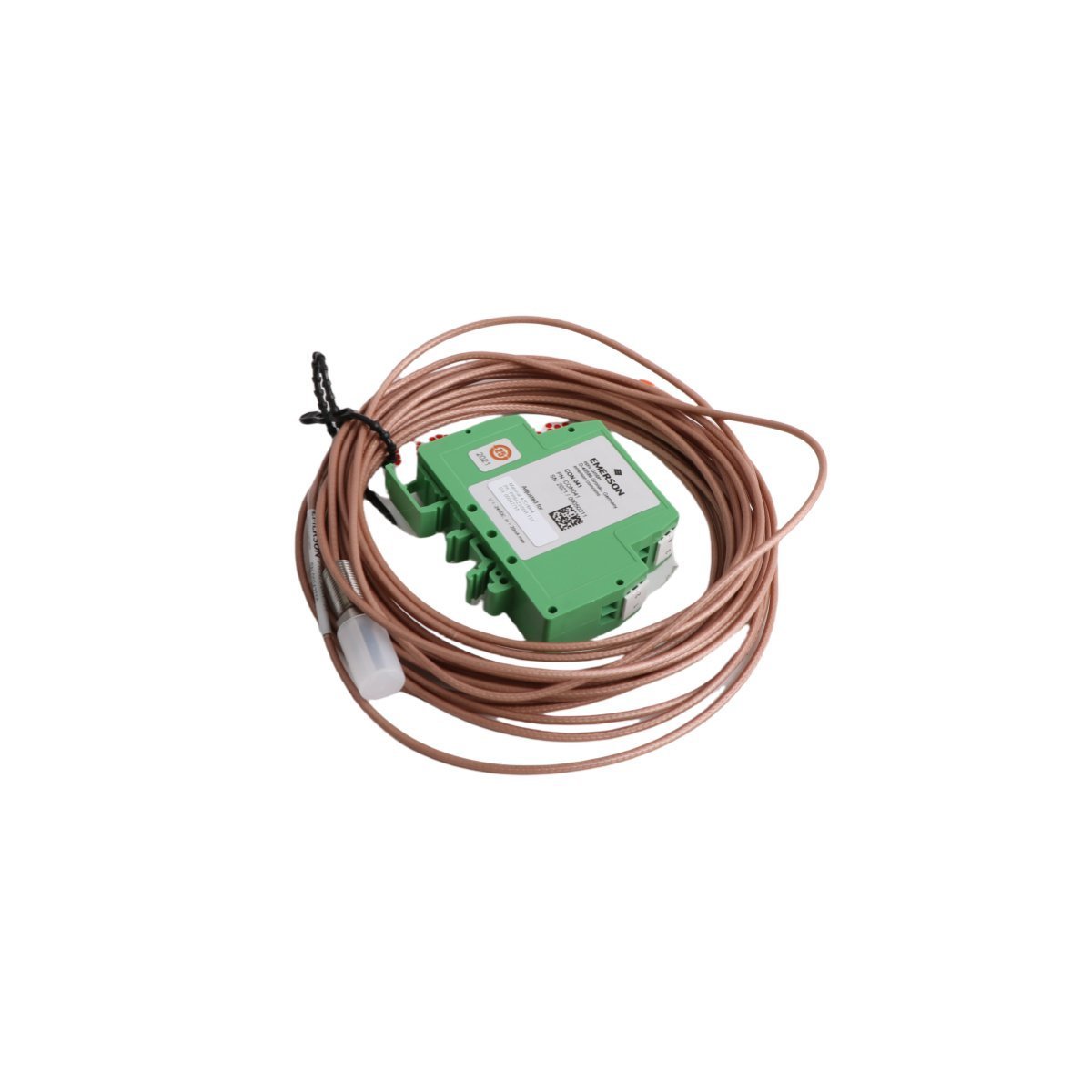

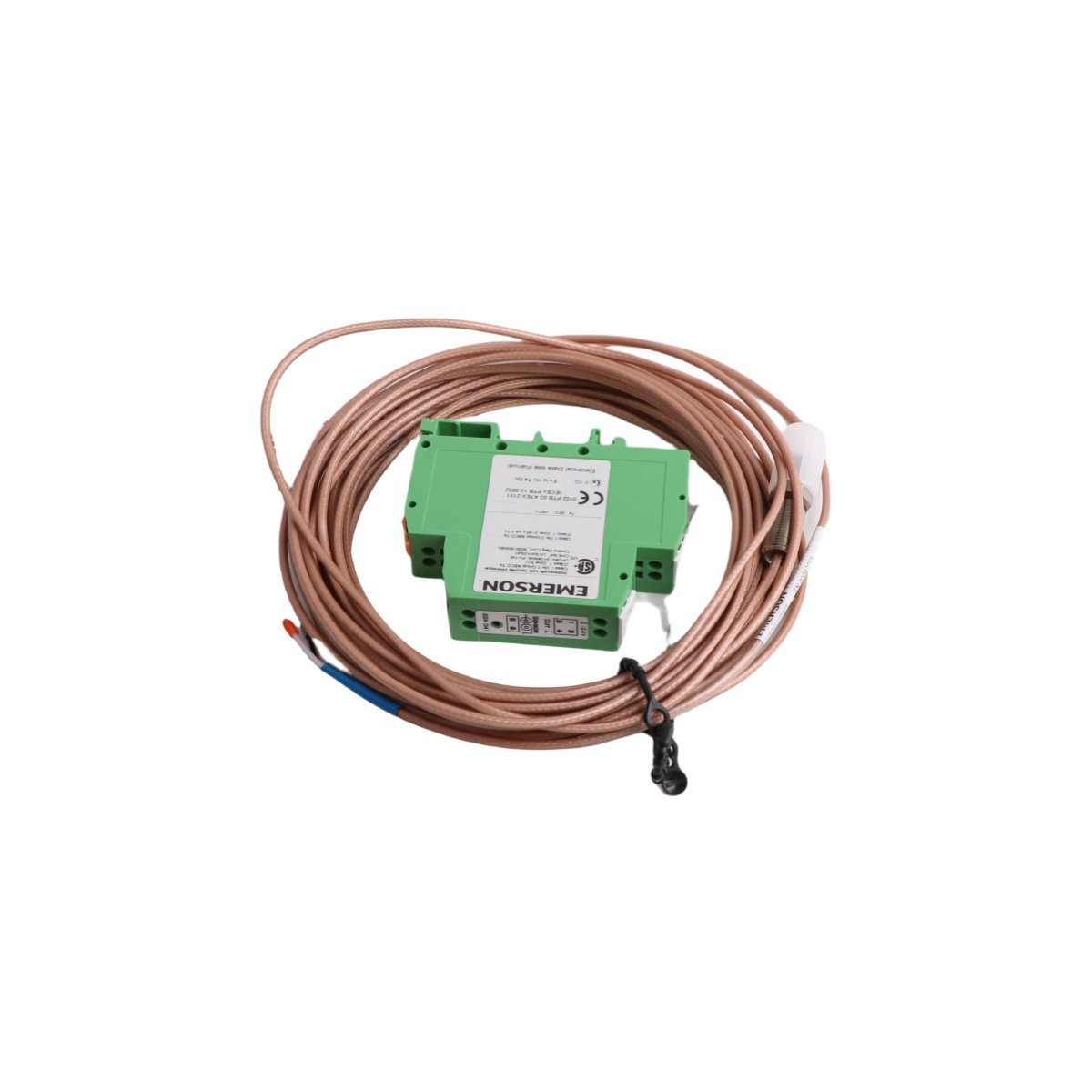

The Emerson PR6423/00R-131 CON041 is a precision-engineered signal converter designed for high-performance vibration and displacement monitoring. Operating as part of the EPRO product family, this DIN rail-mounted module acts as the critical interface between 8mm eddy current proximity sensors and centralized control systems like a Distributed Control System (DCS) or PLC. Its primary function is to transform the complex analog raw signals from proximity probes into standardized, linear outputs suitable for real-time machinery health analysis. This module is essential for protecting rotating machinery, such as turbines, compressors, and large pumps, by providing highly accurate measurements of shaft vibration and axial position.

Technical Characteristics

The PR6423/00R-131 CON041 is distinguished by its signal integrity and industrial-grade stability:

Advanced Signal Linearization The converter utilizes sophisticated internal circuitry to linearize the non-linear voltage output typically generated by eddy current probes. This ensures that the displacement data provided to the DCS is proportional and precise across the entire measuring range, which is critical for identifying early-stage mechanical shaft misalignments.

Noise Suppression and Signal Conditioning Engineered for the electrically noisy environments of power plants and refineries, the CON041 features high-level electromagnetic compatibility (EMC). It filters out parasitic interference to deliver a "clean" signal, preventing false alarms and ensuring that only actual mechanical deviations are recorded.

Robust DIN Rail Architecture Designed for space-efficient installation, the module features a slim profile that mounts directly onto standard 35mm DIN rails. Its compact 16x16x2cm footprint allows for high-density integration within control cabinets, while its lightweight 0.22kg build reduces the mechanical load on the mounting structure.

Condition Monitoring and Diagnostics Beyond simple conversion, the PR6423/00R-131 supports advanced system diagnostics. It monitors the health of the connected sensor loop, facilitating predictive maintenance strategies by alerting operators to sensor faults or cable breaks before they lead to system-wide failures.

Technical Specifications

• Brand: Emerson (EPRO Series)

• Model Number: PR6423/00R-131

• Interface Designation: CON041

• Sensor Compatibility: 8mm Eddy Current Proximity Sensors

• Mounting Style: 35mm DIN Rail Mount

• Output Type: Standardized Linear Analog Output

• Application: Displacement, Vibration, and Proximity Measurement

• Condition: Brand New (Discontinued by OEM Dec 31, 2018; Available as New Surplus)

• Weight: 0.22 kg

• Dimensions: 16 x 16 x 2 cm

• Origin: USA

Application Areas

The CON041 converter is widely implemented in critical asset protection:

• Power Generation: Monitoring steam and gas turbine shaft eccentricity.

• Petrochemical: Real-time vibration analysis of high-speed centrifugal compressors.

• Heavy Industry: Measuring axial thrust and radial position in large induction motors.

• Maintenance Engineering: Serving as the foundation for automated machinery diagnostic systems.
