Product Overview

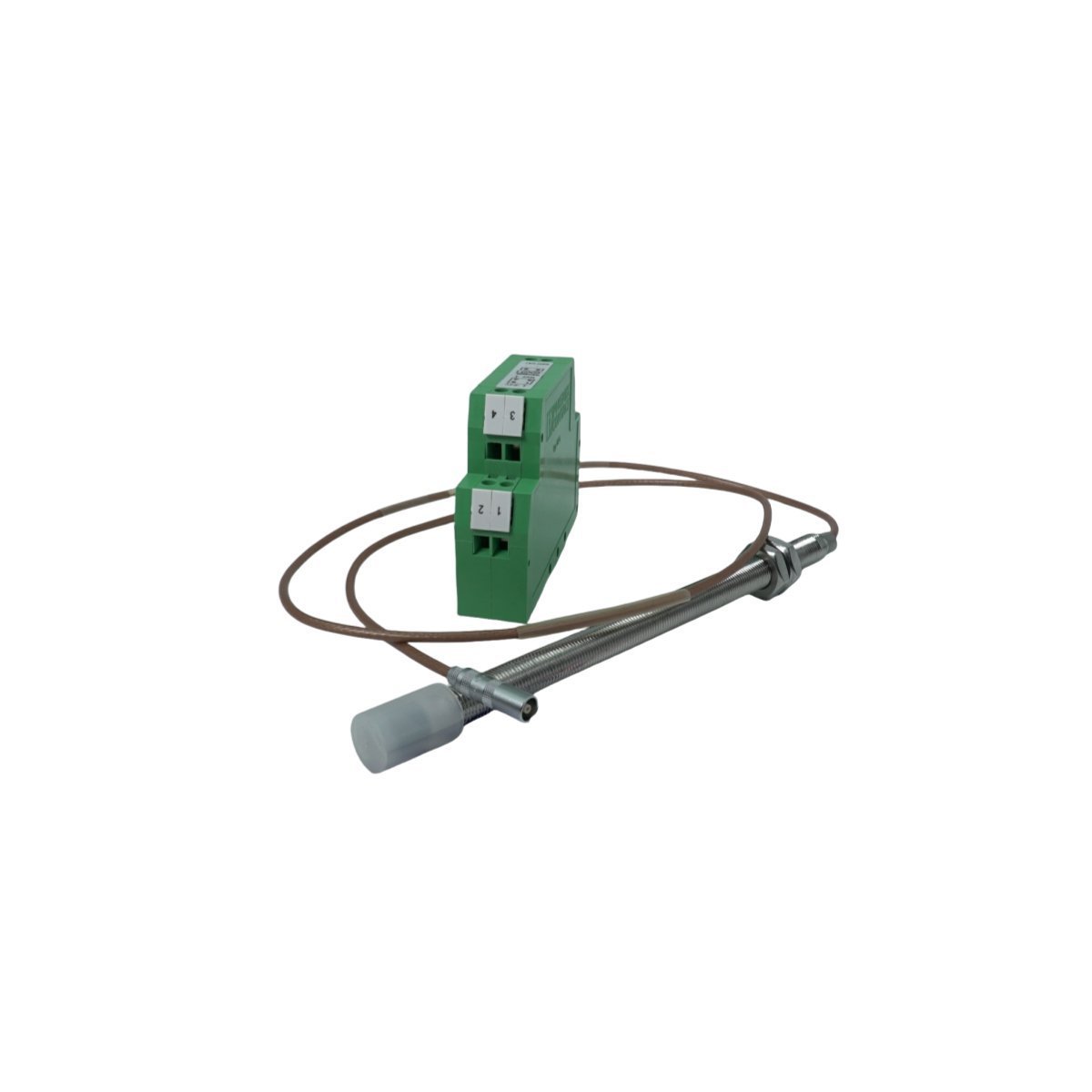

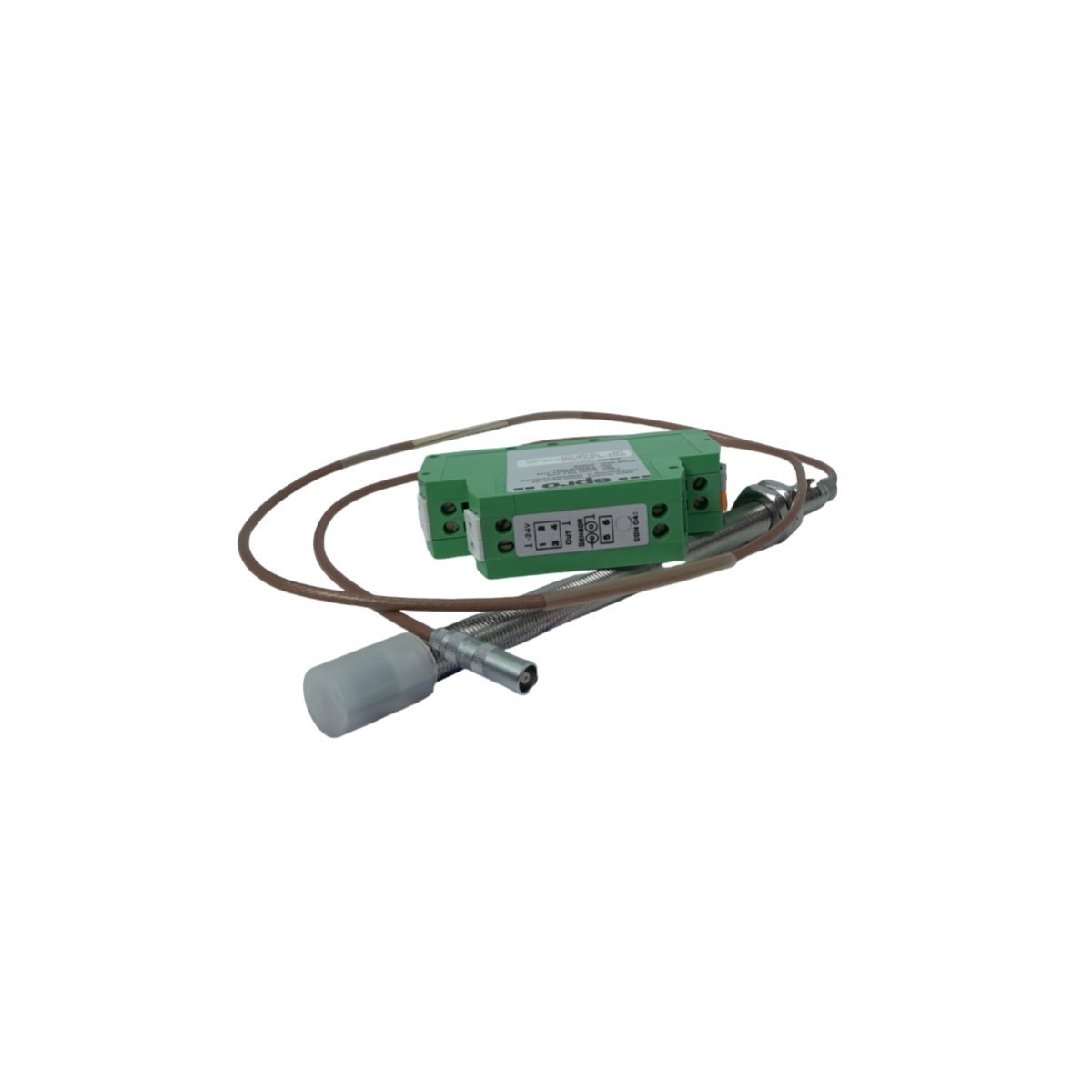

The Emerson PR6423/00C-031-CN, featuring the CON041-CN signal converter, is a professional-grade eddy current measurement solution designed for high-fidelity displacement and vibration monitoring. This system functions as a critical link between mechanical motion and electronic control systems, translating the electromagnetic properties of a rotating shaft into precise voltage or current signals. Primarily utilized within the EPRO product family, this sensor assembly is optimized for condition monitoring, allowing industrial operators to track shaft behavior in real-time. By providing high-resolution data on mechanical clearances and rotational speed, it serves as an essential component in protecting expensive turbomachinery from catastrophic failure.

Essential Performance Metrics and Hardware Details

Built to withstand the rigors of heavy industrial environments, the PR6423/00C-031-CN CON041-CN incorporates advanced signal conditioning to ensure data accuracy.

• Measurement Principle: Non-contacting eddy current (inductive) sensing.

• Signal Conversion: Integrated CON041-CN converter for stable analog output.

• Frequency Response: Designed for high-speed rotational tracking and vibration analysis.

• Environmental Resistance: Ruggedized housing capable of operating near high-temperature machinery.

• Connector Type: Specialized CN-version interface for secure industrial connectivity.

• Target Material Compatibility: Optimized for ferromagnetic steel shaft monitoring.

• System Integration: Fully compatible with Emerson DeltaV, Ovation, and standard DCS platforms.

Strategic Industrial Implementations

This sensor system is a cornerstone of predictive maintenance programs in sectors such as power generation, oil and gas, and heavy manufacturing.

The PR6423/00C-031-CN is specifically engineered for monitoring critical turbomachinery, including steam turbines, gas turbines, and large-scale centrifugal compressors. In these applications, the sensor tracks radial shaft vibration and axial thrust position, identifying early signs of bearing wear or mechanical imbalance. By providing immediate feedback to the Distributed Control System (DCS), the CON041-CN converter allows for the implementation of automated alarm and trip functions. This proactive approach to machine health monitoring ensures maximum system uptime and significantly reduces the risks associated with manual inspection or unmonitored operation.
