Product Overview

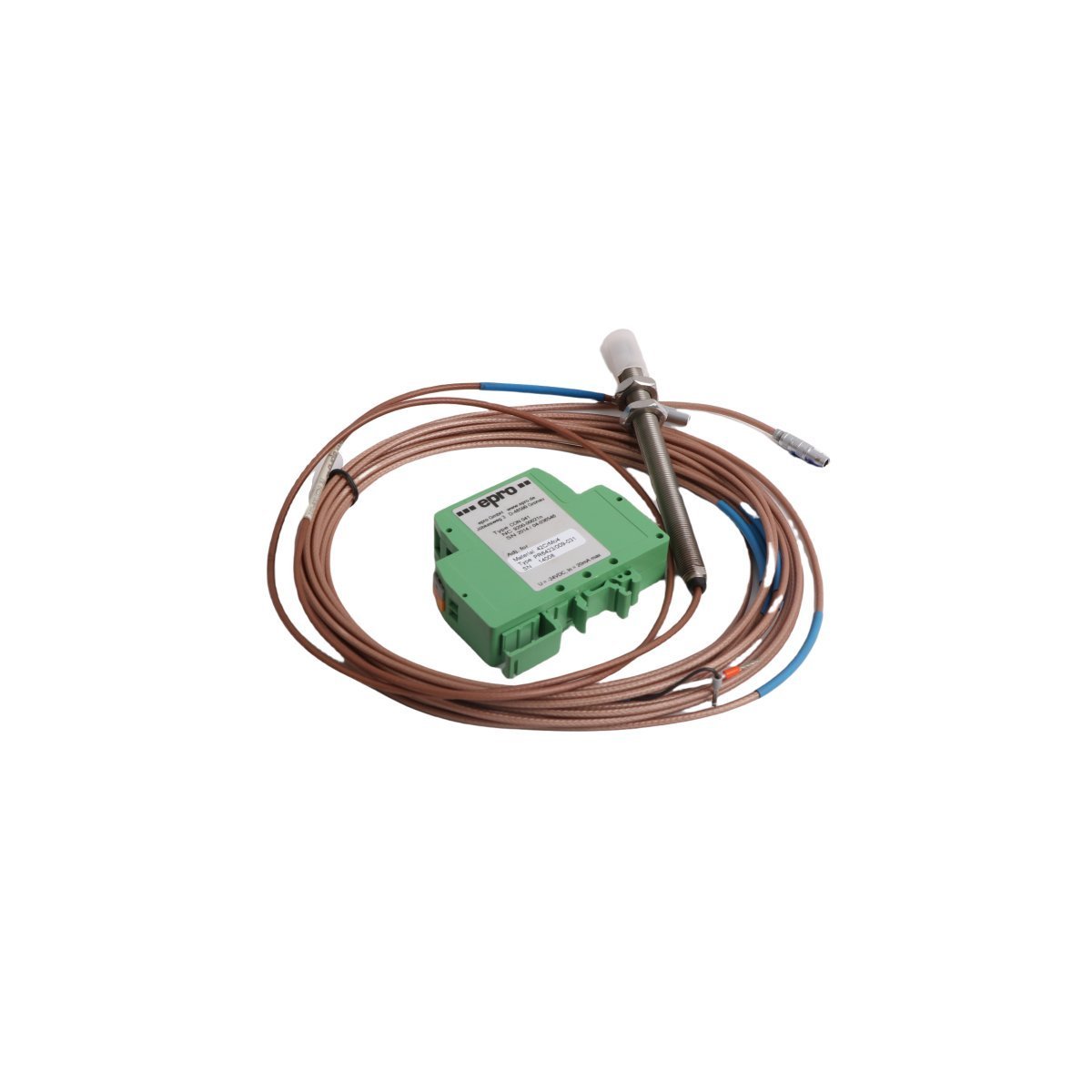

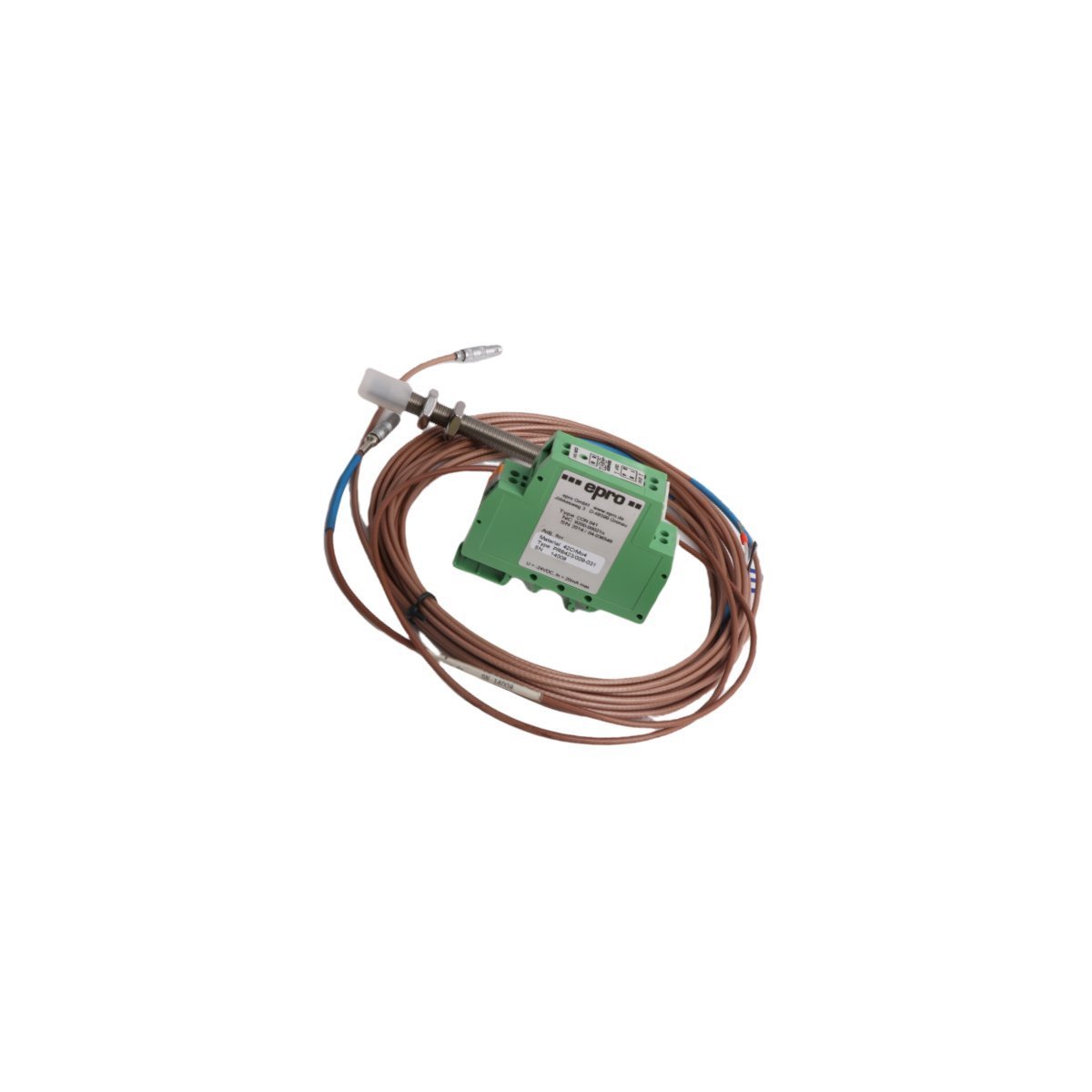

The Emerson PR6423/009-031 is a precision-engineered eddy current signal converter designed for the continuous supervision of high-speed industrial rotors. Operating on an inductive, non-contacting principle, this transducer captures critical mechanical metrics—including radial shaft vibration, axial thrust position, and eccentricity—without physical interface with the machinery. As a cornerstone of the EPRO product family, the PR6423/009-031 converts electromagnetic field variations into a high-fidelity analog output. This data is indispensable for machinery protection systems, providing the high-resolution feedback necessary to detect sub-micron shifts in shaft alignment and preventing catastrophic equipment failure.

Core Engineering Attributes and System Variables

This signal converter is optimized for maximum signal integrity, ensuring linear accuracy even in the presence of intense electromagnetic interference and high-pressure lubricants.

• Sensing Mechanism: Non-contacting inductive eddy current technology.

• Probe Interface: Integrated high-frequency cable with a specialized CON041 industrial connector.

• Environmental Protection: Hermetically sealed stainless steel body rated for IP67/IP68 ingress resistance.

• Signal Calibration: Standardized for ferromagnetic target materials (machine steel shafts).

• Internal Diagnostics: Features built-in temperature compensation to mitigate thermal drift in turbine environments.

• Linear Measuring Range: Optimized for 8mm probe tip architectures providing excellent gap-to-voltage linearity.

• Installation Design: Compact form factor tailored for high-density mounting within machine bearing housings.

Strategic Implementation and Machinery Diagnostics

The PR6423/009-031 CON041 serves as a frontline diagnostic tool in power generation, petrochemical, and heavy manufacturing sectors. Its primary utility is the protection of turbomachinery where unmonitored mechanical drift leads to costly unplanned downtime.

In utility-scale power plants, these converters are mounted on steam and gas turbines to provide real-time data on shaft displacement, ensuring that rotors maintain safe clearances from stationary components. Within the oil and gas industry, they are essential for monitoring centrifugal compressors and large-scale industrial pumps, where they identify early-stage bearing fatigue and shaft misalignments. By integrating seamlessly with Emerson CSI 6500 racks or Distributed Control Systems (DCS), the PR6423/009-031 facilitates automated emergency trip logic. This ensures that any mechanical deviation beyond safety thresholds triggers an immediate protective shutdown, effectively safeguarding the plant's most critical infrastructure.
