Product Overview

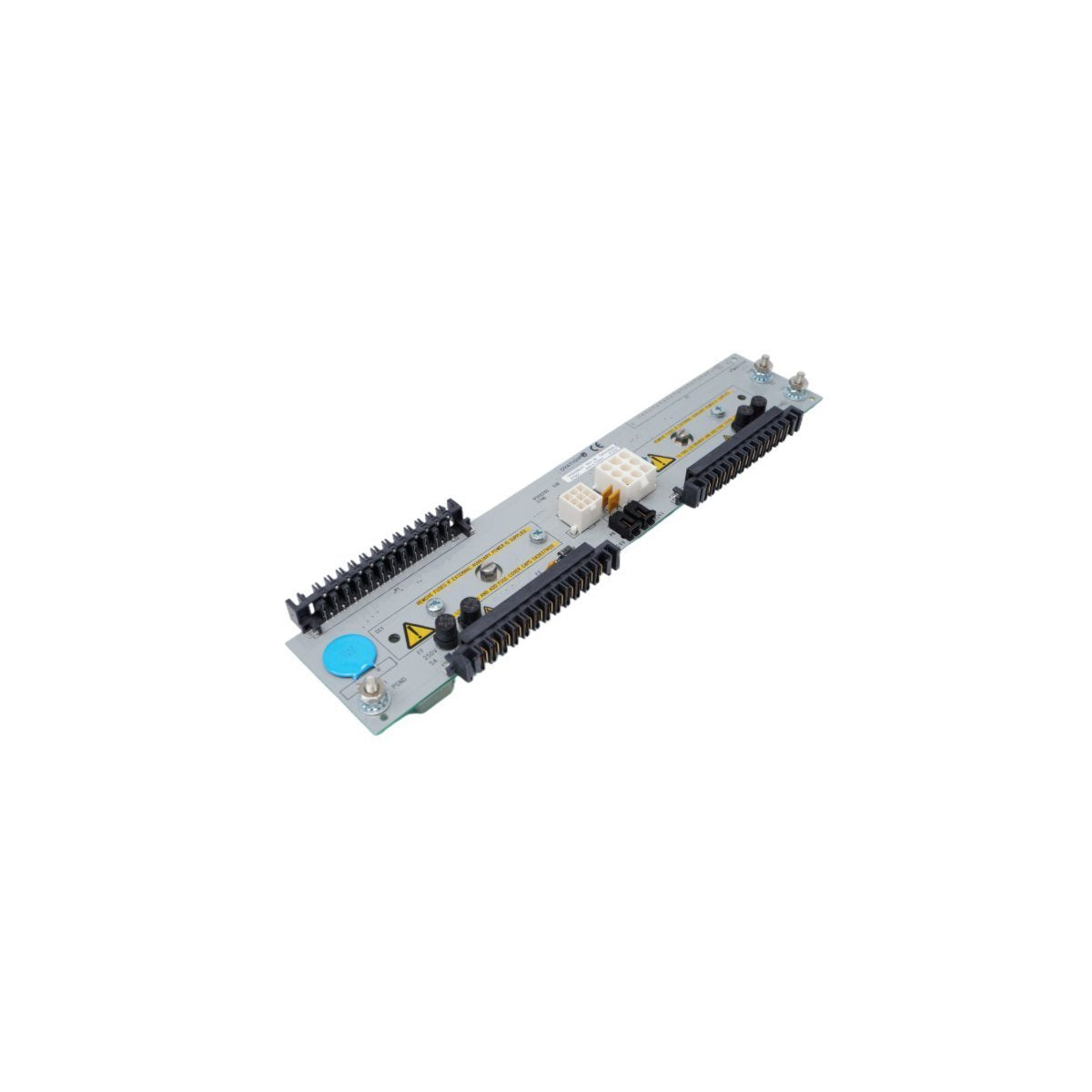

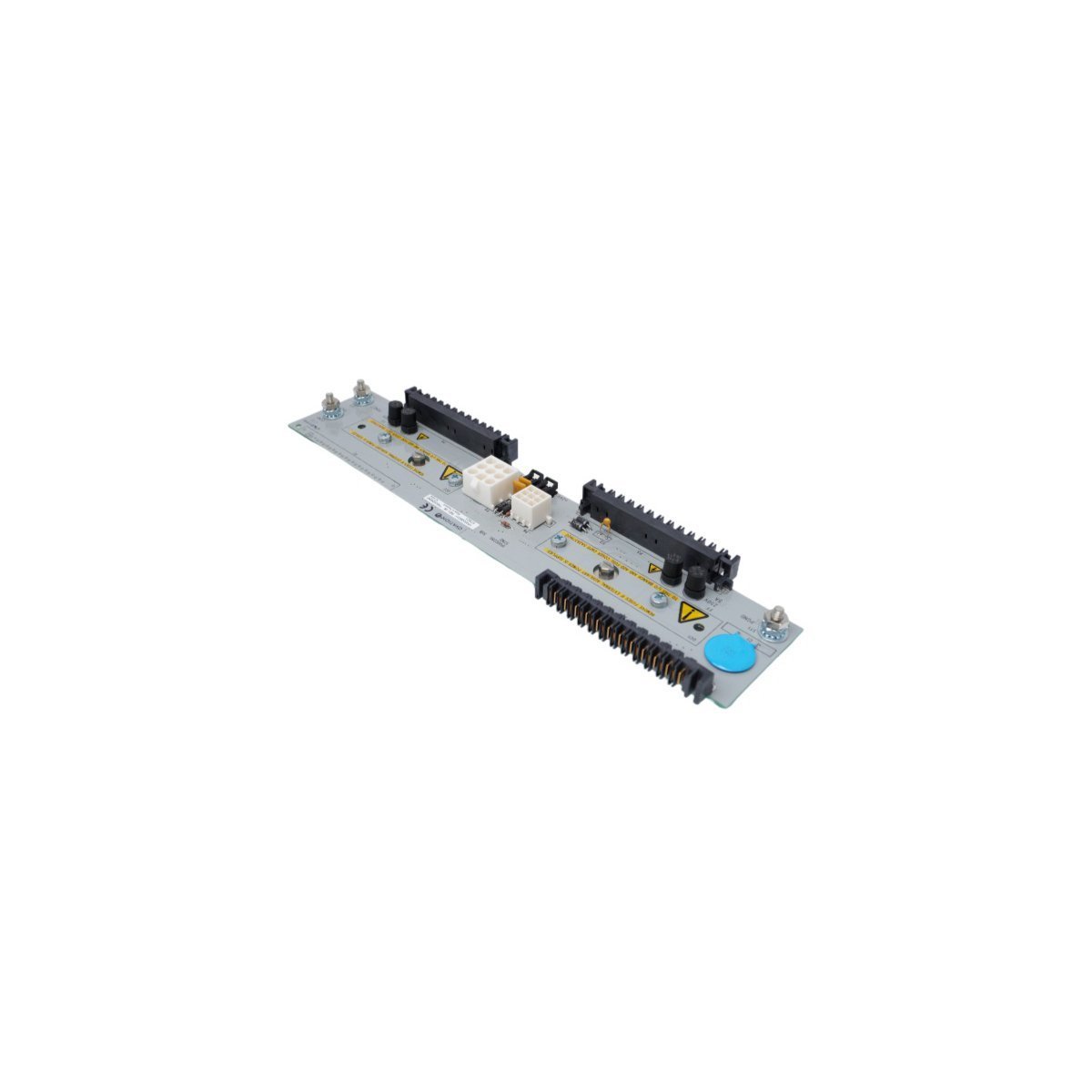

The Emerson 1P00028G01 is a high-integrity Remote Node Transition Panel specifically engineered for the Ovation™ Distributed Control System (DCS). This module functions as a critical junction and interface layer, facilitating the seamless routing of signals between remote I/O nodes and the central control architecture. By providing a structured termination point, it ensures organized wiring and reliable data transmission across the automation network, even over extended distances.

Designed for the rigorous demands of power generation and large-scale utility infrastructure, the 1P00028G01 acts as a bridge for localized I/O communication. It is built to maintain signal purity and provide necessary electrical isolation, protecting the core logic solver from field-side interference. Its robust construction allows it to operate reliably in high-temperature and electrically noisy environments, ensuring the continuity of safety-critical processes.

Technical Specifications

• Manufacturer: Emerson (Ovation/Westinghouse)

• Model Identification: 1P00028G01

• Module Type: Remote Node Transition Panel

• System Compatibility: Ovation DCS Architecture

• Input Voltage: 220V AC (Operating nominal)

• Temperature Rating: -40°C to +85°C (Extended industrial range)

• Compliance: CE Certified, RoHS Compliant

• Physical Dimensions: 12.1 cm x 5.2 cm x 16.6 cm

• Weight: 0.34 kg

• HS Code: 8537101190

• Country of Origin: USA

Core Functional Characteristics

• Signal Integrity Management: Optimizes the transition of analog and digital data streams, minimizing attenuation and crosstalk between distributed nodes.

• Environmental Resilience: Featuring an exceptionally wide thermal operating window, this panel is suitable for deployment in non-climate-controlled remote cabinets or harsh processing areas.

• Galvanic Protection: Incorporates electrical isolation features to prevent ground loops and protect sensitive DCS processors from voltage transients.

• Streamlined Integration: Specifically designed for the Ovation ecosystem, allowing for rapid installation and simplified maintenance of local and remote I/O subsystems.

Application Scenarios

The 1P00028G01 is predominantly utilized in sectors where high-uptime distributed control is mandatory. Typical applications include:

• Power Generation: Managing data flow between turbine control systems and remote field sensors.

• Water Treatment: Coordination of distributed pump stations and chemical dosing sensors.

• Petrochemical Processing: Ensuring stable communication between hazardous-area remote nodes and the central control room.
