Product Overview

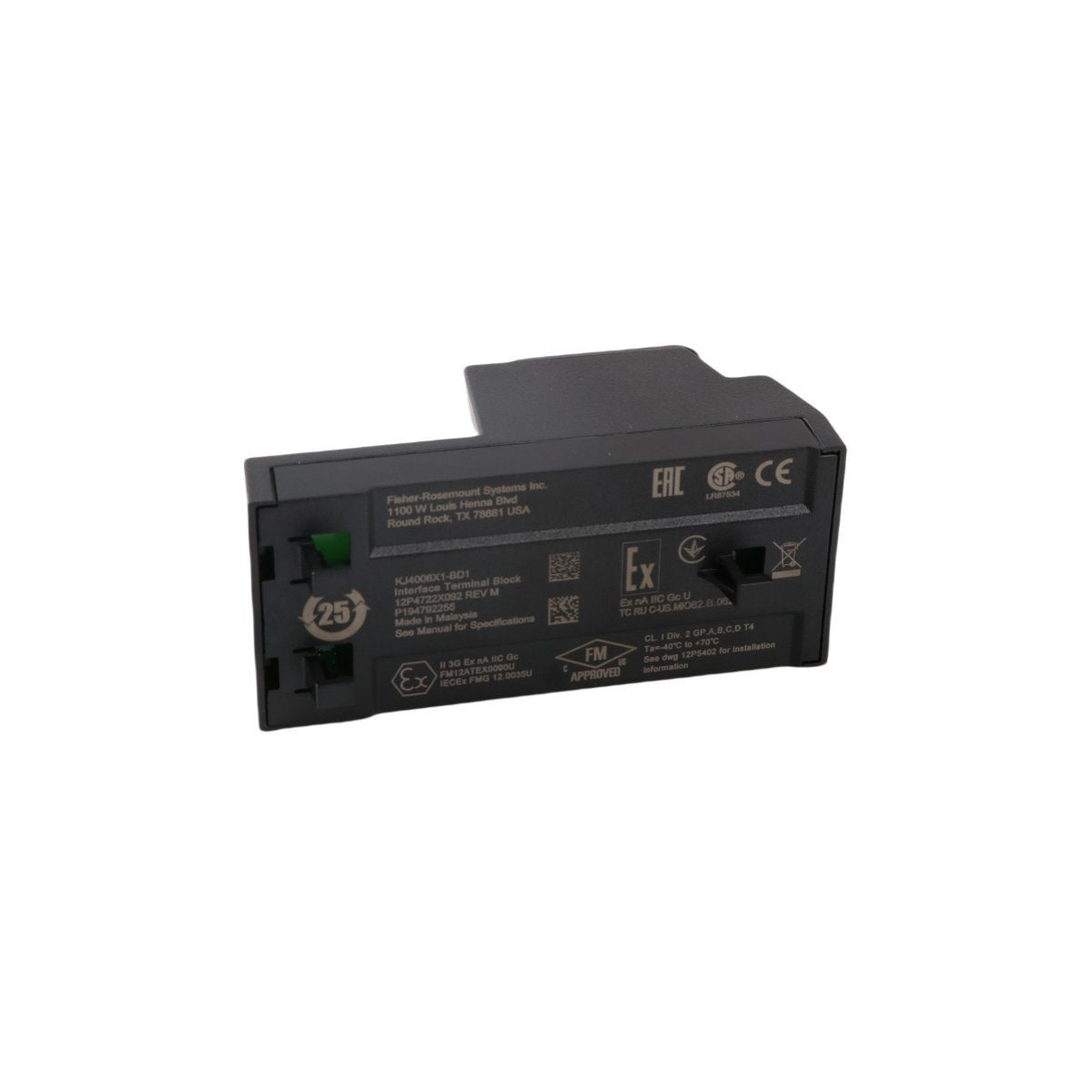

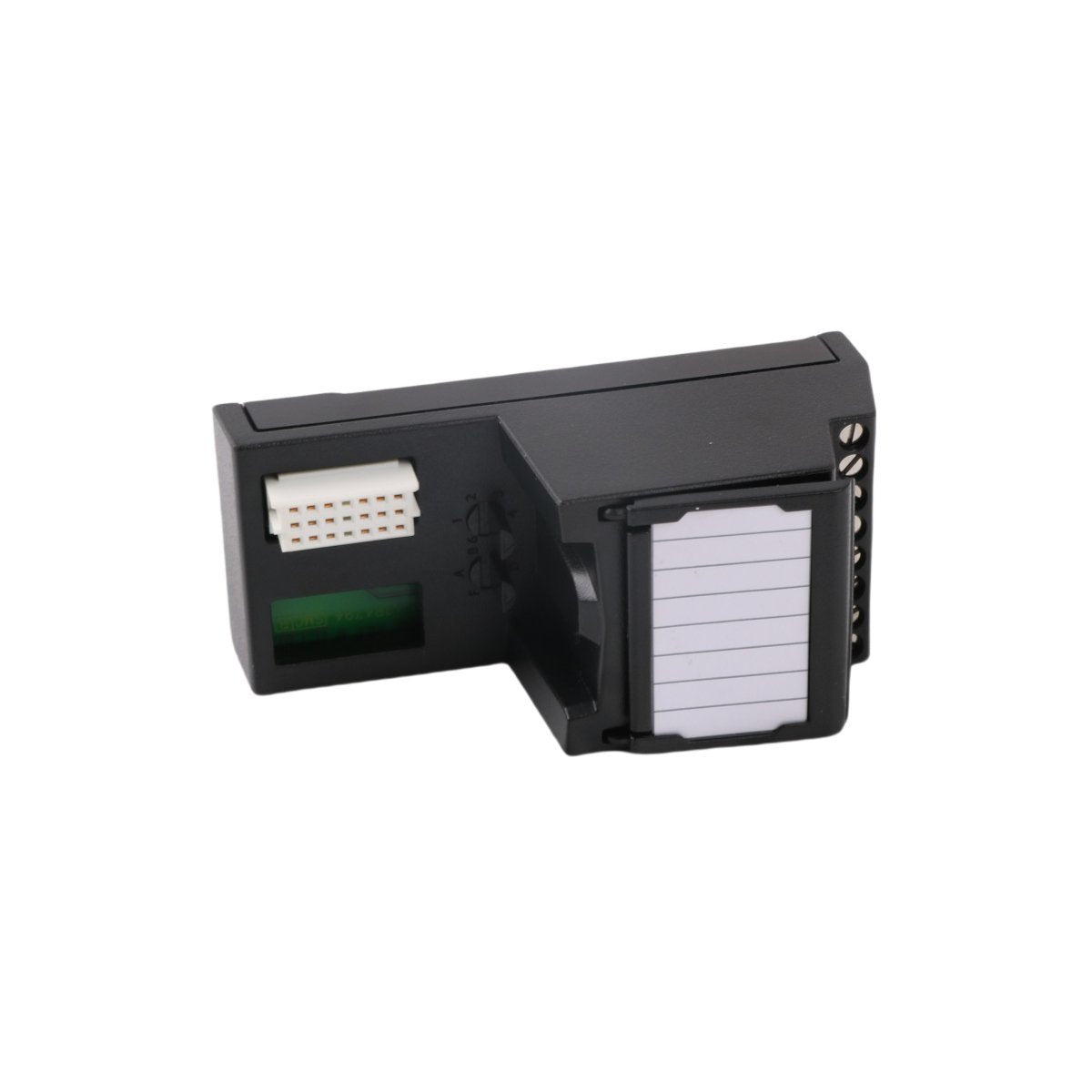

The KJ4006X1-BB1 (Part Number 12P4721X112) is a specialized 8-channel interface terminal block designed for the Emerson DeltaV™ M-series I/O subsystem. This module acts as the physical connection point between field wiring and the DCS (Distributed Control System), facilitating the organized distribution of signals and field power. It is specifically engineered to support redundant configurations, ensuring that critical process data remains available even in the event of a localized hardware fault.

As a core component of the DeltaV M-series architecture, this terminal block optimizes cabinet density through its compact form factor while providing the ruggedness required for industrial environments. It supports field power distribution up to 30 VDC and is fully integrated with DeltaV software for simplified commissioning and advanced hardware diagnostics.

Technical Characteristics and Resilience

The 12P4721X112 terminal block is built to maintain signal and power integrity under the rigorous stresses of heavy industrial operations.

• Environmental Tolerance: Operates reliably in extreme temperature ranges from -40°C to +70°C, making it suitable for remote field enclosures or non-climate-controlled environments.

• Mechanical Ruggedness: Features a shock rating of 10g (½ sinewave for 11 msec), ensuring consistent electrical contact in high-vibration machinery areas.

• Redundant Interface: Designed to support redundant I/O requirements, providing a foundational layer of hardware availability for mission-critical control loops.

• Intelligent Diagnostics: Integrated power status monitoring allows operators to detect voltage deviations or field circuit issues early, preventing unplanned system shutdowns.

• Simplified Integration: The modular design allows for rapid "plug-and-play" installation into M-series carriers, reducing labor costs during system expansions or maintenance outages.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Designation: KJ4006X1-BB1

• Part Number: 12P4721X112

• Series: DeltaV M-series I/O

• Channel Capacity: 8 Independent Channels

• Field Power Support: 30 VDC @ 100 mA

• Shock Resistance: 10g (11 msec)

• Storage/Operating Temp: -40°C to +70°C

• Net Weight: 0.18 kg

• Standard Origin: USA

Industrial Applications

The Emerson KJ4006X1-BB1 is a standard requirement for DeltaV control systems in sectors where process continuity is paramount. Typical applications include:

• Chemical and petrochemical refining process control.

• Safety Instrumented Systems (SIS) within oil and gas production.

• Distributed control for large-scale power generation facilities.

• Pharmaceutical and food processing automation.
