Product Overview

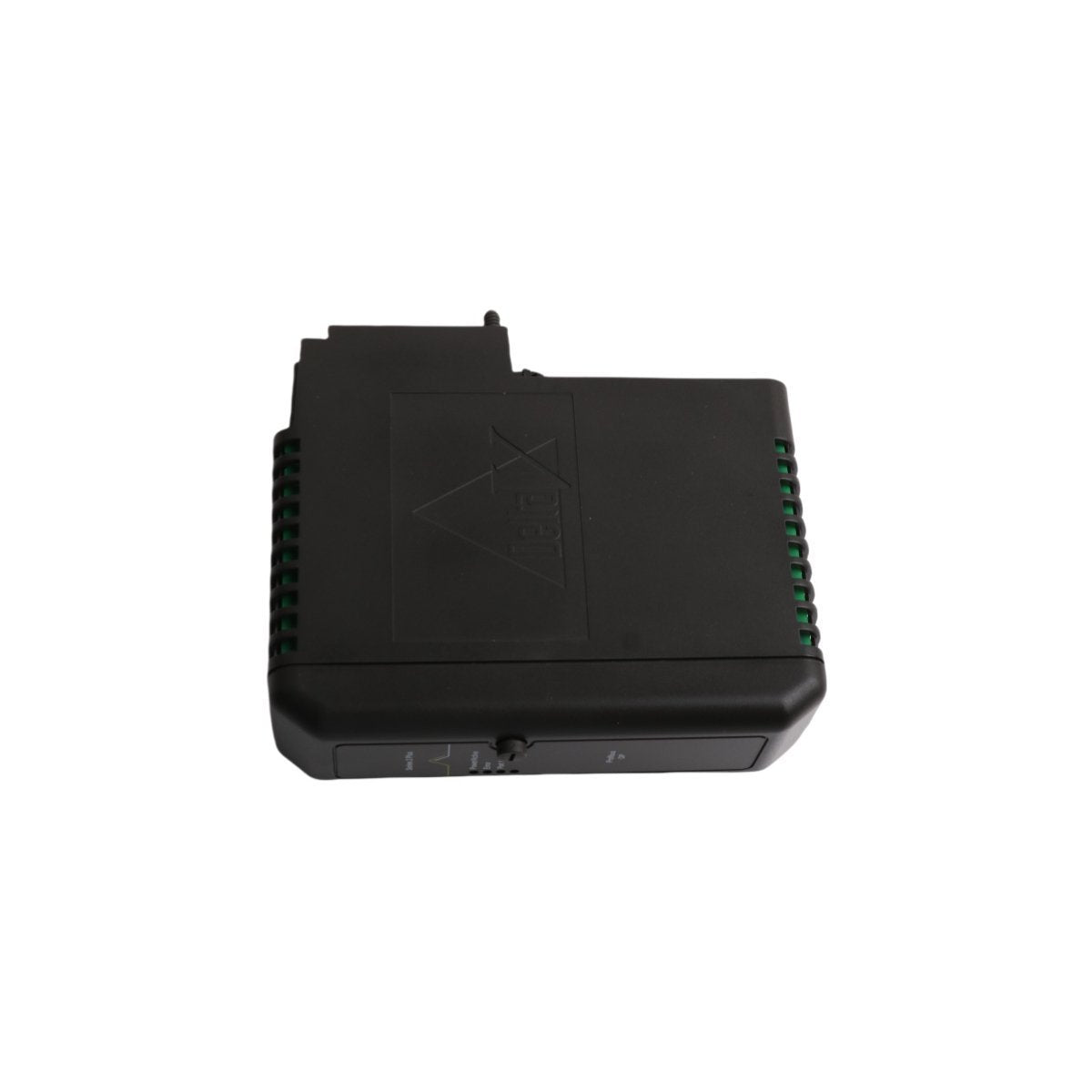

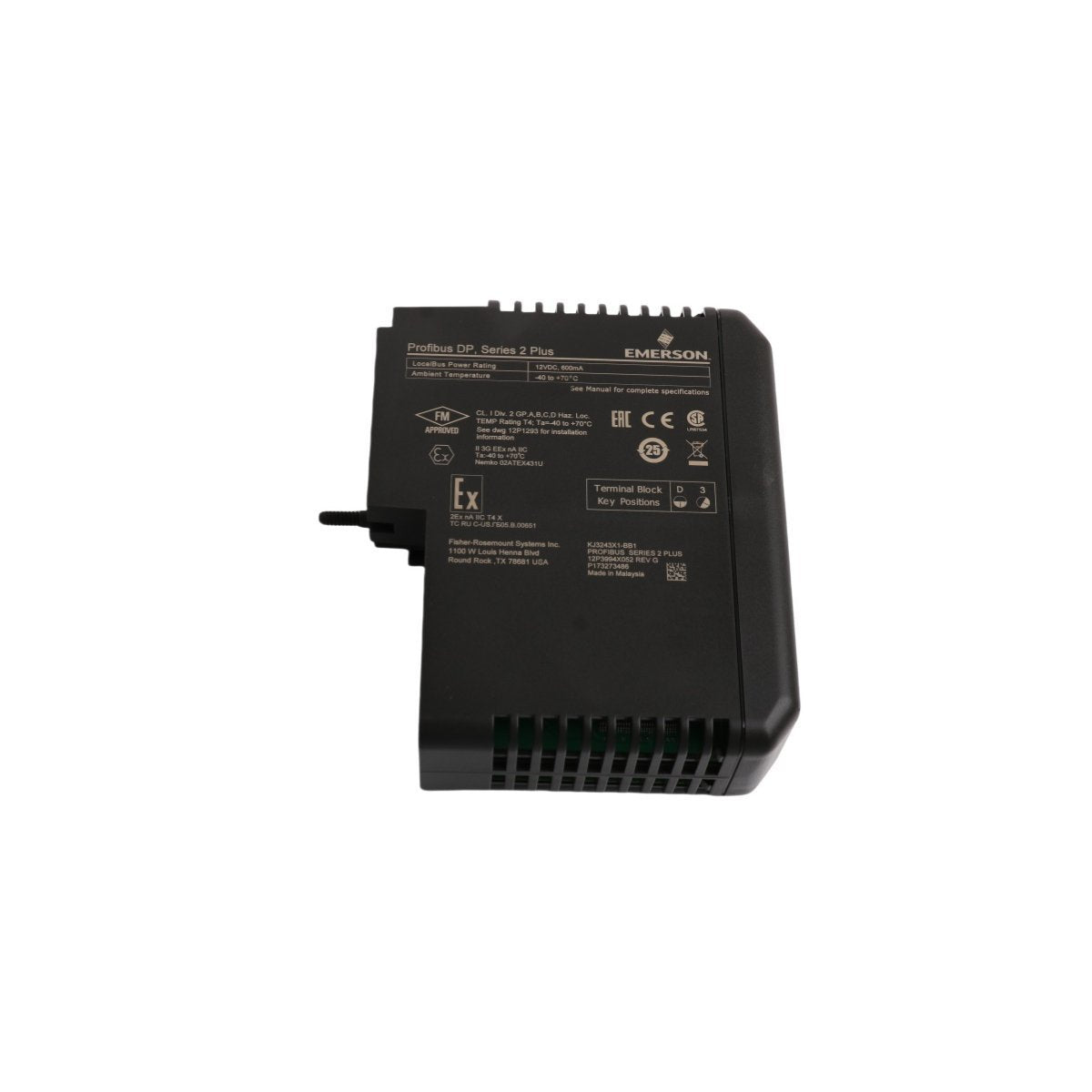

The Emerson KJ3243X1-BB2 is a high-performance Profibus DP communication interface designed for the DeltaV M-Series and Series 2 Plus control architectures. This card serves as the primary gateway between DeltaV controllers and Profibus-compliant field devices, such as motor starters, variable speed drives, and remote I/O racks. By enabling high-speed, deterministic data exchange, the KJ3243X1-BB2 integrates complex sub-systems into the unified DeltaV environment, providing operators with centralized control and comprehensive diagnostics.

Built for mission-critical reliability, this interface card is engineered to survive the most demanding industrial climates. It combines advanced digital communication capabilities with a physically hardened design, ensuring that process data remains consistent even in environments characterized by high vibration, electromagnetic interference, and corrosive atmospheres.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3243X1-BB2

• Part Number: 12P2093X082 (Ref)

• Product Series: M-Series / DeltaV SIS

• Interface Type: Profibus DP (Decentralized Periphery)

• Power Input: 12V DC

• Current Draw: 600 mA

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Shock Resistance: 10g (11ms half-sine pulse)

• Vibration Rating: 1mm peak-to-peak (5Hz to 16Hz); 0.7g (16Hz to 150Hz)

• Environmental Rating: ISA-S71.04 G3 (Harsh/Corrosive)

• Humidity Support: 5% to 95% (Non-condensing)

• Weight: 0.24 kg

• Dimensions: 4.1 x 12.5 x 13.5 cm

Core Technical Characteristics

• Seamless Fieldbus Integration: The KJ3243X1-BB2 provides an efficient Profibus DP Master interface, supporting the auto-addressing and configuration features inherent in the DeltaV software suite. This reduces engineering time during the commissioning of complex multi-vendor device networks.

• G3-Rated Environmental Protection: The internal circuitry is protected against airborne contaminants and corrosive gases, meeting the ISA-S71.04 G3 standard. This makes the card suitable for deployment in chemical plants and pulp and paper facilities where standard electronics might fail.

• Superior Thermal Stability: With a broad operating window of -40°C to +70°C, this interface card maintains timing accuracy and signal integrity without the need for specialized enclosure heating or cooling in most regional climates.

• Mechanical Resilience: Specifically tested for machinery-intensive applications, the card’s robust mounting and component selection allow it to withstand 10g shock pulses and constant mechanical vibration without intermittent connection loss.

• Comprehensive On-Board Diagnostics: The front panel features localized LED indicators that provide immediate status updates for card power, communication health, and internal fault detection, facilitating rapid troubleshooting by field personnel.

• EMC and Noise Immunity: Designed for electrically noisy industrial settings, the card features advanced shielding and grounding to prevent data corruption from nearby high-voltage equipment, frequency drives, or switching transients.

Primary Applications

The Emerson KJ3243X1-BB2 is a critical component for:

• Oil & Gas Refineries: Managing remote motor control centers (MCCs) via Profibus.

• Power Generation Facilities: Integrating disparate PLC-controlled sub-systems into the main DeltaV DCS.

• Mining and Metal Processing: Deploying I/O in high-vibration and dust-prone areas.

• Chemical Manufacturing: Safeguarding communication in corrosive process zones.
