Product Overview

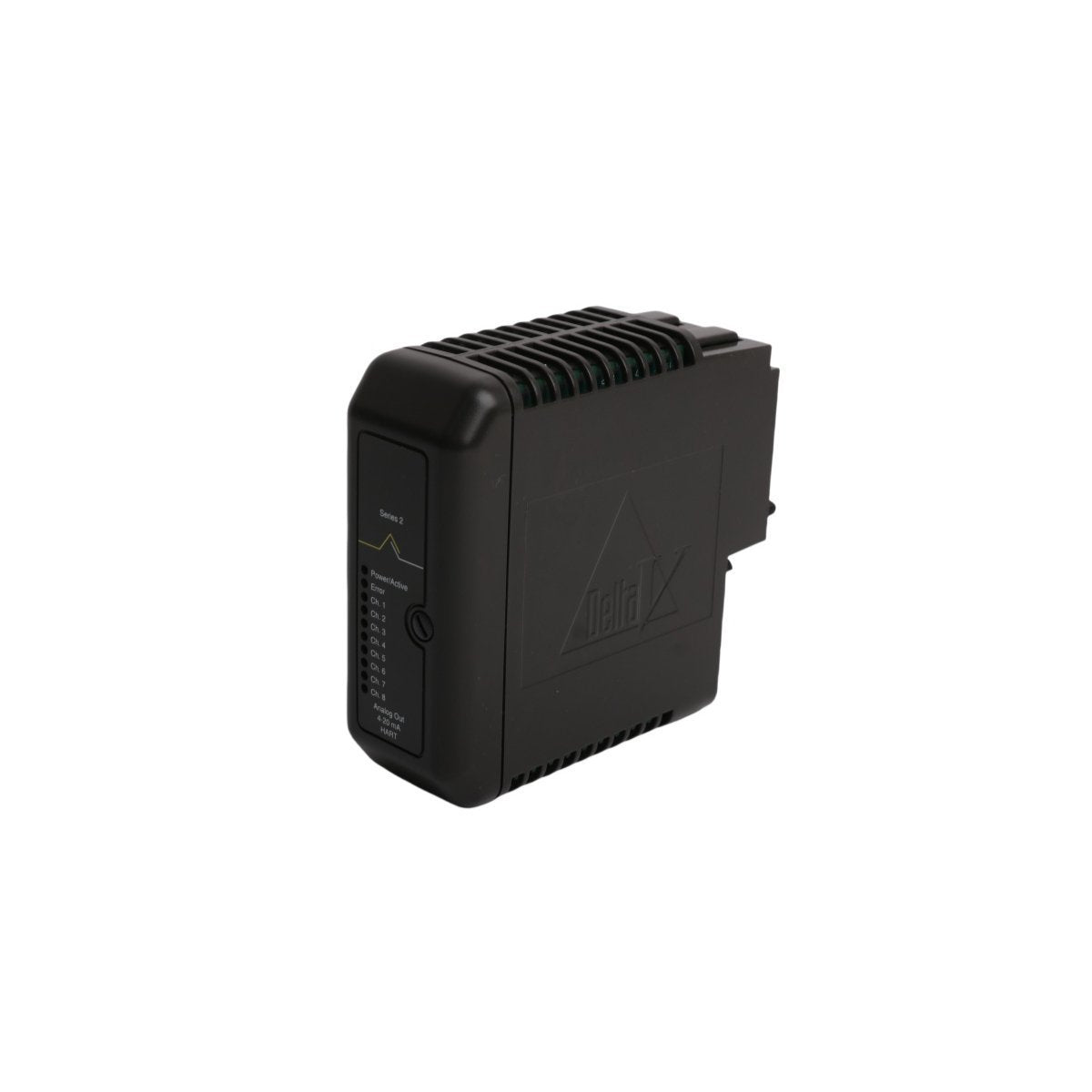

The Emerson KJ3222X1-BK1 (referenced by part numbers 12P4705X032 and SE4003S2B1) is a high-performance 8-channel analog input module engineered for the DeltaV™ M-series I/O subsystem. This module serves as a critical interface for translating 4–20 mA DC and 0–20 mA signals from field transmitters into high-resolution digital data. By utilizing a 24-bit analog-to-digital converter, it provides the Distributed Control System (DCS) with the granular process visibility required for sophisticated PID control and safety interlocking.

Designed for mission-critical automation, the KJ3222X1-BK1 excels in environmental resilience and measurement stability. It features an expansive overrange capability from -1 mA to +25 mA, ensuring signal integrity even during process upsets or instrument saturation. Its low input impedance and high accuracy make it a standard choice for monitoring flow, pressure, temperature, and level in complex industrial plants.

Technical Characteristics and Accuracy

This M-series card is built to maintain precision across a wide thermal and electrical spectrum.

• Superior Resolution: Employs a 24-bit A/D converter to ensure minimal quantization error for high-precision loops.

• Measurement Stability: Boasts an accuracy of ±0.05% of span at 25°C, with an industry-leading temperature drift coefficient of only ±0.005% per °C.

• Ruggedized Operation: Fully functional across a -40°C to +70°C temperature range, suitable for extreme field-mount enclosures or unconditioned control rooms.

• Input Flexibility: Features an input impedance of ≤250 Ω, allowing it to drive standard 2-wire and 4-wire current loops without excessive voltage drop.

• Simplified Maintenance: Utilizes a removable terminal block system that accommodates 12–22 AWG field wiring, enabling rapid hardware replacement without disturbing field cables.

• Environmental Protection: Designed to withstand 5–95% non-condensing humidity and industrial-grade mechanical vibration.




Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Identification: KJ3222X1-BK1

• Secondary Model/Part Nos: 12P4705X032 / SE4003S2B1

• Input Channels: 8 Differential Channels

• Signal Range: 4–20 mA (Default), 0–20 mA (Configurable)

• A/D Resolution: 24-Bit

• Accuracy: ±0.05% of span

• System Series: DeltaV™ M-series I/O Subsystem

• Dimensions: 10 x 7 x 5 cm

• Weight: 0.2 kg

• Origin: USA

Industrial Applications

The Emerson KJ3222X1-BK1 is a vital component for high-stakes process monitoring in several key industries:

• Petrochemical Refining: High-fidelity tracking of pressure and flow variables in hazardous areas.

• Power Generation: Precise thermal monitoring for turbine and boiler auxiliary systems.

• Advanced Manufacturing: Integrated sensing for automated batch processing and environmental control.

• Water/Wastewater: Reliable signal acquisition for remote telemetry and chemical dosing loops.
