Product Overview

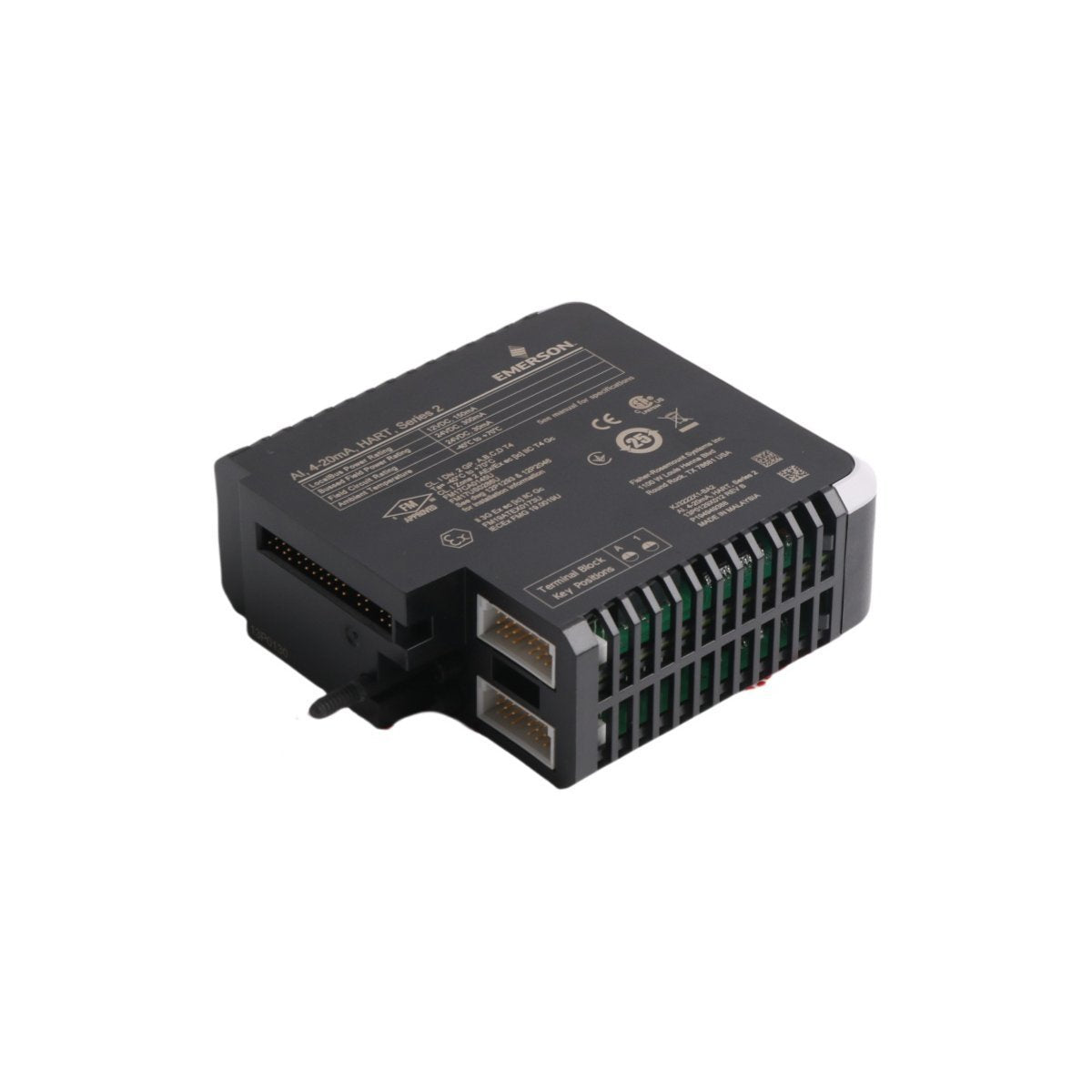

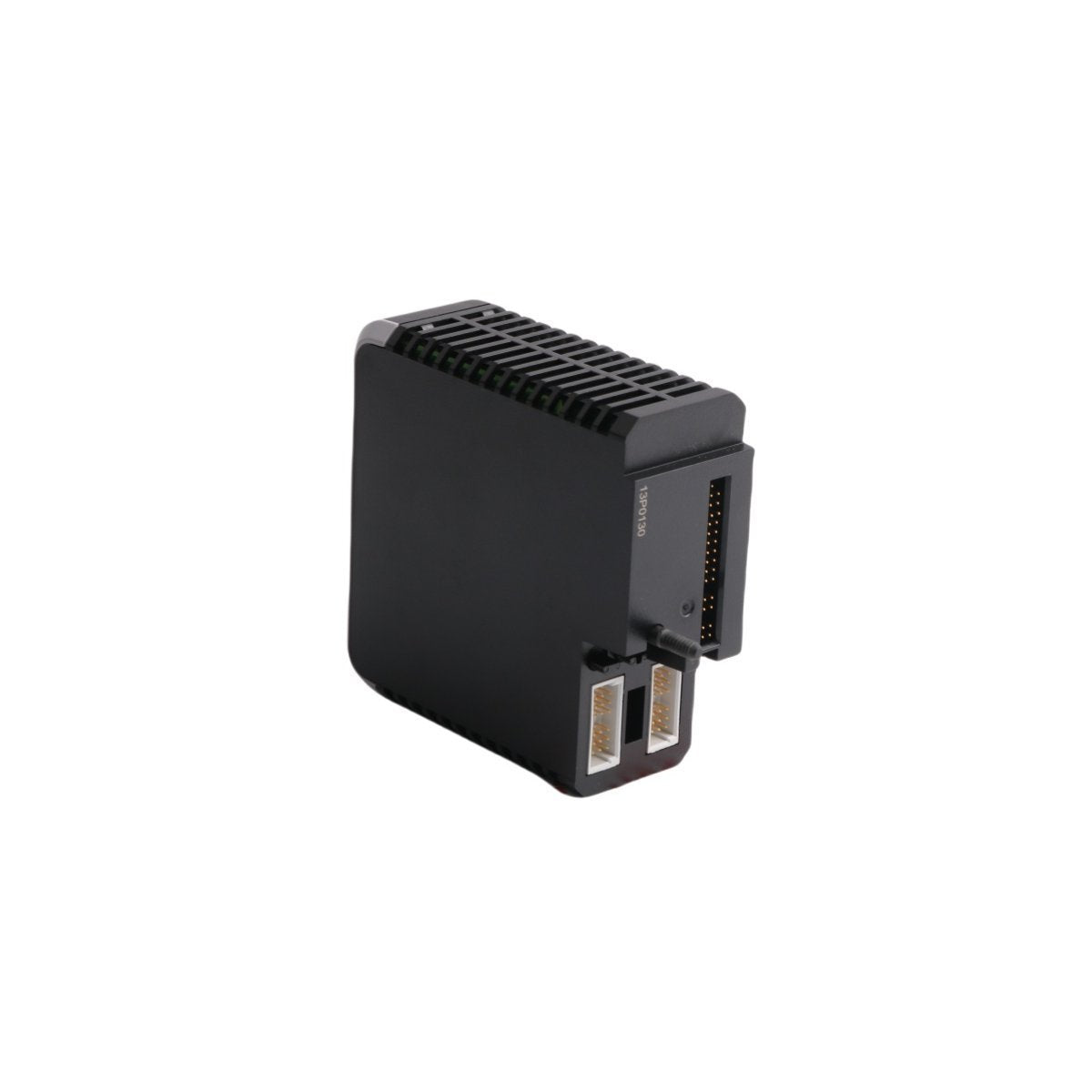

The KJ3222X1-BA2 (Part Number 13P0129X012) is a specialized 8-channel Analog Input Module designed for the Emerson DeltaV SIS™ (Safety Instrumented System). This Series 2 module is engineered specifically for mission-critical process safety applications where high-availability 4-20mA signal acquisition and HART digital communication are required.

This Traditional I/O card provides the robust interface necessary for connecting safety-rated transmitters to the DeltaV logic solver. It is distinguished by its seamless redundancy capabilities, allowing two cards to operate in a parallel, high-availability configuration. In the event of a primary card failure, the system performs an automatic switchover in less than 5ms, ensuring that the safety instrumented function (SIF) remains active and the process stays protected without interruption.

Technical Performance and Safety Integrity

The KJ3222X1-BA2 is built to exceed standard industrial requirements for reliability and environmental resilience:

• Redundant Switchover Logic: Features a "make-before-break" contact transition during switchovers, guaranteeing zero signal loss or process disturbance during hardware faults.

• HART Pass-Through: Supports bidirectional HART communication, allowing for advanced device diagnostics and instrument health monitoring directly from the DeltaV asset management software.

• Extreme Environmental Tolerance: Rated for operation in ambient temperatures ranging from -40°C to +70°C, suitable for remote field enclosures in diverse climates.

• Superior G3 Protection: Complies with ISA-S71.04 G3 standards for corrosive atmospheric contaminants, utilizing conformal coating to prevent failures in high-sulfur or high-humidity environments.

• Mechanical Durability: Vibration-resistant construction capable of withstanding 10g mechanical shocks and 1mm of peak-to-peak vibration, ensuring stability near heavy rotating machinery.

Hardware Specifications

• Manufacturer: Emerson (Fisher-Rosemount Systems)

• Model Code: KJ3222X1-BA2

• Part Number: 13P0129X012

• Input Channels: 8-Channel 4-20mA HART

• Local Bus Power: 12V DC at 150mA

• Field Circuit Power: 24V DC at 300mA

• Update Rate: High-speed analog conversion for safety response timing

• Weight: 0.4 kg

• Dimensions: 4.3 x 12.5 x 18.5 cm

Core Industrial Applications

As a vital component of the DeltaV SIS subsystem, the KJ3222X1-BA2 is typically deployed in high-consequence process environments:

• Emergency Shutdown (ESD): Monitoring pressure and flow transmitters for immediate process isolation in oil refineries and chemical plants.

• Burner Management Systems (BMS): Ensuring precise fuel-to-air ratio monitoring and flame safety in large-scale utility boilers.

• Fire and Gas Systems: Integrating with safety sensors to detect hazardous leaks and activate suppression systems.

• Critical Process Control: Serving as a high-reliability input for any 4-20mA instrument where the cost of failure justifies redundant hardware.
