Product Overview

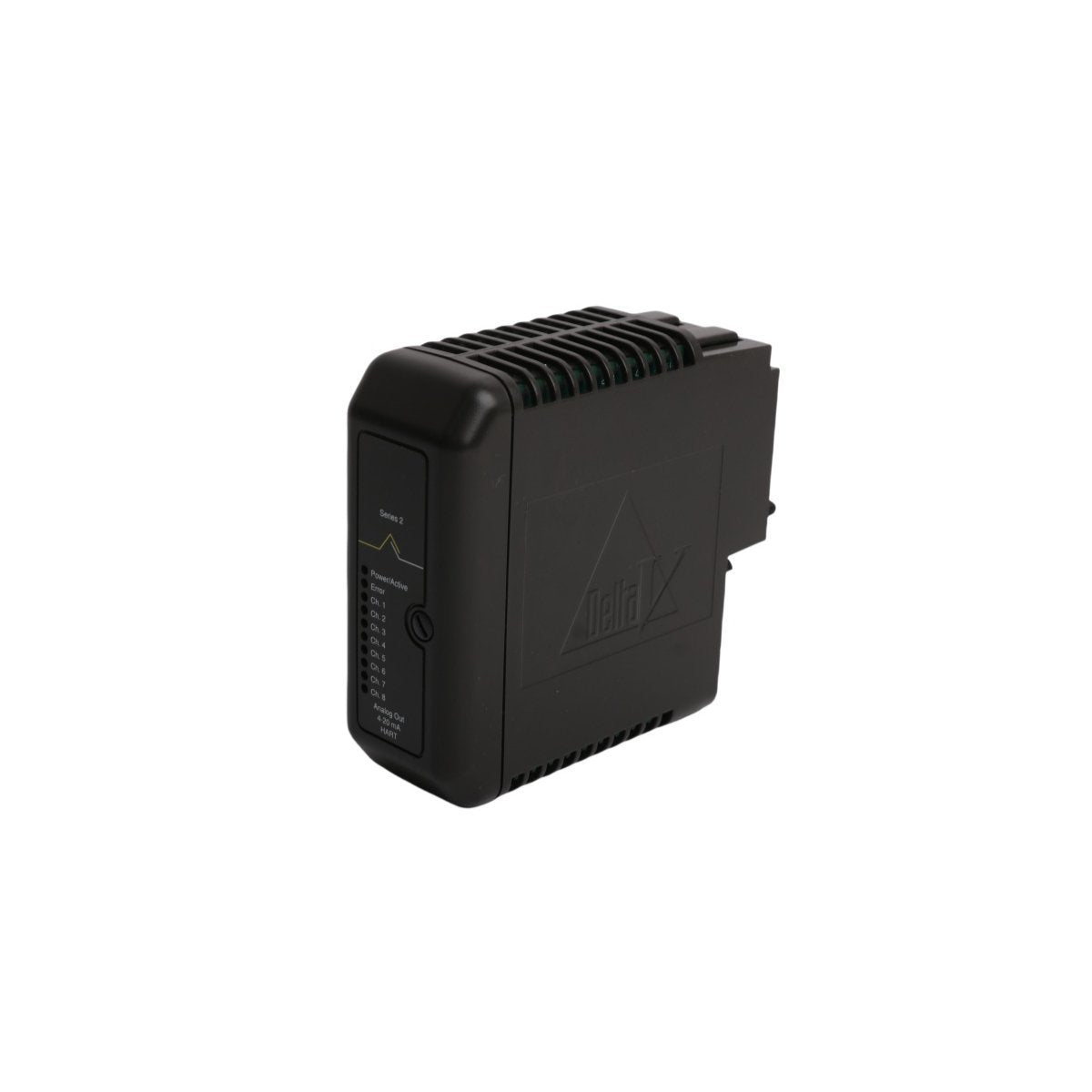

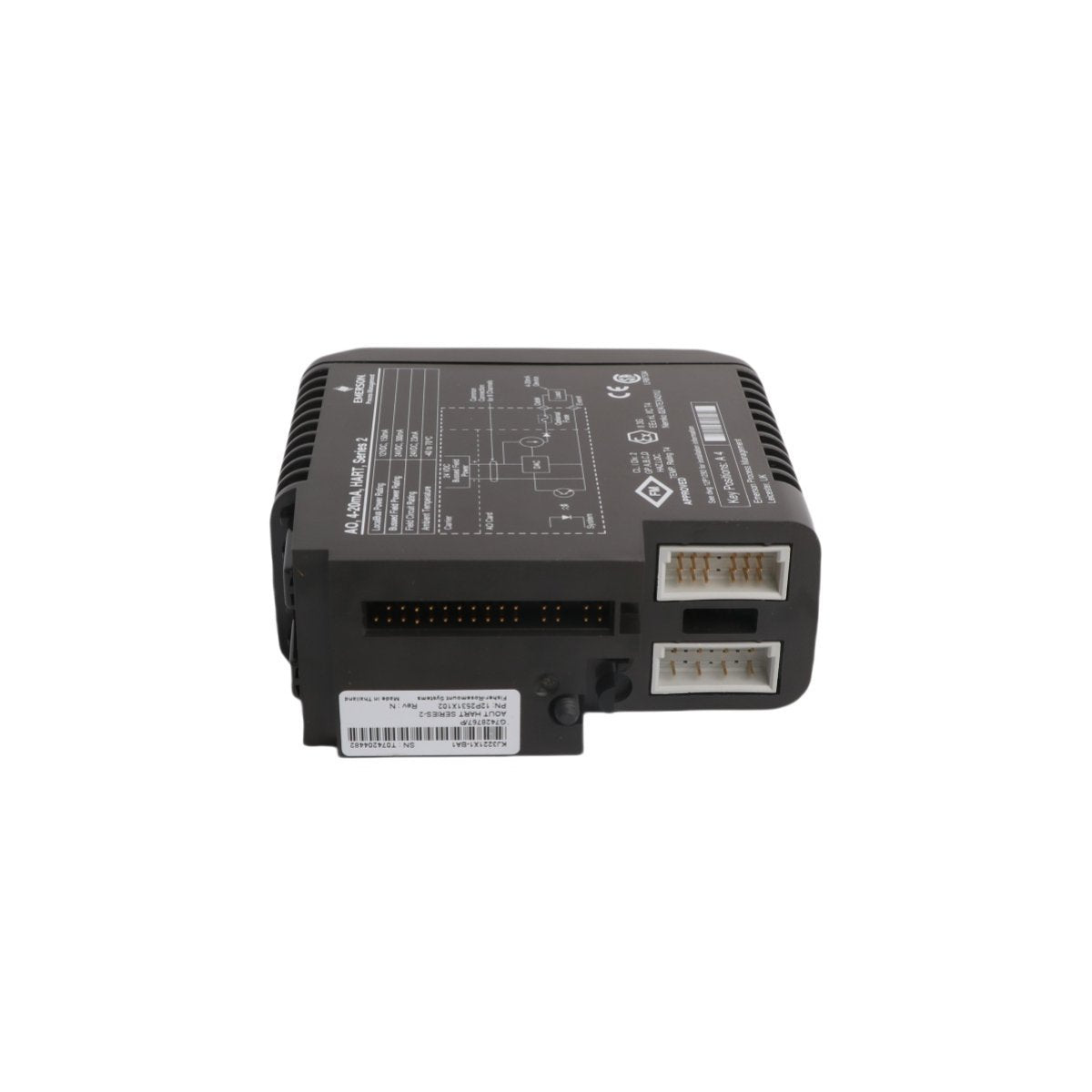

The Emerson KJ3221X1-BK1, also identified by part numbers 12P4704X032 and SE4005S2B1, is a high-density analog output module designed for the DeltaV™ M-series I/O subsystem. This 8-channel card provides precise 4-20 mA DC control signals to field devices such as control valves and actuators. A key feature of this module is its integrated HART (Highway Addressable Remote Transducer) communication capability, which allows the DeltaV system to pass digital diagnostic and configuration data over the analog signal wire without disrupting the primary control variable.

This module is essential for modern Distributed Control Systems (DCS) where smart instrument management is required. By utilizing the HART protocol, plant operators can access instrument health, calibration data, and secondary variables in real-time. The KJ3221X1-BK1 is engineered to maintain high-fidelity signal transmission in demanding sectors, including upstream oil and gas, petrochemical refining, and large-scale power generation, where accuracy and uptime are critical for process safety.

Technical Performance and Diagnostic Integrity

The KJ3221X1-BK1 delivers superior precision with a 15-bit resolution and a base accuracy of ±0.1% of span. To ensure stable operation across fluctuating industrial temperatures, the card features a low thermal drift coefficient of ±0.02% per degree Celsius. It is compatible with a wide variety of field hardware, supporting load resistances from 300 to 1100 Ω, ensuring flexible deployment across different cable lengths and device impedances.

Advanced onboard diagnostics provide continuous monitoring of the output loop. The card can detect open circuits and short circuits, immediately reporting these faults to the DeltaV controller to trigger safety protocols. This proactive fault detection, combined with the ruggedized design capable of operating from -40°C to +70°C, makes the SE4005S2B1 a reliable choice for critical control loops that require immediate and accurate responses to process changes.

Technical Specifications

• Manufacturer: Emerson

• Model Number: KJ3221X1-BK1

• Part/Order Number: 12P4704X032 / SE4005S2B1

• Series: DeltaV™ M-series I/O

• Module Type: Analog Output (AO) with HART

• Number of Channels: 8

• Signal Range: 4–20 mA DC

• Resolution: 15-bit

• Accuracy: ±0.1% of span (at 25°C)

• Load Resistance: 300 to 1100 Ω

• Temperature Drift: ±0.02% of span/°C

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Dimensions (W x H x D): 4.2 cm x 12.5 cm x 10.4 cm

• Net Weight: 0.2 kg

• Manufacturing Origin: USA

Engineering Features

• HART Pass-Through: Enables digital asset management and remote calibration of smart field devices directly from the control room.

• High-Density Connectivity: 8 channels per card maximize rack space efficiency within DeltaV I/O carriers.

• Real-Time Loop Monitoring: Integrated hardware alerts for loop integrity issues, reducing the need for manual field troubleshooting.

• Hot-Swappable Design: Allows for module replacement in an active DeltaV carrier without interrupting power to other I/O modules.
