Product Overview

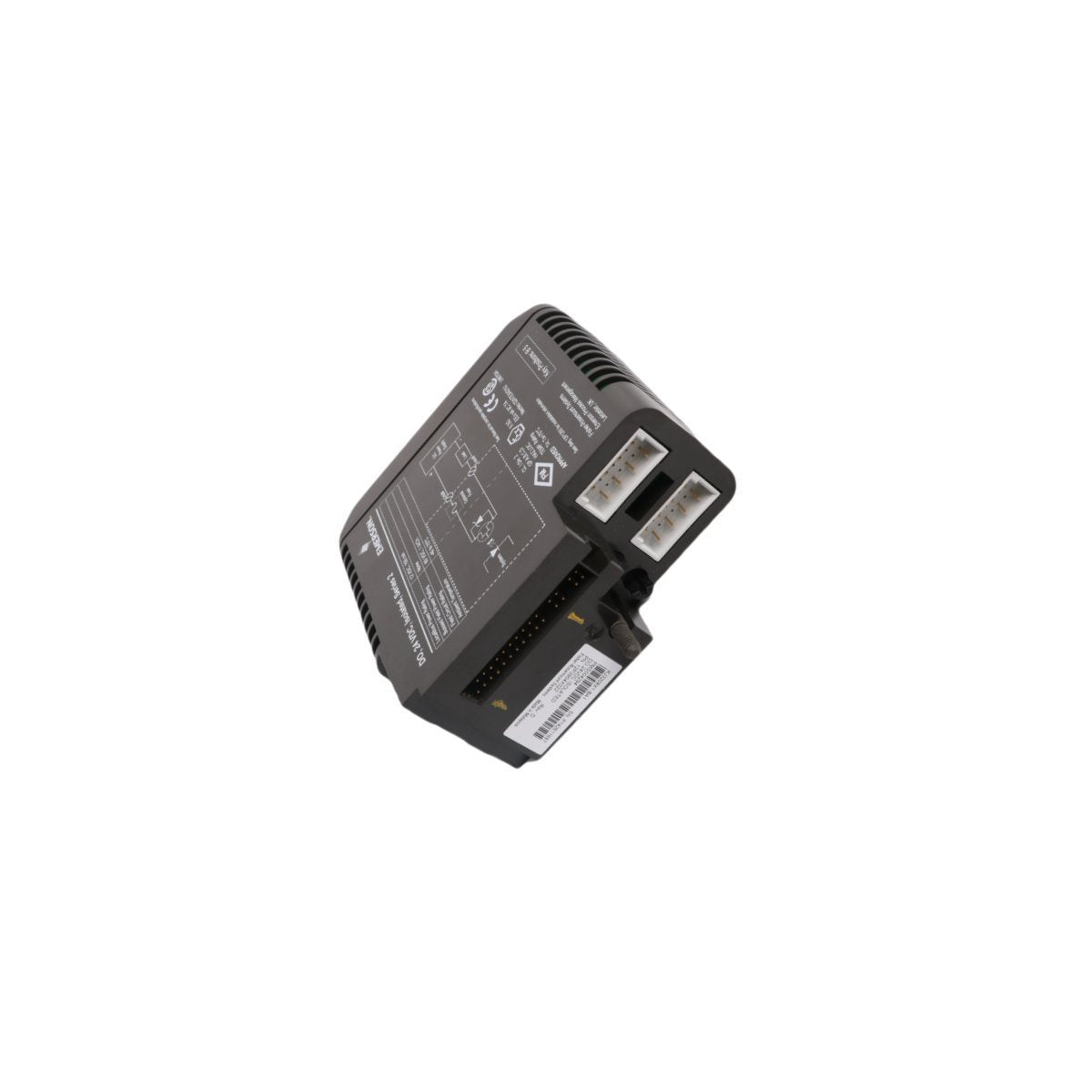

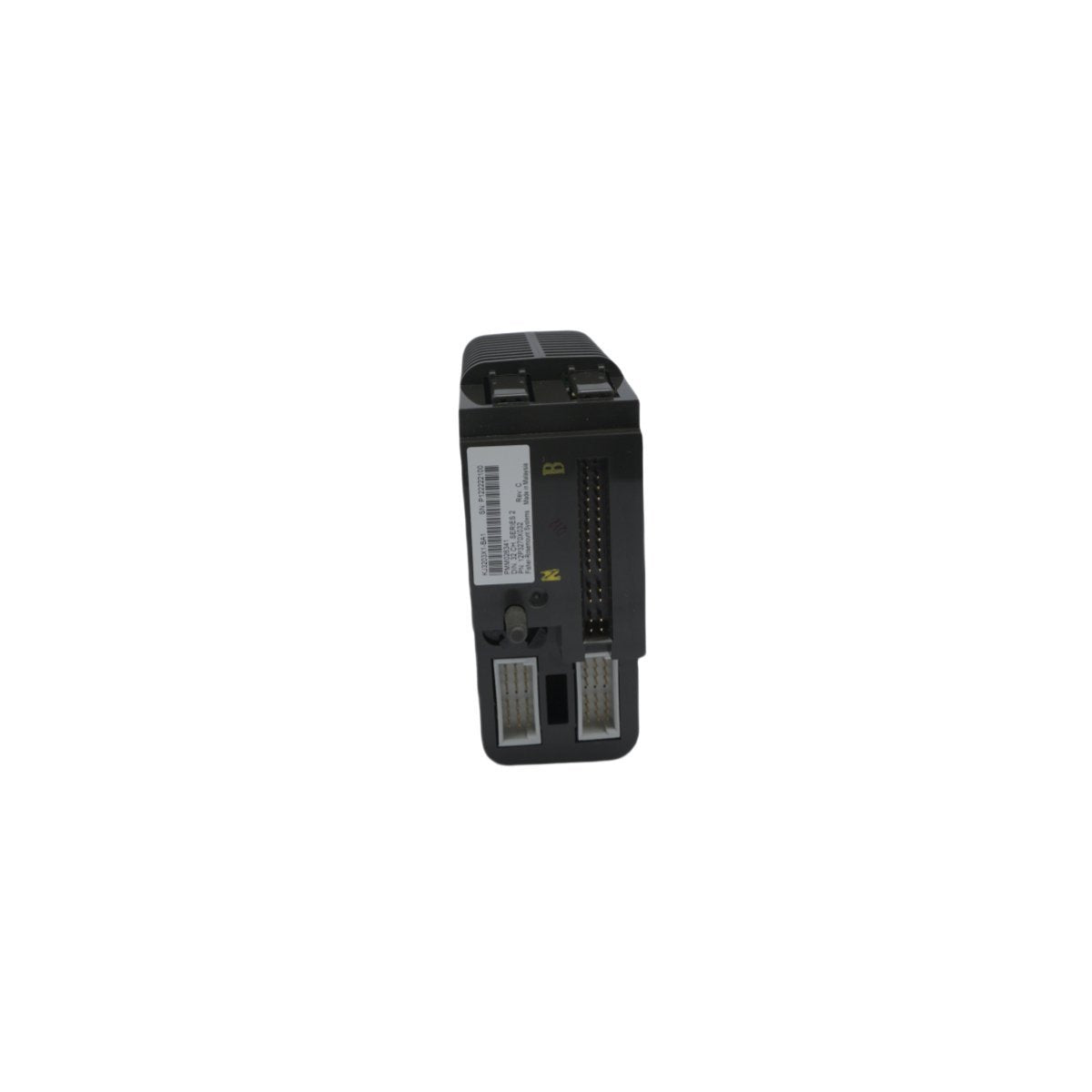

The KJ3203X1-BA1 (documented under part number 12P3270X022 and model VE4001S2T2B4) is a high-density Discrete Input Module specifically engineered for the Emerson DeltaV™ M-series I/O subsystem. This module functions as a 32-channel dry contact interface, designed to sense the state of non-powered field contacts. By providing the wetting voltage internally, the card accurately detects the open or closed status of remote switches, relays, and limit sensors.

As a cornerstone of the DeltaV Distributed Control System (DCS), this card translates field-level binary signals into digital data for the controller. Its high-density 32-channel configuration is an ideal solution for installations requiring extensive monitoring within a minimal cabinet footprint, ensuring that complex industrial sequences are tracked with real-time precision.

Technical Architecture and Data Integrity

The KJ3203X1-BA1 module is built to maintain operational stability in heavy-duty automation environments:

• High-Density Monitoring: Provides 32 discrete input channels, significantly reducing the number of I/O slots required for large-scale digital point monitoring.

• Dry Contact Interface: The module provides the necessary sensing voltage (internally sourced), eliminating the need for external power supplies to "wet" the field contacts.

• Advanced Fault Detection: Features sophisticated onboard diagnostics that monitor the health of the module circuitry and verify communication with the DeltaV controller.

• G3 Harsh Environment Protection: The assembly is designed to meet ISA G3 environmental standards, providing superior resistance to corrosive gases and high humidity.

• Hot-Swappable Design: Supports the M-series "Plug-and-Play" architecture, allowing for module replacement under power without disrupting the surrounding I/O or controller operations.

• Signal Isolation: Incorporates galvanic isolation to protect the sensitive internal control network from field-induced electrical noise and transients.

Hardware Specifications

• Manufacturer: Emerson (DeltaV)

• Model Identifier: KJ3203X1-BA1 / VE4001S2T2B4

• Assembly Part Number: 12P3270X022

• Input Type: 32-Channel Discrete (Dry Contact)

• Isolation: Field-to-logic isolation for signal protection

• Weight: 0.2 kg

• Dimensions: 16.8 x 8.7 x 4.4 cm

• Power Consumption: Optimized low-draw design for backplane efficiency

Core Industrial Applications

The VE4001S2T2B4 module is a vital component for centralized monitoring in mission-critical sectors:

• Power Generation: Tracking breaker auxiliary contacts, emergency stop buttons, and enclosure door interlocks.

• Oil and Gas Refineries: Monitoring high-density limit switch arrays on complex valve manifolds and tank farm safety gates.

• Chemical Processing: Integrating with batch control sequences to verify relay states and equipment availability.

• Water Management: Centralizing discrete data from pump stations and filtration unit status switches.
