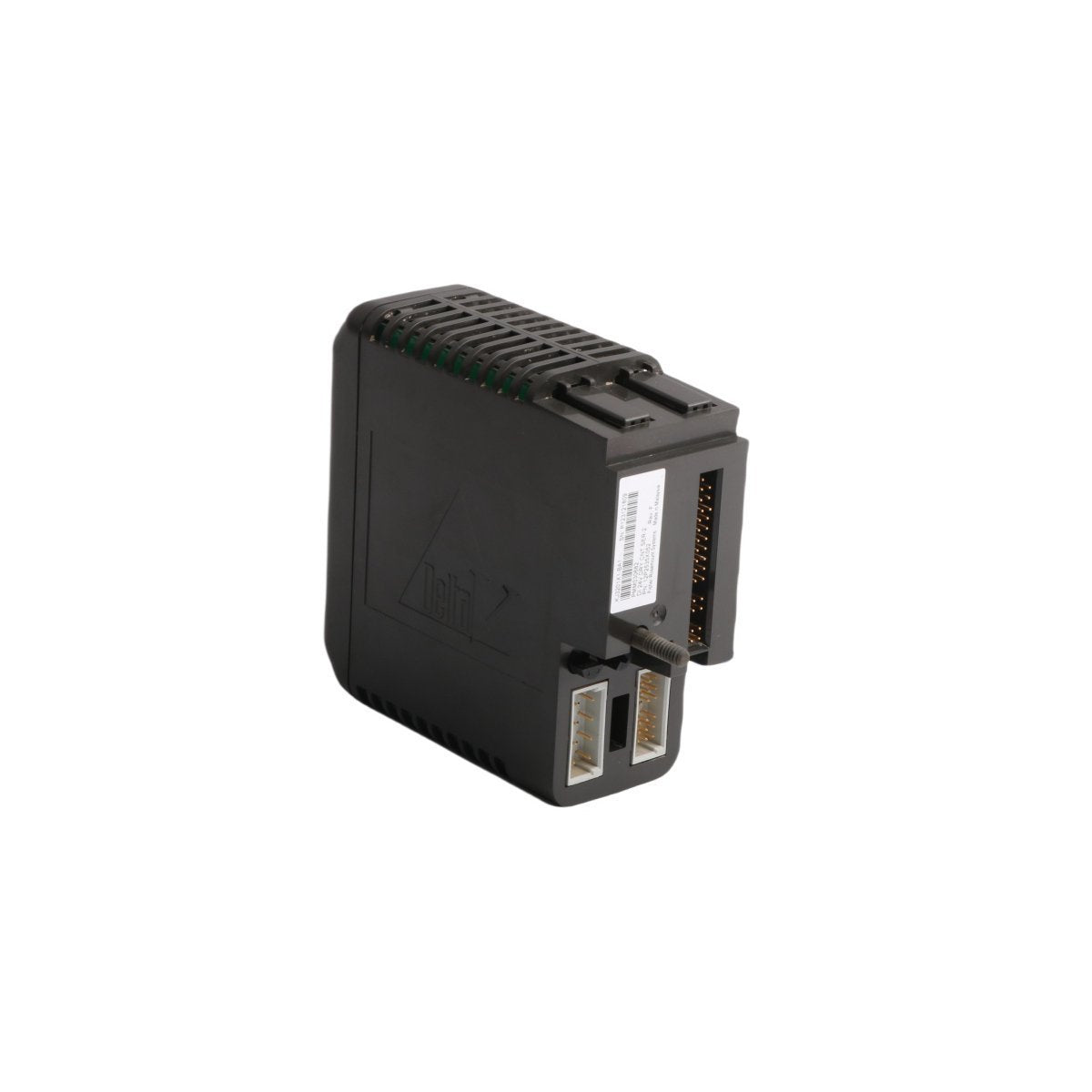

Product Overview

The Emerson KJ3201X1-BK1 (part number 12P4692X042) is a specialized 8-channel Digital Input (DI) card designed for the DeltaV S-series platform. This module is specifically engineered to interface with NAMUR (EN 60947-5-6) proximity sensors and switch inputs in safety-instrumented systems (SIS). By providing high-fidelity signal monitoring and line fault detection, the KJ3201X1-BK1 plays a vital role in process safety, allowing the control system to distinguish between normal switching states and potential circuit failures such as short circuits or wire breaks.

Built for the DeltaV modular architecture, this module provides seamless integration with S-series I/O carriers. It is optimized for mission-critical sectors including chemical processing, oil and gas refining, and power generation, where intrinsically safe signal processing and high availability are mandatory requirements.

Technical Specifications

• Module Type: Digital Input (DI) NAMUR Card

• Channel Count: 8 Channels

• Input Signal Type: NAMUR (EN 60947-5-6)

• Local Bus Power: 12V DC

• Current Consumption: 150 mA (typical)

• Dimentions:4.3x12.5x18.5cm

• Field Circuit Protection: Energy-limited for intrinsically safe applications

• Fault Detection: Integrated Open-circuit and Short-circuit monitoring

• Keying: Rotary mechanical keying to prevent incorrect module insertion

• Operating Temperature: -40 to 70 °C (-40 to 158 °F)

• Storage Temperature: -40 to 85 °C (-40 to 185 °F)

• Relative Humidity: 5 to 95%, non-condensing

Safety and Operational Characteristics

The KJ3201X1-BK1 SE4001S2T1B1 is designed for simplified maintenance and long-term reliability. The module requires no field calibration and contains no user-serviceable parts, which significantly reduces the risk of human error during routine plant operations. Safety is further enhanced by a specialized mechanical keying system that ensures the DI card can only be seated into a compatible terminal block, protecting the internal circuitry from mismatched voltage levels.

When deploying this module in energy-limited nodes, an I/O loop assessment is required to ensure compliance with hazardous area standards. The module supports "hot-swapping" under specific conditions; however, all field power must be de-energized before physical removal or insertion to prevent sparking in non-safe zones. This hardware provides the robust diagnostics necessary for SIL-rated safety loops, ensuring that process variables are monitored with the highest degree of integrity.
