Product Overview

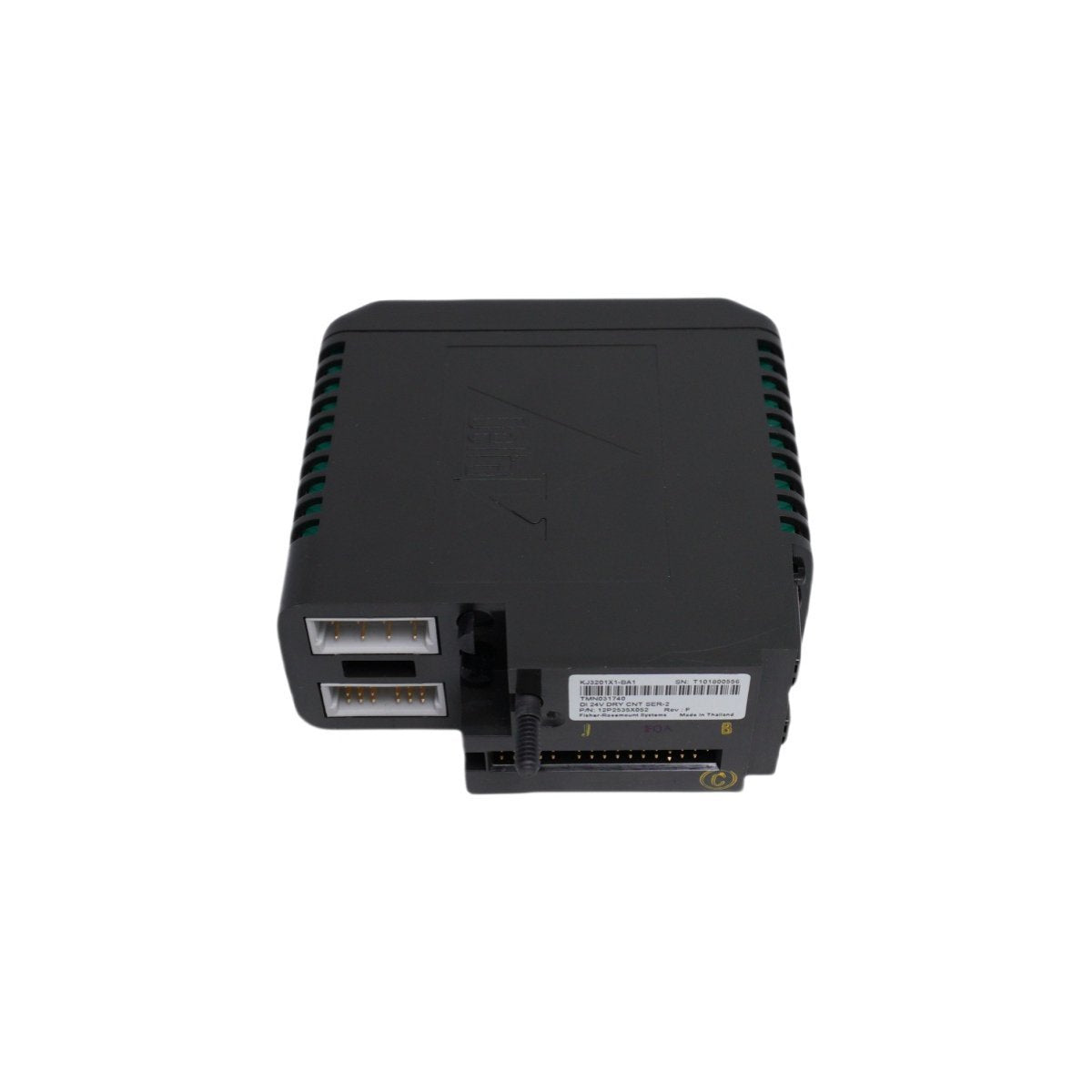

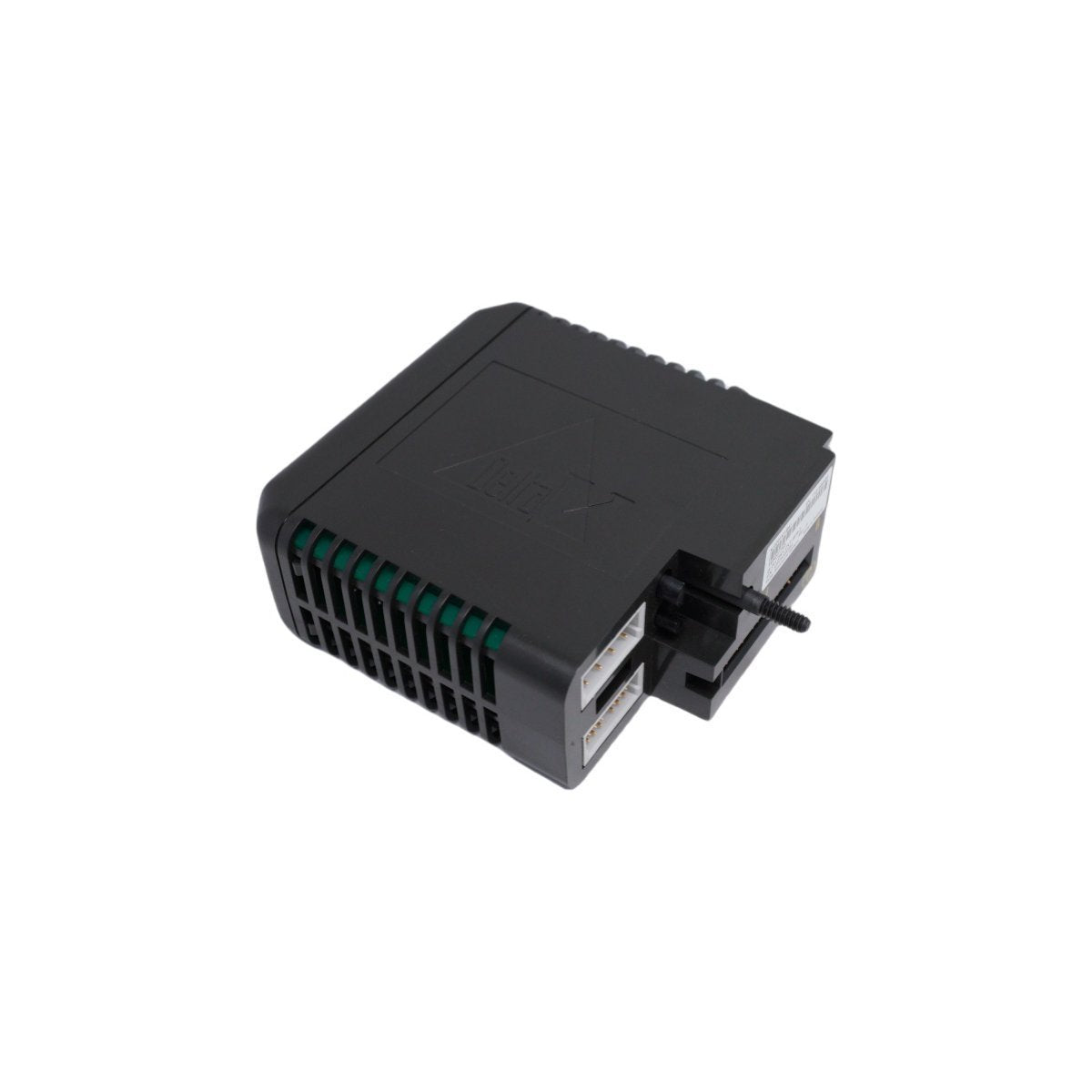

The Emerson KJ3201X1-BA3 is a Series 2 Digital Input (DI) module engineered for the DeltaV Scalable Process Control System and Safety Instrumented Systems (SIS). This 24V DC Dry Contact card functions as a critical interface between field-level sensing devices and the Distributed Control System (DCS), converting discrete signals into actionable logic. Designed for high-availability environments, the module provides reliable signal monitoring for pushbuttons, limit switches, and other dry contact field inputs.

As part of the DeltaV SIS architecture, the KJ3201X1-BA3 is built to maintain system integrity in safety-critical applications. It features advanced electromagnetic interference (EMI) shielding and noise rejection circuitry, ensuring that signal transmission remains accurate even in electrically noisy industrial settings.

Technical Characteristics and Environmental Resilience

The KJ3201X1-BA3 is recognized for its ability to operate in extreme conditions that would compromise standard commercial electronics. It is specifically hardened against chemical and mechanical stressors.

• Power Requirements: Consumes 150mA at 12V DC local bus power and 100mA at 24V DC field power.

• Input Signal: Optimized for 24V DC dry contact signals with a nominal current of 5mA per channel.

• Temperature Rating: Operates within a broad range from -40°C to +70°C (-40°F to +158°F).

• Vibration and Shock Resistance: Rated for 1mm peak-to-peak vibration (5Hz to 16Hz) and 10g 11ms half-sine wave shock pulses.

• Contaminant Protection: Compliant with ISA-S71.04-1985 Severity Level G3, providing resistance against corrosive airborne contaminants.

• Humidity Tolerance: Supports up to 95% relative humidity (non-condensing) for reliable use in tropical or coastal climates.

• Diagnostics: Equipped with front-panel LED indicators for instantaneous status updates and channel-level troubleshooting.

Industrial Applications

The Emerson KJ3201X1-BA3 is frequently deployed in sectors where process downtime poses significant safety or financial risks. Its robust design makes it a standard choice for:

• Petrochemical and Refining: Monitoring valve positions and emergency stop sequences in corrosive atmospheres.

• Power Generation: Integration with safety logic for boiler and turbine protection systems.

• Upstream Oil and Gas: Reliable digital monitoring on offshore platforms and remote wellhead installations.

• Critical Manufacturing: Serving as a dependable I/O interface for automated safety shutdowns and interlocking logic.
