Product Overview

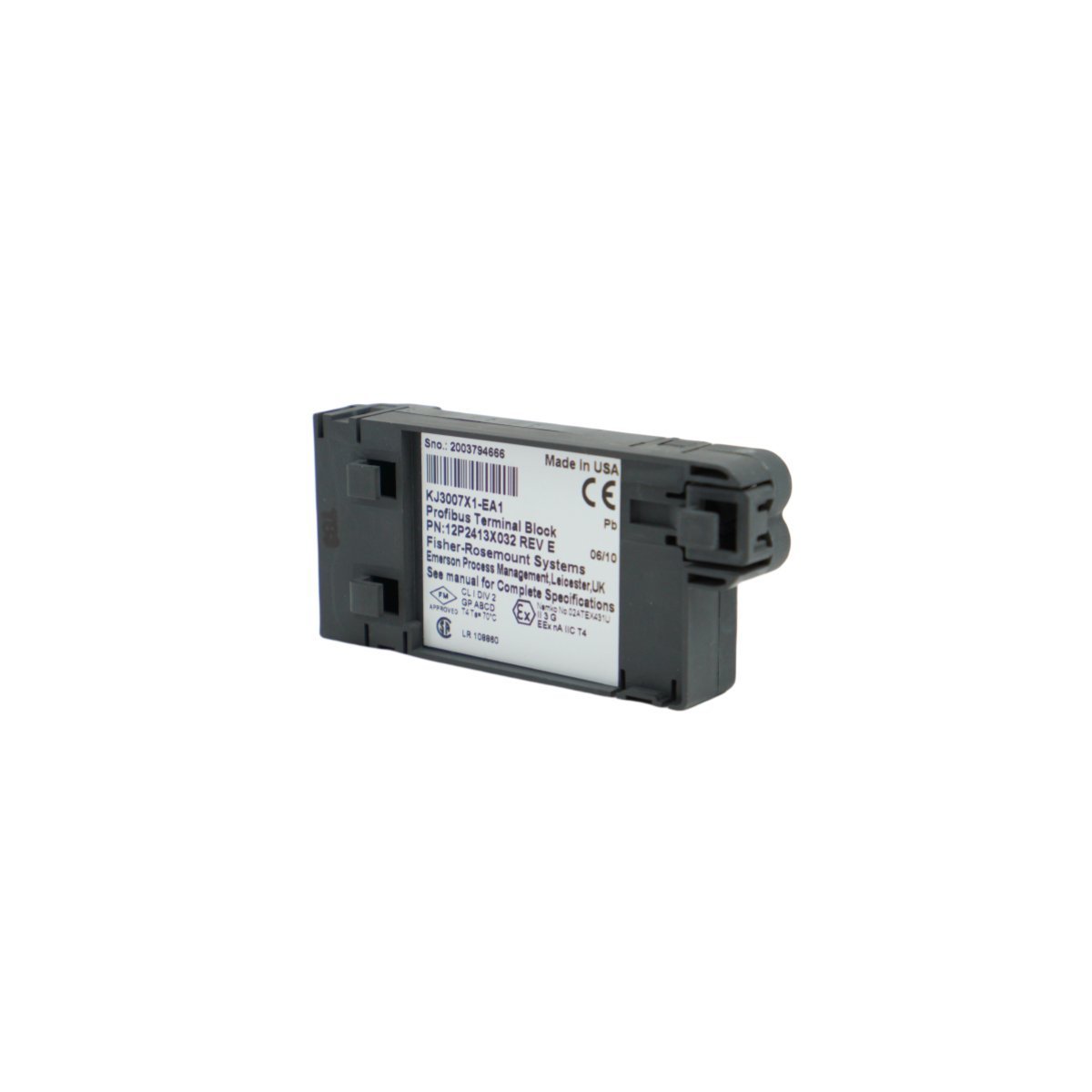

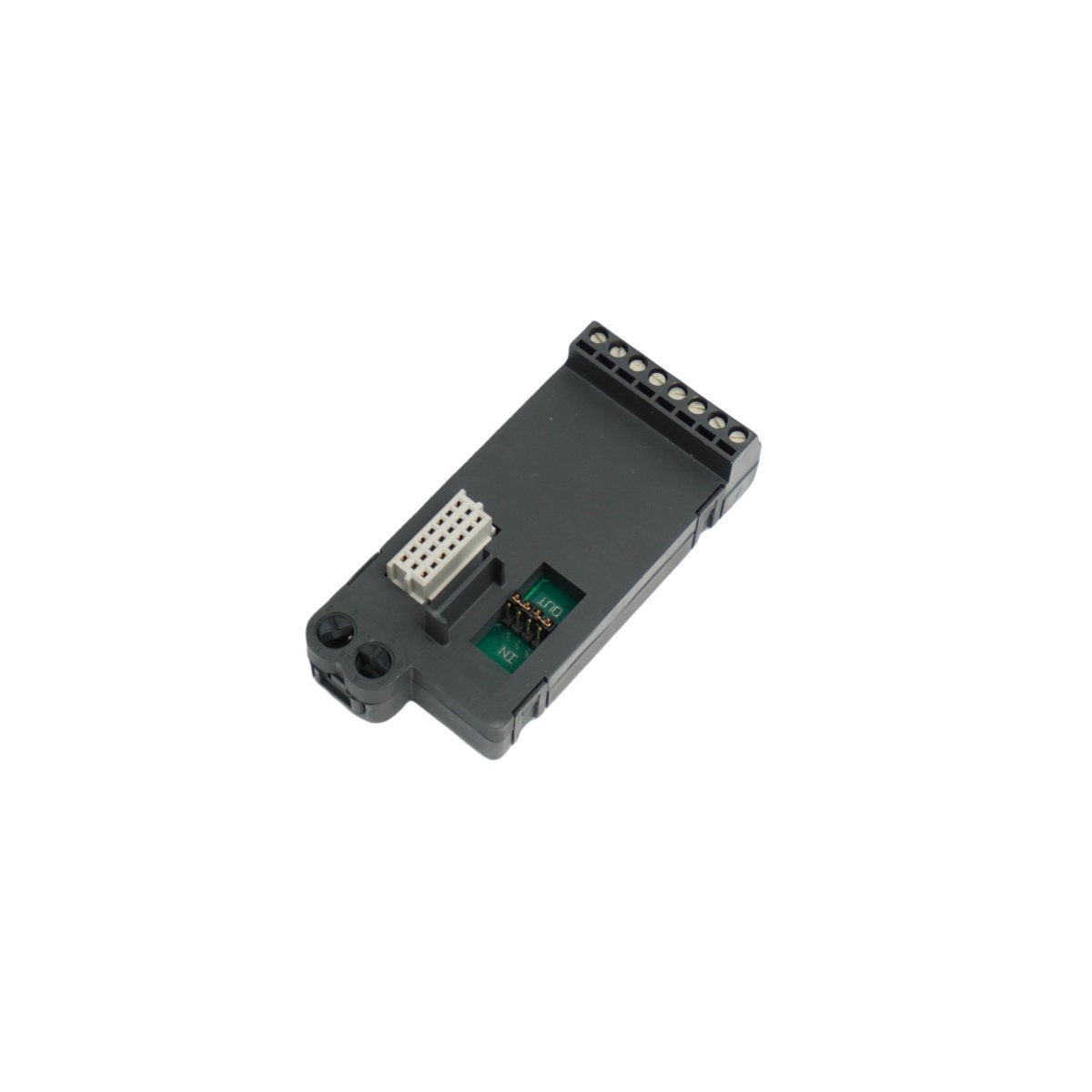

The Emerson KJ3007X1-EA1 (Order Number 12P2413X032) is a specialized Profibus Terminal Block designed specifically for the DeltaV™ M-series I/O subsystem. This component serves as the physical interface and termination point for Profibus DP (Decentralized Peripherals) communication within the DeltaV Distributed Control System (DCS). It provides a secure and organized environment for connecting fieldbus cabling to the system's controller logic, facilitating high-speed bidirectional data exchange between the control room and smart field instrumentation.

Engineered by Fisher-Rosemount Systems, this terminal block is built to maintain signal integrity in electrically noisy industrial environments. It supports redundant configurations, ensuring that critical communication paths remain active even during hardware or network disruptions. Its modular footprint allows for seamless integration into DeltaV rail assemblies, providing a scalable solution for process automation.

Key Technical Characteristics and Hardware Parameters

The KJ3007X1-EA1 is defined by its rugged construction and precision-engineered termination points, optimized for low-latency fieldbus communication.

• Module Function: Profibus DP Communication Terminal Block

• Part Number Cross-Reference: 12P2413X032

• System Series: DeltaV M-series I/O Subsystem

• Redundancy Support: Fully compatible with redundant I/O configurations for high-availability systems

• Connection Interface: Specialized Profibus DP termination for high-speed serial data

• Environmental Protection: Designed to withstand harsh industrial vibrations and electromagnetic interference (EMI)

• Installation: Snap-on rail mounting for efficient cabinet space utilization

• Maintenance Features: Modular design permits rapid replacement without disturbing adjacent I/O modules

• Weight: 0.28 kg

• Dimensions: 4.3 x 12.5 x 10.5 cm

• Origin: USA

Industrial Applications and Operational Use Cases

This terminal block is a core component for industries relying on the DeltaV platform for complex process orchestration:

• Petrochemical and Refining: Connecting smart motor starters and variable frequency drives (VFDs) via Profibus DP for centralized speed and torque control.

• Chemical Processing Plants: Facilitating high-speed communication with remote I/O racks and analytical instruments in hazardous process zones.

• Power Generation: Integrating secondary automation subsystems and turbine control electronics into the primary DeltaV DCS.

• Pharmaceutical Batching: Ensuring deterministic data flow for high-precision dosing pumps and automated packaging equipment.

• Oil & Gas Midstream: Managing distributed instrumentation along pipelines where reliability and redundancy are required for safety-critical monitoring.
