Product Overview

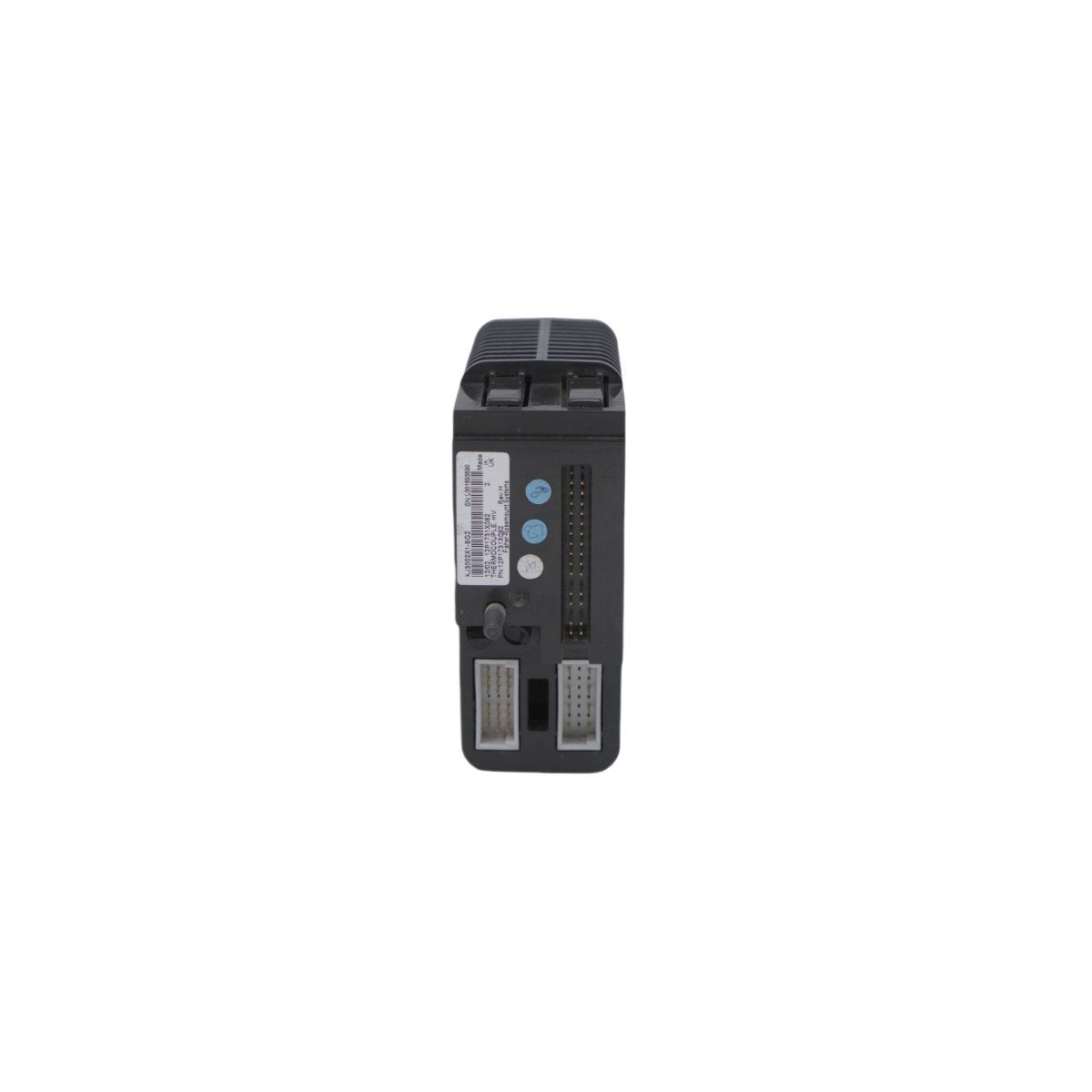

The Emerson KJ3002X1-BB1 (Part Number 12P0683X092), also identified by its VE3006 designation, is a high-performance Terminal Power Block designed for the DeltaV™ M-series I/O Subsystem. This module serves as a critical power distribution and termination point within the Distributed Control System (DCS) architecture. It is specifically engineered to provide a secure and stable electrical interface for I/O modules, ensuring consistent power delivery and signal integrity across the backplane.

As a fundamental component of the M-series hardware, the VE3006 facilitates the connection between field wiring and the system’s internal bus. Its design focuses on reducing electrical noise and providing robust terminal connections for sensors and actuators. While often categorized alongside thermocouple or analog modules due to its specific application in temperature-sensitive safety and control loops, its primary role is the management and distribution of power to the adjacent I/O cards within the DeltaV environment.

Technical Specifications

• Manufacturer: Emerson

• Model Number: KJ3002X1-BB1

• Order Number: 12P0683X092

• Module Code: VE3006

• Series: DeltaV M-series

• Device Type: Terminal Power Block / I/O Interface

• Mounting: I/O Carrier / DIN Rail Compatible

• Weight: 0.20 kg

• Dimensions: 8.1 cm x 7.9 cm x 8.8 cm

• Country of Origin: USA

• HS Code: 8537101190

Key Technical Characteristics

• System Integration: Fully compatible with DeltaV MD Plus and other M-series controllers, allowing for seamless communication and power management within the DCS.

• Enhanced Reliability: Features built-in signal isolation to protect the system from field-side voltage surges and ground loop interference.

• Modular Architecture: Supports hot-swappable I/O configurations, enabling maintenance or system expansion without requiring a total process shutdown.

• Advanced Diagnostics: Provides localized monitoring capabilities to detect power faults or connection irregularities, facilitating rapid troubleshooting and reduced MTTR (Mean Time To Repair).

• Industrial Hardening: Designed to operate in demanding process environments, maintaining stable performance under varying thermal conditions and high-vibration settings.

Application and Usage

The VE3006 Terminal Power Block is utilized in industries such as chemical processing, oil and gas, and pharmaceutical manufacturing where precision and safety are paramount. It acts as the physical and electrical anchor for DeltaV I/O modules, bridging the gap between field-installed instruments (thermocouples, pressure transmitters, flow meters) and the digital control logic. By ensuring clean power and organized termination, it optimizes the accuracy of continuous data acquisition and discrete control sequences.
