Product Overview

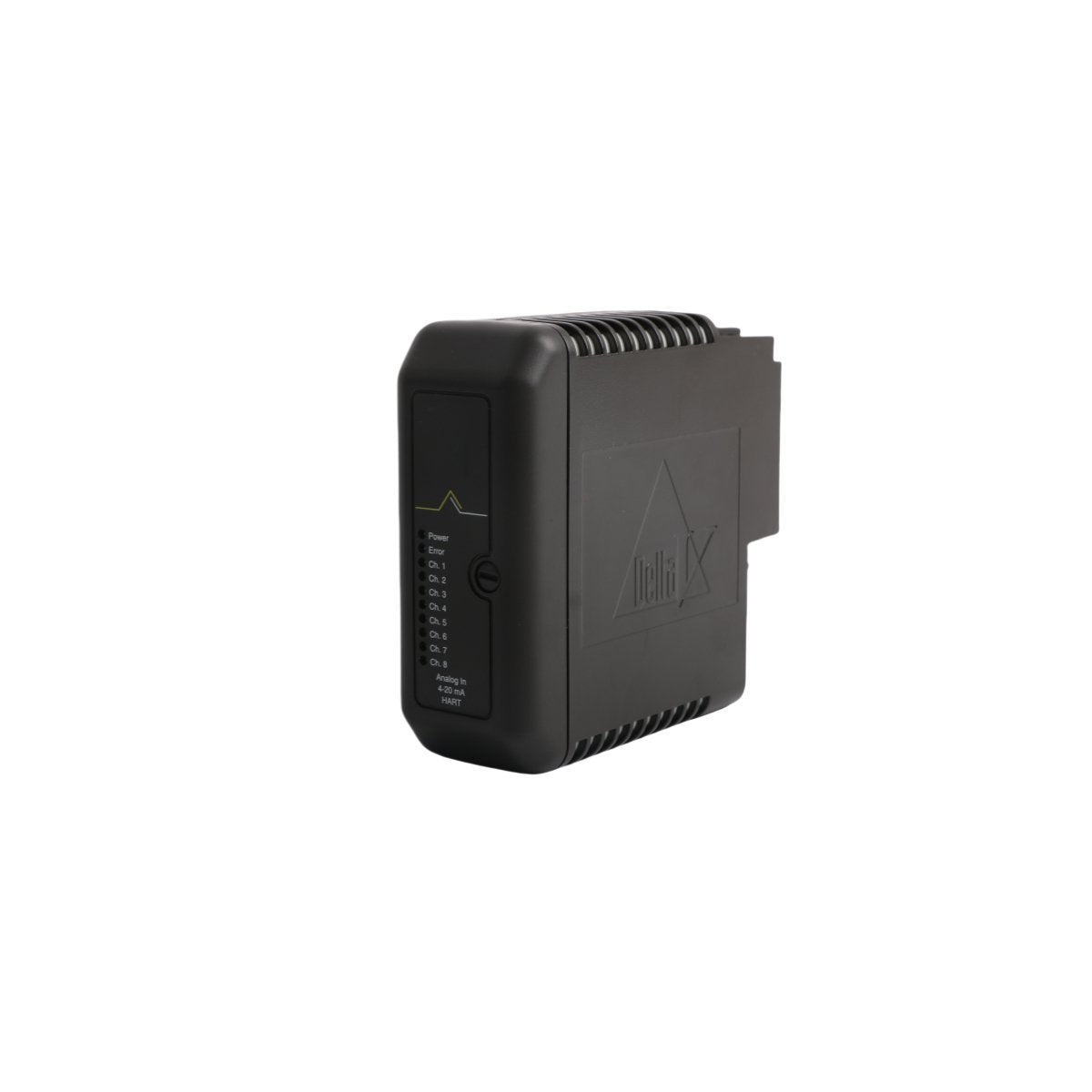

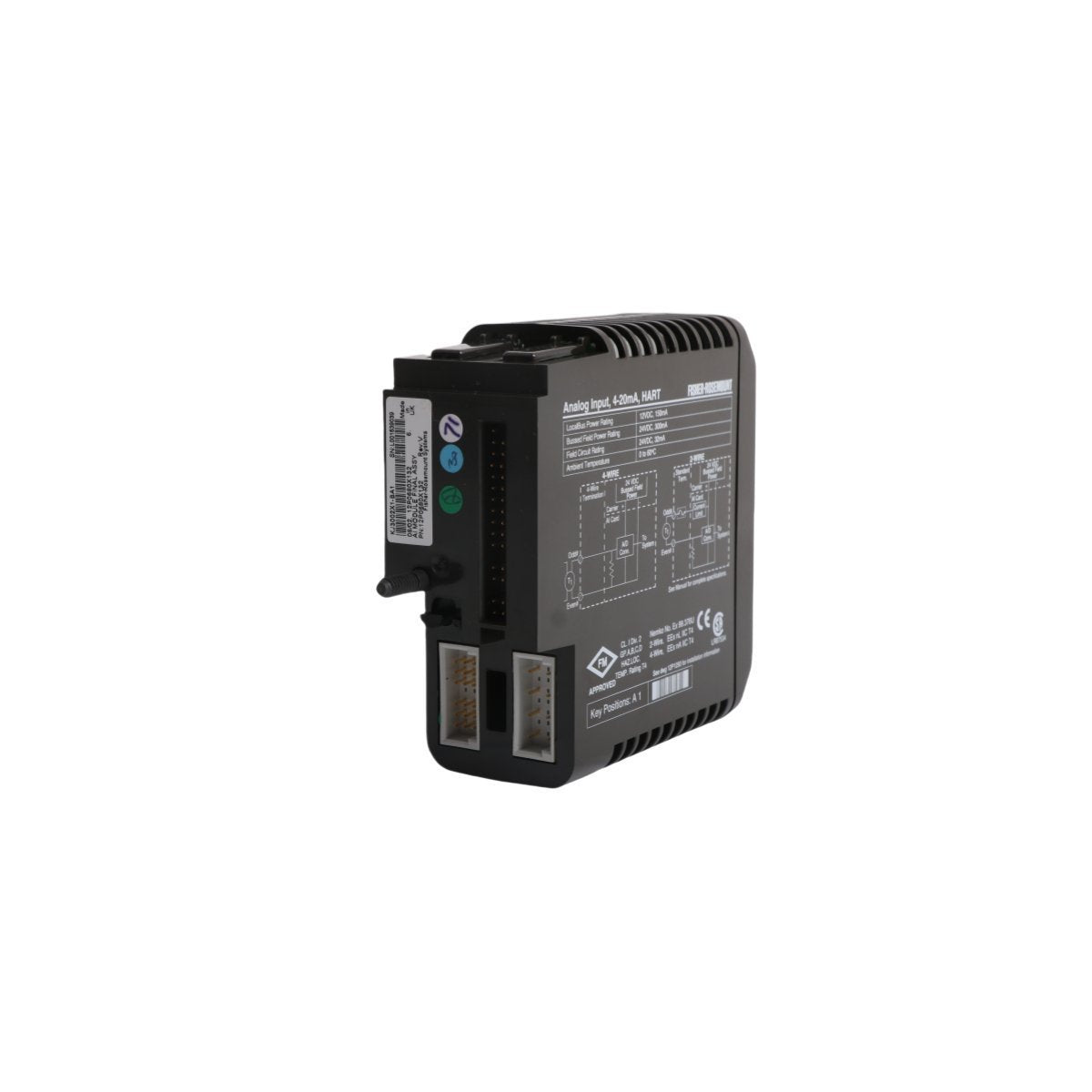

The Emerson KJ3002X1-BA1 (Part Number 12P0680X122) is a high-performance 8-channel Analog Input Module engineered for the DeltaV™ M-series I/O subsystem. This module is a core component of the Distributed Control System (DCS), specifically designed to interface with field transmitters to monitor essential process variables such as pressure, temperature, level, and flow.

This module supports standard 4-20 mA DC signals and is fully integrated with HART (Highway Addressable Remote Transducer) protocol capabilities. The HART functionality allows for the transmission of digital diagnostic data over the existing analog wiring, enabling maintenance teams to perform remote configuration, calibration, and health monitoring of smart field devices without interrupting the primary process signal.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3002X1-BA1

• Part Number: 12P0680X122

• Input Channels: 8 Differential Channels

• Signal Range: 4-20 mA (with HART digital communication)

• Series: DeltaV M-series I/O

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5% to 95%, non-condensing

• Isolation: Individual channel-to-channel galvanic isolation

• Weight: 0.20 kg

• Dimensions: 4.3 x 12.5 x 10.5 cm

Key Technical Characteristics

• HART Pass-Through: Enables seamless communication between the DeltaV control network and HART-enabled field instruments for advanced asset management and predictive diagnostics.

• Precision Signal Conversion: High-resolution Analog-to-Digital (A/D) conversion ensures that process fluctuations are captured with high fidelity for sensitive control loops.

• Signal Integrity: Integrated electrical isolation and noise filtering protect the system backplane from field-side transients and electromagnetic interference (EMI).

• Hot-Swappable Design: Supports the removal and replacement of modules under power without disrupting the operation of other I/O cards in the same carrier.

• Environmental Resilience: Built for "G3" harsh environment compliance, making it suitable for deployment in corrosive industrial atmospheres where reliability is paramount.

Industrial Applications

The KJ3002X1-BA1 is widely utilized in sectors requiring high-availability process control, including oil and gas refining, chemical manufacturing, and pharmaceutical production. By bridging the gap between field instrumentation and the DeltaV logic solver, it ensures that critical real-time data is available for both automated control strategies and high-level enterprise optimization.
