Product Overview

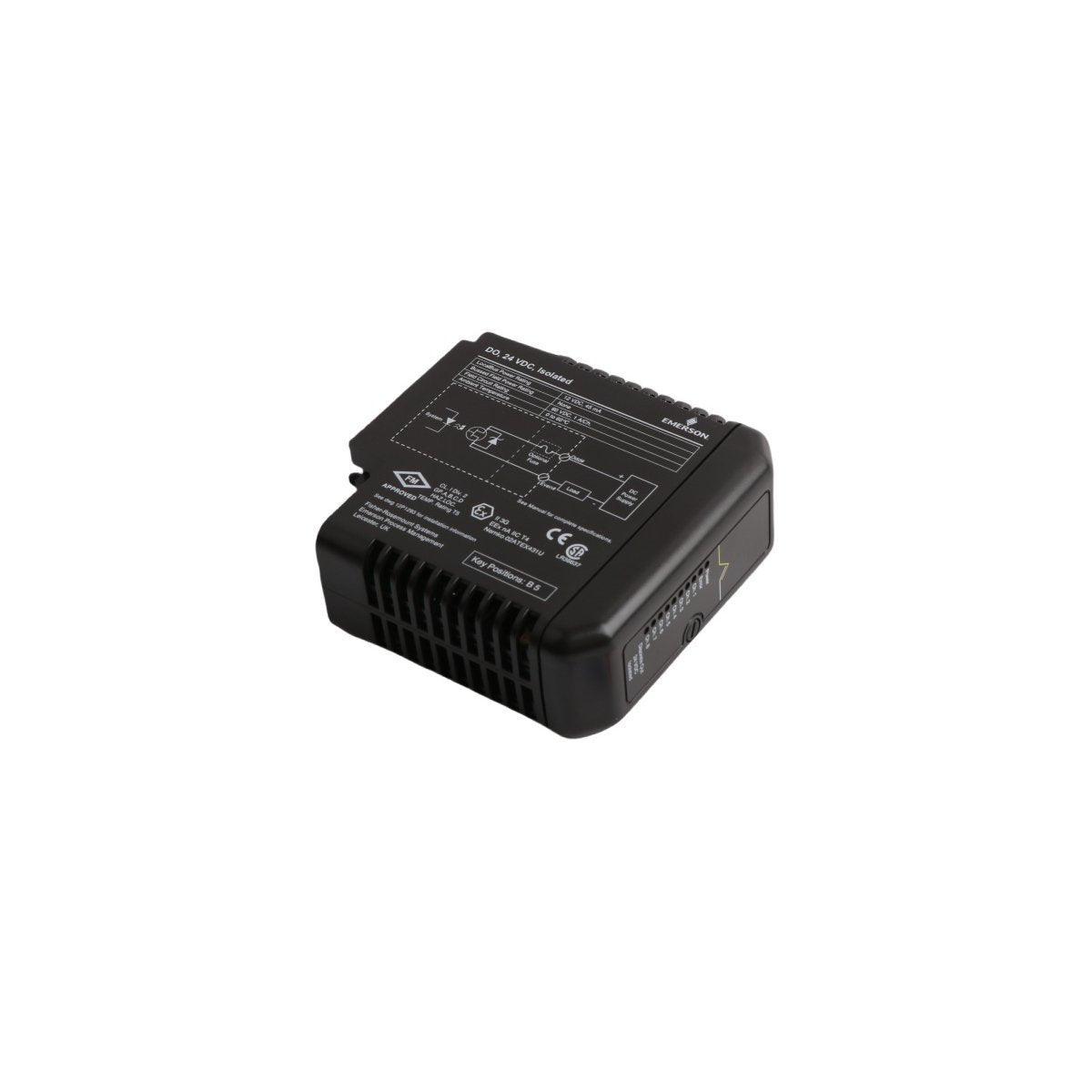

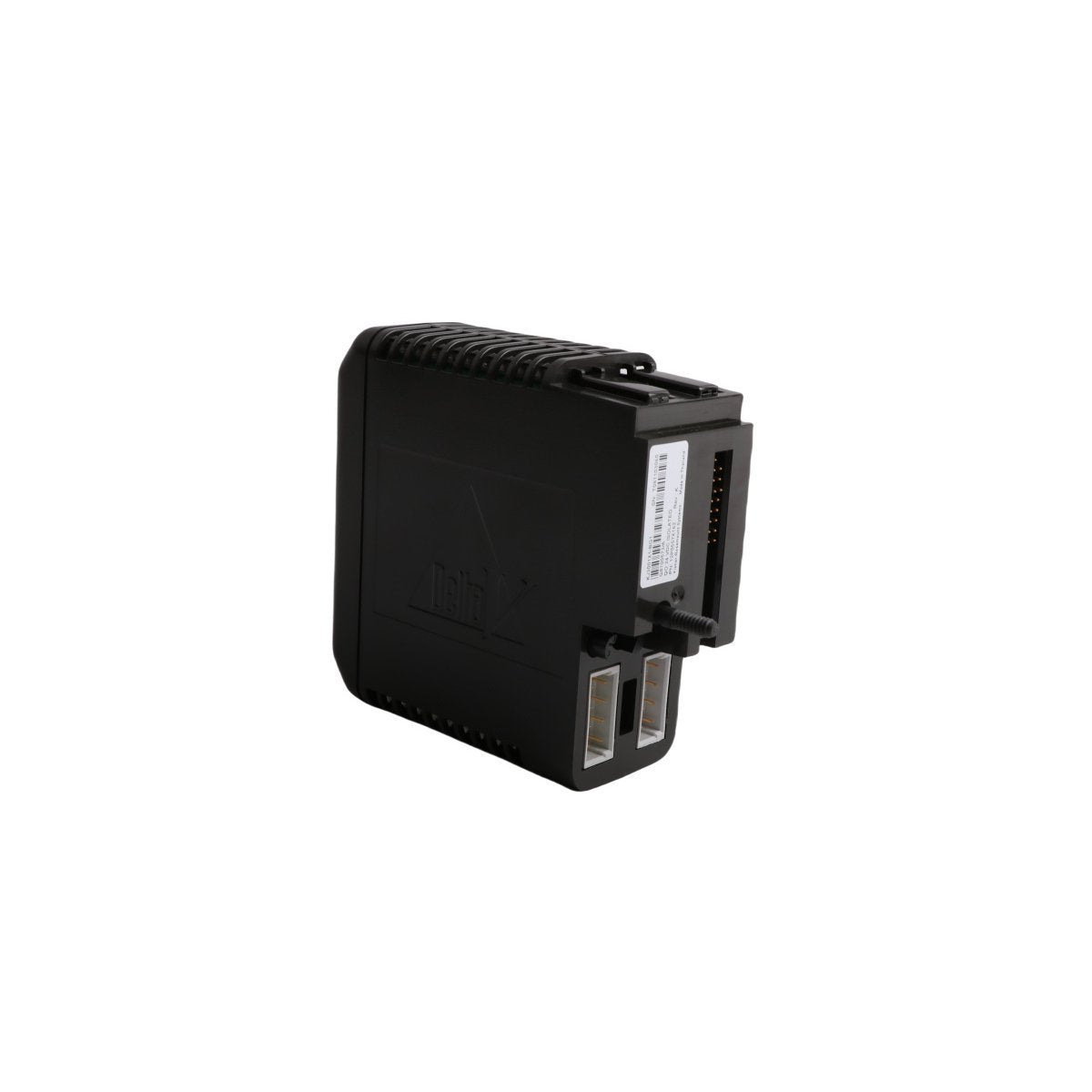

The Emerson KJ3001X1-BG1 (referenced by part numbers 12P0557X162 and VE4002S1T1B2) is a precision-engineered digital output module designed for the DeltaV SIS™ process safety system. This module acts as a critical interface within a Distributed Control System (DCS), responsible for executing command signals from the safety logic solver to field-side final control elements. Engineered specifically for high-integrity applications, the KJ3001X1-BG1 ensures that safety-instrumented functions (SIF) are carried out with deterministic accuracy. By managing discrete outputs for valves, actuators, and solenoids, this module provides the reliable hardware foundation required to protect personnel, assets, and the environment in mission-critical processing zones.

Technical Characteristics

The KJ3001X1-BG1 is distinguished by its safety-certified architecture and robust communication capabilities:

High-Integrity Output Logic As a core component of the DeltaV SIS platform, this module features internal diagnostics that continuously monitor the health of the output circuitry. It is designed to detect and respond to internal hardware faults or field-side wiring issues, ensuring that the system fails to a safe state in accordance with IEC 61508 standards.

Advanced DeltaV SIS Integration The module integrates natively with the DeltaV safety logic solver via the system backplane. This allows for high-speed synchronization of safety data and simplifies the engineering process through the DeltaV Explorer. The hardware supports hot-swapping (Removal and Insertion Under Power), allowing for maintenance or replacement without interrupting the operational continuity of the broader safety system.

Industrial Strength and Environmental Resilience Housed in a compact, modular enclosure, the KJ3001X1-BG1 is built to withstand the thermal stress and electromagnetic interference (EMI) common in industrial control rooms. Its localized LED status indicators provide immediate visual feedback regarding power, communication health, and individual channel states, facilitating rapid onsite troubleshooting.

Optimized Response Times The module’s electronic architecture is optimized for low-latency command execution. This rapid response capability is essential for emergency shutdown (ESD) applications and burner management systems (BMS) where millisecond timing can prevent equipment damage or process excursions.

Technical Specifications

• Manufacturer: Emerson

• Model Number: KJ3001X1-BG1

• Order Numbers: 12P0557X162 / VE4002S1T1B2

• Product Type: Discrete Output Module

• System Family: DeltaV SIS Process Safety System

• Function: Safety-Instrumented Discrete Control

• Mounting: DeltaV M-series Carrier

• Weight: 0.2 kg

• Dimensions: 4.1 x 12.5 x 10.5 cm

• Origin: USA

Application Areas

The KJ3001X1-BG1 is a fundamental asset in several highly regulated industrial sectors:

• Petrochemical & Refining: Controlling emergency shutdown valves and fire suppression interfaces.

• Chemical Processing: Managing safety interlocks for reactor vessels and pressurized systems.

• Power Generation: Integration into burner management systems and turbine trip logic.

• Safety Instrumented Systems (SIS): Serving as a primary output interface for SIL-rated safety loops.
