Product Overview

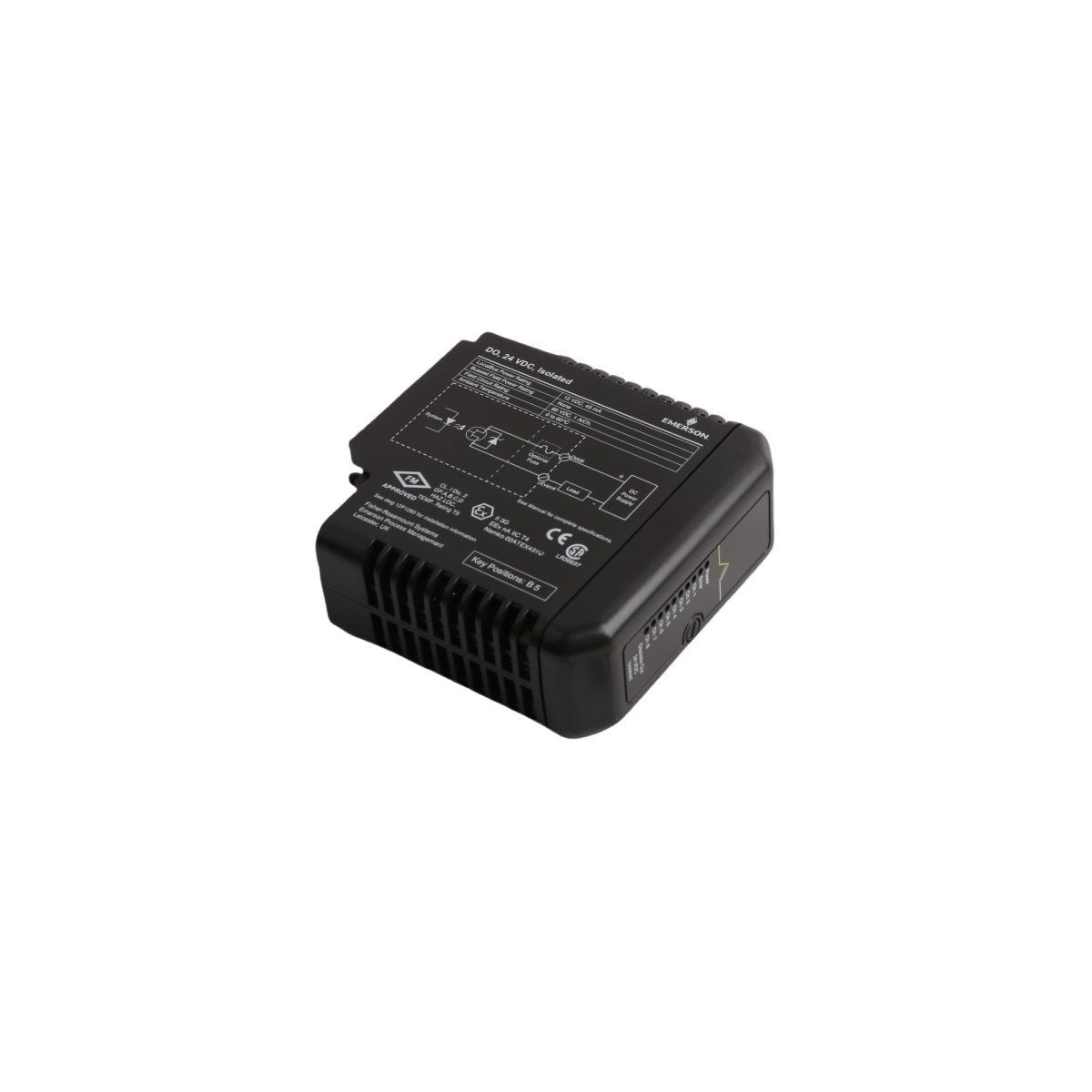

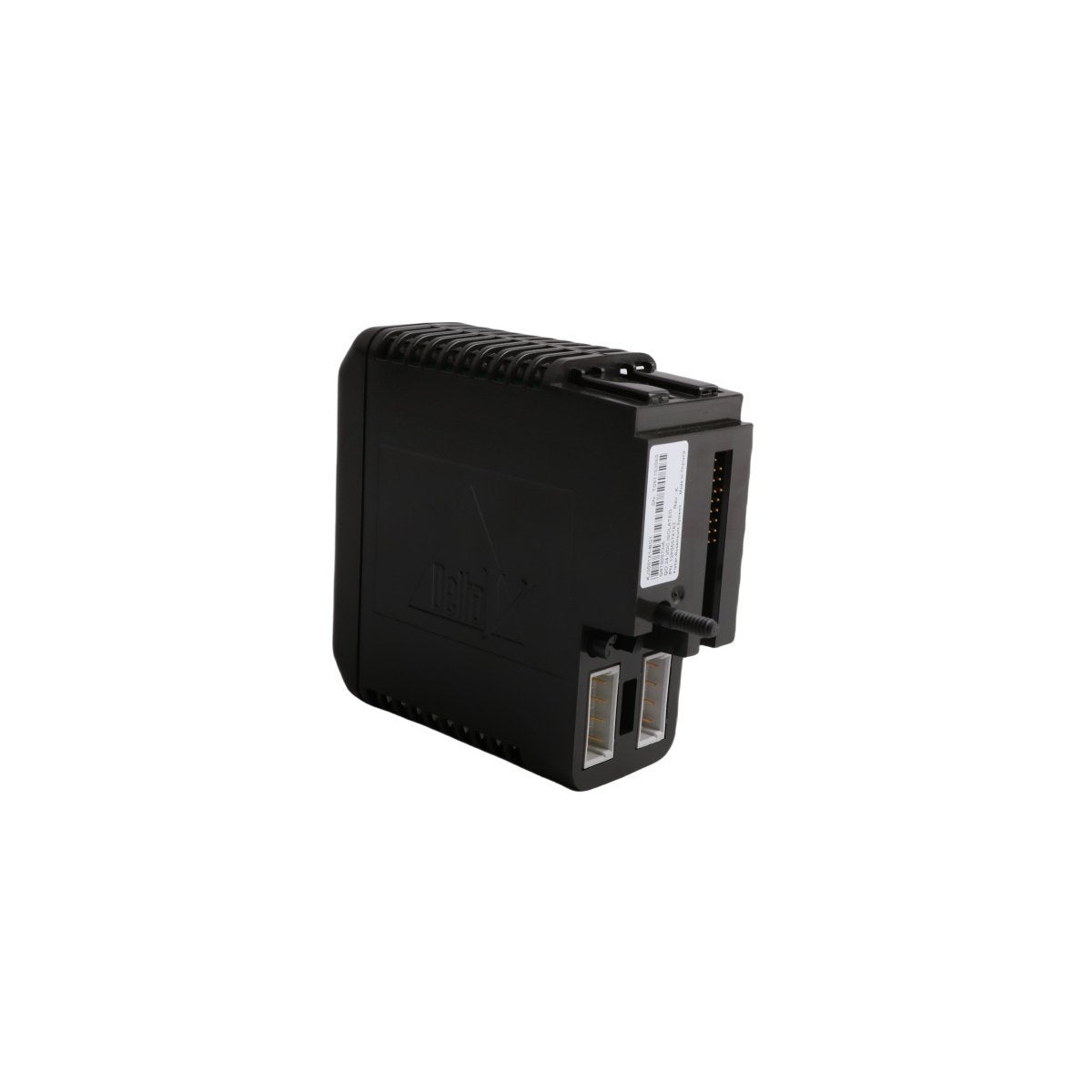

The Emerson KJ3001X1-BG1 (Order Number: 12P0557X162, Model: VE4002S1T1B1) is a high-reliability digital input component designed specifically for the DeltaV SIS™ (Safety Instrumented System). As a fundamental element of the process safety infrastructure, this module interfaces field-side sensors and switches with the safety logic solver. It is engineered to perform critical signal acquisition for safety-instrumented functions (SIF), such as Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.

This module is built to provide high-integrity data sensing, ensuring that discrete state changes in the field—such as a valve reaching a limit or a pressure switch tripping—are communicated to the control system with millisecond precision. By utilizing the DeltaV SIS architecture, the KJ3001X1-BG1 facilitates a SIL-rated environment that prioritizes system uptime and fail-safe operation in high-risk industrial sectors.

Technical Specifications and Engineering Features

The KJ3001X1-BG1 is optimized for harsh industrial environments and high-density control cabinets.

• System Compatibility: DeltaV SIS™ Process Safety System

• Module Function: Discrete Digital Input signal processing

• Part Identifiers: KJ3001X1-BG1, 12P0557X162, VE4002S1T1B1

• Safety Integrity: Supports SIL 1 through SIL 3 safety loops (in redundant configurations)

• Signal Type: Isolated Dry Contact or Voltage-Sensing inputs

• Diagnostics: Comprehensive internal self-testing and field-circuit monitoring

• Mounting Type: DIN-rail via standard M-series I/O carrier

• Weight: 0.20 kg

• Dimensions: 12.5 cm x 10.5 cm x 4.1 cm

• Environmental Protection: Designed for Class 1, Div 2 / Zone 2 hazardous locations

Operational Benefits and Applications

• Advanced Fault Detection: The module features sophisticated diagnostics that can identify open circuits or short circuits in the field wiring, preventing "frozen" input states and ensuring the safety system always has a true view of process conditions.

• Galvanic Isolation: Integrated isolation protects the system backplane from field-side electrical surges and transients, enhancing overall system stability and reducing the risk of cascaded failures.

• Scalable Safety Architecture: As part of the DeltaV SIS family, this module allows for modular expansion, enabling engineers to scale safety coverage from small units to plant-wide protection schemes.

• High Availability: Designed for hot-swappable replacement, the module allows for maintenance without interrupting the power to the rest of the I/O carrier, minimizing downtime during hardware updates.

• Ruggedized Design: Proven performance in demanding industries, including oil and gas refining, chemical manufacturing, and power generation, where temperature fluctuations and electrical noise are prevalent.
