Product Overview

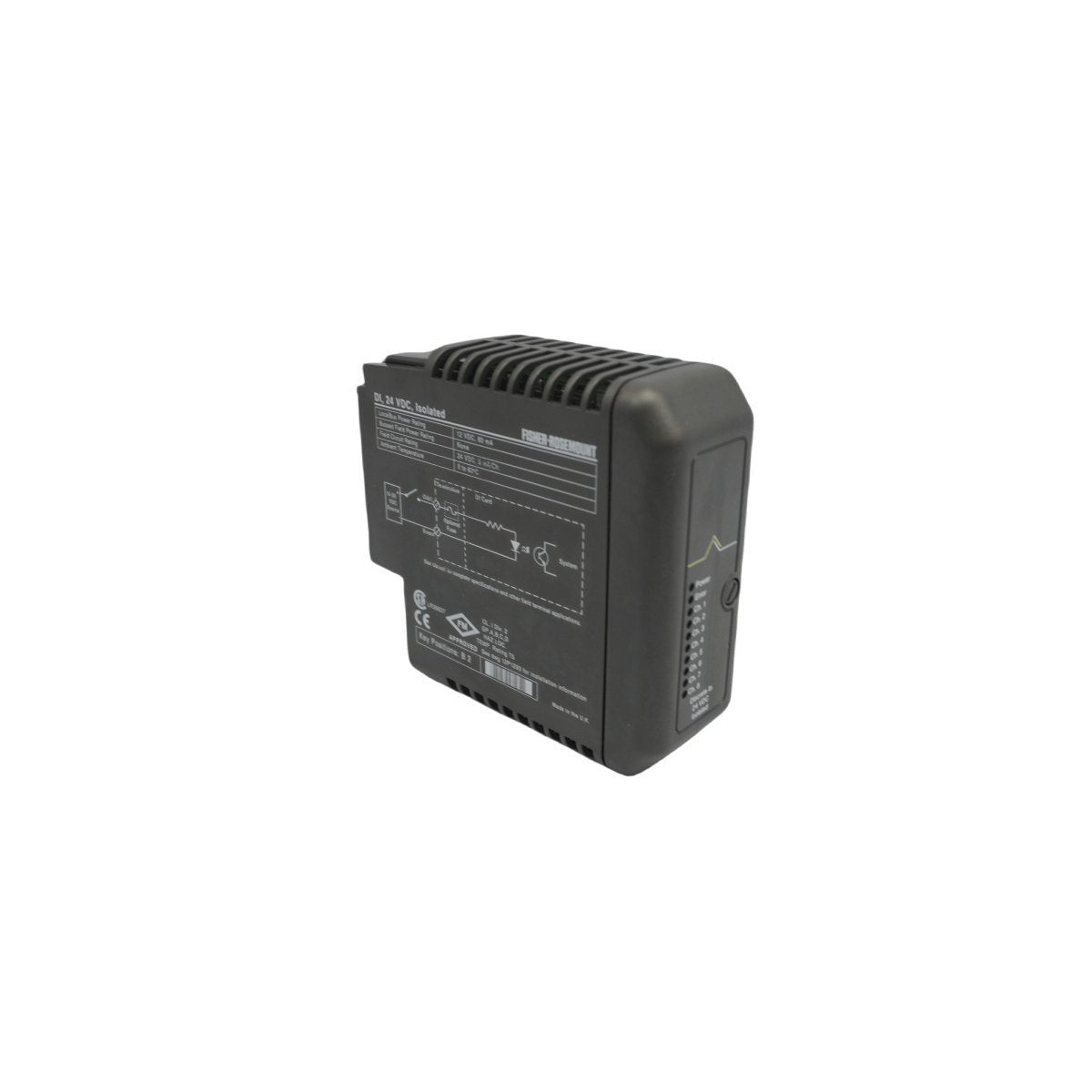

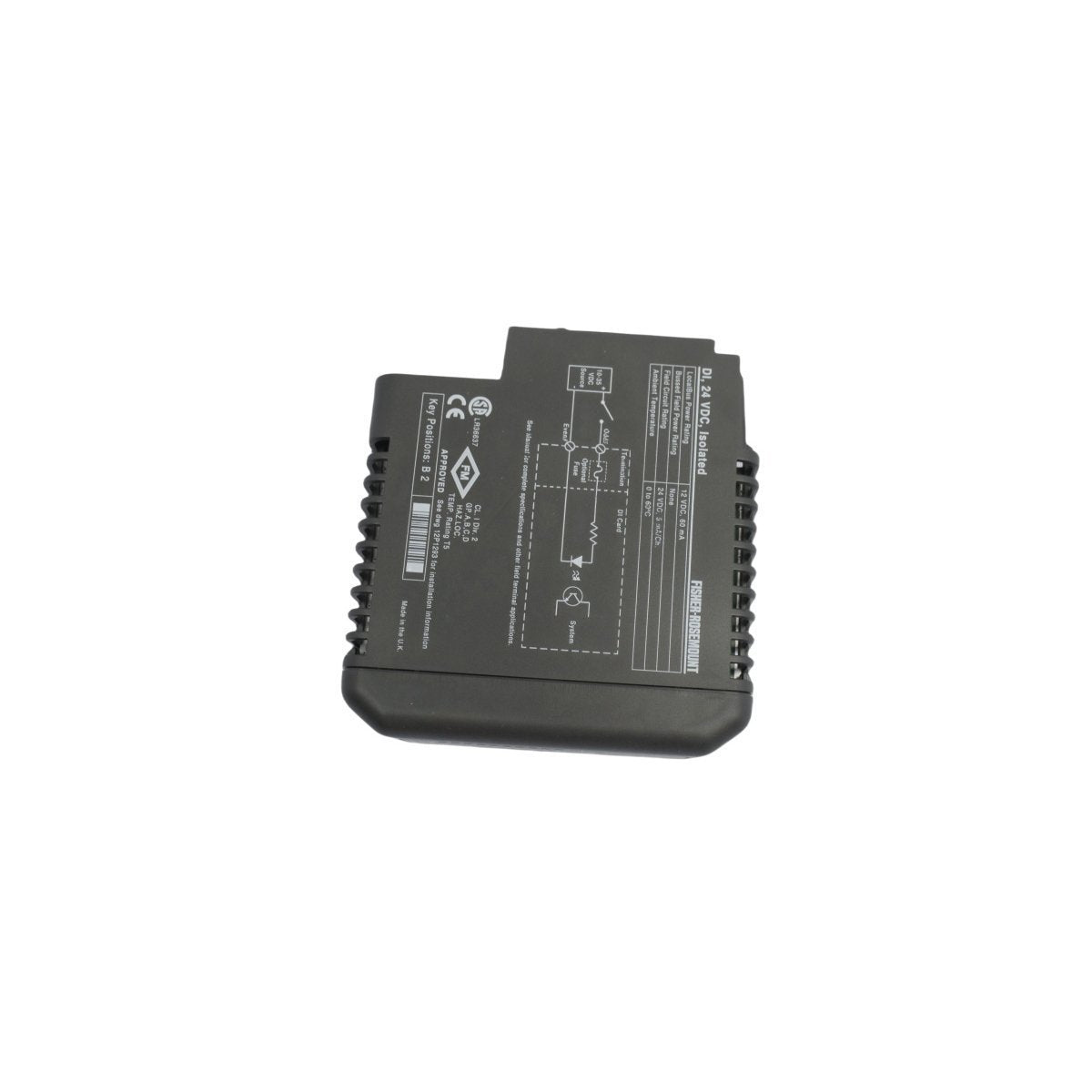

The Emerson KJ3001X1-BA1 (Part Number 12P0549X112) is a high-performance discrete input card designed for the DeltaV™ Distributed Control System (DCS). This module serves as a critical interface for capturing digital signals from field-side switches, sensors, and contacts. Engineered with per-channel isolation, the KJ3001X1-BA1 effectively decouples field wiring from the system backplane, preventing ground loops and protecting sensitive controller logic from electrical transients. This isolated architecture is particularly vital in semiconductor fabrication and chemical processing plants where signal integrity and noise immunity are essential for maintaining stable process oversight.

Technical Characteristics

The KJ3001X1-BA1 is defined by its industrial-grade protection and seamless maintenance features:

Comprehensive Signal Isolation Each input channel on the KJ3001X1-BA1 is independently isolated. This design ensures that a fault or electrical surge on one field circuit does not propagate to adjacent channels or the main DeltaV controller. This "finesse" in signal handling makes it ideal for environments with high electromagnetic interference (EMI).

Hot-Swappable Reliability To support continuous 24/7 operations, the module is designed for "Removal and Insertion Under Power" (RIUP). Engineers can replace a faulty card without shutting down the controller or interrupting the signal flow of other modules in the carrier, significantly reducing mean time to repair (MTTR).

Advanced System Integration The card communicates natively with DeltaV software, providing real-time diagnostic data regarding the health of the module and the state of the field inputs. Configuration is handled through the DeltaV Explorer, allowing for quick commissioning and software-based troubleshooting without the need for manual jumpers or hardware adjustments.

Ruggedized Hardware Build Designed to meet the requirements of the DeltaV SIS™ and standard DCS environments, the hardware is built to withstand mechanical vibration and temperature fluctuations common in industrial control rooms and remote instrument enclosures (RIE).

Technical Specifications

• Brand: Emerson

• Model Number: KJ3001X1-BA1

• Order Number: 12P0549X112

• Product Type: Discrete/Digital Input Module

• Series: DeltaV

• Isolation: Per-channel galvanic isolation

• System Architecture: Distributed Control System (DCS)

• Weight: 0.2 kg

• Dimensions: 12.7 cm x 5.1 cm x 12.7 cm

• Origin: USA

Application Areas

The KJ3001X1-BA1 is utilized across high-stakes industrial sectors:

• Semiconductor Fabrication: Monitoring high-purity gas and chemical delivery systems where electrical noise must be eliminated.

• Oil and Gas: Integrating emergency shutdown (ESD) switches and pressure status contacts.

• Pharmaceuticals: Managing digital state inputs for batch processing and containment monitoring.

• Power Generation: Tracking breaker statuses and valve positions in noisy electrical environments.
