Product Overview

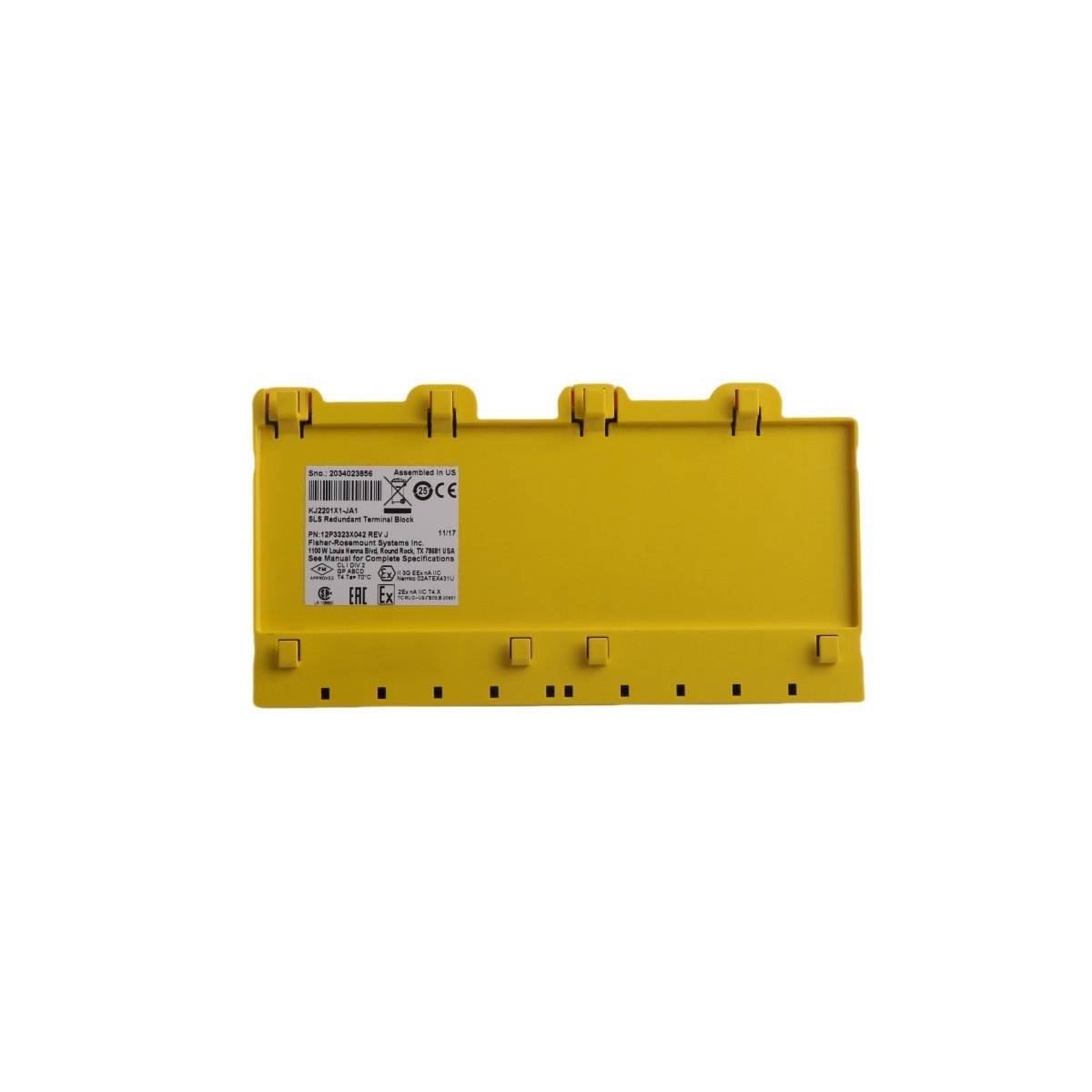

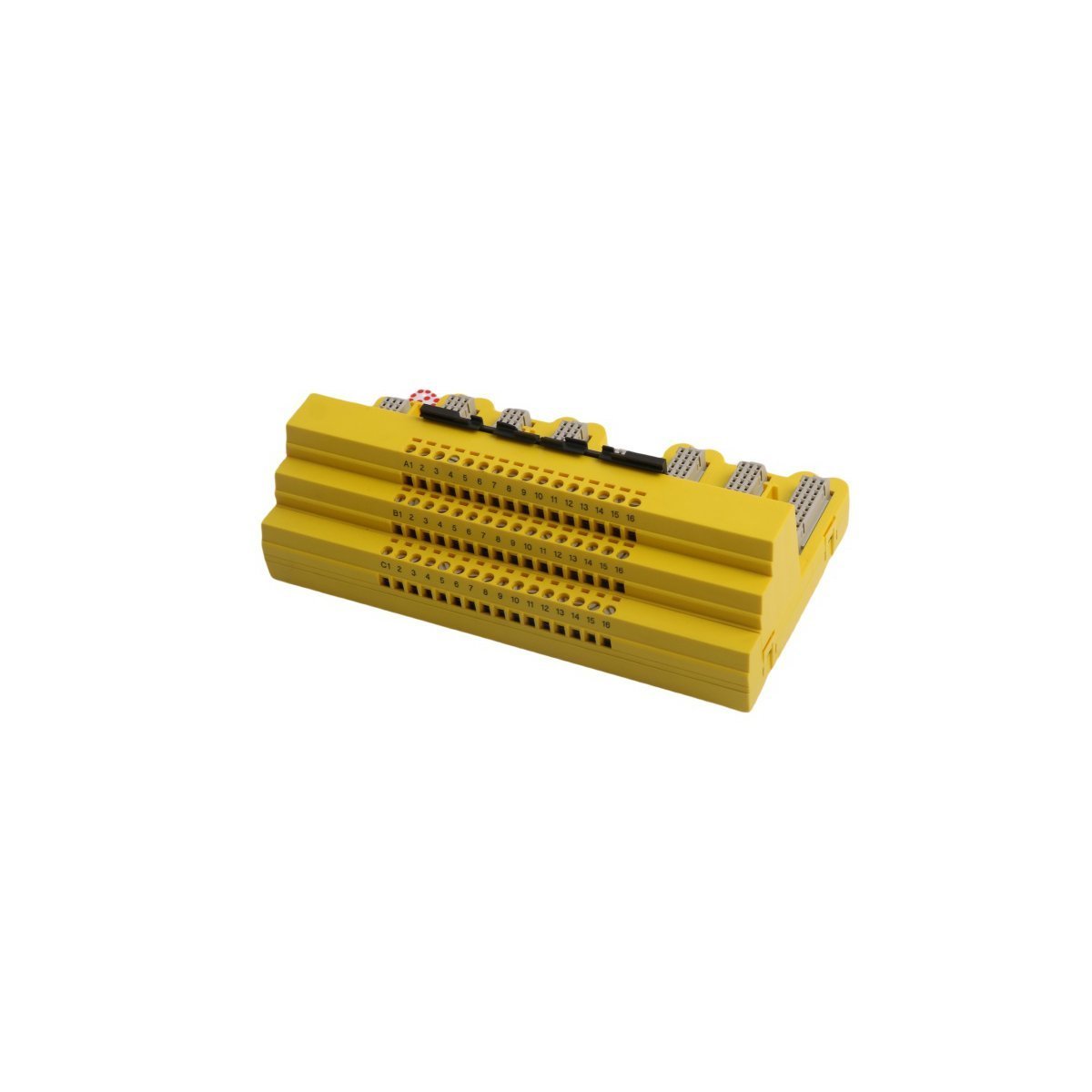

The Emerson KJ2201X1-JA1 (Order Number 12P3323X042) is a high-reliability Redundant Terminal Block specifically engineered for the DeltaV SIS™ (Safety Instrumented System). This component serves as the physical and electrical interface between field instrumentation and the safety logic solvers. By providing redundant wiring pathways, the KJ2201X1-JA1 ensures that critical safety loops remain closed and operational even in the event of a localized connection failure.

This terminal block is a cornerstone of modern functional safety architectures, designed to meet the rigorous demands of SIL (Safety Integrity Level) rated applications. It is particularly essential in high-risk processing environments—such as petrochemical refining and specialty chemical manufacturing—where the integrity of signal transmission directly impacts personnel safety and environmental protection.

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ2201X1-JA1

• Order Number: 12P3323X042

• Module Type: Redundant Terminal Block

• System Series: DeltaV SIS Process Safety System

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5% to 95%, non-condensing

• Vibration Resistance: Certified for high-stress industrial zones

• Weight: 0.34 kg

• Dimensions: 16.6 x 8.8 x 5.5 cm

• HS Code: 8537101190

Key Technical Characteristics

• Dual-Path Redundancy: Featuring a redundant terminal design, the module allows for two separate physical connections for each I/O channel. This architecture eliminates single points of failure at the termination level, significantly increasing system availability.

• Corrosion-Resistant Construction: Built with materials resistant to aggressive industrial atmospheres, ensuring low contact resistance and long-term signal stability in harsh "G3" rated environments.

• Streamlined Signal Routing: Designed to reduce wiring complexity, the KJ2201X1-JA1 facilitates organized field terminations, which simplifies both initial commissioning and subsequent maintenance or diagnostic activities.

• Seamless SIS Integration: The hardware is automatically recognized within the DeltaV Explorer and configuration software, allowing for immediate mapping to redundant safety logic solver pairs.

• Hazardous Area Readiness: The block is engineered to maintain high electromagnetic immunity and thermal resilience, ensuring it functions without drift in electrically noisy and temperature-volatile locations.

Application and Installation

The KJ2201X1-JA1 is typically mounted on a DeltaV I/O carrier, providing the interface for redundant Analog Input (AI) or Digital Input (DI) modules. Its primary role is to ensure that critical sensors—such as emergency shutdown (ESD) valves, pressure transmitters, and flame detectors—maintain a continuous data link to the safety logic solver. The robust physical design supports rapid module replacement while field wiring remains intact, minimizing potential downtime during system upgrades or repairs.
