Product Overview

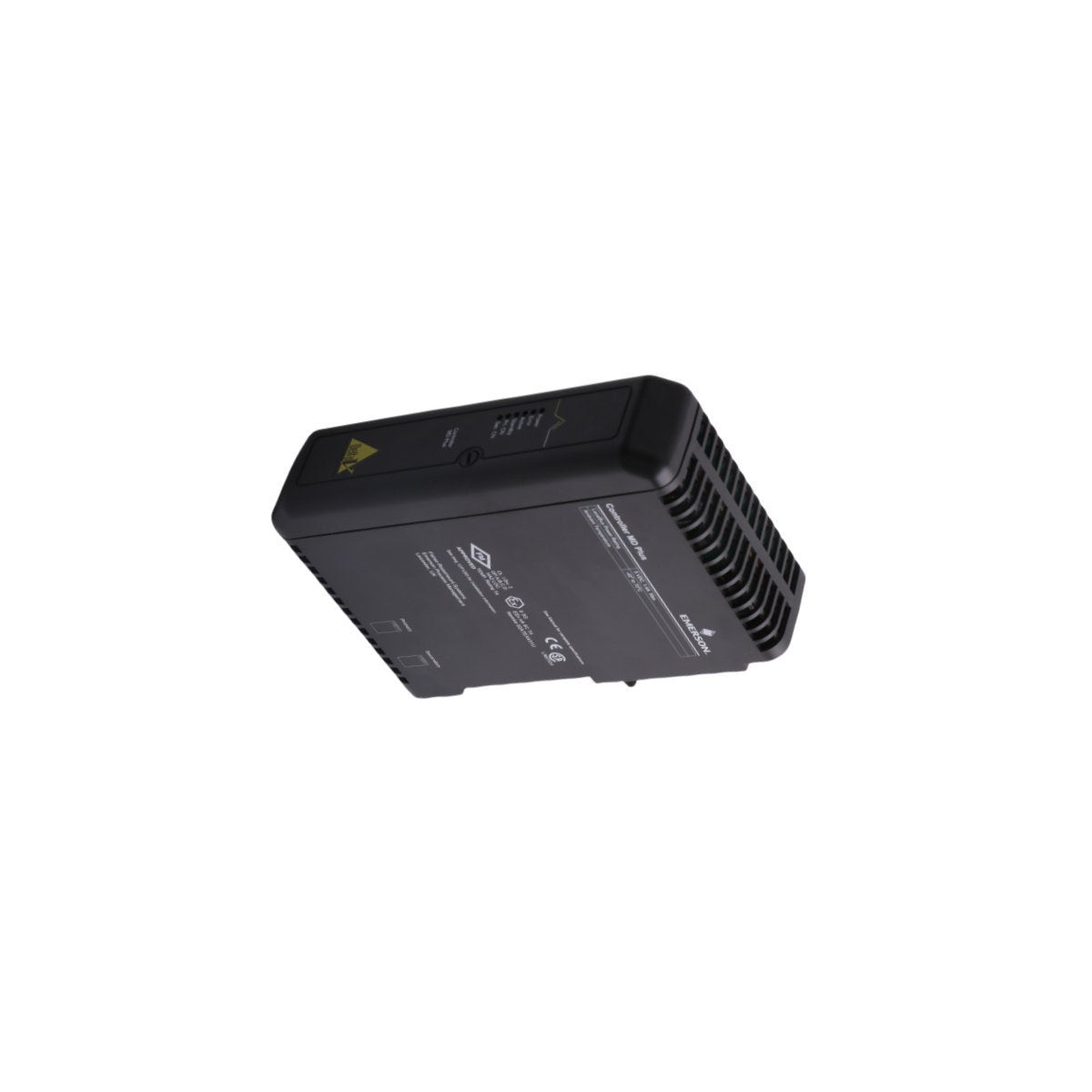

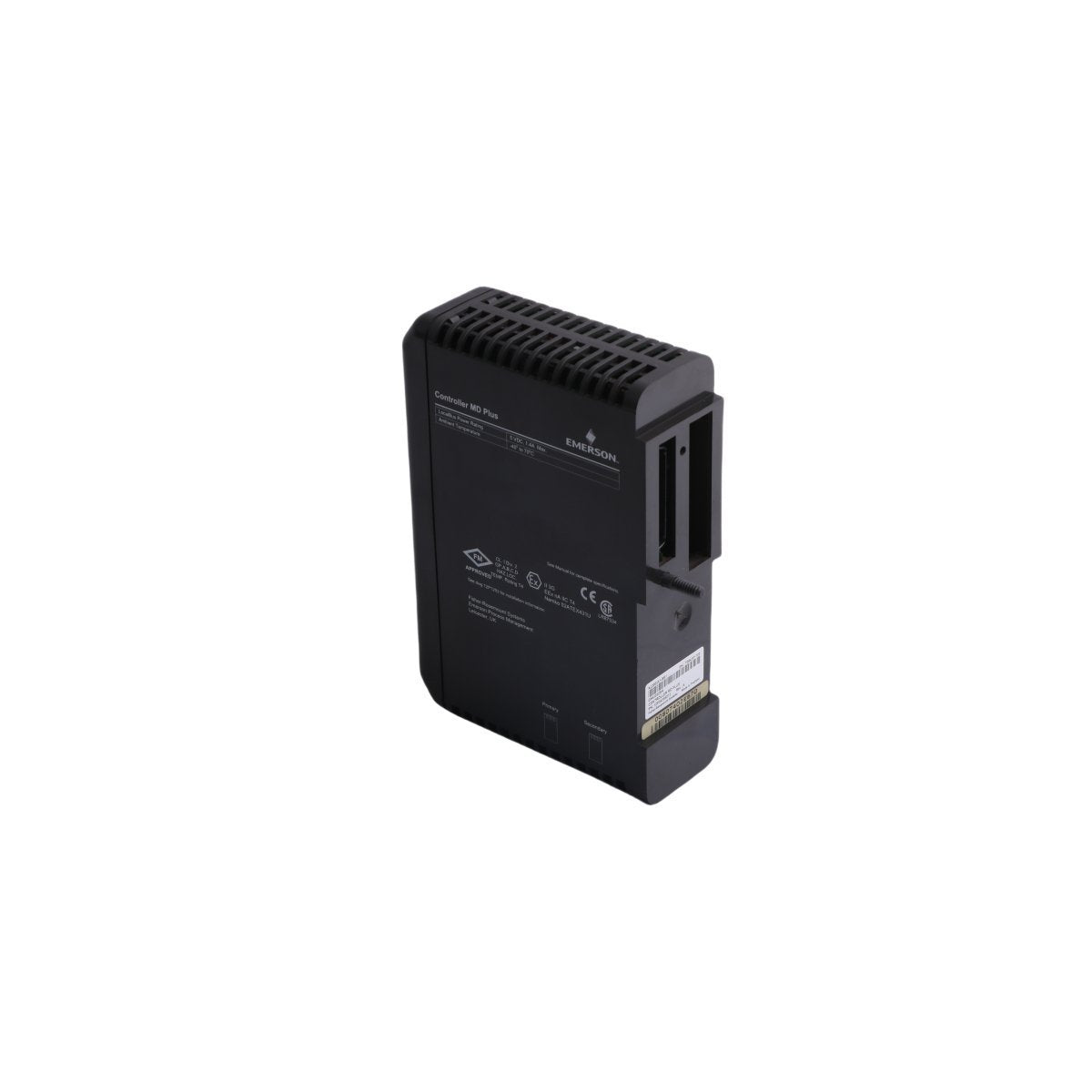

The KJ2003X1-BB1 (identified by assembly number 12P3439X012 and model VE3006) is a high-performance MD Plus Controller designed for the Emerson DeltaV™ Distributed Control System (DCS). This controller functions as the "intelligence" of the system, executing local control strategies and managing communication between the I/O subsystem and the control network.

The MD Plus variant is specifically engineered to handle advanced control requirements with increased memory and processing speed compared to standard MD units. It excels in real-time data acquisition and regulatory control, ensuring that critical process variables—such as flow, pressure, and temperature—are managed with high precision. By supporting redundancy and modular expansion, it provides a scalable foundation for both standard process control and integrated safety applications.

Technical Core and System Performance

The VE3006 MD Plus Controller is built for continuous, high-availability operation in demanding industrial sectors:

• Advanced Control Processing: Executes complex control loops and logic at the hardware level, reducing latency between signal input and control output.

• System Redundancy: Supports 1:1 hot-standby redundancy. In a redundant pair, the standby controller tracks the primary in real-time, ensuring a bumpless transfer in the event of a hardware fault.

• Network Integration: Equipped with dual Ethernet ports for redundant connection to the DeltaV Control Network, utilizing standard protocols for seamless data exchange with workstations and other controllers.

• Cold-Start and Configuration: Utilizing non-volatile memory, the controller retains its configuration and database through power cycles, facilitating rapid system recovery.

• Diagnostic Depth: Features sophisticated self-diagnostics that monitor hardware health, memory integrity, and communication status, reporting errors directly to the operator interface.

Hardware Specifications

• Manufacturer: Emerson (DeltaV)

• Model Number: KJ2003X1-BB1 / VE3006

• Part Number: 12P3439X012

• Power Consumption: Typically 5W (nominal)

• Input Power: 24V DC backplane power

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)

• Mounting: Snap-on installation to the DeltaV 2-wide or 4-wide carrier

• Dimensions: 4.4 x 10.8 x 12.7 cm

Industrial Process Applications

The KJ2003X1-BB1 MD Plus Controller is a standard choice for utility-scale automation and safety:

• Chemical and Petrochemical: Managing complex distillation columns and reactor temperature profiles where precision is critical for product yield.

• Oil and Gas: Controlling upstream production manifolds and midstream compressor stations in both onshore and offshore environments.

• Process Safety (SIS): Serving as the logic solver for DeltaV SIS™ process safety systems to ensure safe shutdown during abnormal process conditions.

• Pharmaceuticals: Executing batch control logic that requires strict adherence to timing and regulatory reporting requirements.
