Product Overview

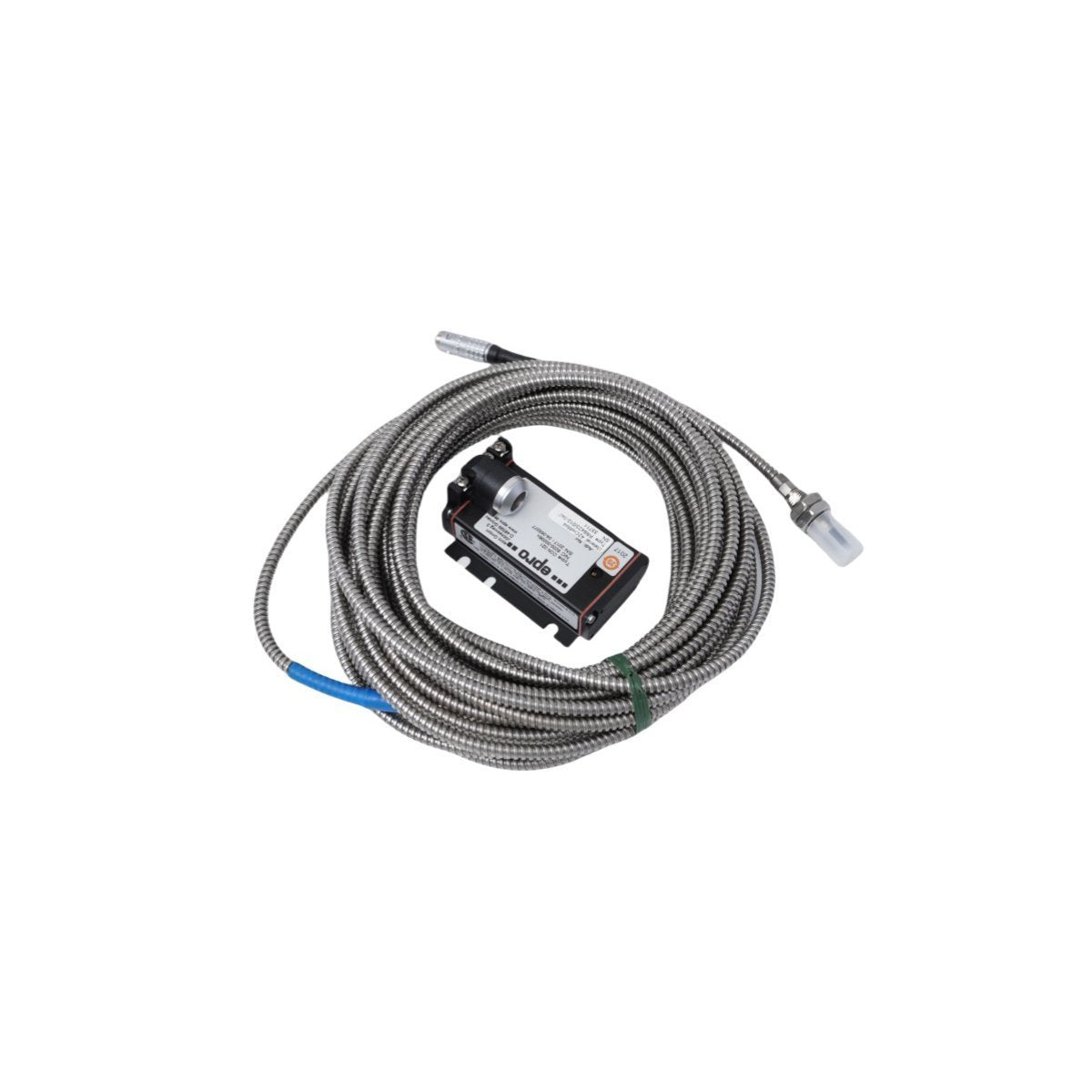

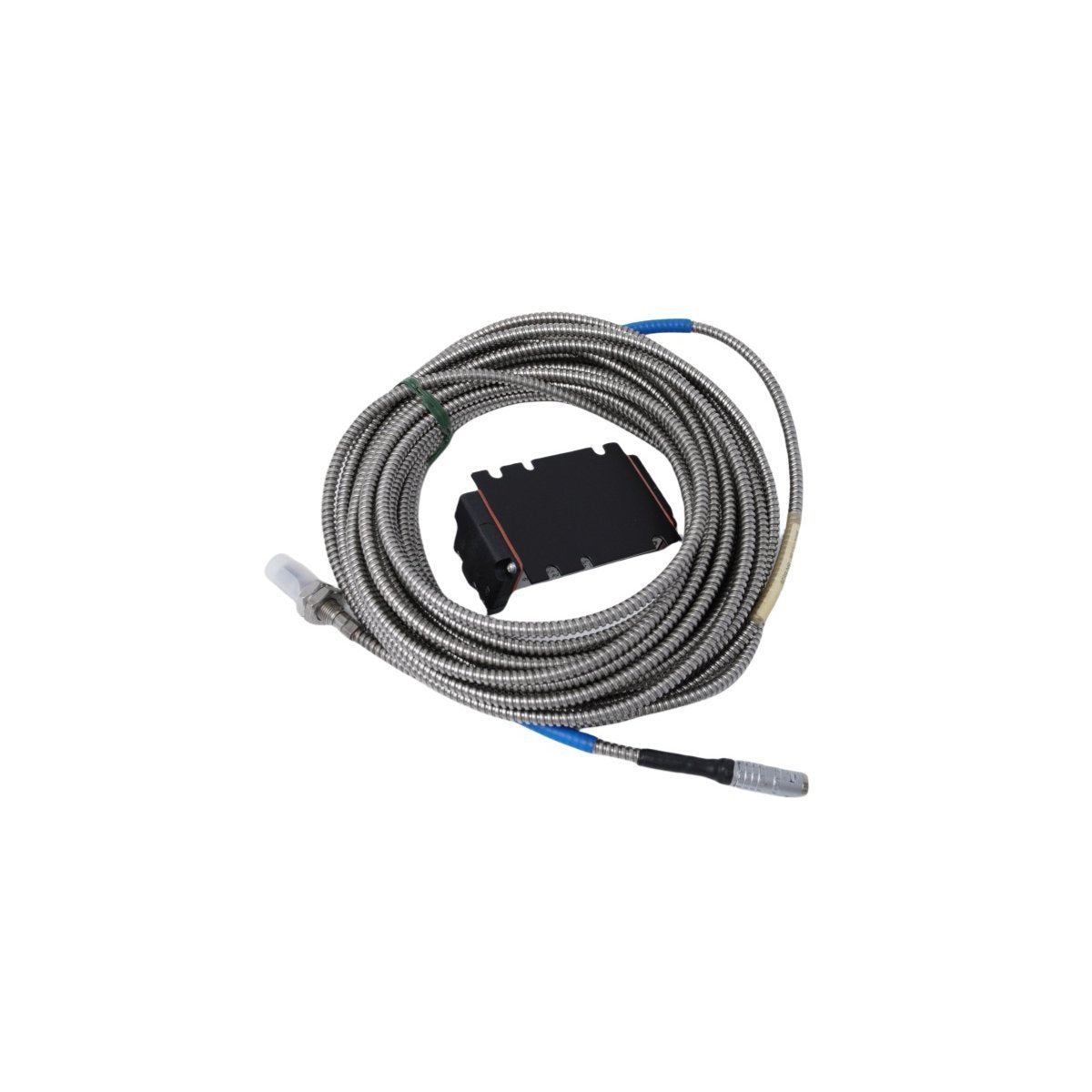

The Emerson PR6423/010-000 CON021 is a high-precision Eddy Current Signal Converter and transducer system developed under the EPRO product line for advanced machinery protection. This non-contacting sensor system is specifically engineered to measure shaft vibration, axial thrust position, and eccentricity in high-speed rotating assets such as steam turbines, gas compressors, and industrial fans. By utilizing electromagnetic induction, the PR6423/010-000 provides real-time data on the displacement between the sensor tip and the target material without physical contact.

This module is a fundamental component of industrial condition monitoring programs, enabling operators to detect mechanical wear or instability before it leads to catastrophic equipment failure. Its design emphasizes thermal stability and linearity, ensuring that measurements remain accurate even when subjected to the high temperatures and pressures common in power generation and petrochemical facilities.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Number: PR6423/010-000

• Converter Identification: CON021

• Measurement Principle: Eddy Current (Non-contact)

• Sensor Tip Diameter: 8 mm

• Linear Range: Optimized for standard 2.0 mm displacement applications

• Housing Material: High-grade Stainless Steel

• Output Signal: Temperature-compensated analog output

• Weight: 0.36 kg

• Dimensions: 20 x 20 x 4 cm

• System Integration: Fully compatible with AMS 6500 and MMS 6000 monitoring racks

Core Technical Characteristics

• Environmental Resilience: The sensor head and converter are built to withstand corrosive atmospheres and high-vibration environments, maintaining structural integrity under extreme industrial stress.

• Temperature Compensation: Advanced internal circuitry automatically adjusts for thermal fluctuations, preventing signal drift and ensuring consistent axial and radial measurements across a wide temperature spectrum.

• Electromagnetic Immunity: Shielded architecture protects the signal converter from EMI/RFI interference, which is critical for maintaining data accuracy in proximity to large motors and high-voltage equipment.

• Predictive Maintenance Support: By delivering a continuous data stream of shaft dynamics, the PR6423 system supports ISO 10816 and ISO 7919 machinery vibration standards, facilitating early fault detection.
