Product Overview

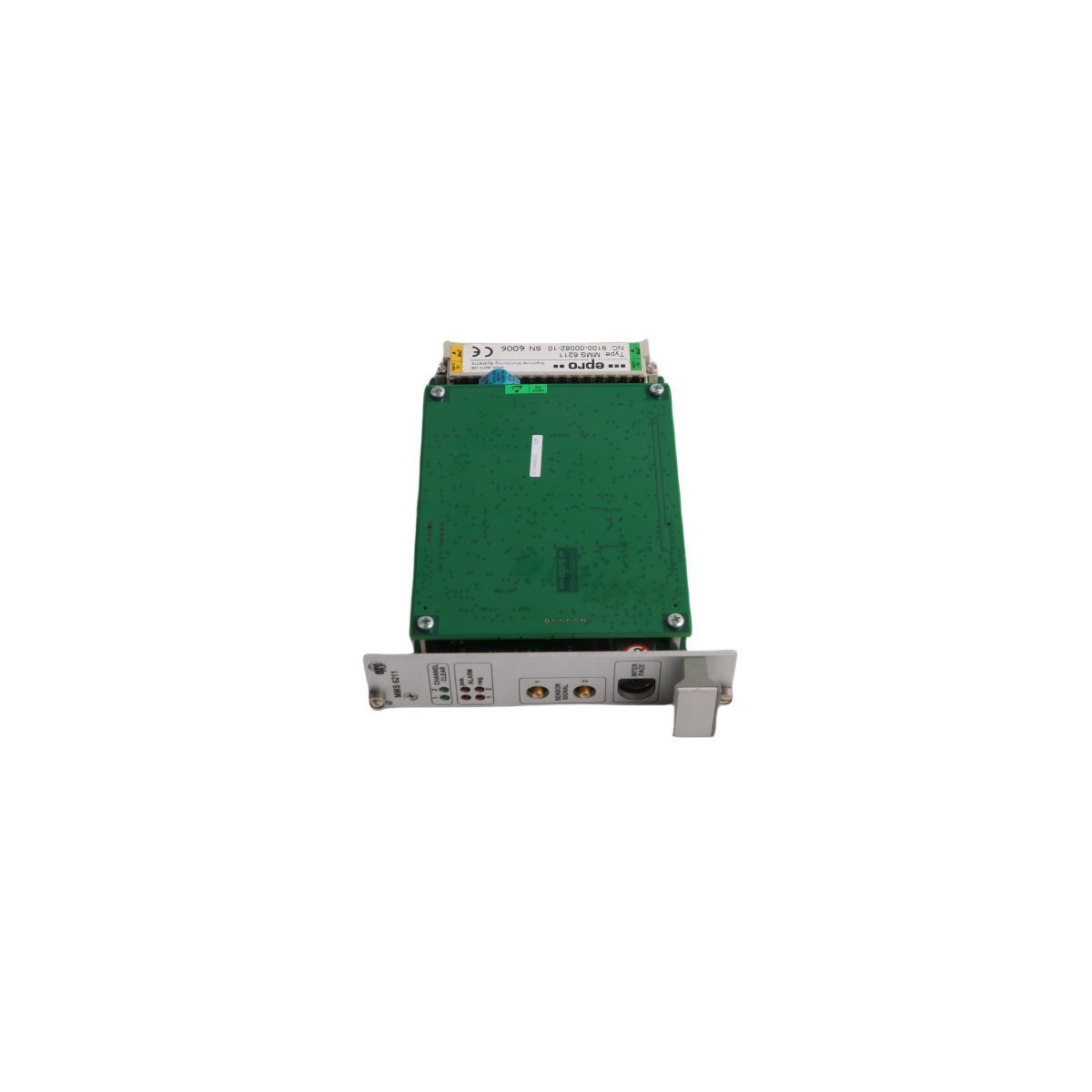

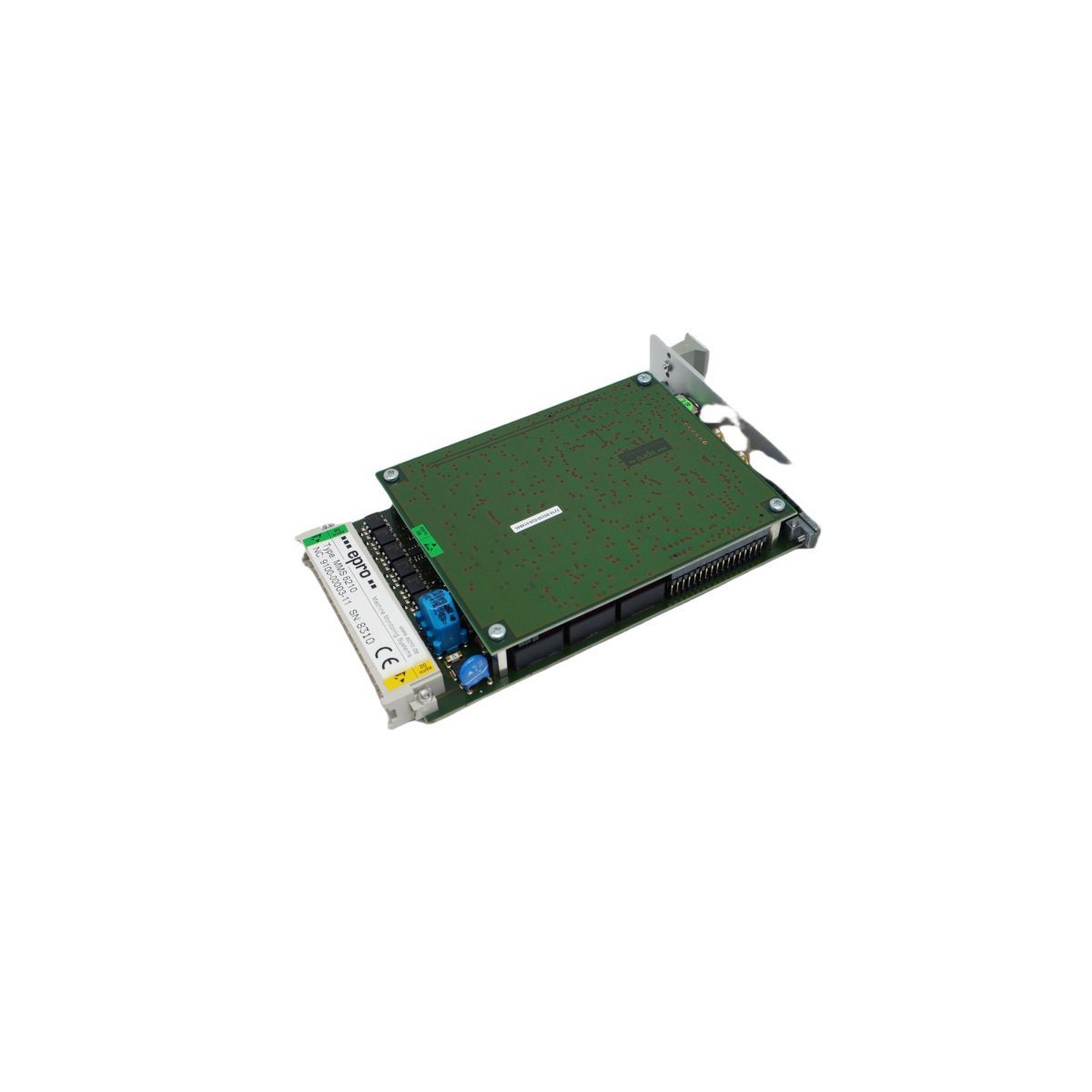

The Emerson MMS6211 is a high-performance, dual-channel bearing vibration monitoring card belonging to the EPRO MMS 6000 Machine Monitoring System series. This module is engineered to provide continuous, high-precision surveillance of absolute bearing vibration in rotating machinery such as turbines, pumps, fans, and compressors. By capturing and processing signals from electrodynamic velocity sensors or accelerometers, the MMS6211 identifies mechanical instabilities, including unbalance, misalignment, and rolling-element bearing defects, at their earliest stages.

The module operates by measuring the vibration of the machine housing or bearing pedestal. It converts raw transducer inputs into standardized signals, providing operators with real-time data to support condition-based maintenance strategies. Its dual-channel architecture allows for the simultaneous monitoring of two separate bearing points or the combined analysis of a single bearing in two planes (e.g., horizontal and vertical).

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Number: MMS6211

• Module Type: Dual-Channel Vibration Monitor

• Input Compatibility: Electrodynamic velocity sensors (PR9266/PR9268 series) or Accelerometers

• Measurement Range: Configurable for vibration velocity (mm/s) or acceleration (m/s²)

• Frequency Range: Typically 10 Hz to 1,000 Hz (Standard) or 5 Hz to 2,000 Hz (Extended)

• Outputs: Two 0/4...20 mA analog outputs; RS232/485 for configuration and diagnostics

• Alarm Logic: Two independent alert thresholds (Alert and Danger) per channel

• Power Supply: +24V DC nominal

• Weight: 0.28 kg

• Dimensions: 3.1 x 19.0 x 12.8 cm

• HS Code: 8537101190

Key Technical Characteristics

• Dual-Channel Processing: Features two independent signal processing chains, allowing for redundant monitoring or the observation of multiple bearing positions with a single module.

• Dynamic Signal Analysis: Includes advanced peak-hold functions and RMS (Root Mean Square) calculation to accurately represent the energy levels of machine vibrations.

• Configurable Protection: Users can define specific alarm limits and delay times to trigger machine trips or alerts, preventing catastrophic mechanical failure through automated protection logic.

• Signal Rectification: Built-in integrators allow the module to convert acceleration signals into velocity values, facilitating compliance with ISO 10816 vibration standards.

• Industrial Durability: Designed for 19-inch rack mounting, the module is built to withstand high temperatures, electromagnetic interference (EMI), and the constant physical vibrations inherent in power plants and refineries.

Application and Integration

The MMS6211 is a cornerstone of the MMS 6000 ecosystem, which is widely utilized in the oil and gas, power generation, and heavy manufacturing sectors. It integrates seamlessly with Distributed Control Systems (DCS) and plant asset management software, ensuring that machinery health data is centralized and actionable. The module supports hot-swapping within the MMS rack, allowing for maintenance and replacement without requiring a full system shutdown.
