Product Overview

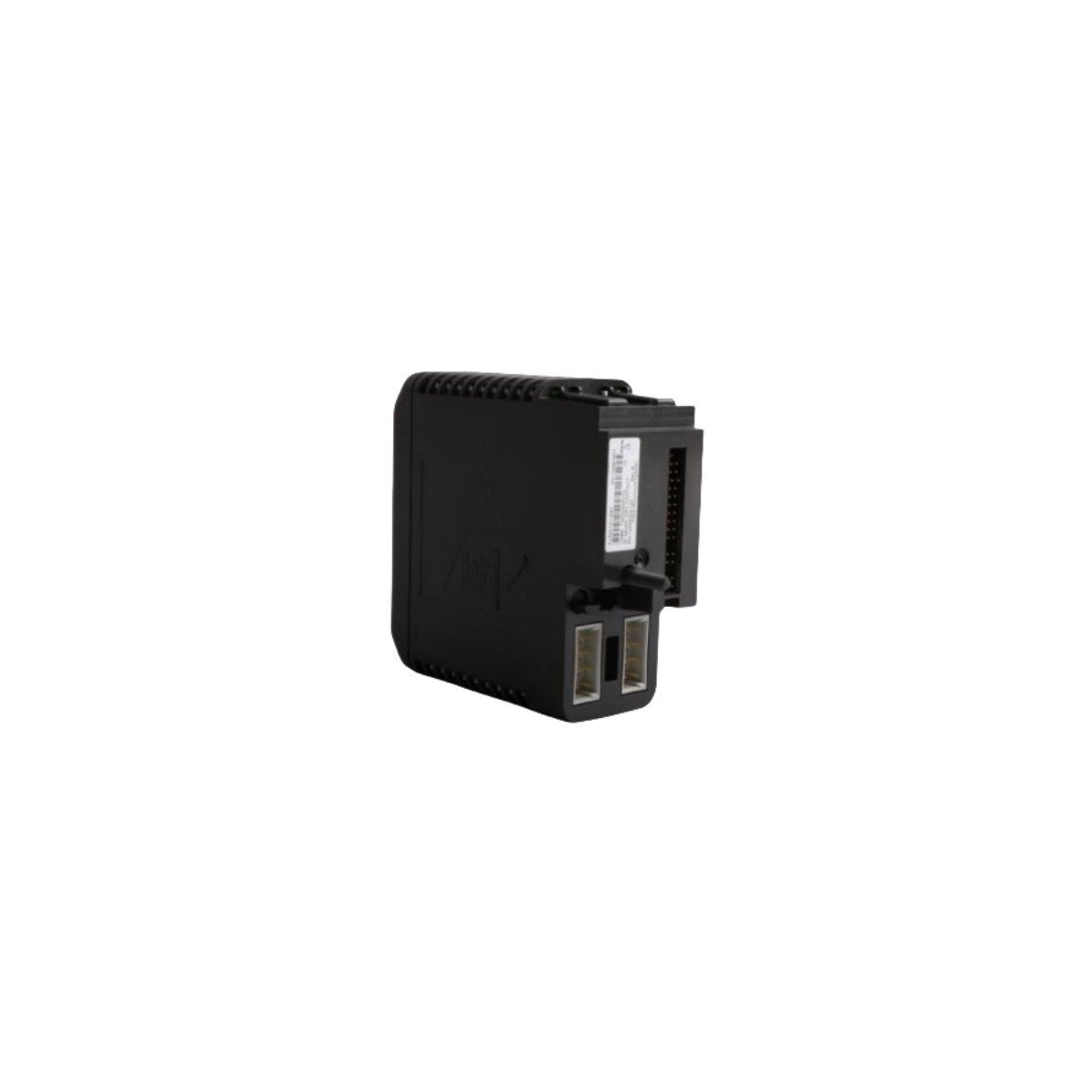

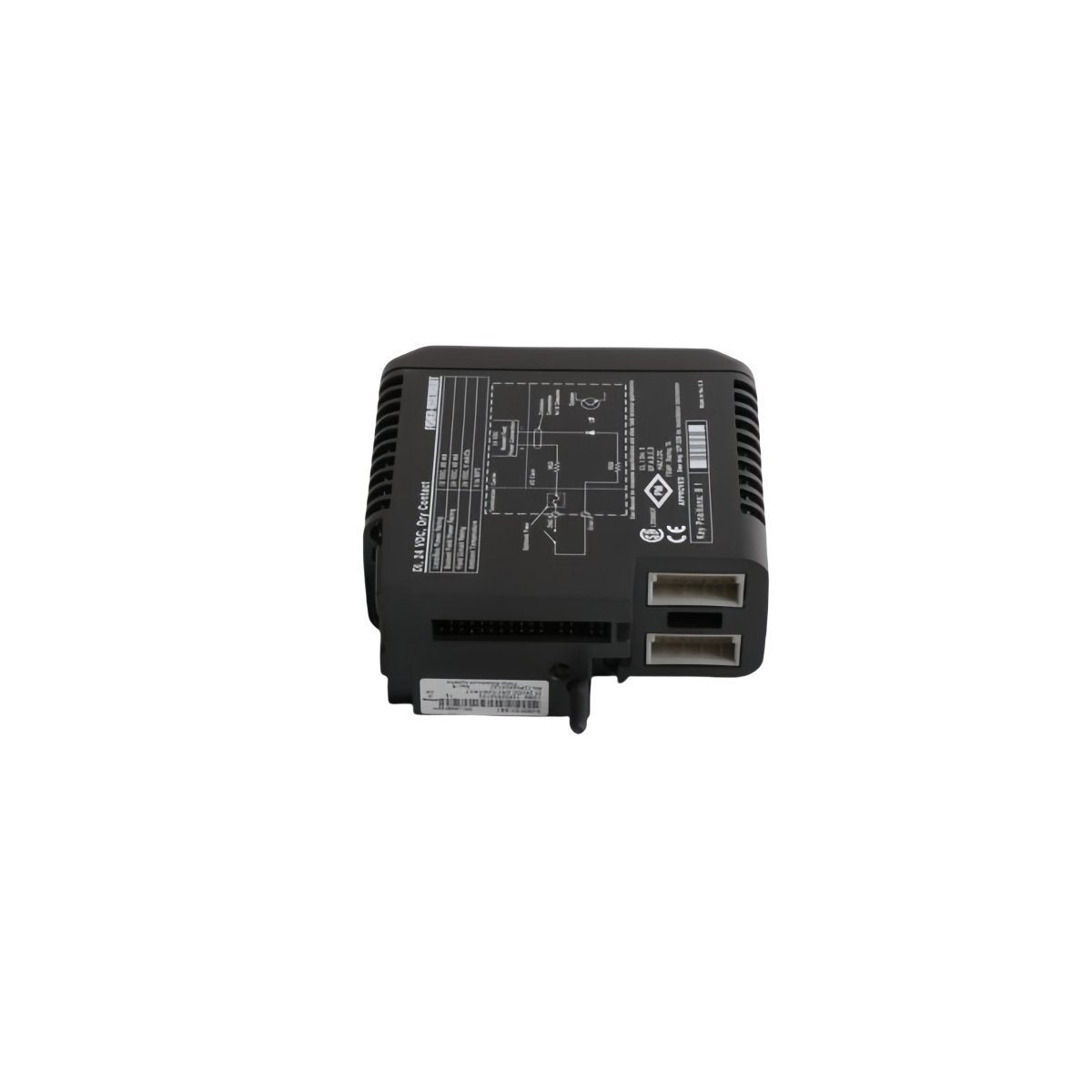

The Emerson KJ3001X1-BC1 (referenced by part numbers 12P0551X132 and VE4001S3T1B1) is a high-reliability Discrete Input Module engineered specifically for the DeltaV SIS™ process safety system. This module serves as a critical interface between field-level binary devices and the Distributed Control System (DCS). It is designed to monitor and process on/off signals from various safety and process devices, including limit switches, pressure switches, and pushbuttons, ensuring that real-time status data is accurately communicated to the safety logic solver.

The KJ3001X1-BC1 is built to satisfy the stringent requirements of Safety Instrumented Systems (SIS), providing hardware redundancy and advanced diagnostics that detect internal circuitry faults or field-side wiring issues. Its integration into the DeltaV environment allows for seamless configuration and provides protective buffering against electrical surges and noise common in industrial environments.

Technical Characteristics and Performance

This module is constructed to maintain high availability and signal integrity in demanding process safety applications.

• Binary Signal Processing: Efficiently converts field voltage states into digital status bits for process monitoring and safety interlocking.

• Safety System Integration: Optimized for DeltaV SIS, supporting SIL (Safety Integrity Level) rated loops for emergency shutdown (ESD) and fire and gas applications.

• Electrical Isolation: Features robust galvanic isolation to prevent field-side transients from damaging sensitive backplane electronics.

• System Scalability: Designed for "plug-and-play" installation within DeltaV carriers, facilitating easy system expansions or hardware hot-swapping during maintenance.

• Industrial Durability: Engineered to function in harsh operational climates, resisting the effects of vibration, humidity, and wide temperature fluctuations.

• Diagnostic Reporting: Provides comprehensive status LEDs and software alerts for channel-level faults, ensuring rapid troubleshooting and reduced Mean Time to Repair (MTTR).

Technical Specifications

• Manufacturer: Emerson (Fisher-Rosemount)

• Model Number: KJ3001X1-BC1

• Part Numbers: 12P0551X132 / VE4001S3T1B1

• Module Type: Discrete Input (DI)

• System Compatibility: DeltaV SIS Process Safety System

• Input Channels: Multiple binary input channels for redundant or single-loop sensing

• Operating Temperature: Designed for standard industrial cabinet environments

• Weight: 0.2 kg

• Dimensions: 1.3 cm x 10.2 cm x 10.2 cm

• Origin: USA

Industrial Applications

The Emerson KJ3001X1-BC1 is a standard component for safeguarding high-risk processes in the following sectors:

• Oil and Gas: Monitoring emergency shutdown (ESD) switches and flare ignition status.

• Chemical Processing: Tracking valve positions and pressure switch states in safety-critical reactors.

• Power Generation: High-speed status monitoring for circuit breakers and fuel delivery systems.

• Pharmaceuticals: Ensuring clean-room environmental switches are within safety parameters.
