Product Overview

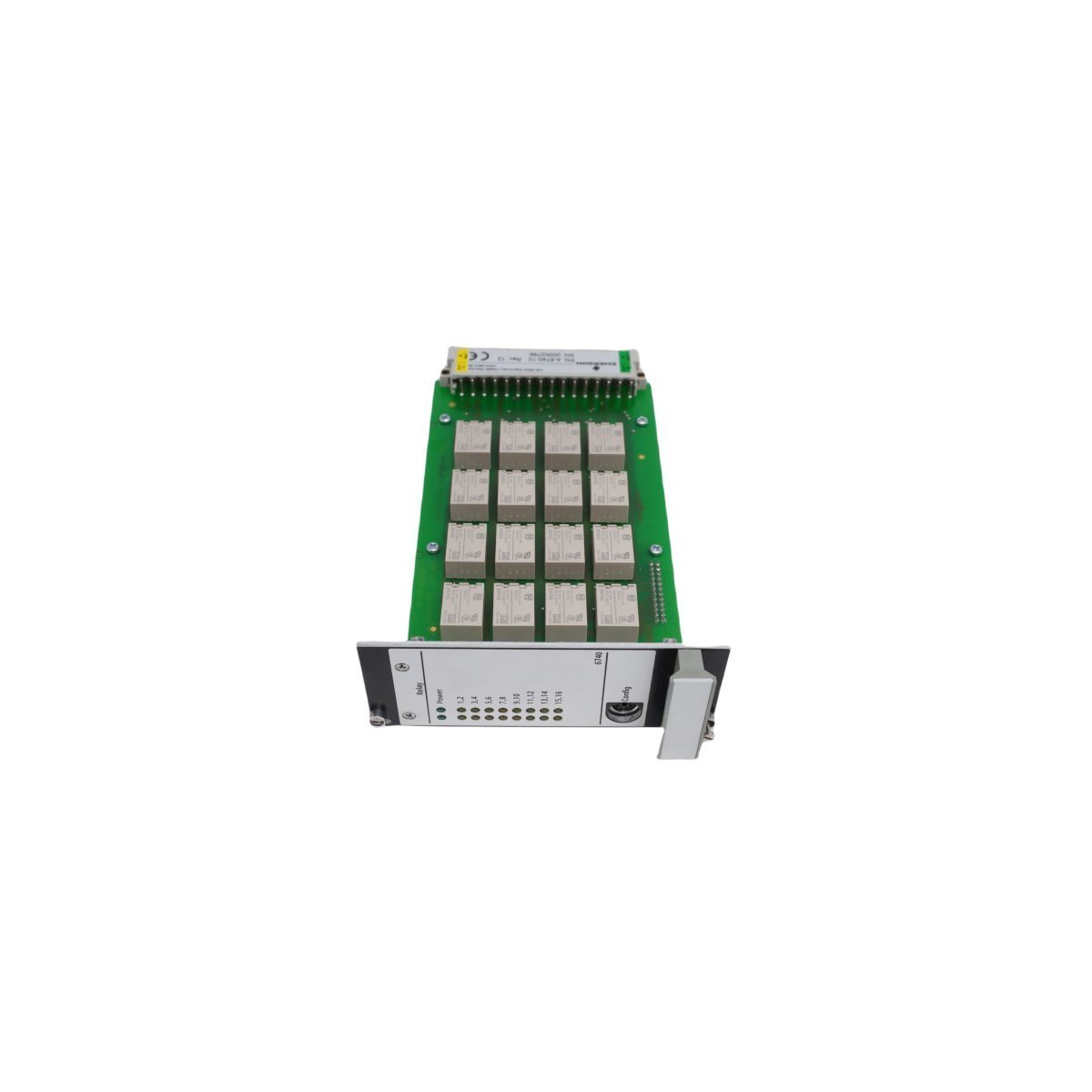

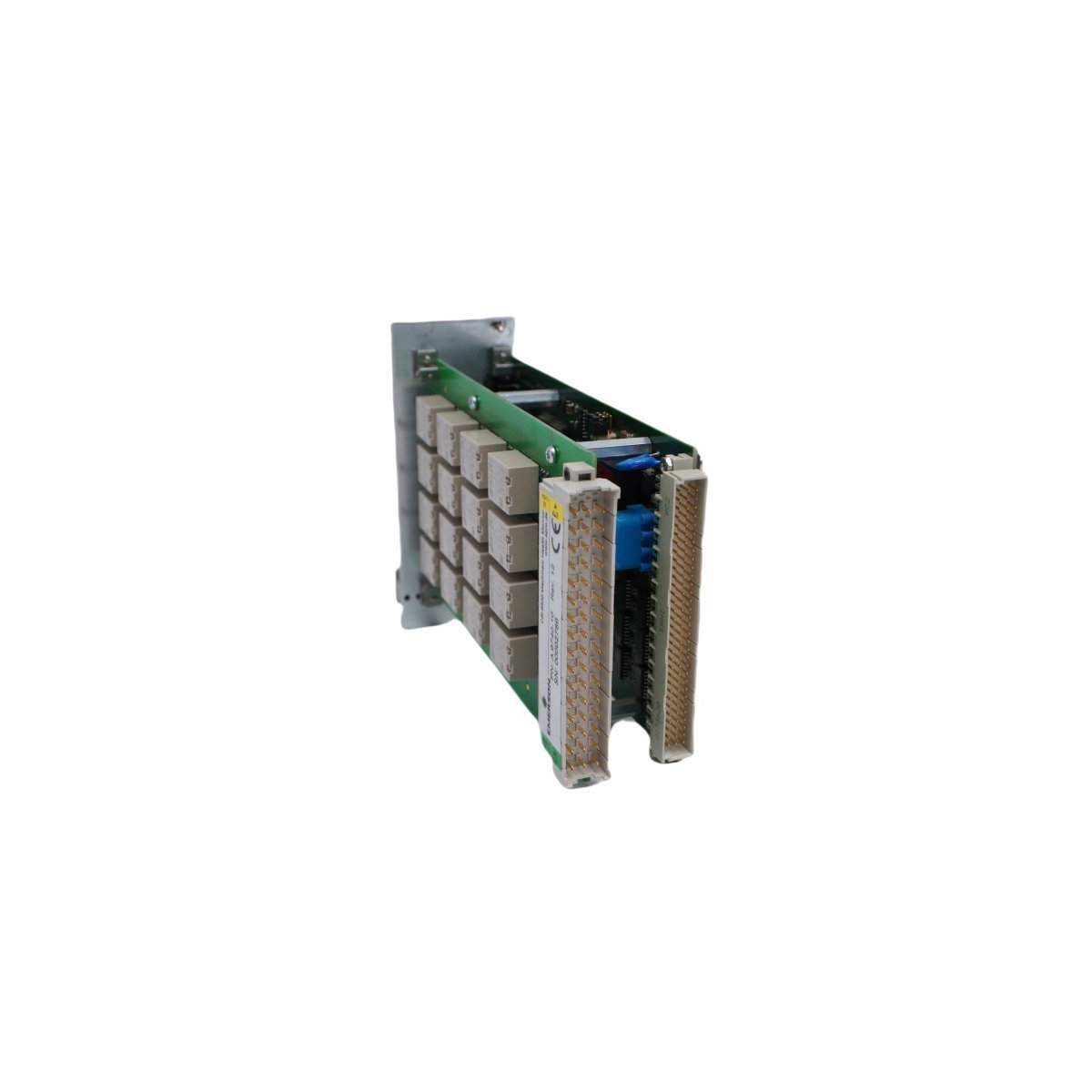

The Emerson A6740-10 is a high-density 16-channel Output Relay Module designed as a critical safety interface for the AMS 6500 Machinery Health Monitor. This module serves as the executive arm of a machinery protection system, converting digital alarm logic into physical relay contact closures. It is specifically engineered to automate safety responses—such as activating local annunciators, signaling a Distributed Control System (DCS), or initiating an emergency machine trip—when vibration, position, or temperature levels exceed pre-defined safety thresholds.

As a vital component in mission-critical environments like power plants and refineries, the A6740-10 ensures that detection leads to immediate action. Its 16 independent channels allow for complex voting logic and tiered alarm strategies, providing a fail-safe layer of protection for high-value rotating assets including turbines, large motors, and compressors.

Technical Specifications

• Manufacturer: Emerson

• Model Number: A6740-10

• Product Series: AMS 6500 (formerly CSI 6500)

• Module Type: Binary Output / Relay Module

• Channel Count: 16 Independent Relay Channels

• Relay Type: Electromechanical contacts (Dry contacts)

• Configuration: Software-selectable logic (Normally Energized/De-energized)

• System Integration: Plugs into AMS 6500 rack; interfaces with AMS Machinery Manager

• Weight: 0.24 kg

• Dimensions: 3.1 cm x 19.0 cm x 12.8 cm

• HS Code: 8537101190

• Country of Origin: USA

Core Technical Characteristics

• Software-Driven Versatility: Every channel on the A6740-10 can be individually configured via AMS software. This allows engineers to assign specific relays to "Alert" or "Danger" statuses across various monitored points, ensuring a tailored response to different mechanical threats.

• High-Speed Actuation: Optimized for low-latency switching, the module ensures that safety signals are transmitted to shutdown circuits with minimal delay, which is essential for protecting high-speed machinery from catastrophic mechanical failure.

• Redundancy and Voting Logic: Supports the implementation of "AND/OR" logic and multi-channel voting (e.g., 2-out-of-3) to prevent nuisance trips while maintaining a high level of system integrity.

• Continuous Self-Diagnostics: The module monitors its own internal health and communication status with the rack backplane, providing real-time feedback to the operator if the safety interface is compromised.

• Industrial Hardening: Designed for installation in electrically noisy environments, the A6740-10 features robust electromagnetic compatibility (EMC) and vibration resistance to ensure reliable operation near heavy industrial equipment.

Applications and Integration

The A6740-10 is an essential tool for facilities transitioning to proactive asset protection. By integrating directly into the AMS 6500 rack, it bridges the gap between sophisticated vibration analysis and physical machine control. It is commonly used to:

• Trigger local sirens or visual strobes upon detection of mechanical instability.

• Provide hardwired interlocks to motor control centers (MCC) for automatic machine trips.

• Send discrete status signals to a plant-wide PLC or DCS for centralized safety monitoring.
