Product Overview

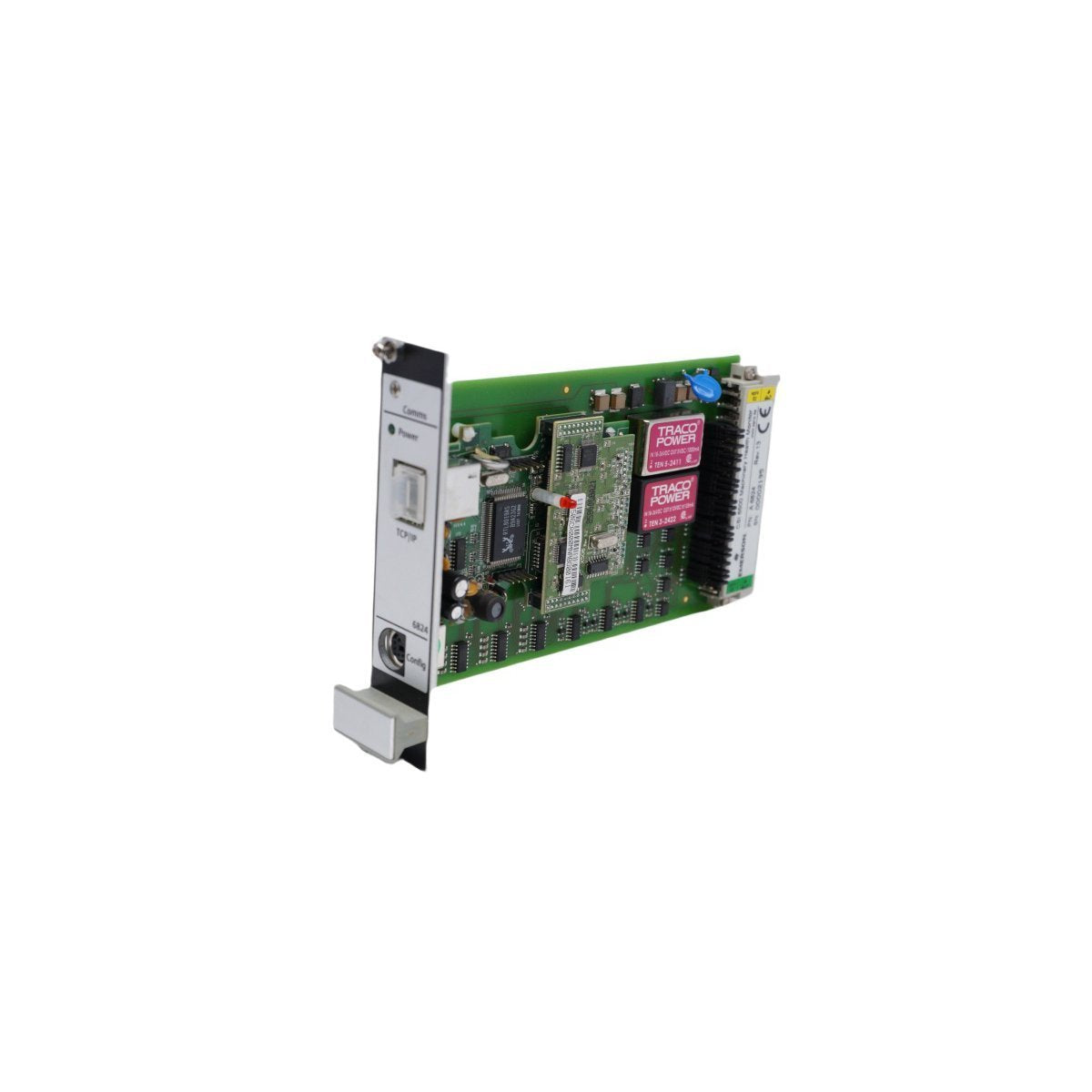

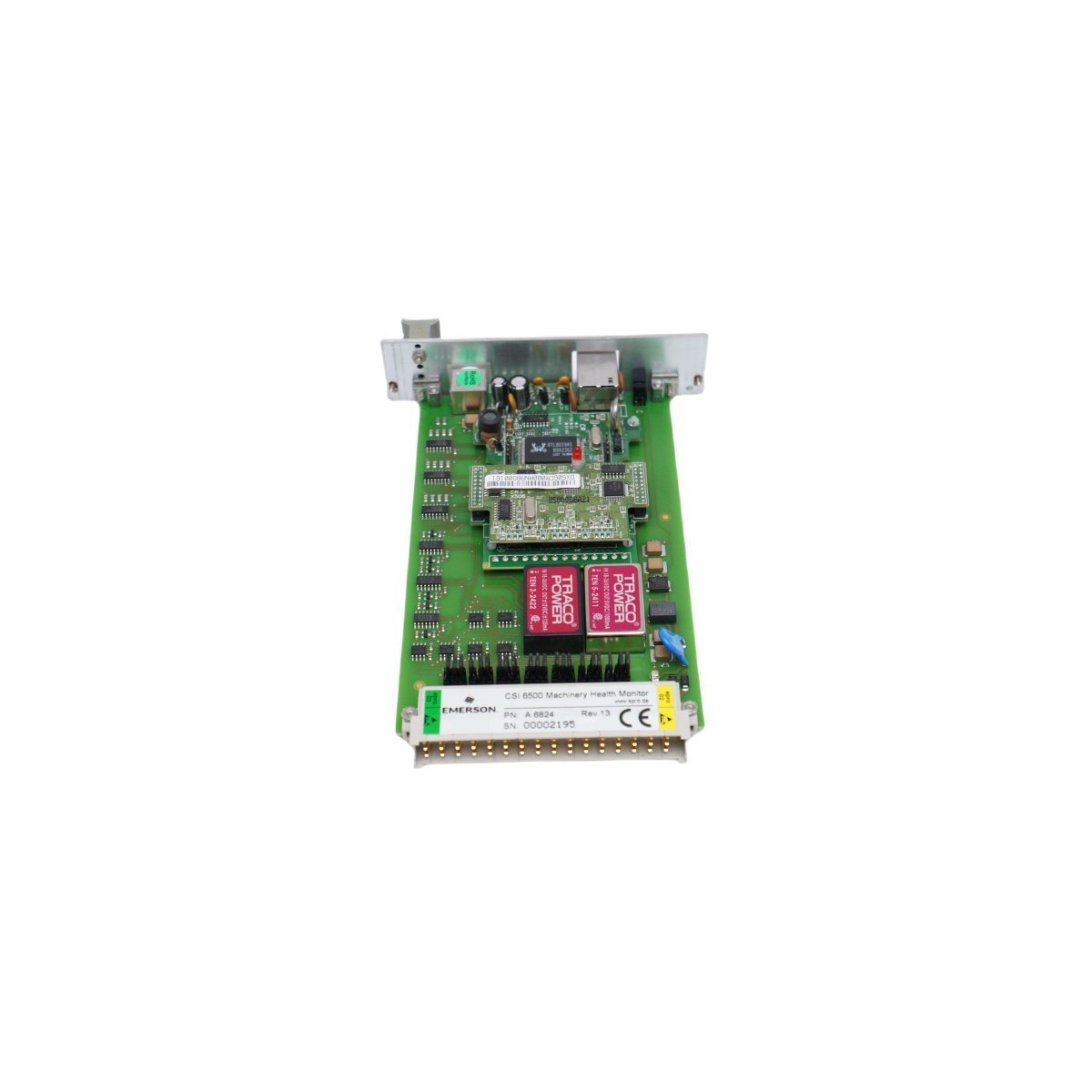

The Emerson A6824 is a specialized communication gateway designed for the CSI 6500 Machinery Health Monitor. It functions as a Modbus and Rack Interface Module, providing the critical link between localized vibration monitoring hardware and plant-wide control architectures. By facilitating the export of real-time dynamic machinery data, the A6824 allows operators to integrate sophisticated vibration, position, and temperature metrics directly into a Distributed Control System (DCS), PLC, or SCADA environment.

This module is essential for facilities utilizing predictive maintenance strategies. It translates the complex internal diagnostics of the CSI 6500 rack into standardized Modbus RTU or TCP/IP protocols, ensuring that critical machinery health information is available for trend analysis, alarming, and operational decision-making across the enterprise.

Technical Specifications and Capabilities

The A6824 is engineered to provide high-speed data throughput and stable protocol conversion in demanding industrial settings.

• Module Type: Modbus and Rack Interface (Communication Gateway)

• Product Series: CSI 6500 Machinery Health Monitor

• Model Number: A6824

• Communication Protocols: Modbus RTU (Serial) and Modbus TCP/IP (Ethernet)

• Data Mapping: Supports vibration levels, axial position, speed, and status registers

• Configuration: Compatible with AMS Suite and CSI configuration software

• Interface: Standard RJ45 for Ethernet and D-sub/Terminal connections for serial

• Weight: 0.24 kg

• Dimensions: 19.0 cm x 12.8 cm x 3.1 cm

• Operating Environment: Industrial-grade temperature and EMI/RFI resistance

Key Functional Features

• Seamless Protocol Bridging: Acts as a transparent translator between the proprietary CSI backplane and open-standard Modbus protocols, allowing for universal connectivity with third-party automation platforms.

• Rack Management: Beyond data transmission, the A6824 serves as an interface for managing rack-level parameters, ensuring that multiple monitoring cards within the CSI 6500 frame are synchronized.

• Predictive Maintenance Support: By channelling high-resolution data to asset management tools, it enables early detection of mechanical anomalies in turbines, compressors, and large motor-pump sets.

• Enhanced Data Integrity: Features robust error-checking and high-speed processing to ensure that time-stamped machinery data is delivered without latency or signal degradation.

• Rugged Construction: Built to maintain continuous uptime in the harsh electrical and thermal environments typical of power plants, refineries, and manufacturing facilities.
