Product Overview

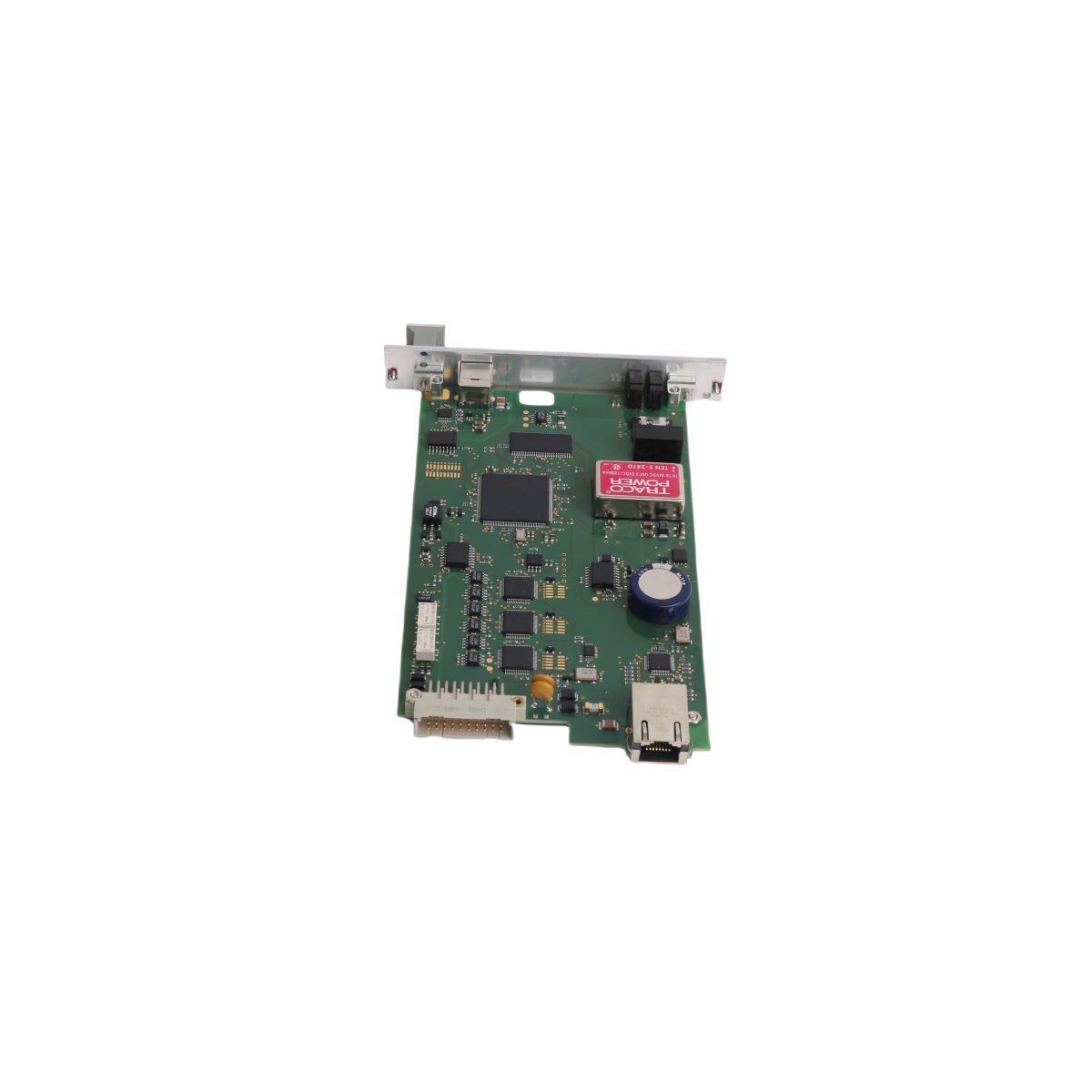

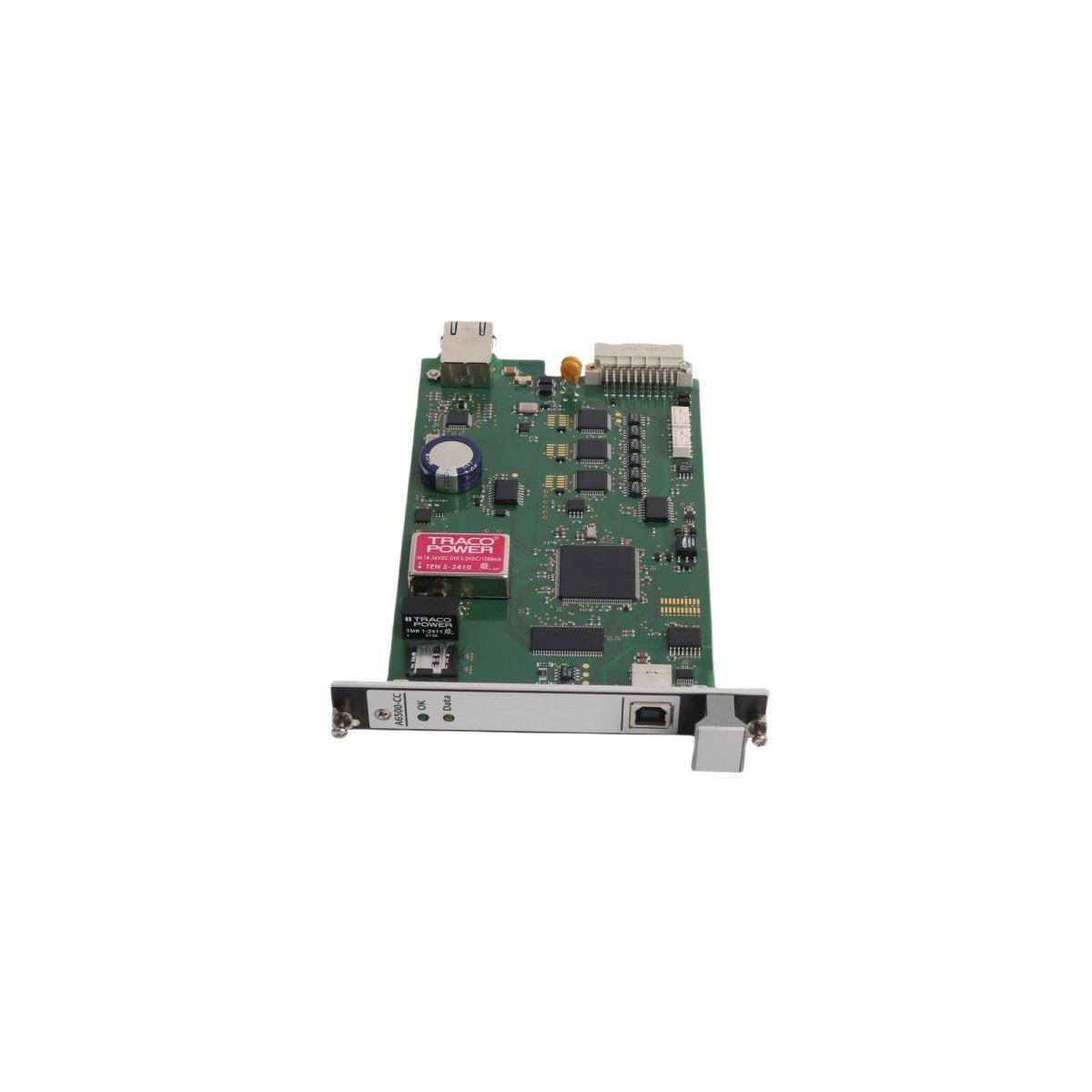

The Emerson A6500-CC is a high-performance System Communication Card specifically engineered for the AMS 6500 ATG machinery protection and prediction system. This module serves as the primary data gateway, bridging the gap between localized rack-based protection modules and plant-wide control architectures. By centralizing the flow of machinery health information, the A6500-CC enables real-time transmission of vibration and process data to external Distributed Control Systems (DCS), Host PCs, or remote monitoring centers. This connectivity is fundamental for implementing predictive maintenance strategies and ensuring the continuous safety of critical rotating assets.

Technical Characteristics

The A6500-CC module is distinguished by its protocol flexibility and industrial-grade communication reliability:

Advanced Protocol SupportThe card utilizes standard industrial communication protocols, including Modbus (TCP/RTU) and OPC, to facilitate seamless integration with third-party control systems and AMS software. This interoperability ensures that data from the AMS 6500 ATG rack is consistently synchronized with the plant's primary monitoring infrastructure.

Redundant System Architecture To prevent data loss in mission-critical applications, the A6500-CC supports redundant communication paths. In the event of a network or cable failure, the module can automatically switch to a secondary link, maintaining the flow of safety-critical machinery data without human intervention.

Ruggedized Network Resilience Built to withstand the harsh environments of power plants and manufacturing facilities, the card is designed to operate reliably in high-temperature conditions and areas with significant electromagnetic interference (EMI). This ensures signal purity and network stability even when installed near high-voltage motor starters.

Software-Driven Configuration Integration with Emerson’s configuration software allows engineers to define communication parameters, map data registers, and perform link-state diagnostics remotely. This digital interface streamlines the commissioning process and allows for rapid troubleshooting without the need for physical rack access.

Technical Specifications

• Brand: Emerson (EPRO Series)

• Model Number: A6500-CC

• Product Type: System Communication Card

• System Family: AMS 6500 / AMS 6500 ATG

• Network Interface: Ethernet (RJ45) / Serial Options

• Protocol Compatibility: Modbus TCP, Modbus RTU, OPC

• Mounting: Rack-integrated (AMS 6500 Chassis)

• Weight: 0.42 kg

• Dimensions: 5 cm x 19 cm x 12.7 cm

• Origin: USA

Application Areas

The A6500-CC is a vital component for high-fidelity data transmission in:

• Utilities and Power Gen: Transmitting turbine health data to centralized control rooms for grid management.

• Oil and Gas: Linking remote pumping stations to regional supervisory systems via Ethernet.

• Manufacturing: Integrating machinery vibration data into plant-wide SCADA systems for predictive maintenance.

• Heavy Industry: Managing communication for large-scale induction motors and high-speed compressors.
