Product Overview

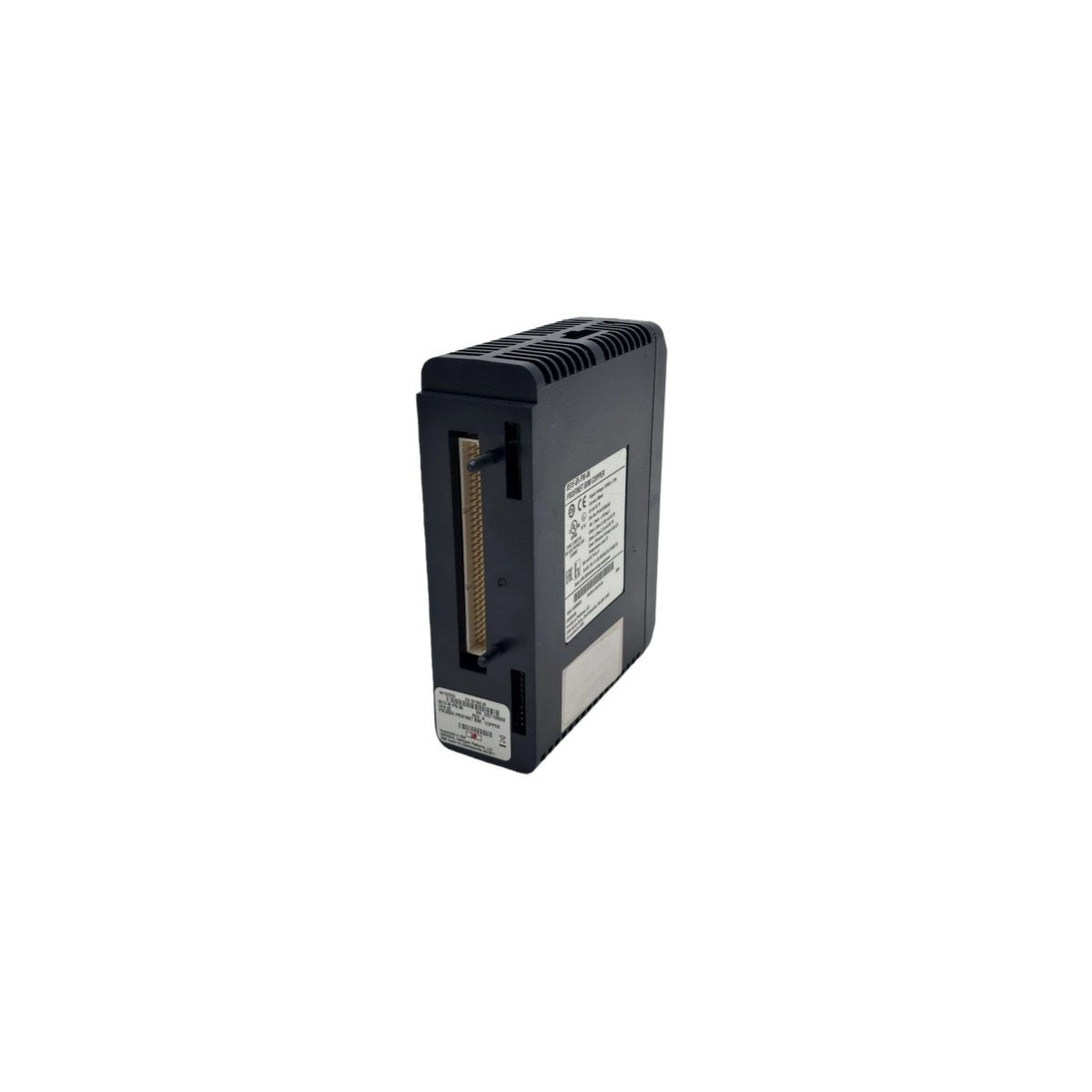

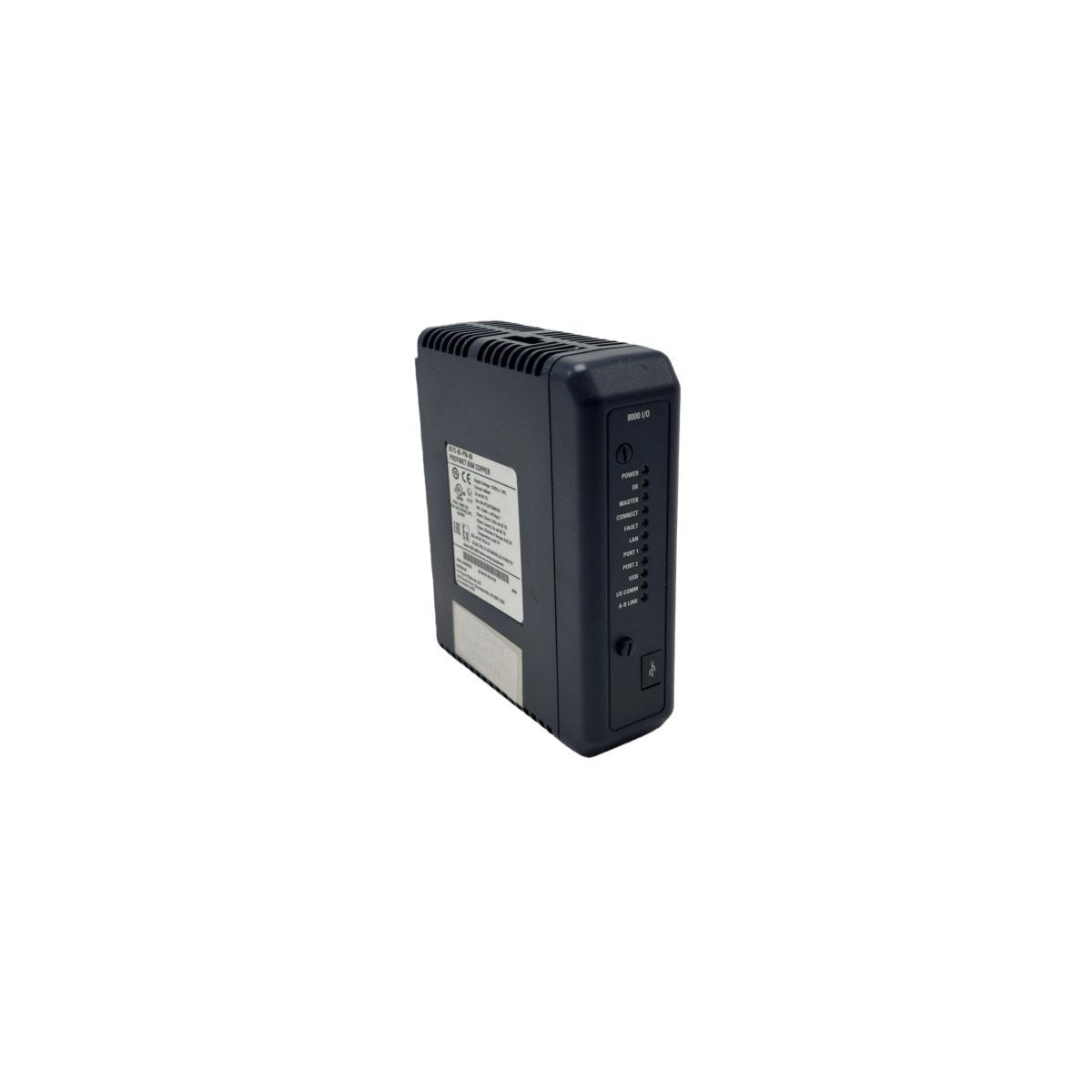

The Emerson 8515-BI-PN-07 is a high-performance PROFINET scanner module engineered for the PAC8000 remote I/O platform. This Bus Interface Module (BIM) serves as a critical communication bridge, linking distributed field sensors and actuators to a centralized control system via the PROFINET industrial Ethernet standard. By providing a ruggedized network interface, the 8515-BI-PN-07 facilitates high-speed data exchange and real-time diagnostics for complex automation architectures.

Designed specifically for the process industry, this module is built to operate in extreme environments where standard networking hardware often fails. It is optimized for use within the Emerson PACSystems ecosystem, ensuring full compatibility with RX3i and RSTi-EP controllers while maintaining the flexibility to integrate with third-party PROFINET masters.

Technical Characteristics

• Protocol Support: PROFINET RT (Real-Time), Modbus/TCP

• Physical Interface: Dual 100Mbps Copper ports (RJ45)

• Network Redundancy: Supports Media Redundancy Protocol (MRP) and Dual LAN configurations

• Intelligent Device Integration: Integrated HART pass-through gateway functionality

• Hazardous Area Certification: Suitable for ATEX Zone 2 and Class I, Division 2 environments

• Mounting Format: Standard DIN rail installation

• Environmental Tolerance: Hardened against corrosive gases (G3 coating), high humidity, and mechanical vibration

• Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)

• Dimentions:12.1x5.2x16.6cm


• Weight: 0.34 kg

Industrial Reliability and Application

The 8515-BI-PN-07 is distinguished by its "HART-over-PROFINET" capability, allowing engineers to remotely configure and monitor intelligent field instruments through the I/O network. This feature significantly reduces the need for physical field visits and speeds up commissioning and troubleshooting processes.

Given its robust design, the module is an ideal solution for offshore platforms, chemical processing plants, and wastewater treatment facilities. Its support for live maintenance and "hot-swapping" capabilities ensures that critical processes remain online even during module replacement or system upgrades. The dual-port design not only enables ring topologies for increased uptime but also simplifies daisy-chain wiring in distributed layouts.
