Product Overview

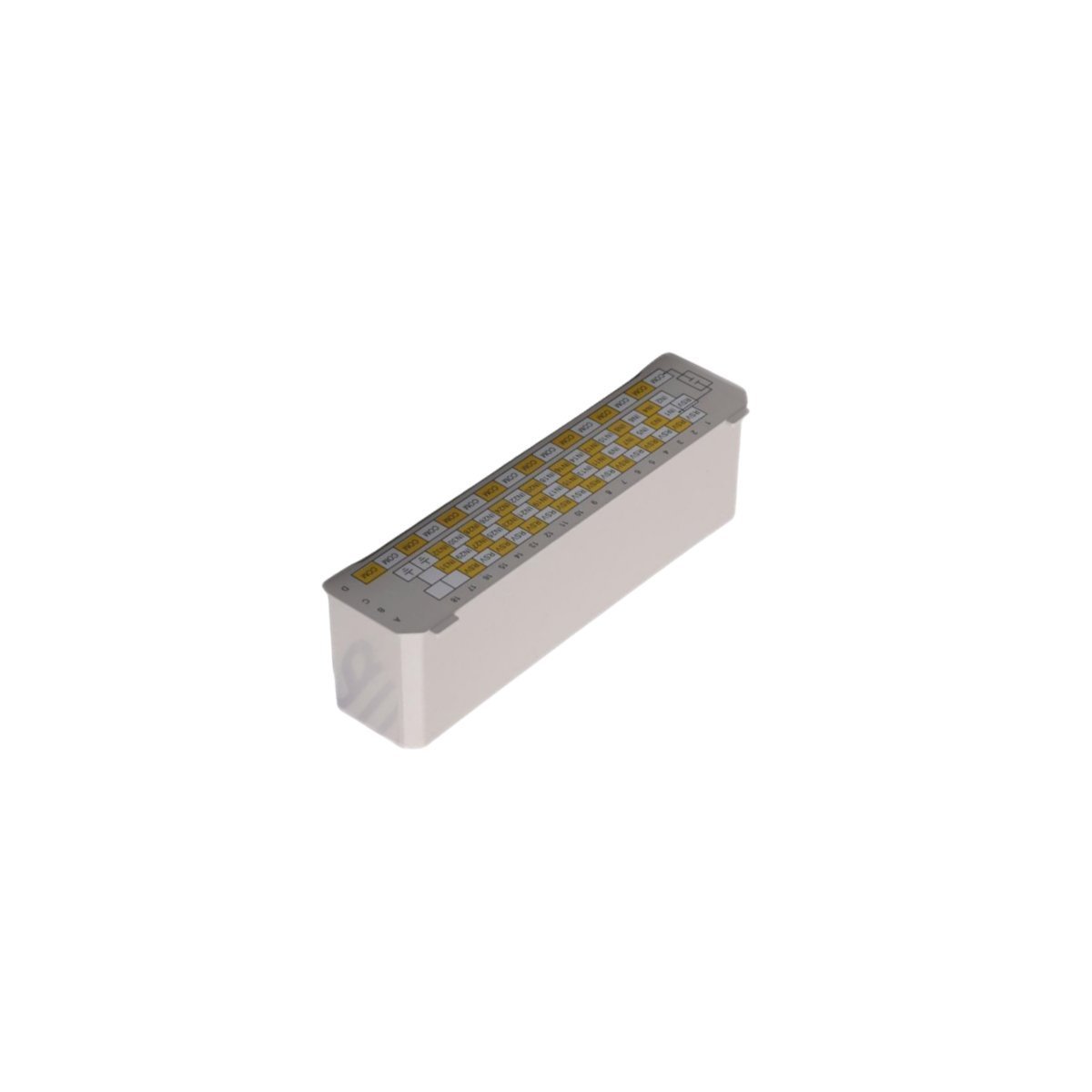

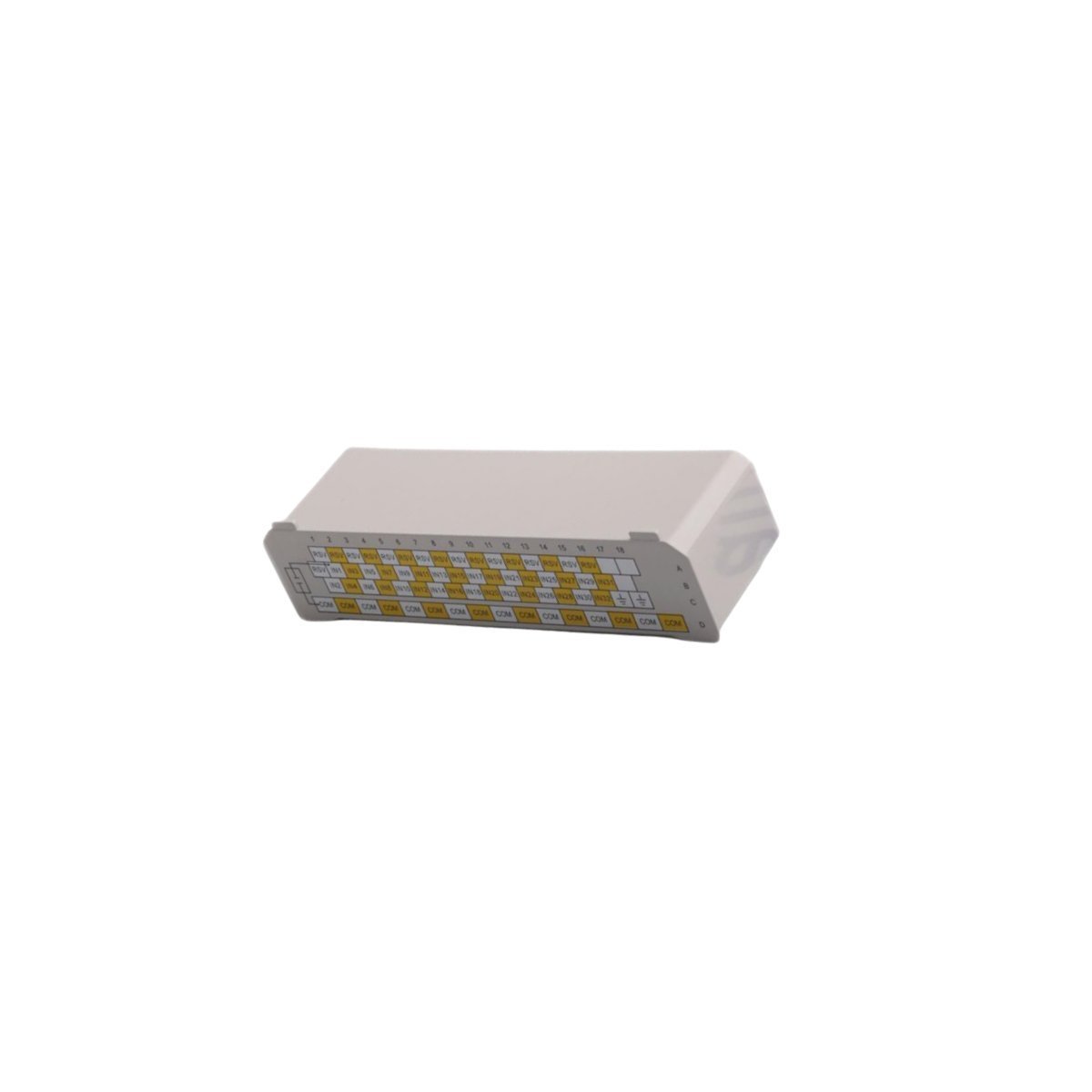

The 1X00884H01 is a high-integrity Compact Controller engineered specifically for the Emerson DeltaV SIS™ (Safety Instrumented System). Unlike standard process controllers, this unit is designed to execute safety logic to protect personnel, equipment, and the environment. It provides a localized, hardware-based solution for Safety Instrumented Functions (SIF), ensuring that critical logic solver capabilities are maintained even in the event of a broader system communication failure. The module features a ruggedized form factor suitable for field mounting and is a primary component for achieving high SIL (Safety Integrity Level) ratings within industrial plants.

Hardware Parameters

• Logic Solving: Dedicated safety logic execution independent of the basic process control system (BPCS).

• System Architecture: Integration-ready for DeltaV SIS and Ovation platforms.

• Diagnostics: Comprehensive internal self-testing for early detection of hardware and software faults.

• Physical Protection: Heavy-duty construction weighing 4.12kg designed for high-vibration and industrial thermal cycles.

• Dimensions: 37cm x 26cm x 40cm.

• Communication: Support for redundant Ethernet-based safety bus protocols.

• Safety Compliance: Developed for use in SIL 2 and SIL 3 safety applications.

Industrial Applications

The 1X00884H01 Compact Controller is essential for high-risk industrial processes requiring automated safety shutdowns. It is extensively used in Burner Management Systems (BMS) for boilers and furnaces to prevent catastrophic explosions through precise sequence control. In the chemical and hydrocarbon sectors, it manages Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. Its ability to process high-speed safety loops makes it the standard for overpressure protection and hazardous leak detection monitoring where sub-second response times are mandatory for operational safety.
