Product Overview

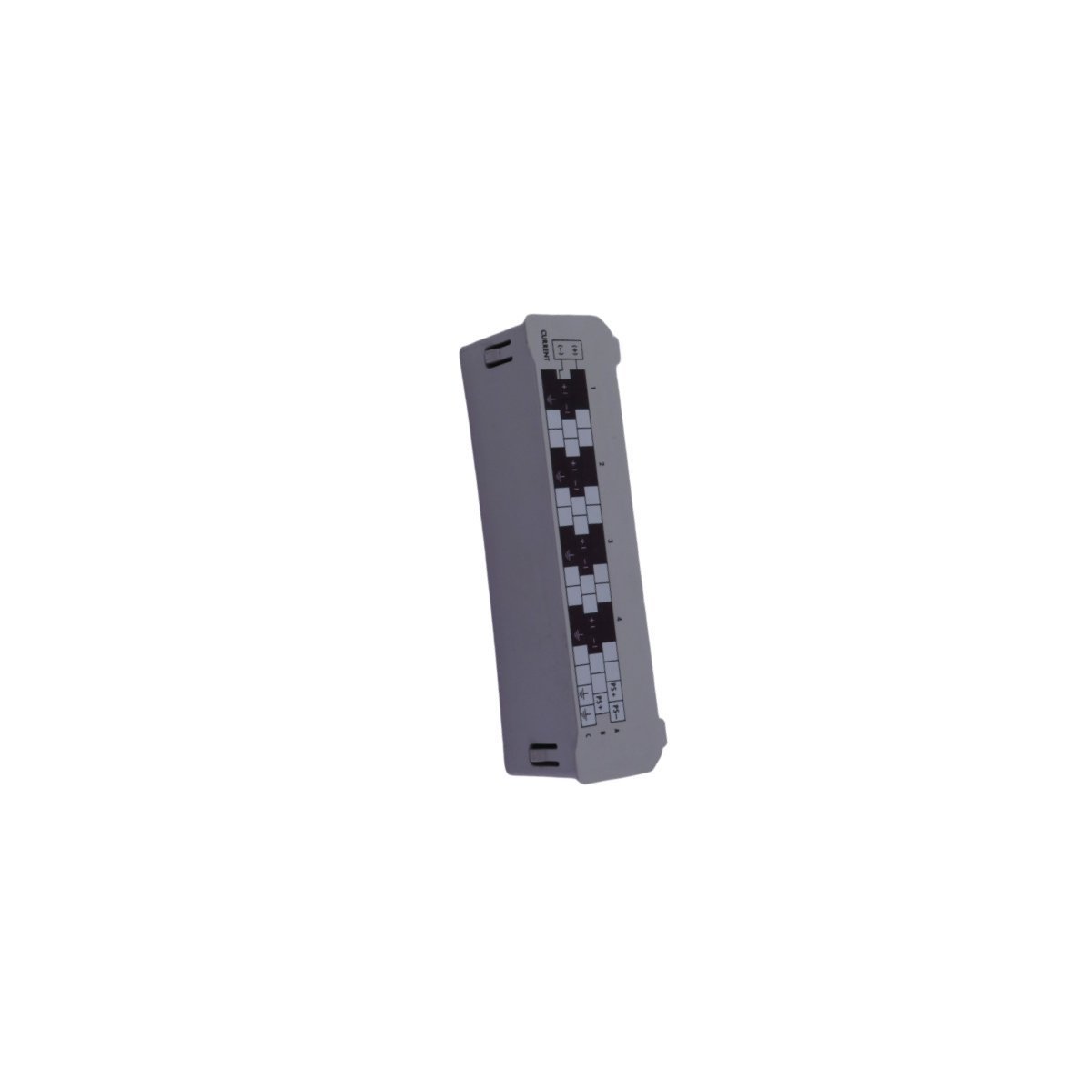

The Emerson 1X00188H01 is a heavy-duty I/O interface module engineered for the Ovation™ Distributed Control System (DCS). Originally part of the Westinghouse heritage within Emerson’s power and water solutions, this module serves as a critical bridge for data acquisition and signal processing. It is designed to facilitate high-speed communication between field instrumentation and the central control architecture, ensuring that complex industrial processes remain synchronized and stable.

Weighing 4.12kg and featuring a robust physical footprint, the 1X00188H01 is built for high-capacity rack installations. It is specifically optimized for power generation and utility environments where hardware must withstand constant operational stress while maintaining sub-millisecond precision. Although the series reached its official end-of-life status in late 2018, this module remains a vital component for lifecycle extensions and maintaining the reliability of established Ovation control networks.

Technical Characteristics and Design

• High-Integrity Data Acquisition: Engineered for ultra-accurate signal conversion, allowing the DCS to monitor critical process variables with minimal latency.

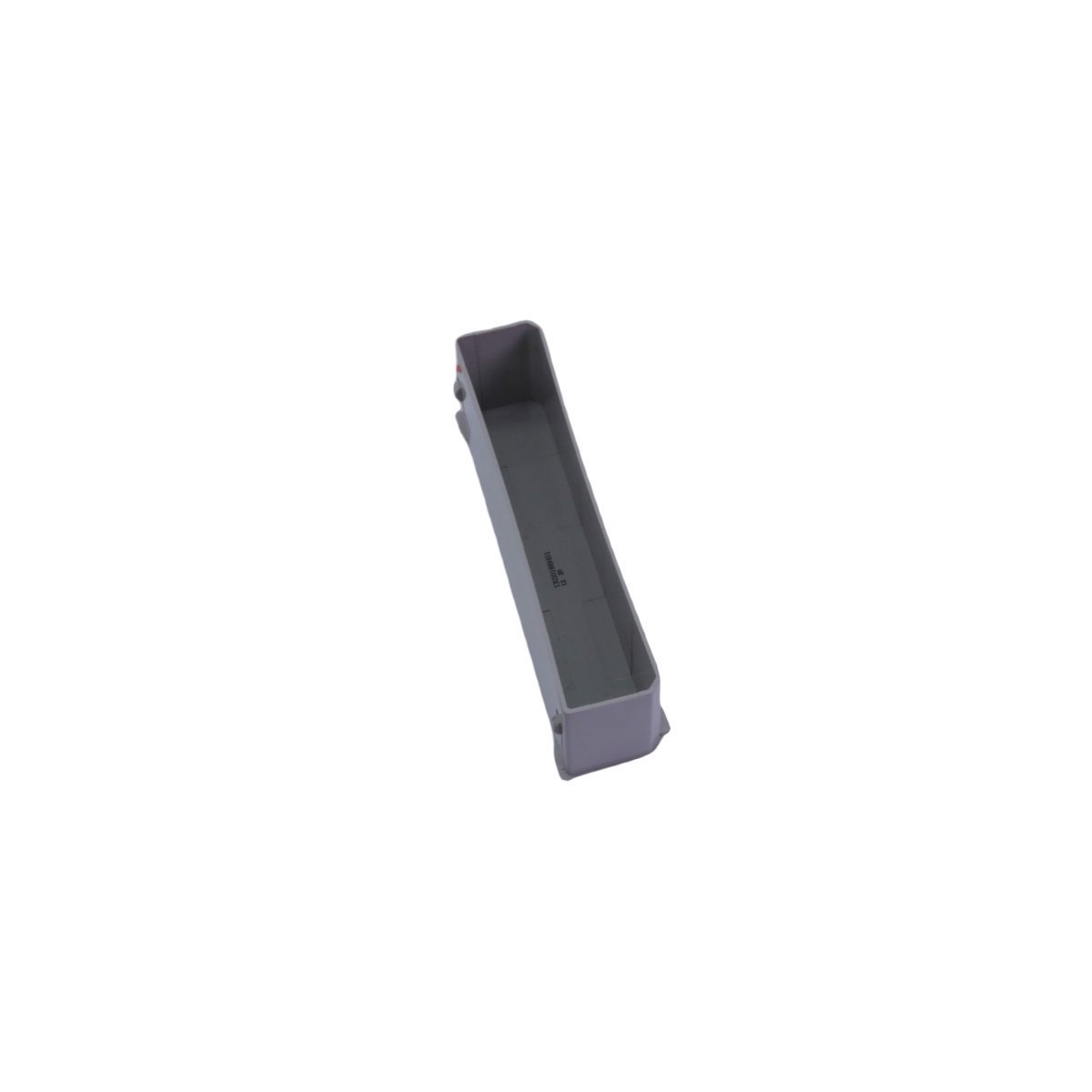

• Industrial Grade Construction: Features a "Cavity Insert" design specifically aimed at protecting internal electronics from the thermal and mechanical stresses found in power plant environments.

• System-Wide Compatibility: Designed for seamless integration with Ovation controller racks, supporting standard Ethernet and proprietary bus communication protocols.

• Proactive Diagnostics: Equipped with onboard diagnostic routines that verify hardware health, detecting internal faults or signal discrepancies before they lead to system trips.

• Scalable Architecture: Supports high-density I/O configurations, allowing for the management of extensive field instrument arrays within a single rack footprint.

• Safety and Isolation: Provides robust electrical isolation to protect the control backplane from field-side electrical surges and ground loops.

Technical Specifications

• Manufacturer: Emerson (formerly Westinghouse)

• Model Number: 1X00188H01

• Module Category: Ovation I/O Module / PLC Interface

• Weight: 0.12 kg

• Dimensions: 3.7 x 2.6 x 4.0 cm

• System Platform: Ovation DCS / DeltaV SIS (Compatibility varies by revision)

• HS Code: 8537101190

• Product Origin: USA

• Operational Status: Discontinued (Legacy Support Available)

Primary Industrial Applications

• Utility Power Generation: Coordination of turbine control, boiler feed water, and balance-of-plant systems.

• Water Treatment Facilities: High-reliability monitoring of pump stations and filtration logic.

• Large-Scale Steam Systems: Managing complex thermal loops and pressure regulation in industrial steam plants.

• Legacy System Migration: Essential spare part for facilities running mature Ovation software revisions.
