Product Overview

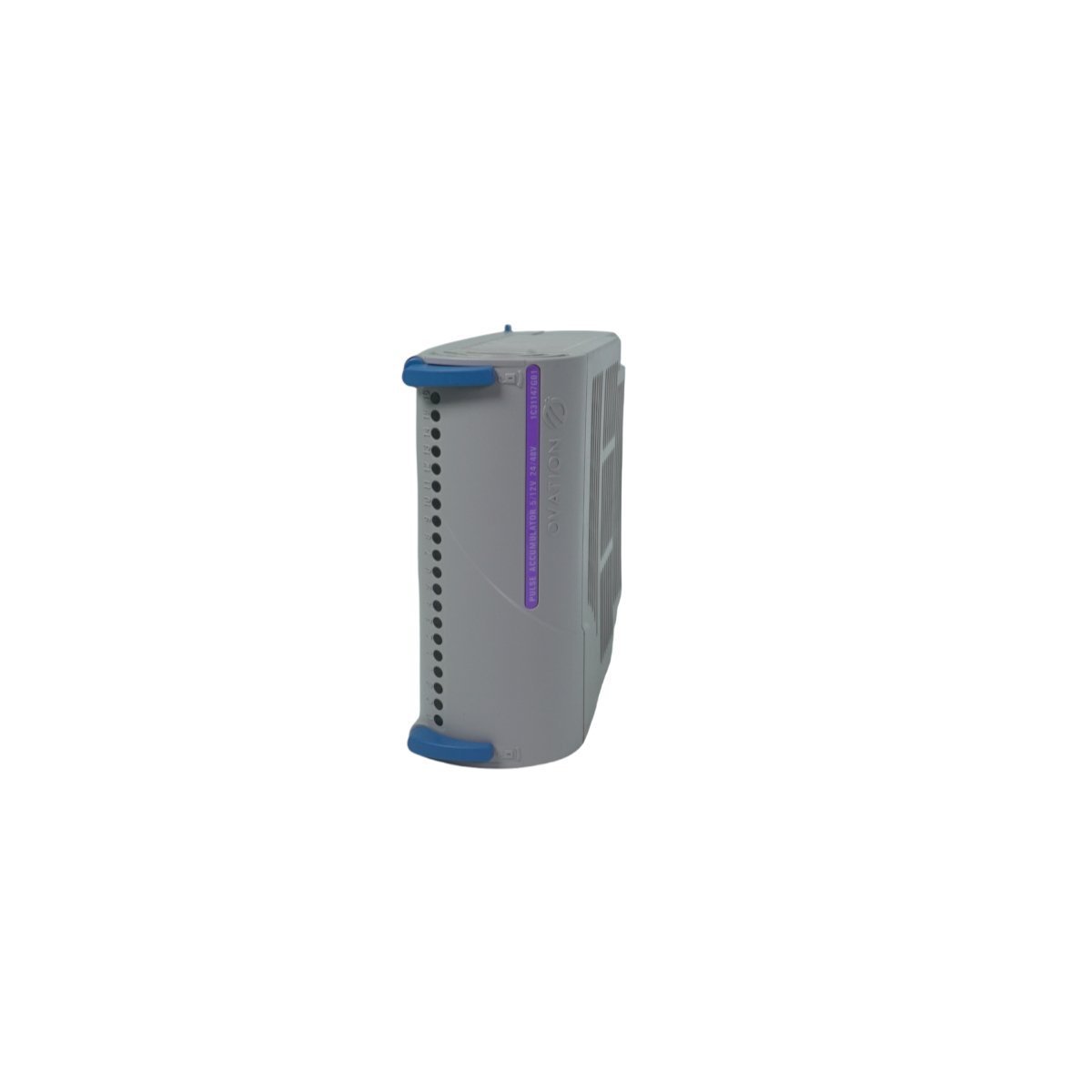

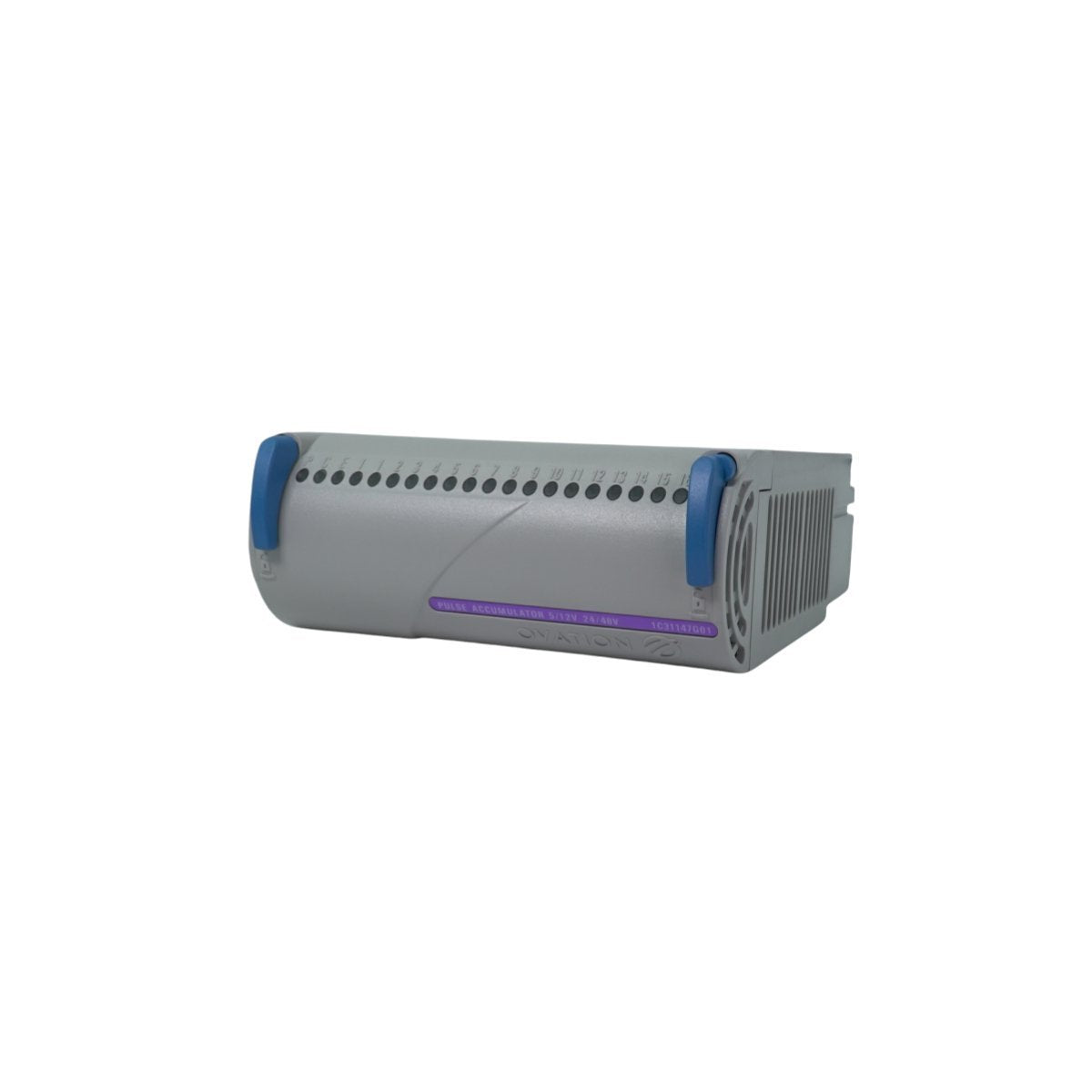

The Emerson 1C31147G01 is a high-integrity Transmission and Pulse Accumulator Module engineered for high-speed data acquisition and signal synchronization within the Ovation™ and DeltaV SIS™ ecosystems. This specialized hardware is designed to bridge the gap between high-frequency field inputs—such as pulse-generating sensors and speed encoders—and the central control logic. By providing deterministic signal processing, the module ensures that critical velocity and count data are transmitted with absolute fidelity, even in the most demanding industrial environments.

Designed for mission-critical applications, the 1C31147G01 facilitates seamless data flow across the control network. It is particularly valued for its ability to manage complex pulse streams and translate them into actionable process variables, ensuring that safety-instrumented systems (SIS) can execute protective functions with sub-millisecond precision.

Key Technical Characteristics and Hardware Parameters

The 1C31147G01 is built to meet the rigorous standards of both the Ovation Westinghouse legacy and modern DeltaV SIS process safety systems.

• Module Function: Pulse Accumulator and Data Transmission Interface

• Compatibility: Native support for Emerson Ovation and DeltaV SIS™ platforms

• Signal Processing: High-speed pulse detection and synchronization for frequency-based inputs

• Isolation: Enhanced galvanic isolation between field inputs and system logic to prevent surge propagation

• Reliability: Engineered for SIL (Safety Integrity Level) rated loops and critical process monitoring

• Installation: Compact vertical form factor designed for high-density rail mounting

• Ruggedization: Industrial-grade components capable of operating in high-vibration and extreme temperature zones

• Power Management: Optimized low-wattage consumption to maintain cabinet thermal stability

• Weight: 0.9 kg

• Dimensions: 6 x 12.5 x 6.3 cm

• Origin: USA

Industrial Applications and Operational Use Cases

This transmission module is an essential component for monitoring rotational speed and cumulative totals in heavy-asset industries:

• Power Generation: Tracking steam turbine shaft speeds and generator frequency to provide overspeed protection and grid synchronization data.

• Oil and Gas Extraction: Interfacing with turbine flow meters to provide accurate totalization and flow rate monitoring for custody transfer and production.

• Chemical Refineries: Managing high-frequency pulses from dosing pumps and encoders to ensure precise chemical injection ratios in batch sequences.

• Manufacturing Automation: Synchronizing high-speed conveyor systems and mechanical pulse generators in complex assembly lines.

• Safety Instrumented Systems (SIS): Serving as the high-speed input gateway for safety-critical loops where pulse loss could lead to equipment damage or hazardous conditions.
