Product Overview

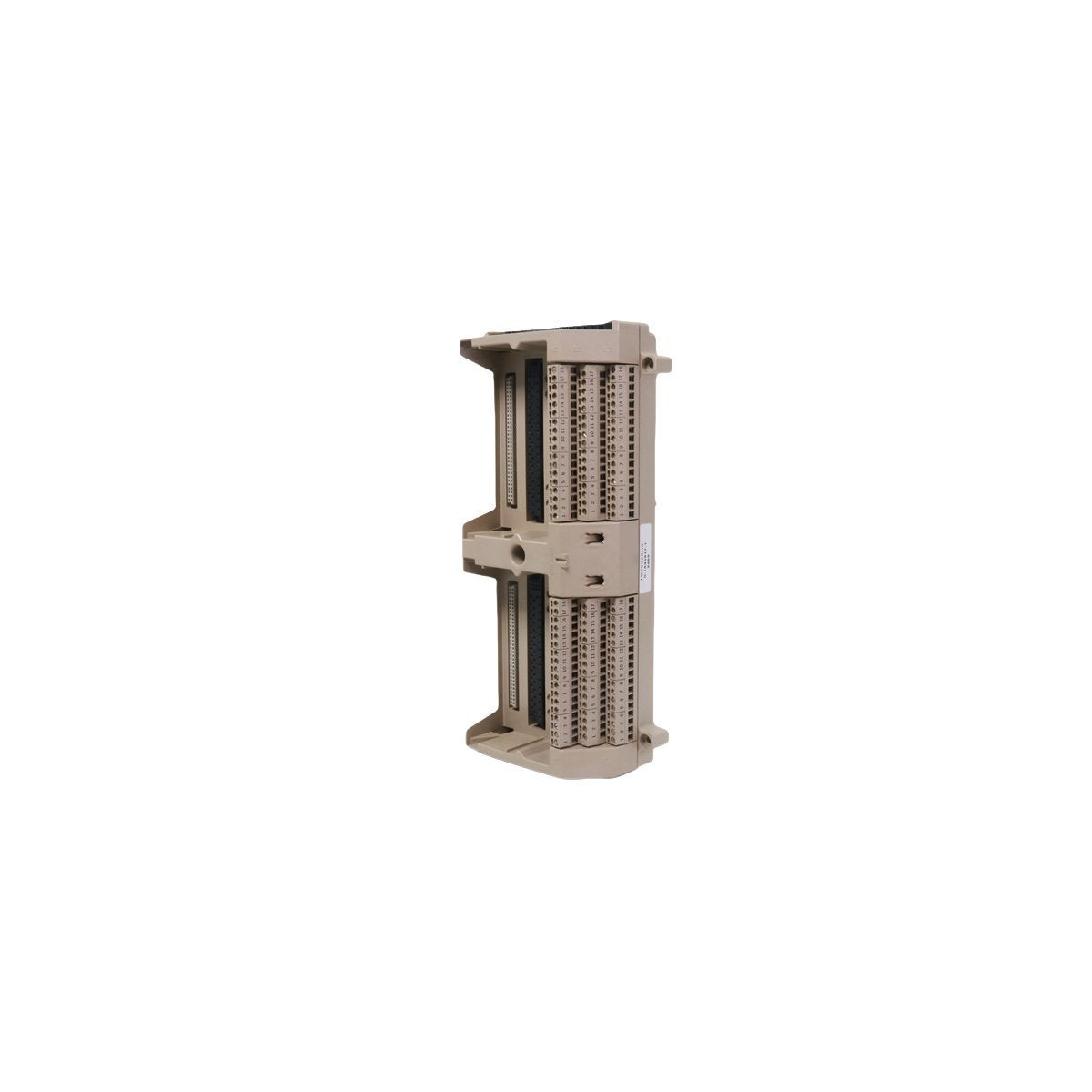

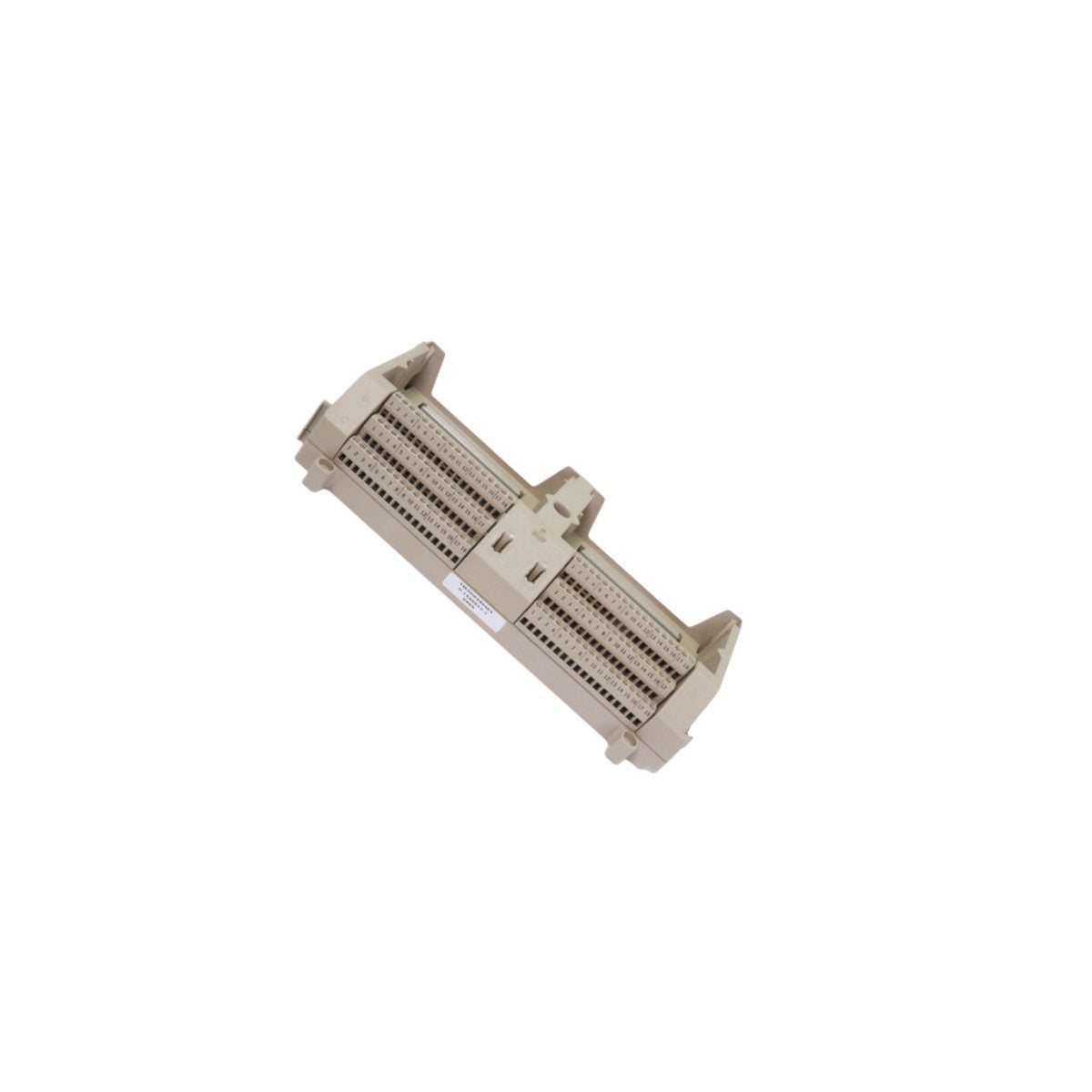

The Emerson 1B30035H01 is a specialized I/O Termination Base designed for the Ovation Distributed Control System (DCS). This mission-critical hardware component functions as the structural and electrical foundation for Ovation I/O modules, providing the necessary interface between field wiring and the system's electronic processing layers. By facilitating secure physical mounting and high-integrity electrical pathways, the 1B30035H01 ensures that process signals are transmitted with minimal interference and maximum reliability.

Originally developed under the Westinghouse heritage and now a core part of the Emerson automation portfolio, this termination base is engineered for high-density control cabinets. It streamlines the connection of field sensors and actuators to the DCS backplane, supporting the deterministic control required in power generation, water treatment, and process safety environments.

Technical Specifications

• Manufacturer: Emerson (Westinghouse)

• Model Number: 1B30035H01

• Product Type: I/O Termination Base / Mounting Assembly

• System Compatibility: Ovation DCS / DeltaV SIS

• Mounting Configuration: Rack or DIN-rail integrated

• Construction: Industrial-grade flame-retardant polymer and corrosion-resistant alloys

• Operating Environment: Hardened for industrial use

• Weight: 0.88 kg

• Dimensions: 28.5 x 12.5 x 6.3 cm

• Origin: USA

Key Technical Characteristics

• High-Integrity Connection Interface: The 1B30035H01 features precision-engineered terminal blocks that ensure low-resistance contact for field wiring. This is essential for maintaining the accuracy of sensitive analog inputs and high-speed digital signals across the control loop.

• Robust Mechanical Foundation: Designed to withstand the mechanical stressors of industrial plant environments, this baseplate provides a rigid platform that protects mounted I/O modules from vibration and physical shock, preventing intermittent signal loss.

• Streamlined Cable Management: The architectural layout of the base facilitates organized field wiring. It provides clear separation between power and signal lines, reducing electromagnetic interference (EMI) and simplifying system troubleshooting and maintenance.

• Flexible I/O Deployment: This termination base supports a variety of Ovation I/O module types. Its modular design allows engineers to scale control systems effectively, providing the versatility needed for diverse industrial applications.

• Thermal Management Design: The low-profile, ventilated structure of the base encourages passive airflow around the electronics, helping to dissipate heat and ensuring that the internal components operate within their specified thermal limits.

• Simplified Field Installation: Standardized mounting provisions and clearly labeled terminal points allow for rapid deployment and commissioning, significantly reducing labor time during system upgrades or new installations.

Primary Applications

The Emerson 1B30035H01 Termination Base is a standard component in:

• Power Generation Facilities: Managing critical boiler and turbine control interfaces.

• Water and Wastewater Treatment: Serving as the reliable I/O junction for distributed pump and valve control.

• Petrochemical Plants: Providing a stable platform for safety-instrumented functions and process monitoring.

• Heavy Manufacturing: Supporting high-density I/O arrays in automated production lines.
