Product Overview

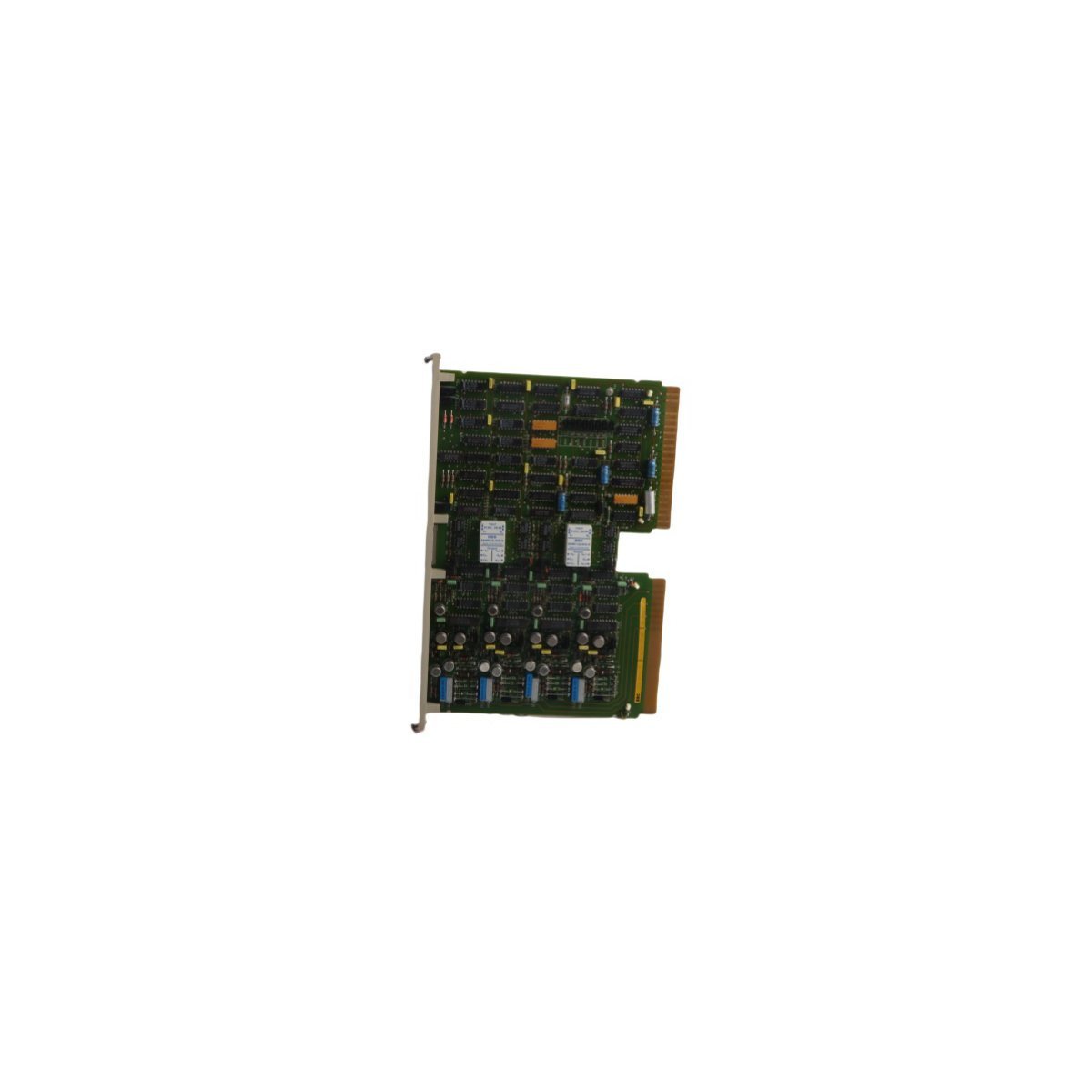

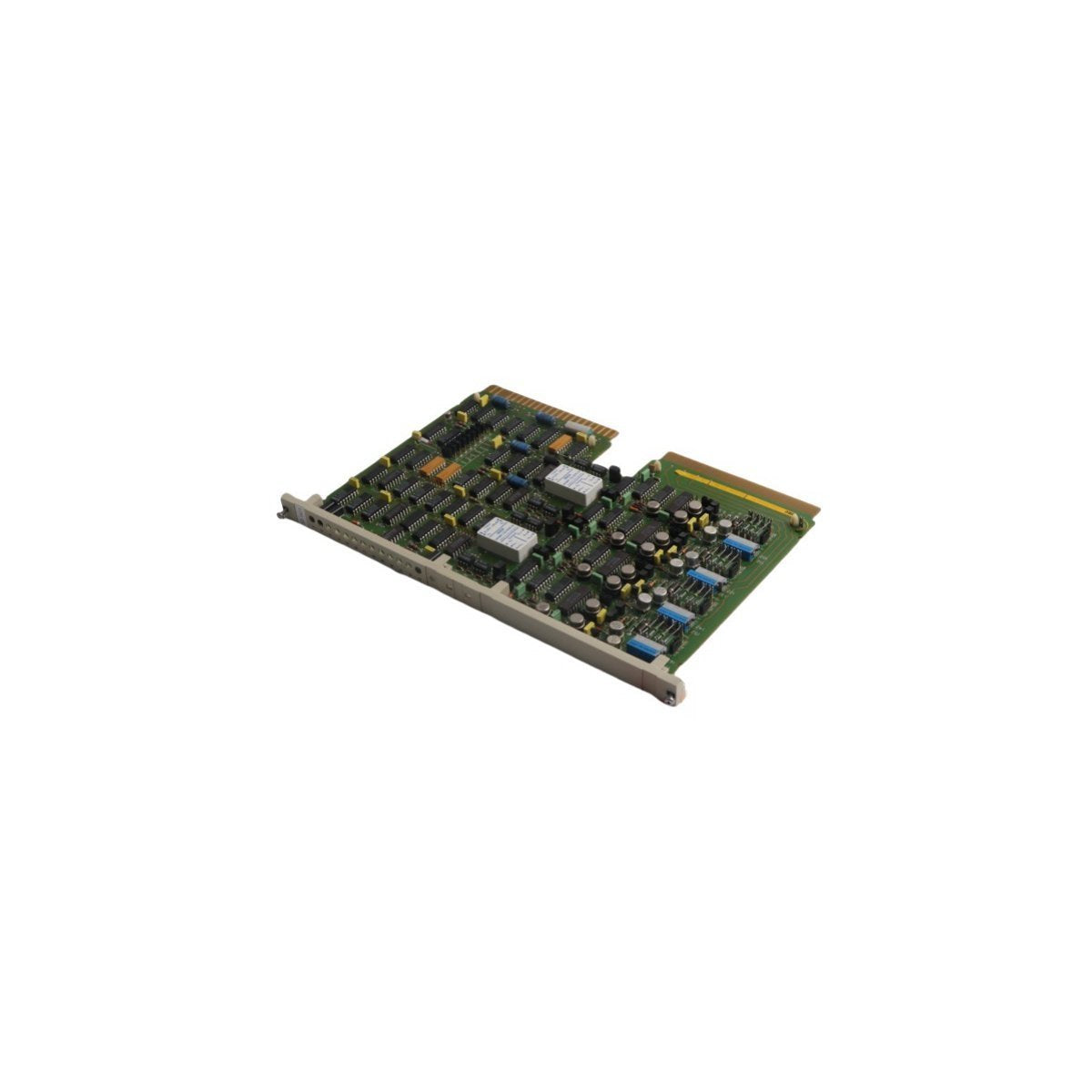

The ABB HESG330061R1, designated as the ED1411C, is a specialized PLC control board engineered for the Procontrol P13 system architecture. This module functions as a high-speed embedded controller within Distributed Control Systems (DCS), managing complex logic execution and output signal processing for large-scale industrial plants. Designed to operate as a central processing node, the ED1411C facilitates real-time data handling and synchronization across the automation network. Its architecture is specifically optimized for high-availability environments, ensuring that critical process control remains stable even during high-demand computational cycles.

Hardware Infrastructure and Technical Performance

• Component Category PLC Board / Output Processing Module

• Model Identifier ED1411C

• Order Reference HESG330061R1

• System Series Procontrol P13

• Protocol Connectivity Modbus TCP/IP, Ethernet/IP, and Profinet support

• Thermal Endurance -20°C to +70°C

• Power Demand Maximum 15 Watts

• Unit Mass 0.48kg

• Physical Dimensions 1.5cm x 20cm x 30.2cm

• Manufacturing Origin Sweden

• Tariff Code (HS) 8537101190

Industrial Deployment and System Utilization

This control board is primarily utilized in the power generation and utility sectors where the Procontrol P13 framework is a standard. Its ruggedized build allows it to function reliably in turbine control rooms and substation environments characterized by high temperatures and electromagnetic interference. Within the DCS hierarchy, the HESG330061R1 manages the interface between digital logic and field-level actuators, ensuring precise execution of automated sequences. Its multi-protocol compatibility makes it an ideal choice for facilities undergoing digital transformation, allowing legacy P13 hardware to communicate seamlessly with modern Ethernet-based management systems and remote diagnostic tools.

FAQ

Q: Is the ED1411C HESG330061R1 compatible with older P13 racks?

A: Yes, it is designed for the Procontrol P13 system. However, you should verify the specific bus requirements and firmware revision of your current rack to ensure full protocol transparency and signal alignment.

Q: How does the 15W power rating impact the system's thermal management?

A: The low 15W maximum consumption is an energy-efficient design that minimizes localized heat buildup on the PCB, allowing the module to maintain stable performance within its 30.2cm vertical slot without the need for active cooling.

Q: Does this board support redundant configuration?

A: Within a Procontrol P13 architecture, the ED1411C can typically be integrated into redundant pairs through the system bus to provide failsafe control for critical plant processes.

Q: What type of field communication is supported by the HESG330061R1?

A: This module is versatile, supporting industry-standard protocols such as Profinet and Modbus TCP/IP, which allows it to interface with a wide variety of modern field sensors and third-party controllers.

Q: What are the primary indicators for troubleshooting on the ED1411C?

A: The module includes localized status indicators that report on power health, communication link status, and internal processor faults, allowing maintenance teams to quickly diagnose issues without extensive external tools.
