Product Overview

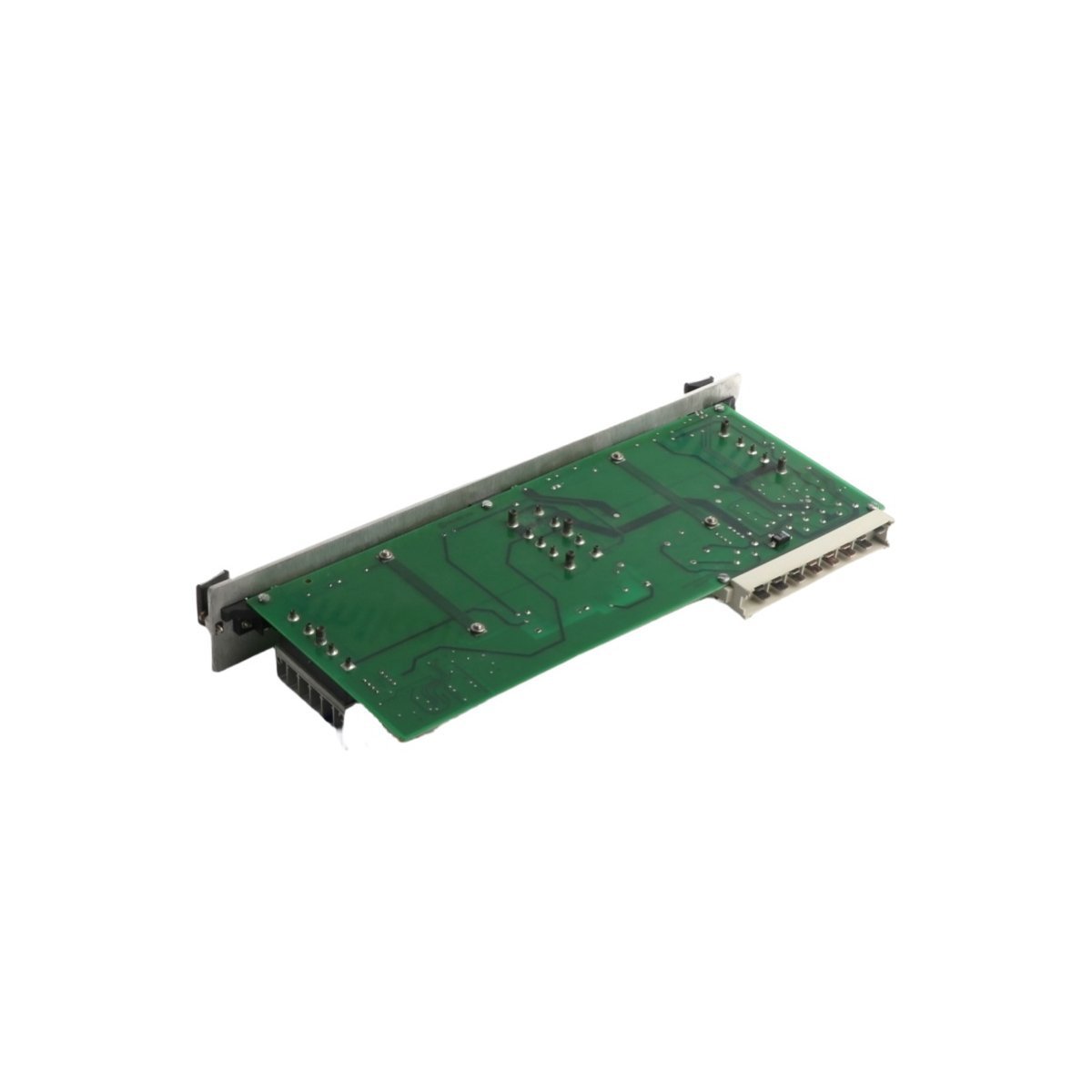

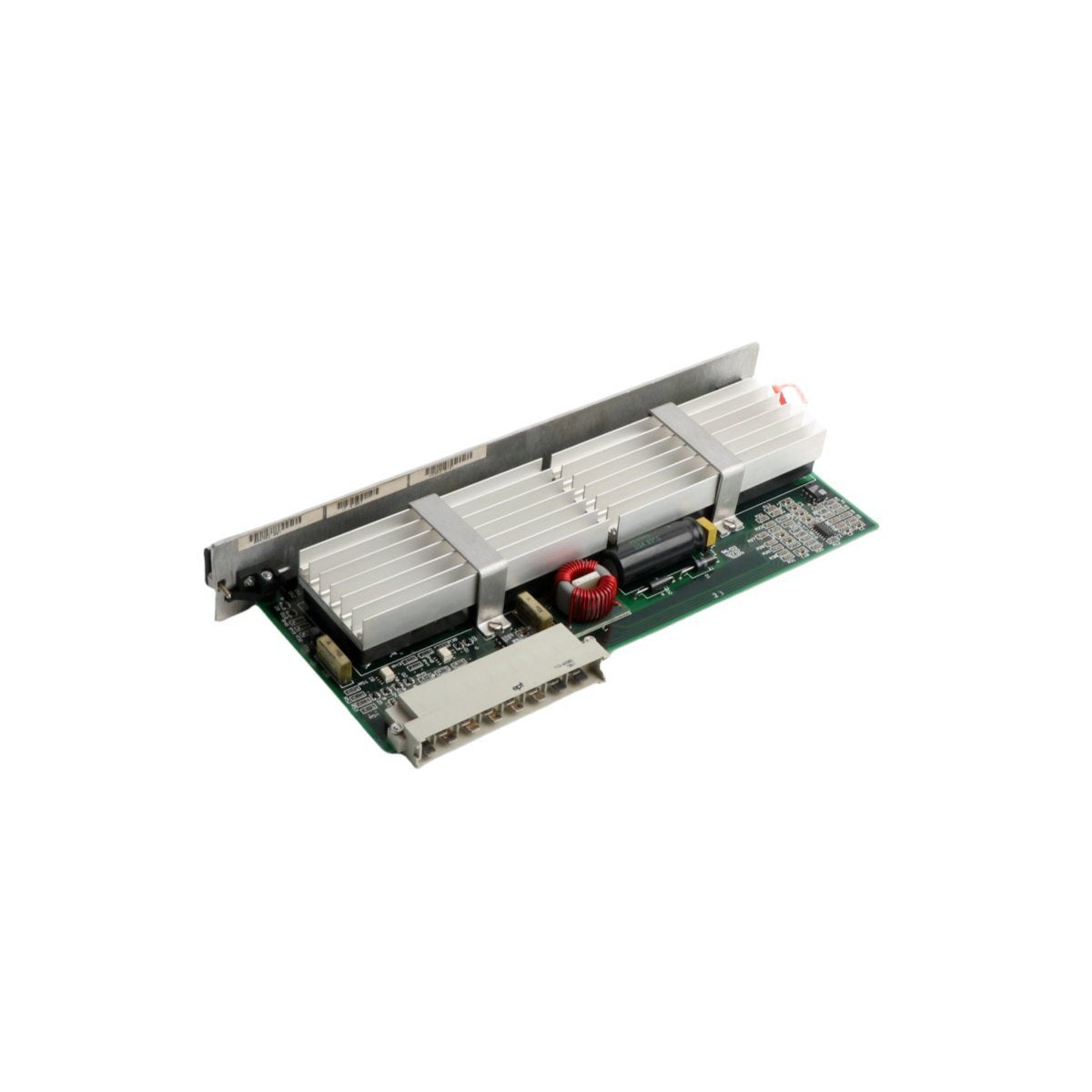

The ABB EC24V 086362-001 is a high-performance bulk DC power supply and intelligent control module designed to provide a stabilized energy source for sensitive industrial automation components. It addresses the critical need for clean 24V DC power in Distributed Control Systems where voltage fluctuations can lead to logic errors or hardware failure. Beyond simple power delivery, this module incorporates a 32-bit DSP processor to manage digital and analog signal inputs, effectively serving as both a power hub and a local monitoring interface. Its design focuses on electrical safety through 500V AC isolation, ensuring that logic circuits remain protected from ground loops and electrical noise common in heavy manufacturing and process control environments.

Essential Hardware Parameters

Model Code Decomposition

The designation EC24V 086362-001 follows ABB technical nomenclature for power and control hardware:

• EC24V: This prefix identifies the primary function as an Electronic Control and Power Supply unit delivering a standardized 24V DC output.

• 086362: This unique part sequence refers to the specific hardware architecture, including the internal DSP processor and input/output circuit layout.

• 001: Denotes the primary hardware revision level. This version is optimized for high-density cabinet mounting and features integrated 500V AC isolation between the field inputs and the internal logic controller.

Installation Strategy and Wiring

To ensure maximum reliability and safety in industrial settings, the following installation protocols are required:

• Mounting and Clearance: Install the module vertically within the control cabinet to allow for natural convection cooling. Due to its slim 4cm profile, it is ideal for space-constrained racks, but ensure that adjacent heat-generating components do not exceed the 50-degree Celsius ambient limit.

• Input Connection: Connect the primary power source to the designated terminals. Use appropriately gauged copper wire to maintain the 24V DC stability. The 500V AC isolation is built-in, but always verify that the cabinet ground is securely bonded.

• Signal Wiring: For the two analog inputs, use shielded twisted-pair cables. These can be configured for either plus/minus 10V or 0-20mA signals depending on your specific sensor requirements. The shield should be grounded at the module end to prevent EMI interference.

• Digital Integration: The 6 digital inputs are designed for 24V DC logic. Ensure that the external field switches or sensors are compatible with the module's 10 percent voltage tolerance to prevent intermittent signal detection.

FAQ Frequently Asked Questions

Does the EC24V 086362-001 require external cooling?

Under normal operating conditions within the specified temperature range (-15 to +50 degrees Celsius), the module relies on passive cooling. However, in tightly packed cabinets with limited airflow, active ventilation is recommended to prevent thermal derating.

What happens if the input voltage exceeds the 10 percent tolerance?

The module is built for industrial robustness, but consistent over-voltage can trigger internal protection circuits. It is best practice to use a stabilized primary power source to ensure the 32-bit DSP processor maintains accurate signal processing.

Is this module compatible with standard Ethernet routers for DCS?

Yes, as a part of the active DCS series, this power supply and control module is designed to work in tandem with Ethernet-enabled communication services to provide real-time status and power diagnostics to the central control station.
