Product Overview

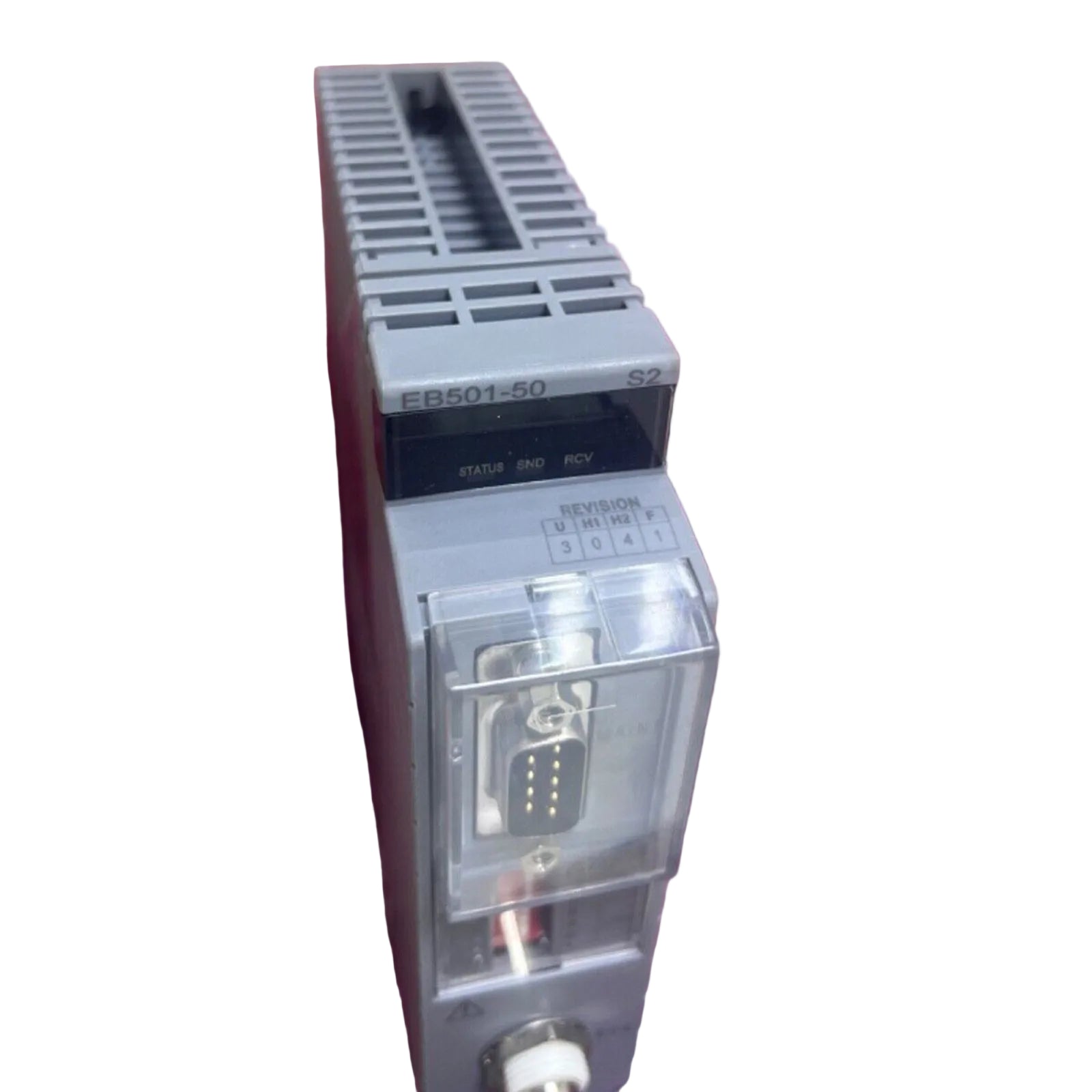

The EB501-50 serves as a critical communication bridge within the Yokogawa CENTUM VP and CS 3000 Distributed Control System (DCS) architectures. Functioning as an ER Bus Interface Slave Module, this component establishes a high-speed data link between Field Control Units and remote ER bus node units. By utilizing a robust 10 Mbps transmission rate, the module allows for the seamless expansion of I/O points across segmented industrial networks. Its design is centered on maintaining deterministic communication and system integrity, ensuring that field data is accurately relayed to the primary processing controllers in real-time.

Architectural Specifications and Hardware Metrics

• Network Stability: Specifically engineered for the ESB (Ethernet-based System Bus) physical layer to ensure low-latency data throughput.

• Environmental Tolerance: Rated with IP20 protection for integration into controlled industrial panels and cabinets.

• Redundancy Support: Fully compatible with redundant ER bus configurations to eliminate single points of failure in the communication path.

• System Compliance: Adheres to CE and RoHS standards for global industrial safety and environmental regulations.

Strategic Industrial Implementations

The EB501-50 is primarily deployed in large-scale processing environments where I/O modules are distributed far from the central control room. Common applications include:

• Distributed I/O Management: Linking remote ER Bus Node Units to a central FCU to minimize field wiring costs and complexity.

• Oil and Gas Refining: Facilitating reliable data transmission across expansive plant sections where distance and electromagnetic interference are prevalent.

• Chemical Processing: Providing a stable communication interface for FIO (Field Interface I/O) architecture within hazardous or high-demand environments.

• Power Plant Automation: Enabling redundant transmission paths for critical sensor data to ensure continuous monitoring and safety shutdowns.

FAQ

Q: Does the EB501-50 require specific cabling for maximum transmission distance?

A: Yes, to achieve the maximum 185-meter range, YCB141 coaxial cable is recommended. For YCB311 cables, an appropriate adapter such as the YCB147 or YCB149 must be utilized.

Q: Is there a warm-up period required for this module in cold climates?

A: If the ambient temperature is between -20°C and 0°C, a startup delay of approximately 10 minutes is necessary to ensure internal electronic stabilization.

Q: What is the primary difference between the slave interface and a master interface in this system?

A: The EB501-50 acts as a slave, meaning it resides in the ER Bus Node Unit and responds to requests from the master interface located in the Field Control Unit.

Q: Can this module be used in a redundant bus configuration?

A: Absolutely, the EB501-50 supports redundant ER bus paths, which is a standard requirement for high-availability DCS environments.

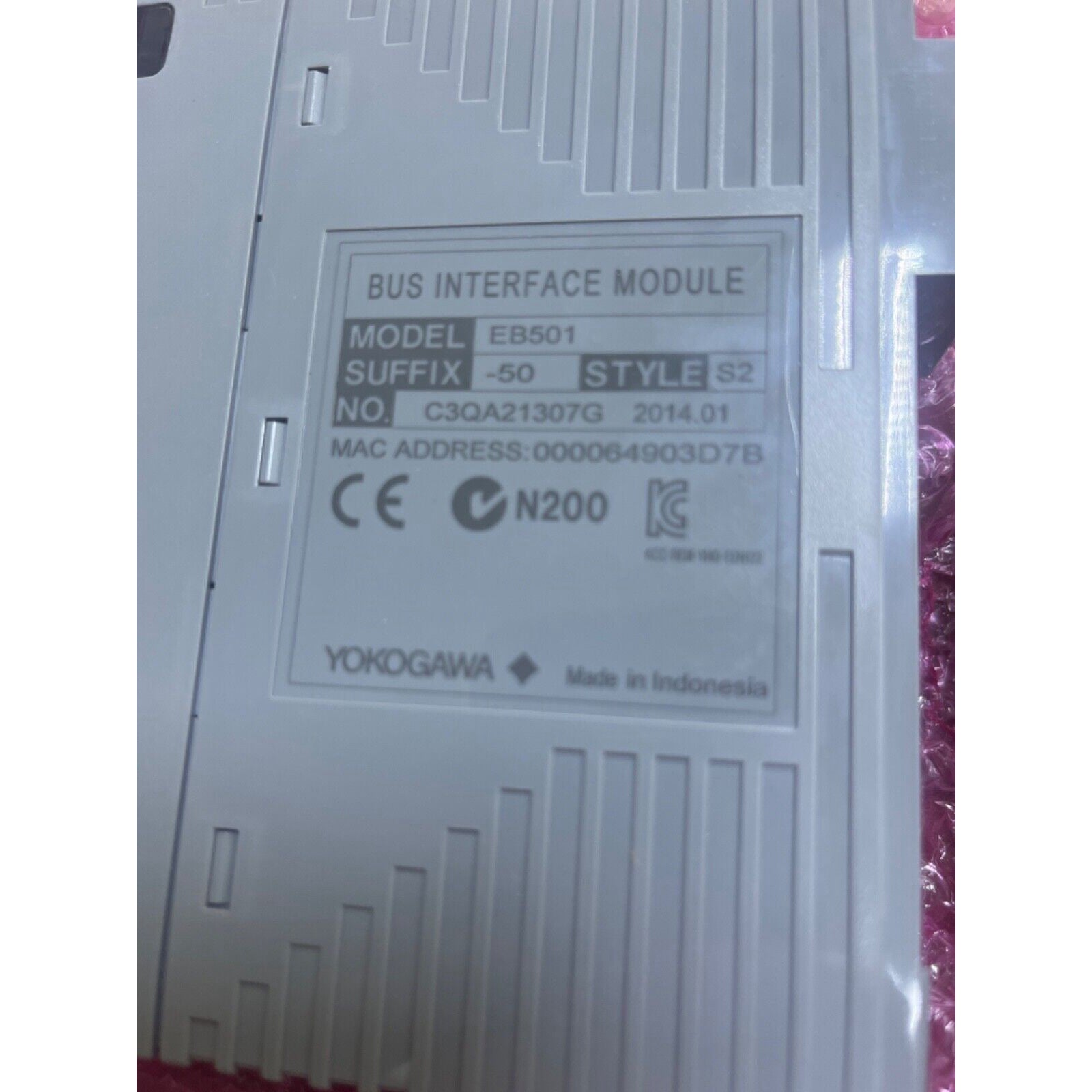

Q: What does the suffix code -50 indicate for this specific Yokogawa SKU?

A: The suffix -5 denotes a standard type without explosion protection, while the 0 indicates it is a basic functional model within that category.
